Your Dream Home is Waiting! Save 15% Off & Free Ground Shipping

Limited plans not eligible for discounts

Northwest House Plan 039-00586

Sq Ft3,471
Beds3
Baths4
1/2 Baths0
Stories2
Cars2
Width91' 6"
Depth42' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor Plan for House Plan #039-00586
Upper Floor Plan for House Plan #039-00586

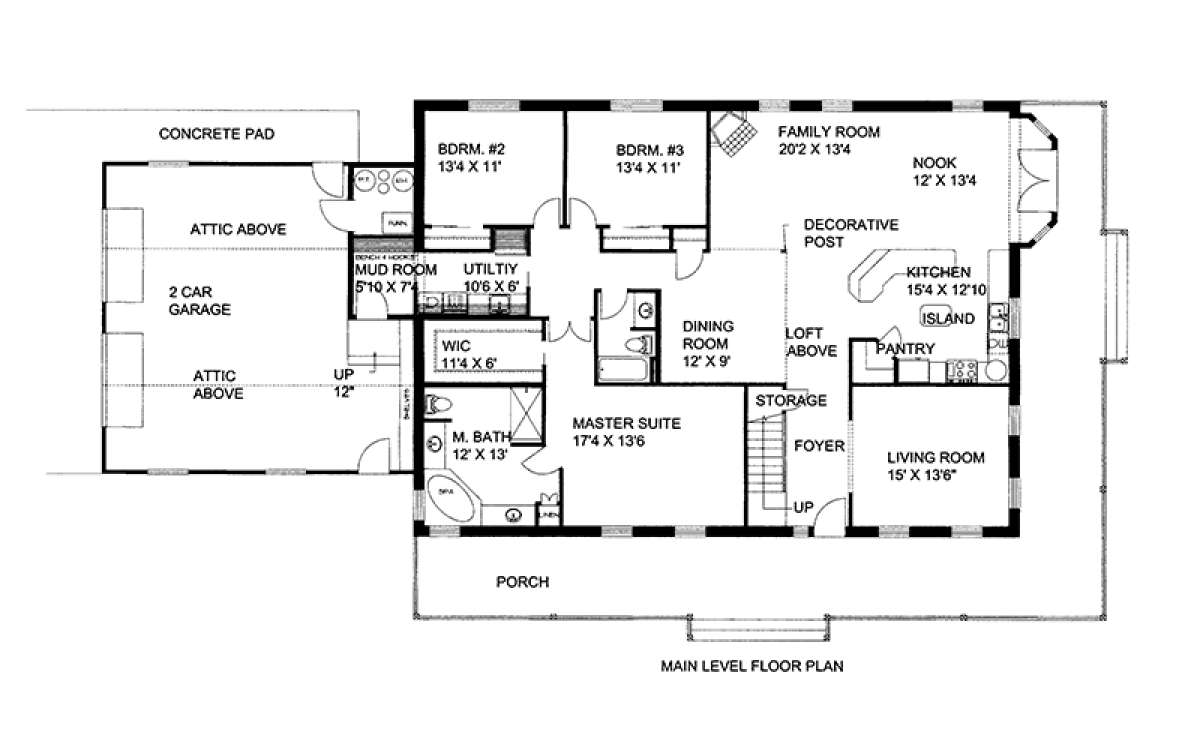

Main Floor Plan
Main Floor Plan for House Plan #039-00586

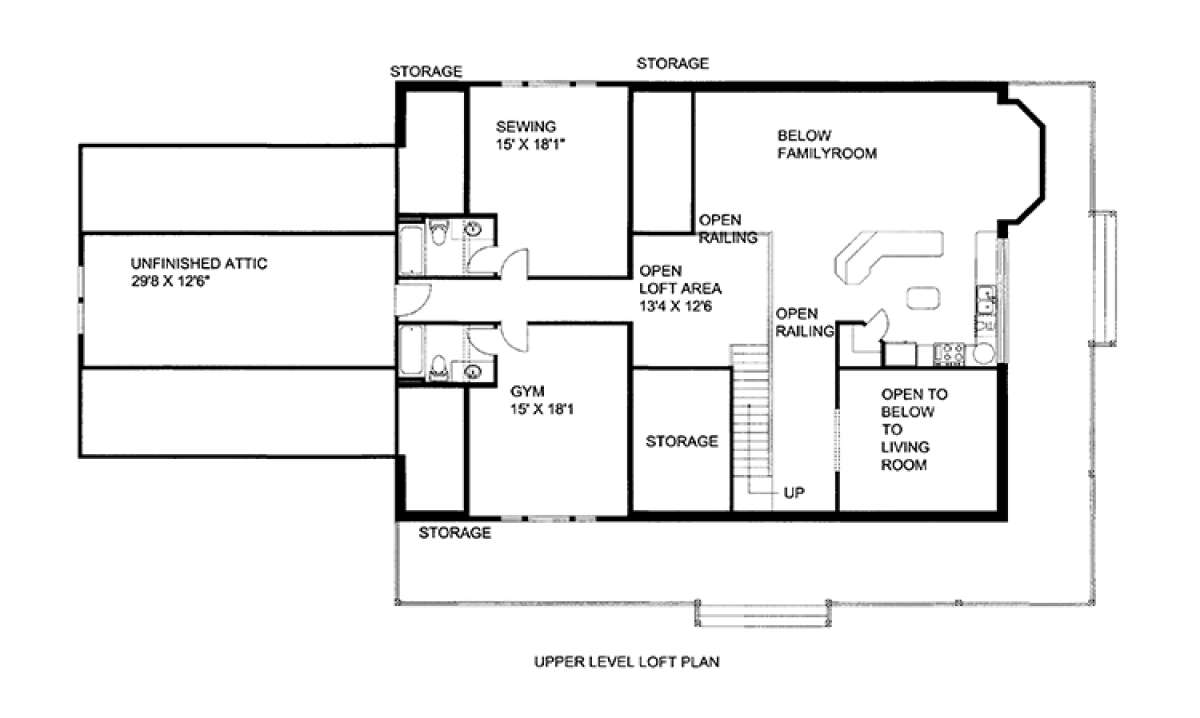

Upper Floor Plan
Upper Floor Plan for House Plan #039-00586


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

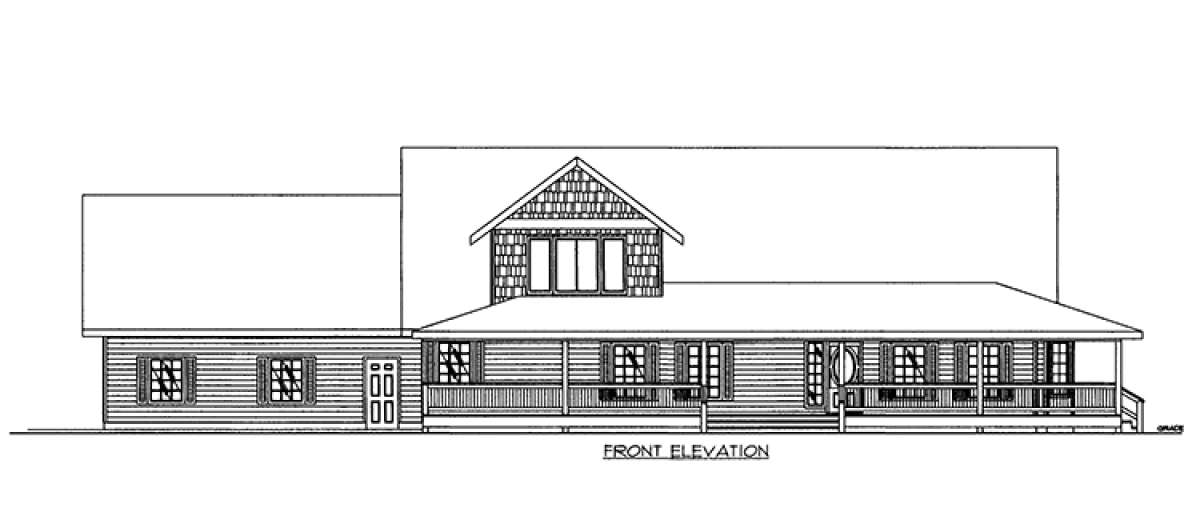

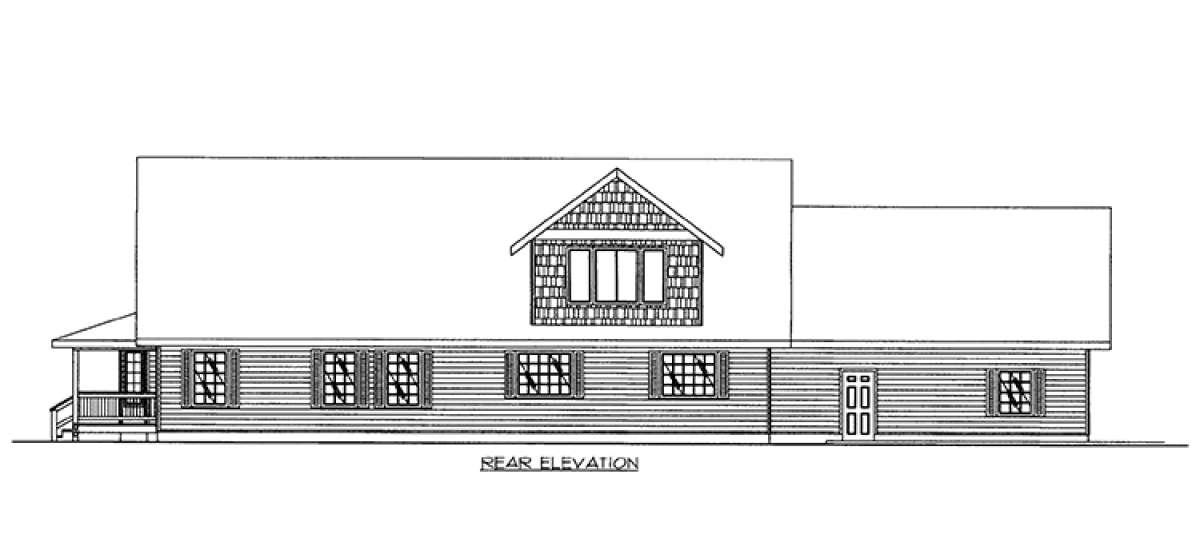

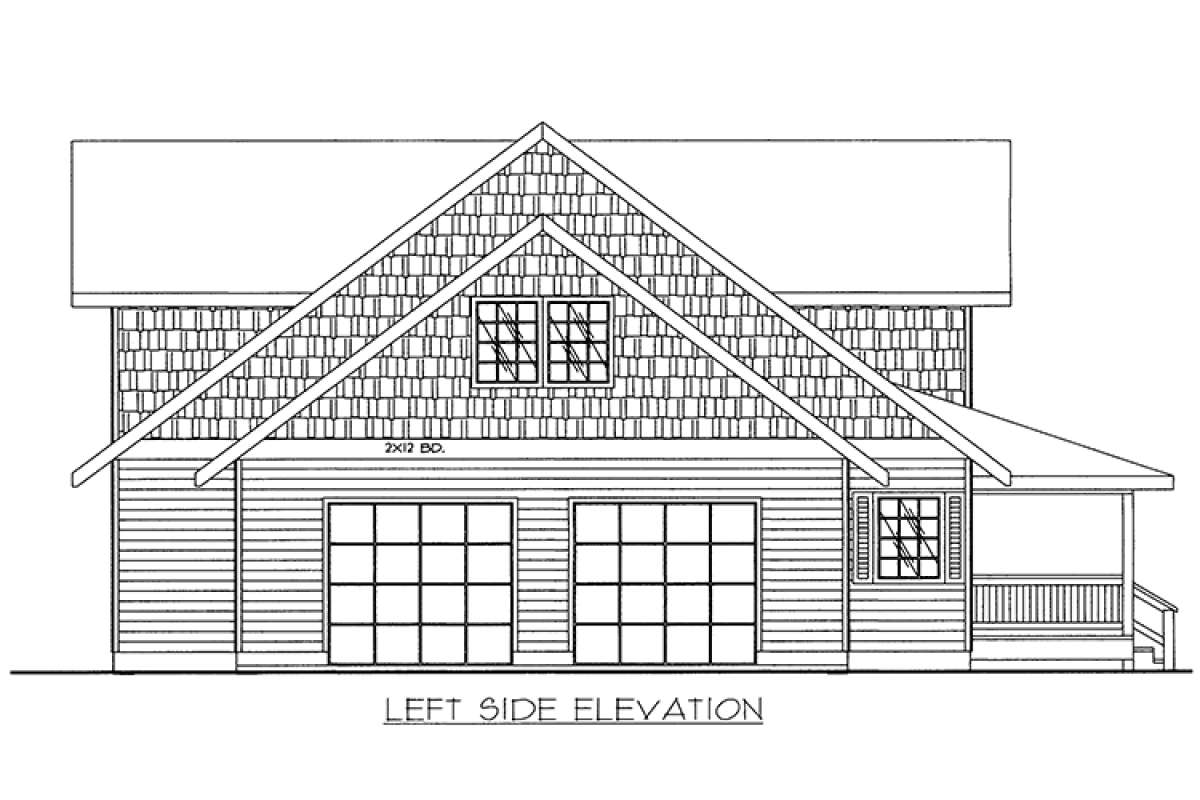

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

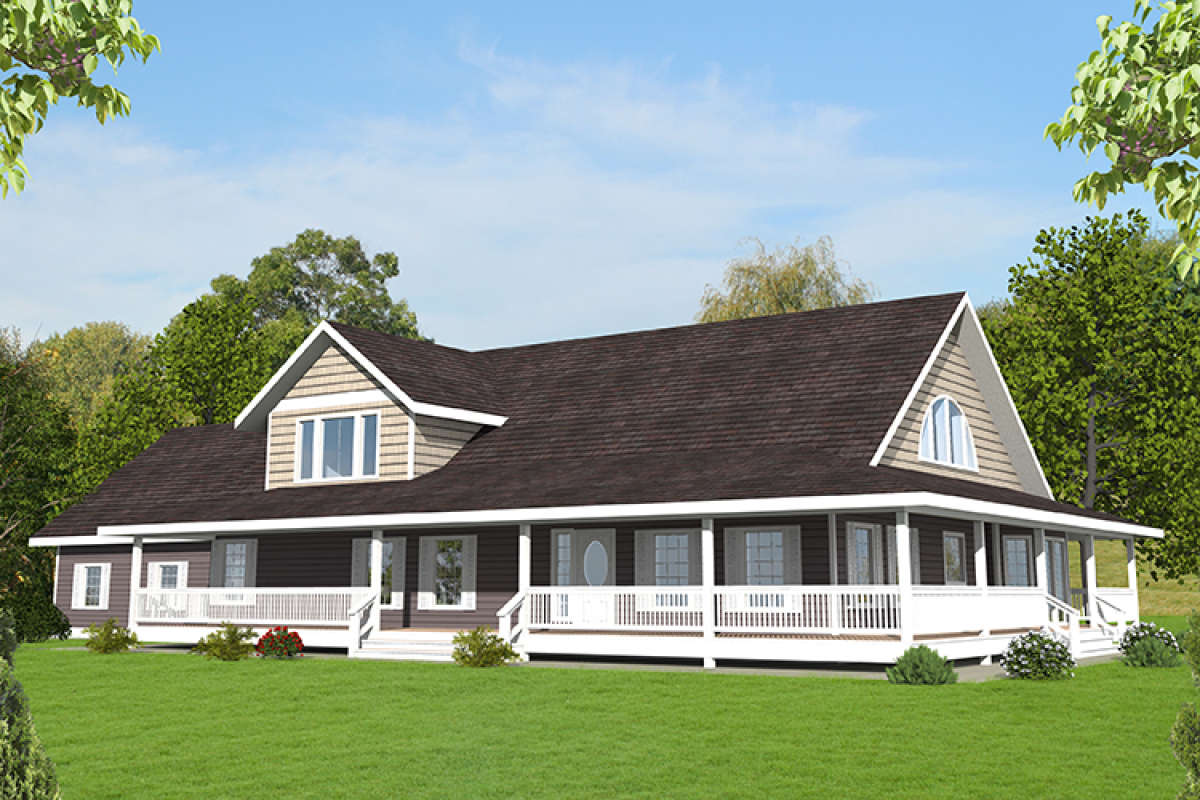

This lovely Northwest house plan features an exterior that is simultaneously simple and luxurious. The horizontal siding, multitude of window views and the amazing wraparound porch combine to create an attractive façade with enormous curb appeal. The interior floor plan is highlighted with approximately 3,471 square feet of living space that includes three bedrooms and four baths. The two storied home is a great family layout with large well-designed rooms perfect for entertaining and relaxing. There is a two car side loading garage with plenty of vehicle and storage space within its 30’ x 30’ footprint. The utility room and mudroom are nearby combining to create a tidy home environment. The elongated front foyer houses the second story staircase and is flanked on one side by the formal living room which is surrounded by beautiful window views overlooking the wraparound porch. The open floor plan features an abundance of living and dining space; there are formal and casual dining spaces situated on the diagonal. The breakfast nook is bright and airy and offers French door access onto the covered porch; ideal for dining al fresco. An adjacent family room is large and features a corner warming fireplace while the grand kitchen makes prepping and serving meals enjoyable. The kitchen is highlighted with an angled breakfast bar, a separate corner pantry and plenty of additional counter and cabinet space. There are two secondary bedrooms down the hallway; they are equivalent in size and feature window views and plentiful closet space. The shared hall bath includes a vanity space, toilet area and a tub/shower combination. The master suite is also located on the main floor and includes a large master bedroom with overviews onto the covered porch, a large walk-in master closet and a spacious master bath. The bathroom enjoys generous floor space and a host of modern amenities today’s homeowner’s desire; dual vanities, a corner garden tub, separate shower, toilet area and linen closet.

The second story of the home is highlighted with beautiful overviews onto the family room, foyer and living room. There is a second story landing loft that is large and comfortable which could be used as a playroom or older children’s lounge. Traveling the hallway are two oversized rooms of equivalent size; each has a full private bath and could function as either bedrooms or multi-purpose family rooms. There is also a large amount of unfinished attic space, measuring in excess of 29’ x 12’. Scissor trusses create vaulted ceilings on the second floor which vaults to 10' but is 6’ 11’ at its lowest point. Over the garage where the attic trusses are, the vault is from 6'5" to 8'. This lovely house design is highlighted with enormous curb appeal, excellent outdoor space and a family friendly layout that is versatile and functional.
