Vacation House Plan 8504-00094

Sq Ft2,278
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width70' 0"
Depth45' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00094
Floorplan 2 for House Plan #8504-00094
Garage for House Plan #8504-00094
Floorplan 1
Floorplan 1 for House Plan #8504-00094
Floorplan 2
Floorplan 2 for House Plan #8504-00094
Garage
Garage for House Plan #8504-00094


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

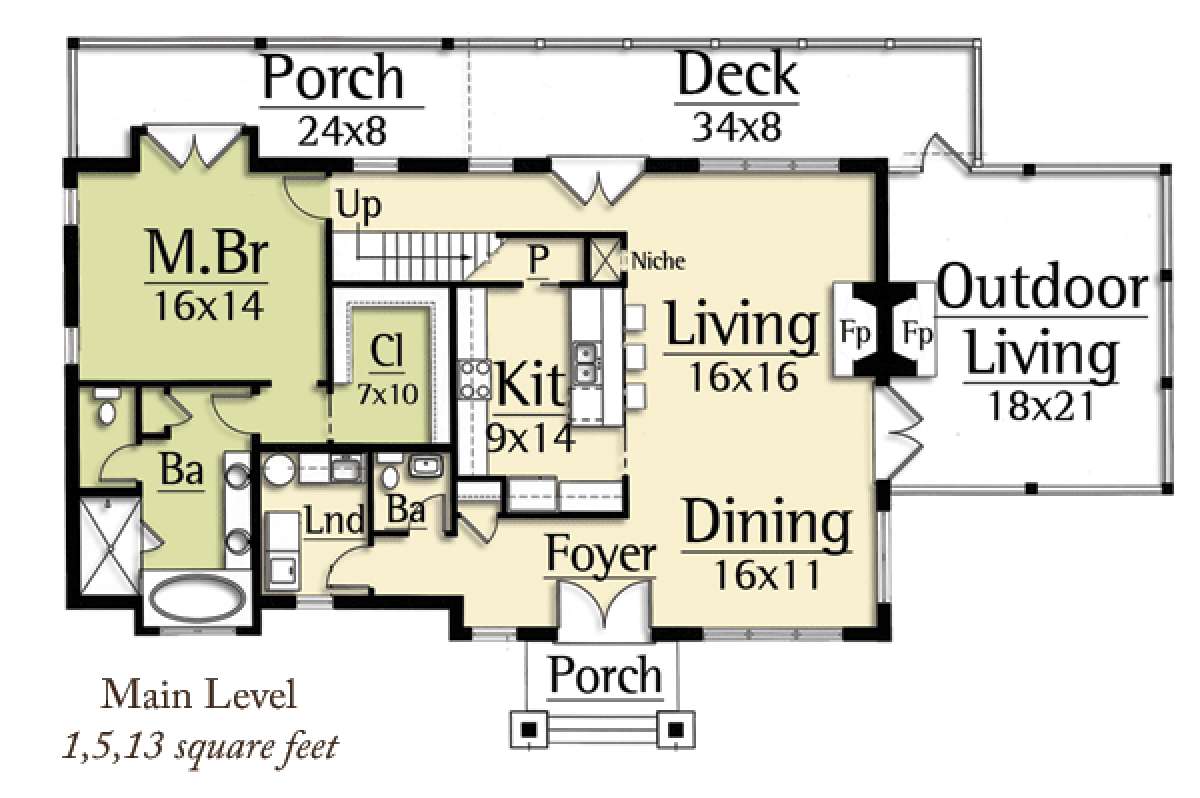

This two tiered Rustic charmer has a plethora of outdoor space designed to take advantage of nature and “her” abundant beauty. Multiple split gables, decorative eaves and a covered front porch with stacked stone wooden beams highlight the front exterior. A side outdoor living room and rear porch and deck beautifully complement the exterior and provide additional entertaining and family relaxing spaces. The home’s interior floor plan is equally stunning and offers in excess of 2,200 square feet of living space incorporating three bedrooms and two plus baths in 1.5 stories. Additionally, there is a detached two car garage with 624 square feet of space; plenty of room for vehicle and other gear storage. The front foyer features a coat closet and entrance into the home’s main living areas; there is a dining room with a triple window wall and the interior living room is spacious with a double sided warming fireplace which extends to the outdoor living space. The outdoor living space measures 18’x21’ and offers immeasurable comfort and space to enjoy year round relaxing and entertaining with access onto the rear deck and additional covered porch. The grand kitchen features a casual breakfast bar, oversized pantry and an abundance of additional counter and cabinet space. There is a rear gallery hallway which features French door access onto the rear outdoor spaces making entertaining and dining al fresco enjoyable and a breeze. A spacious laundry room and guest half bath is also available on the first floor along with a main level master suite. The master bedroom is spacious with French door accessibility onto the rear covered porch and there is an attached master walk-in closet. The master bath is highlighted with modern amenities which include dual vanities, a separate shower, garden tub and a compartmentalized toilet.

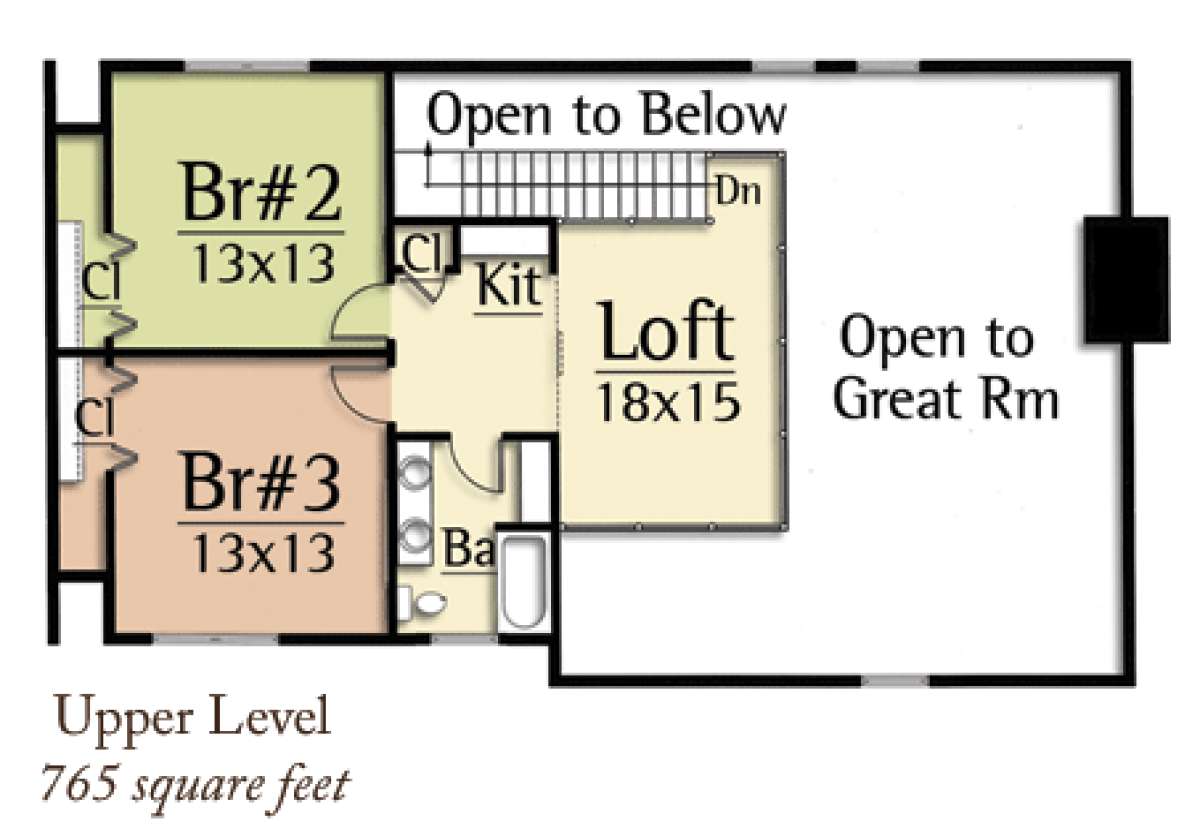

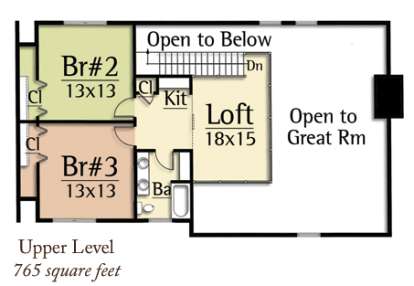

The second story landing opens onto the large loft area which could function as a teen-ager lounge or playroom for younger children. There is an overlook onto the great room and kitchen below and two additional bedrooms and a bath. Both bedrooms features generous floor space and plentiful closet space while the shared bath offers double vanities for ease and comfort enhancing the morning routine. This rustic home features a handsome exterior, many common living/entertaining areas and a spacious interior floor plan.
