Vacation House Plan 8504-00059

Sq Ft2,652
1/2 Baths1
Width76' 0"
Depth40' 0"

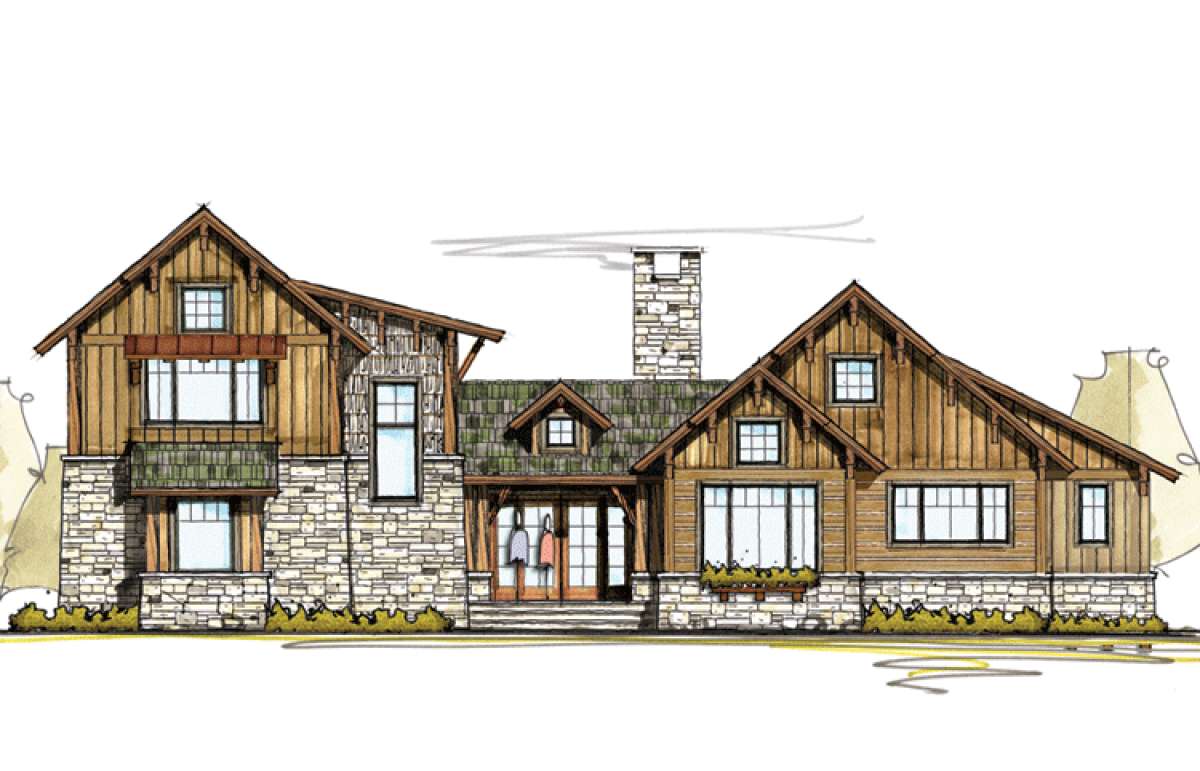

Vacation House Plan #8504-00059 Elevation Photo

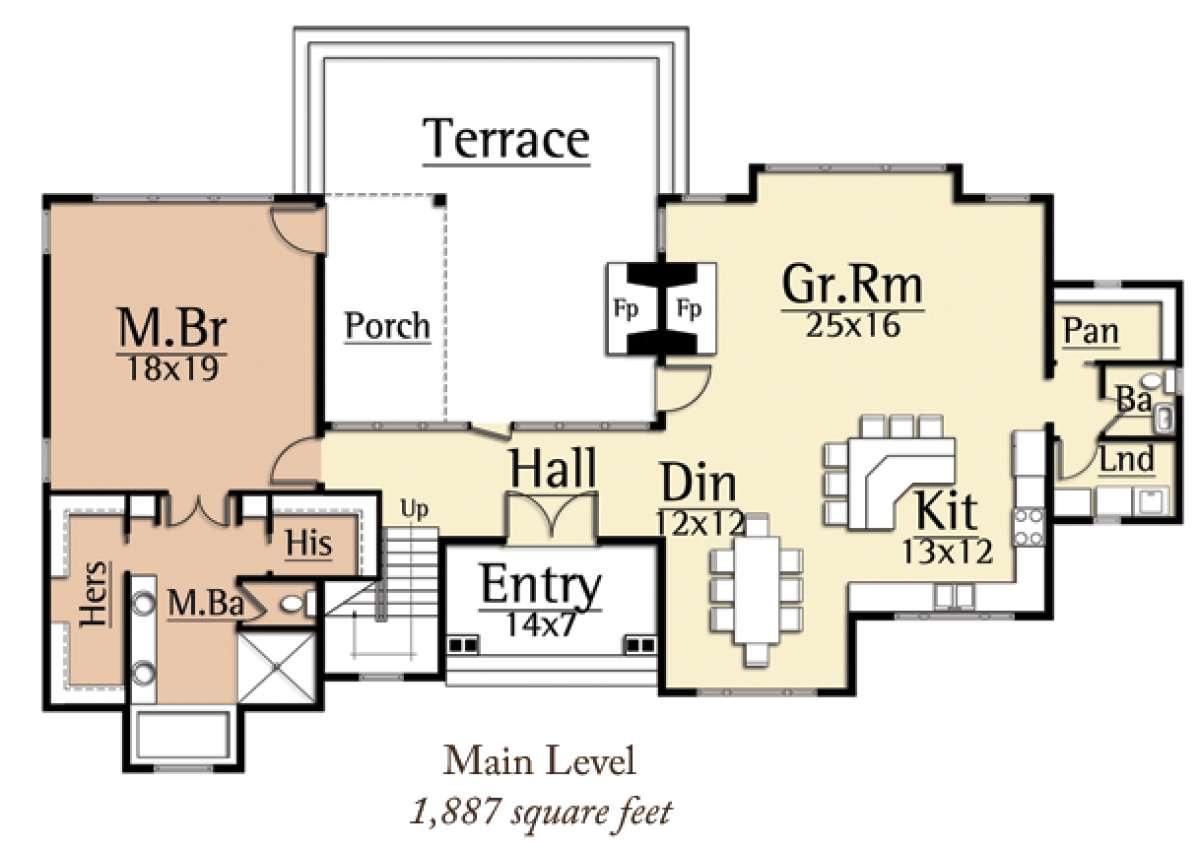

Floorplan 1
Floorplan 1 for House Plan #8504-00059

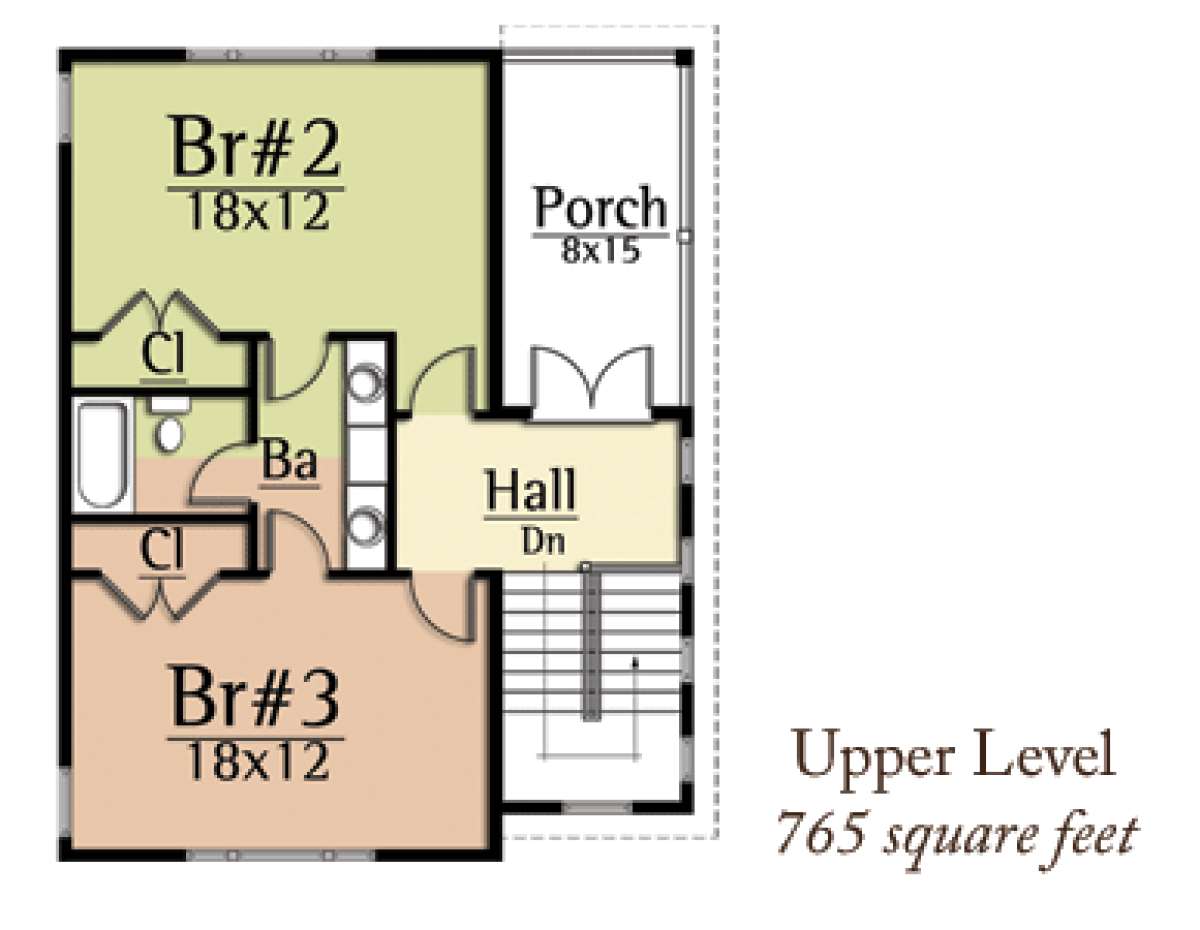

Floorplan 2
Floorplan 2 for House Plan #8504-00059
Garage for House Plan #8504-00059
Vacation House Plan #8504-00059 Elevation Photo
Floorplan 1 for House Plan #8504-00059
Floorplan 2 for House Plan #8504-00059
Garage for House Plan #8504-00059
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00059
Floorplan 2 for House Plan #8504-00059
Garage for House Plan #8504-00059
Floorplan 1
Floorplan 1 for House Plan #8504-00059
Floorplan 2
Floorplan 2 for House Plan #8504-00059
Garage for House Plan #8504-00059

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The sprawling exterior of this Vacation home is designed in lodge fashion with stacked stone, exposed rafters, cedar shakes and a front covered porch. Rising in the background is a stacked stone chimney which grounds the home’s balanced approach to symmetry and the addition of a multitude of window views and double door entry provide eye catching detailing. The interior of the home features in excess of 2,650 square feet of living space making this home perfect as a large vacation home or “forever” home. Three bedrooms and two plus baths line the interior of the 1.5 storied home and there is a two car detached garage for vehicle and other storage gear. The double door entryway leads to the main hall where the layout expands east to west while simultaneously leading to the outdoor space. The outdoor space features a covered porch surrounded by an open terrace and warmed by the double sided fireplace; this is great space to entertain and relax and there are access points onto the porch and terrace from the great room and master bedroom as well. The casual dining room features space for a farmhouse table where making memories while celebrating special family events will be a priority. The adjoining kitchen is highlighted by a fabulous center island with wraparound seating and rear and side walls of modern amenities. Both rooms open onto the great room with its warming fireplace and a rear vista wall of window views. Situated off the common rooms are a huge walk-in pantry, half bath for guests and a spacious laundry room.
The main level master suite is an elegant design within a rustic setting; the large bedroom measures 18’x19’ and features private access onto the rear porch where having morning coffee will be relaxing and enjoyable. There is French door access into the en suite where dual vanities, a compartmentalized toilet, separate shower and a large soaking tub are revealed. His and her oversized walk-in closets are situated on either side of the master bath for privacy. The second story landing culminates onto a wide hallway where access to the covered porch is provided as well as access to the secondary bedrooms and a jack and jill bath. Both bedrooms are clearly oversized, measuring 18’x12’ with amazing window views and generous closet space. The jack and jill bathroom features separate dual vanities and a shared tub/shower combination. This lodge inspired home features an abundance of space, outstanding outdoor space and a striking exterior façade.
