Cabin House Plan 8504-00073

Sq Ft1,266
Beds3
Baths2
1/2 Baths0
Stories2
Cars2
Width22' 0"
Depth53' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00073
Floorplan 2 for House Plan #8504-00073
Garage for House Plan #8504-00073
Floorplan 1

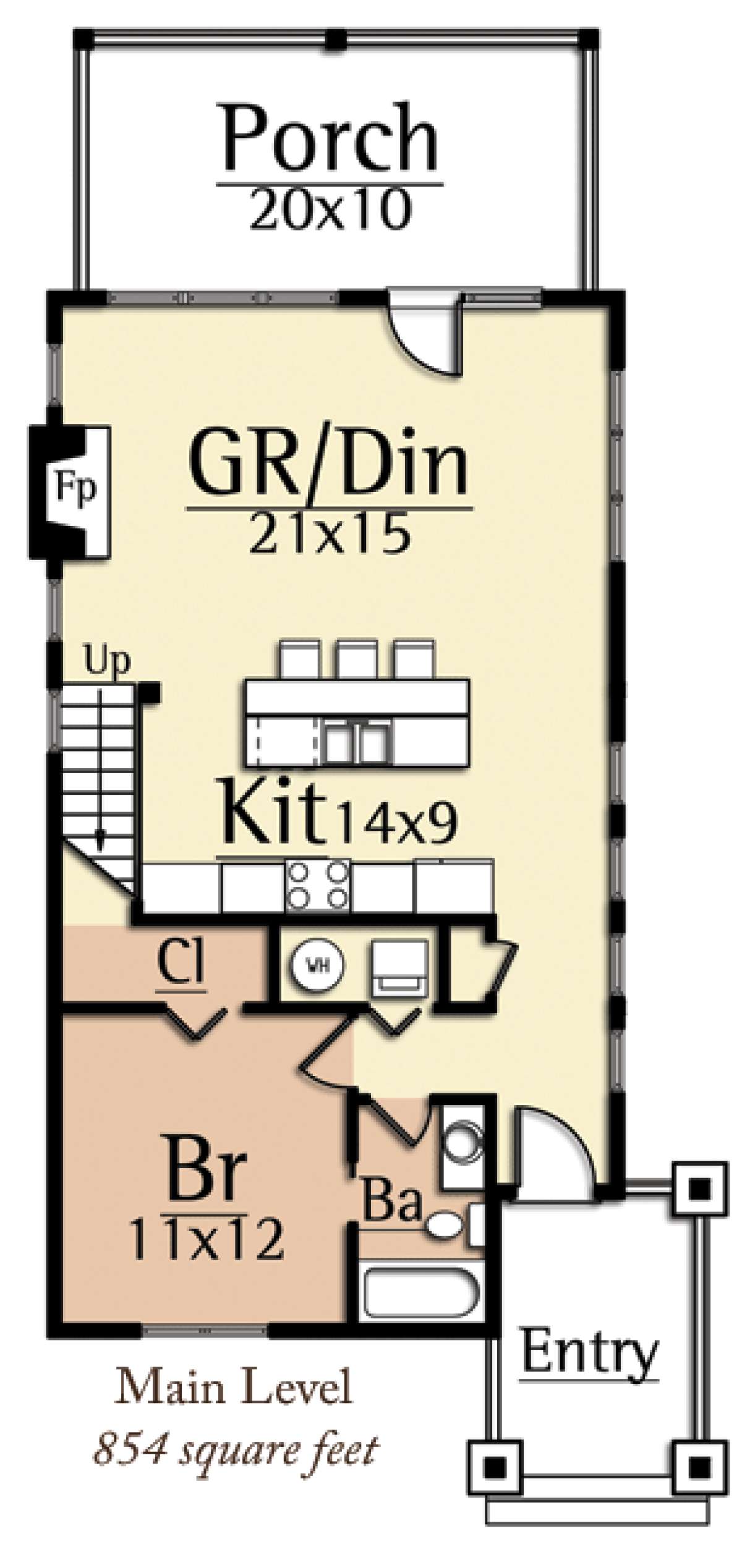

Floorplan 1 for House Plan #8504-00073
Floorplan 2

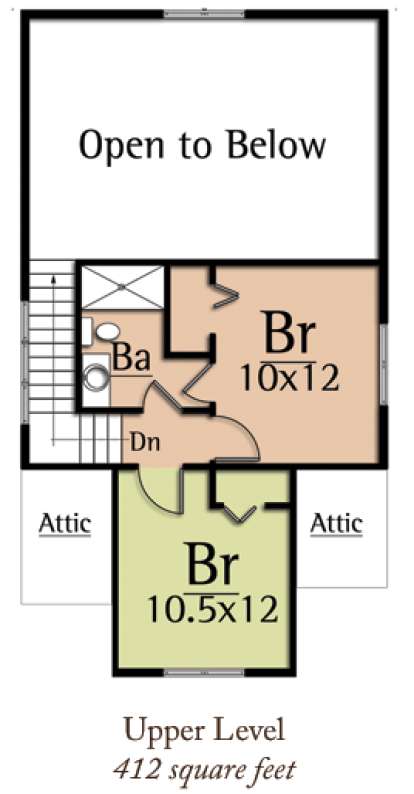

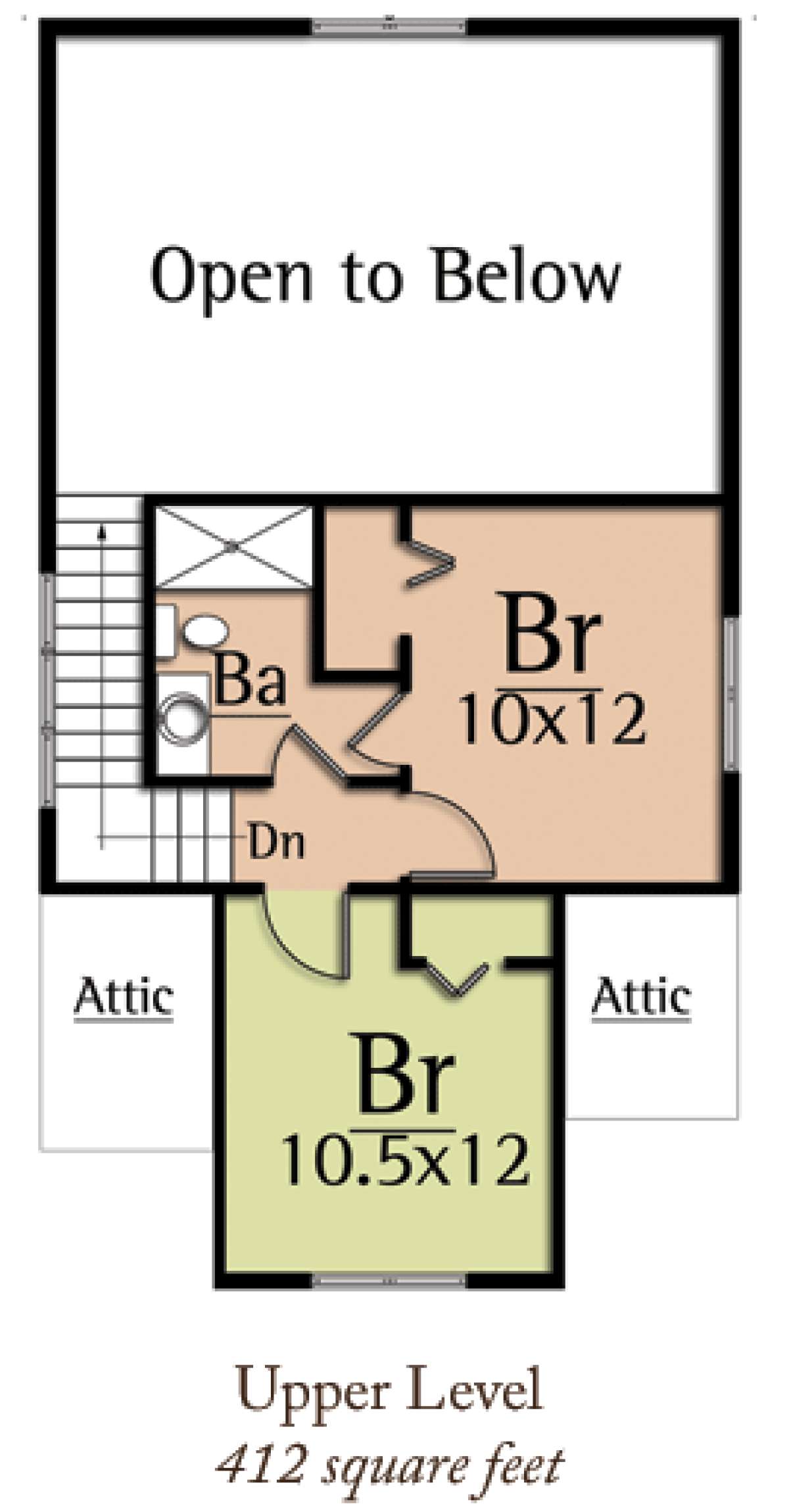

Floorplan 2 for House Plan #8504-00073
Garage
Garage for House Plan #8504-00073


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

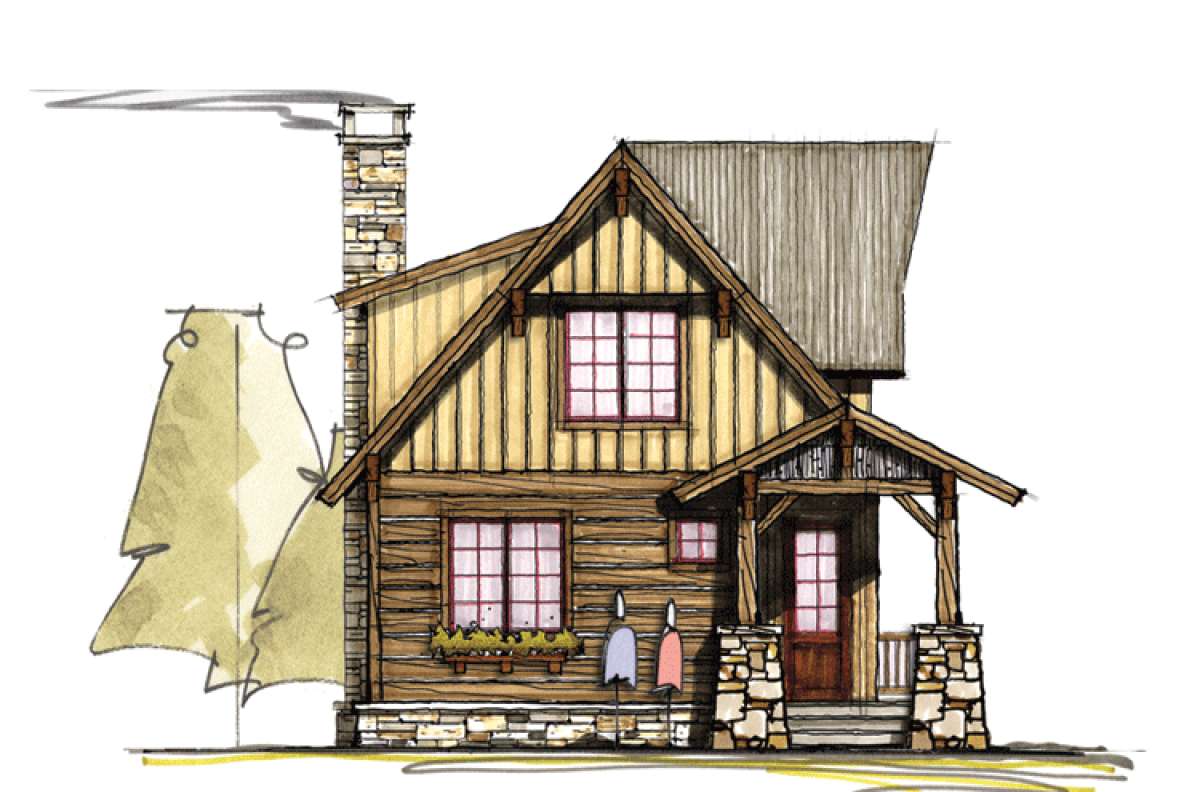

This Cabin house design is inspired by the look and feel of Lodge design with an exterior composed of stacked stone, exposed rafters and both board and batten and horizontal wood planks. The addition of the exposed stone chimney feature and a front covered porch entrance with widely proportioned stone pillars and beam supports add visual interest and warmth to the home’s exterior. There are approximately 1,266 square feet of living space within the home that is highlighted with three bedrooms and two baths. This home design is perfectly suited for a mountaintop or lakefront property lot for purposeful living and intentional space requirements that include a 26’ width dimension. Included with the home’s drawings is a detached 624 square two car garage, perfect for vehicle and other storage gear items. The interior of the home is highlighted with an elongated entry hallway which bypasses a coat closet before opening onto the family living and dining spaces. A grand kitchen features a back wall trimmed with counter/cabinet space and modern amenities while a large center island is highlighted with double sinks, plenty of prep/work space and a breakfast bar for casual dining. The rear positioned great room and dining space measures 21’x15’; plenty of room for optimal furniture placement and there is a warming fireplace, beautiful window views and access to the rear covered porch. One of the three bedrooms is situated on the main level for convenient guest availability and enjoys spacious floor space, generous closet space and there is an adjacent full bath with private access.
Ascending the staircase are overlooks into the main common rooms below and two bedrooms and a bath are located on the second floor. Both bedrooms are very nearly equivalent sized and feature good closet space and double window views. There is a shared hall bath with a large vanity, a toilet area and a shower and one of the bedrooms enjoys private access into the bath. Double attic spaces are also available on this floor which is great for seasonal and long term storage items. This attractive home is designed for family living and features excellent outdoor space, a warm exterior and comfortable interior space.
