Small Plan 8504-00060

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,100
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 1.5
Width 44'
Depth 30'

Floorplan Drawings

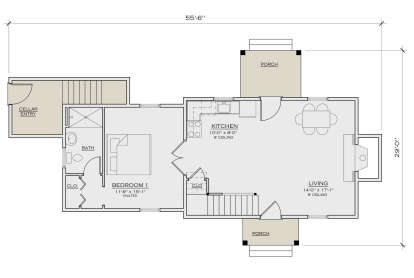

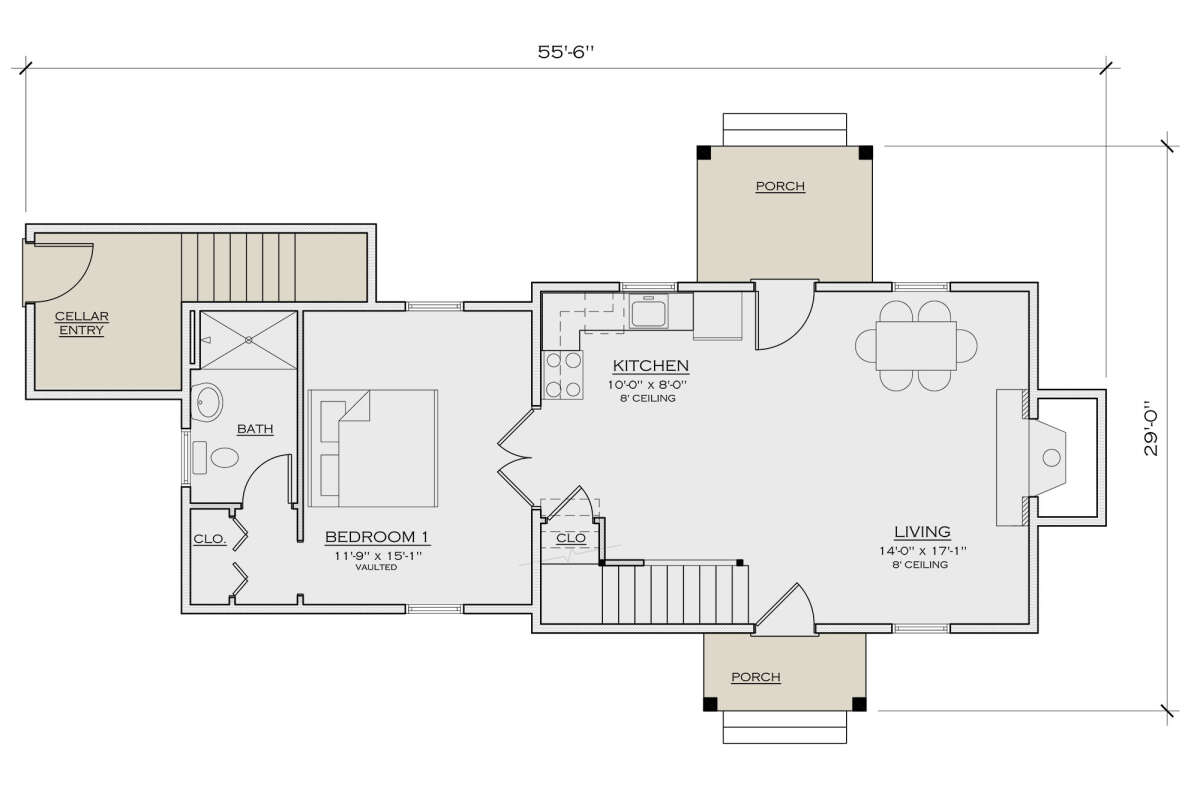

Floorplan 1
Floorplan 1 for House Plan #8504-00060

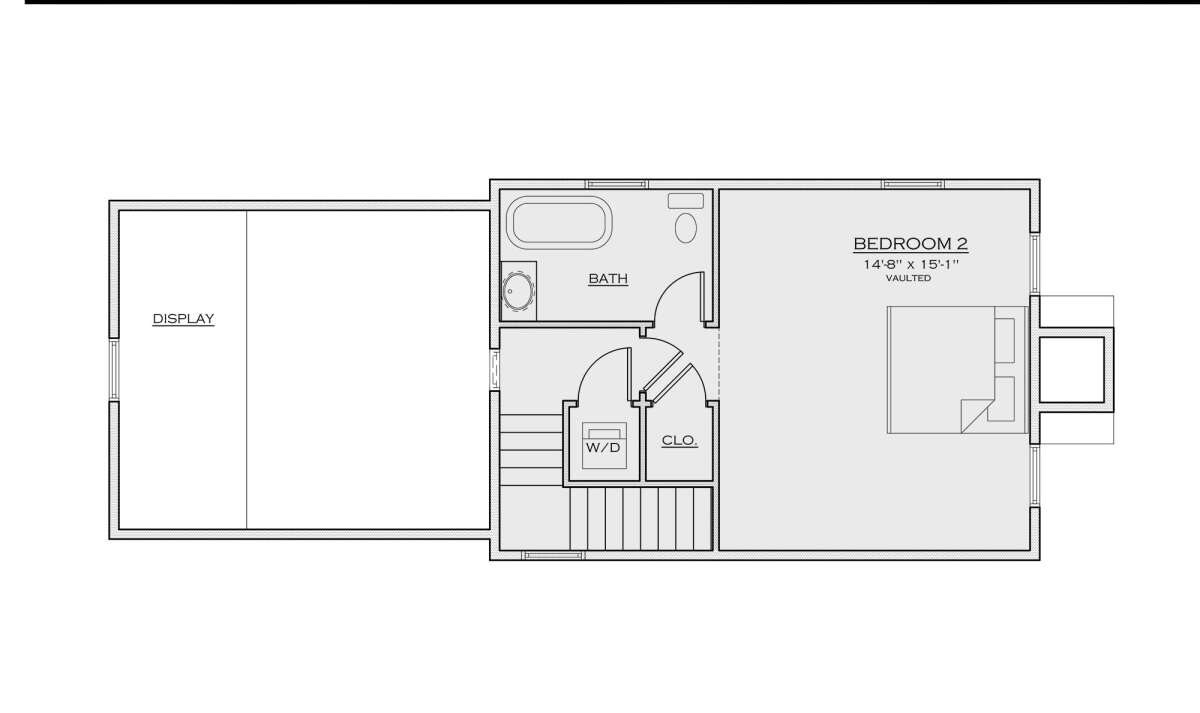

Floorplan 2
Floorplan 2 for House Plan #8504-00060


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

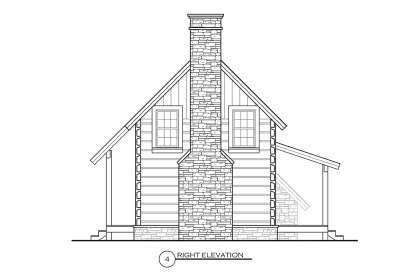

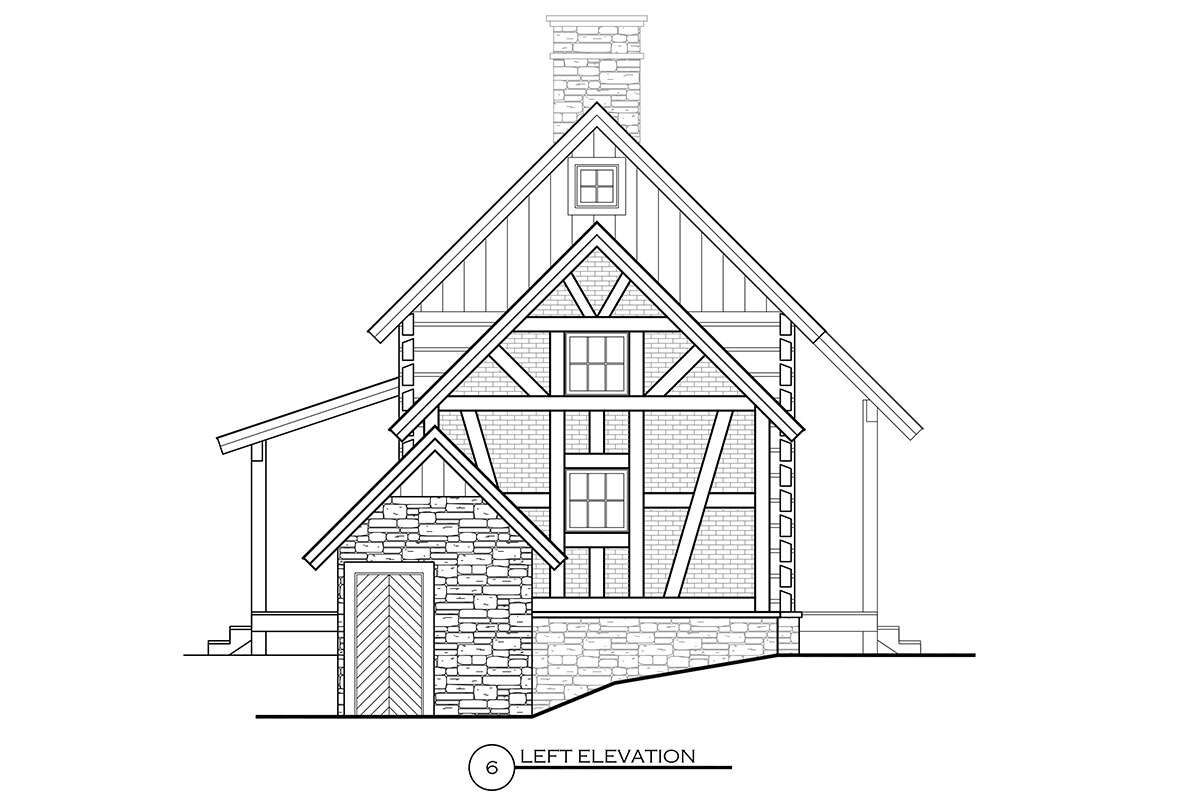

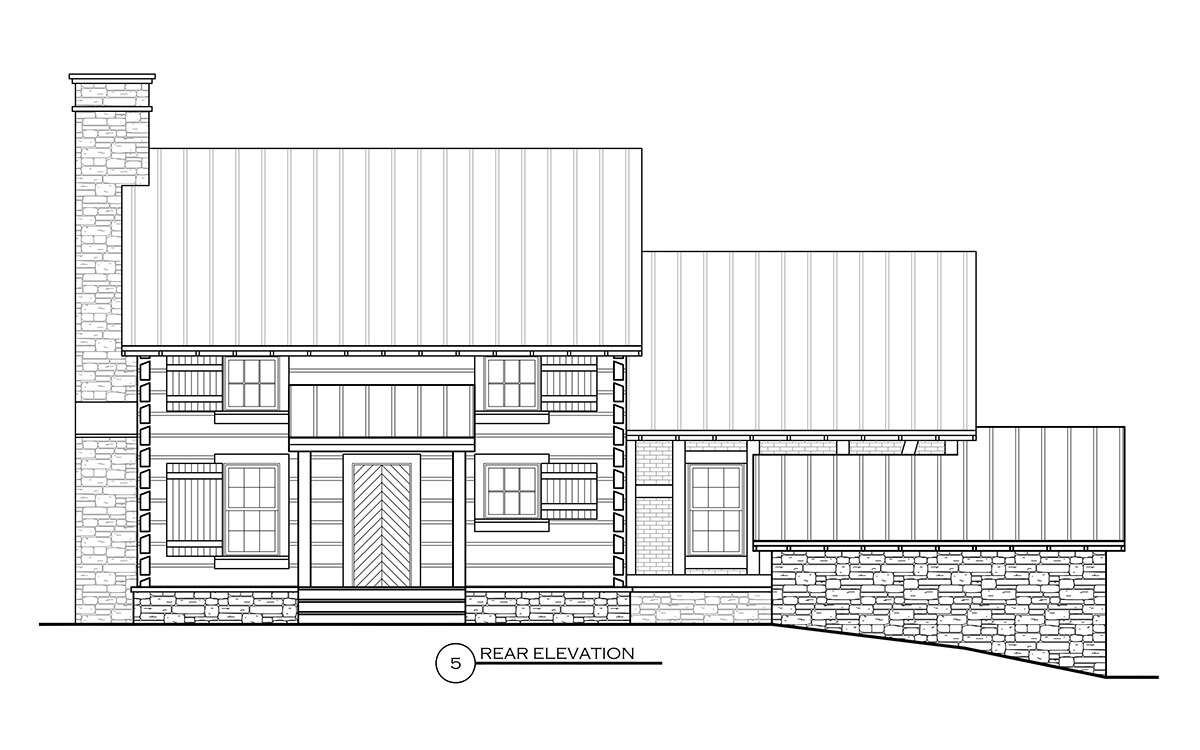

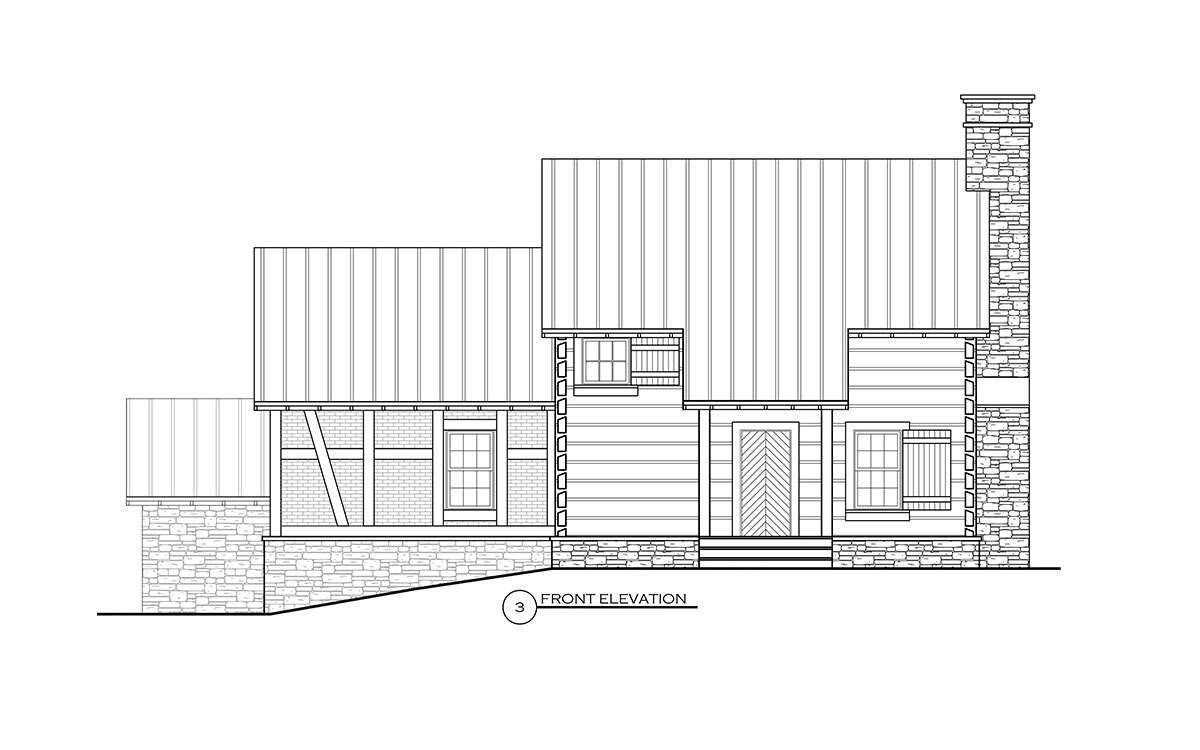

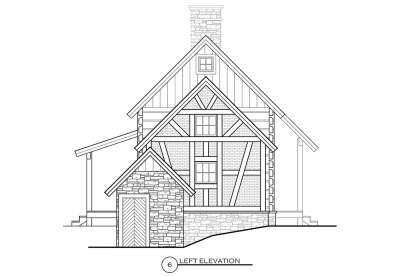

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

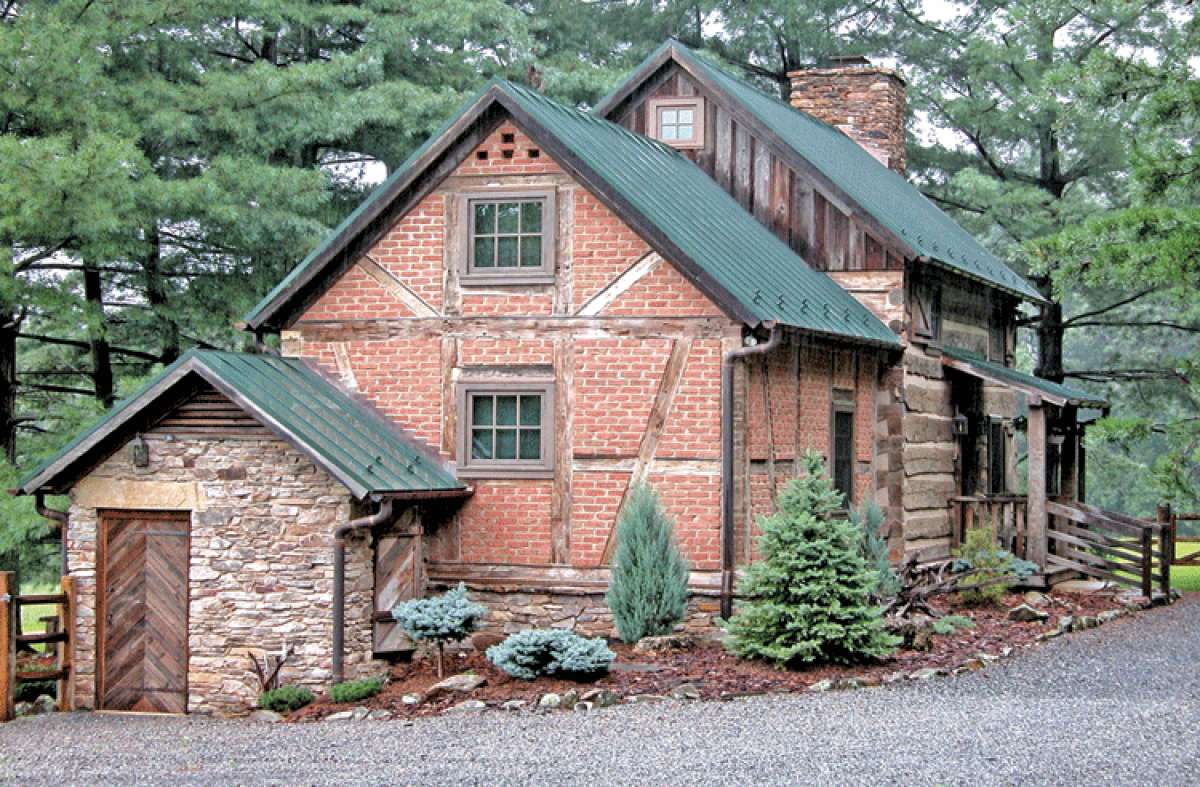

A diverse combination of architectural design elements surround the home’s exterior offering rustic characteristic features such as wide wood planks, decorative brick work and stacked stone. Imagining this home as part of the landscape a hundred years ago is not hard and yet, having the ability and desire to display this rustic charm continues today. Of course, the interior floor plan is full of modern conveniences which enhance the day-to-day living aspects of modern life and contribute to an overall sense of well being. The home’s interior floor plan features 1,100 square feet of living space which consists of two bedrooms and two baths in one and a half stories. The 44’width and 30’depth dimensions are ideally suited for a small or narrow lot while the interior layout still provides plenty of space intended for a vacation home or small family home. The exterior façade of the home clamors for an equally rustic setting such as a mountain view or lakeside property lot in order to maximize the enjoyment the home offers. Open railing leads to a covered porch and subsequent great room; a true great room, the space measures 25’x17 offering living and dining space. There is a warming fireplace, access to the rear porch and an L-shaped kitchen with plentiful counter space. Double doors offer access into the main level suite where a large bedroom, generous closet space and a private full bath are situated.
A second story staircase leads to a second bedroom which is quite spacious, features wonderful window views and plentiful closet space. There is private access to the bathroom which is highlighted by a tub/shower combination, toilet area and a corner sink. The laundry facilities are located on the second floor as well. This rustic charmer features an outstanding exterior façade and an interior floor plan with modern amenities and 21st century conveniences.
