Craftsman House Plan 8504-00035

Sq Ft4,898
1/2 Baths1
Width138' 0"
Depth89' 0"

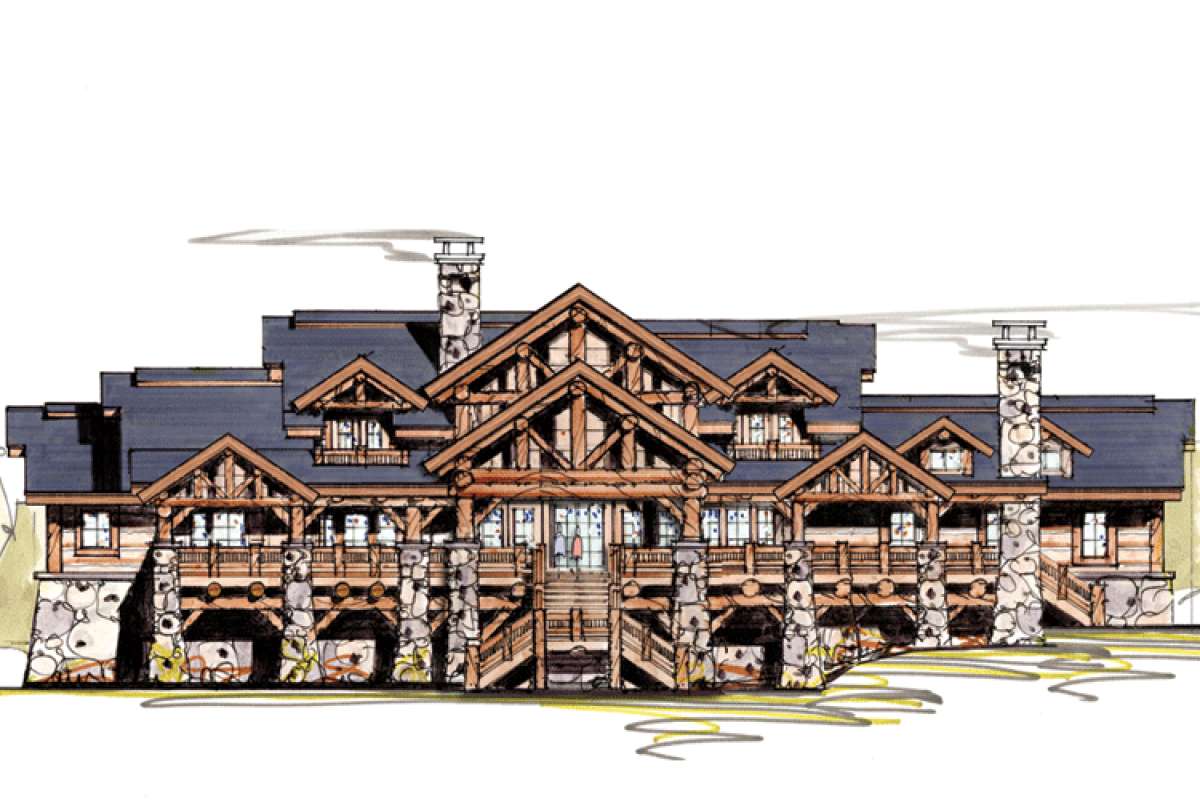

Craftsman House Plan #8504-00035 Elevation Photo

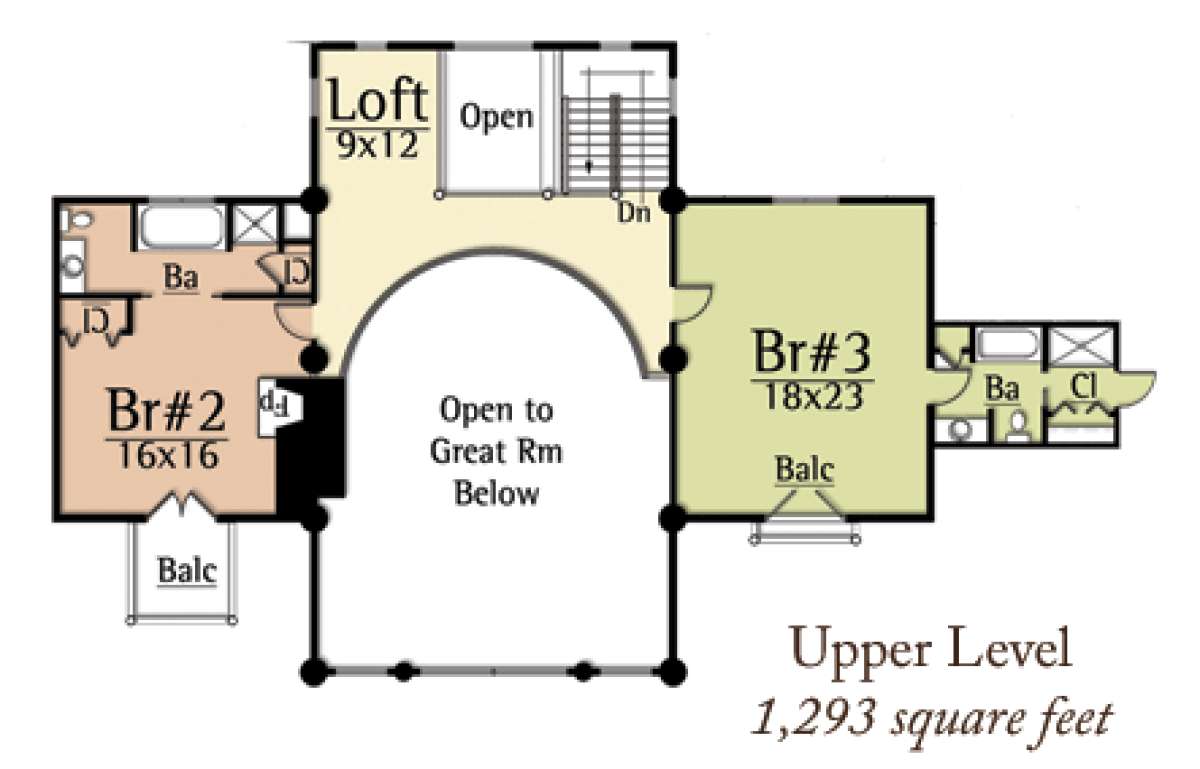

Floorplan 1
Floorplan 1 for House Plan #8504-00035

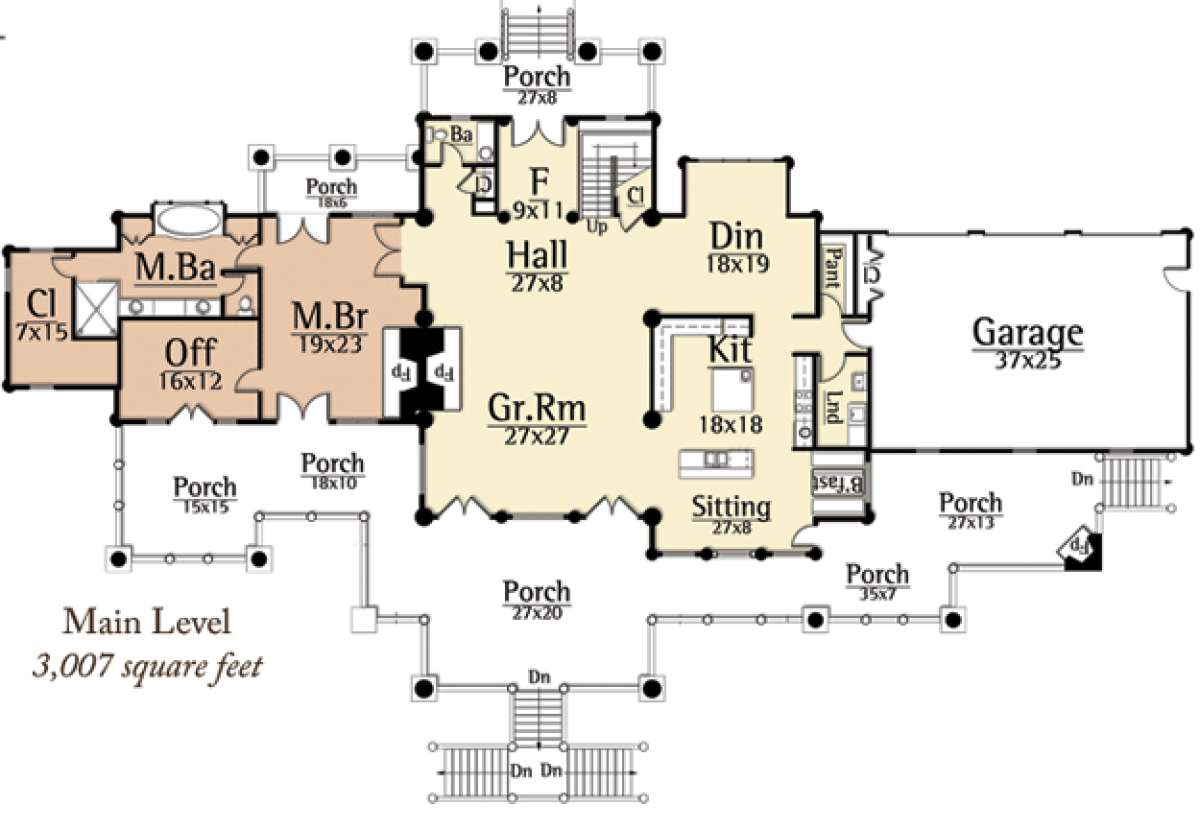

Floorplan 2
Floorplan 2 for House Plan #8504-00035
Craftsman House Plan #8504-00035 Elevation Photo
Floorplan 1 for House Plan #8504-00035
Floorplan 2 for House Plan #8504-00035
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00035
Floorplan 2 for House Plan #8504-00035
Floorplan 1
Floorplan 1 for House Plan #8504-00035
Floorplan 2
Floorplan 2 for House Plan #8504-00035

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Craftsman styled lodge house plan is a gorgeous design sure to evoke warmth and character. Magnificent exterior elements line the façade highlighting the nostalgic nature of the home which includes an abundance of stacked stone, unbelievable covered porch space which very nearly spans the entire 138’ width of the home, and warm wood railing, open gables and wood outlined window dormers. There are approximately 4,300 square feet of living space within the home’s interior that is highlighted with three bedrooms, three plus baths and a copious amount of entertaining space in the 1.5 storied home. A handsome double sided staircase leads to the massive front covered porch where relaxing, entertaining and enjoying “Mother Nature’s” bounty takes center stage and offers multiple entry/exit points into the home. Double French doors feature access into the open concept floor plan where there is an enormous great room with warming fireplace and a rear hall and foyer within immediate sight once the home is entered. Access to the rear covered porch is granted through French doors off the back foyer where outdoor activities, cook-outs and relaxing with family and friends can be enjoyed. The remainder of the open layout includes a gourmet kitchen flanked by a large dining room and a sitting/keeping room with an adjoining breakfast nook. The gourmet kitchen boasts of a wraparound bar, plenty of counter and cabinet space and a rear wall walk-in pantry. There is an adjacent laundry room directly situated off the three car side entry garage for convenience and tidiness. The main level master retreat is composed of a lovely assortment of well-appointed and spacious rooms that include a large bedroom with handsome fireplace and double French door exit points onto both the front and rear covered porches; the ultimate in private space for enjoying morning coffee, spending the day relaxing with a book or star gazing at night. An office or study is directly accessible from the bedroom and could easily function as a reading library or sitting room and, it too, features access onto the front porch. The en suite master bath features modern amenities and there is a rear walk-in master closet.
Travelling the second story staircase are open views and a balcony hallway overlooks the main living areas below. There is a loft area ideal as a study space for older children or playroom for younger children situated at the top of the landing. Bedroom two is quite spacious and features a private balcony, closet space and a large bath that contains both a shower and tub. The third bedroom is clearly oversized with a balcony as well and further suite amenities such as a huge bathroom with a separate shower, a large soaking tub, an extended vanity and a rear positioned closet. This gorgeous home features a warm, attractive exterior, outstanding outdoor space and plenty of private family space along with wonderful entertaining space.
