Cottage House Plan 8504-00022

Sq Ft1,112
1/2 Baths0
Width30' 0"
Depth24' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00022
Floorplan 2 for House Plan #8504-00022
Optional Lower for House Plan #8504-00022
Floorplan 1

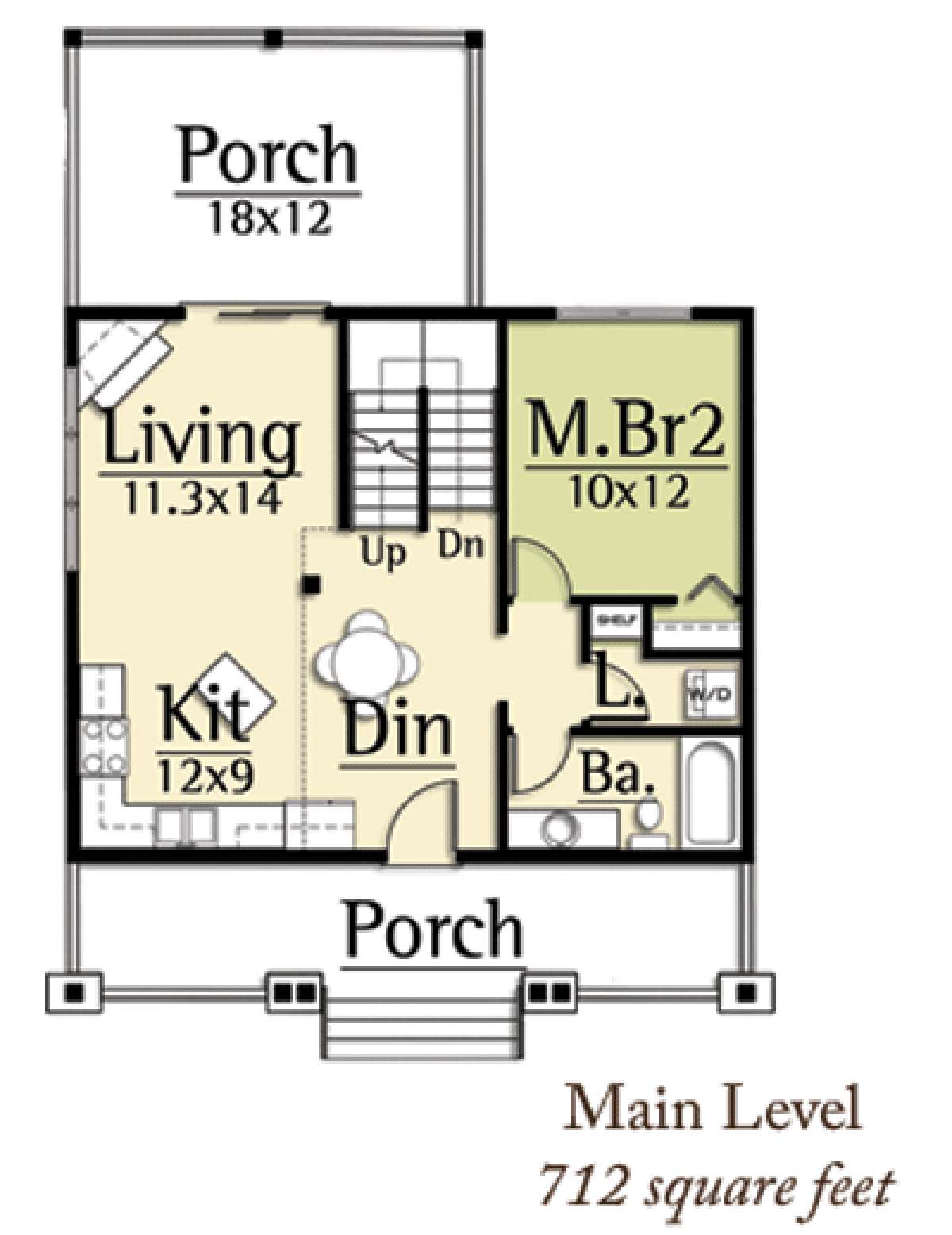

Floorplan 1 for House Plan #8504-00022
Floorplan 2

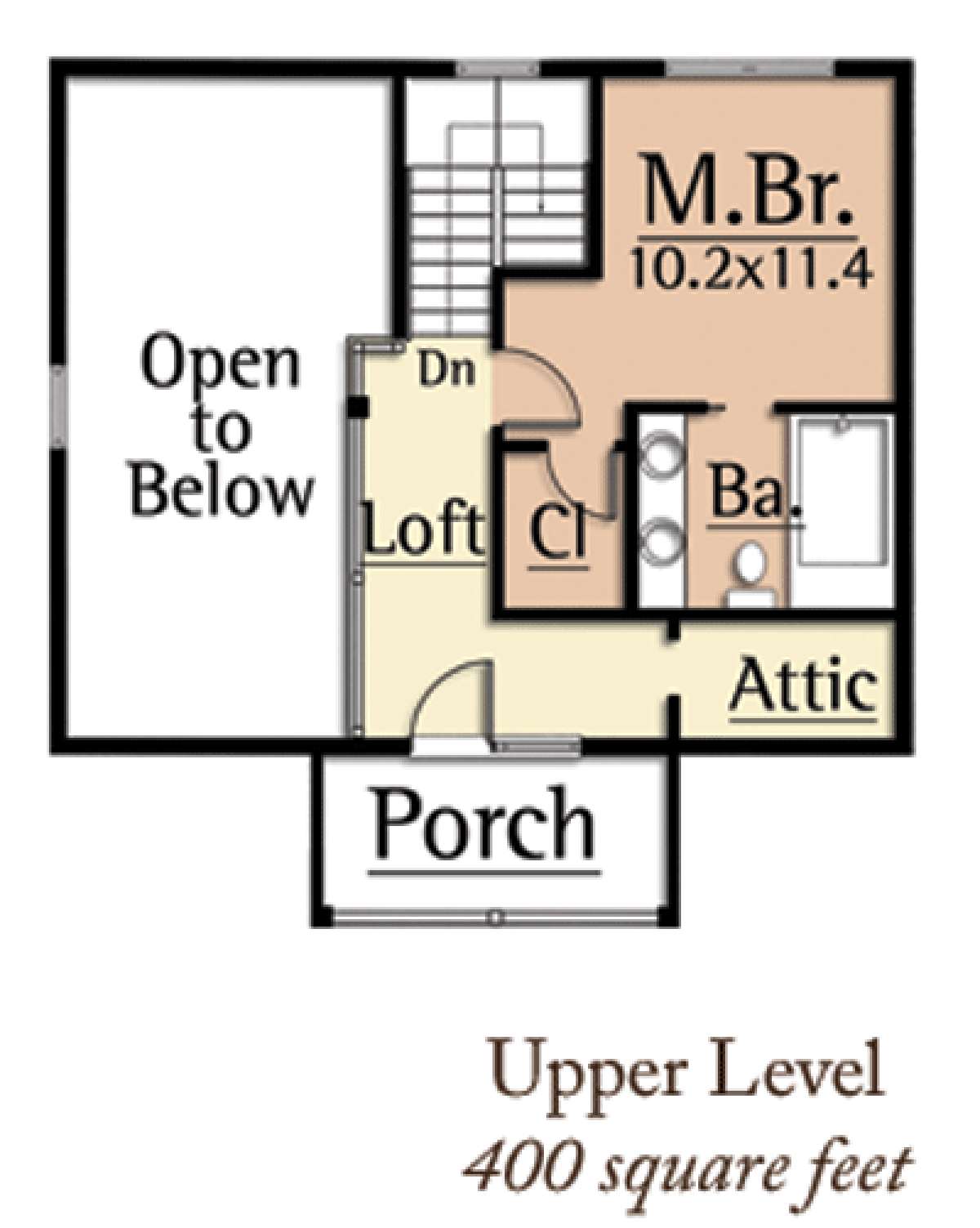

Floorplan 2 for House Plan #8504-00022

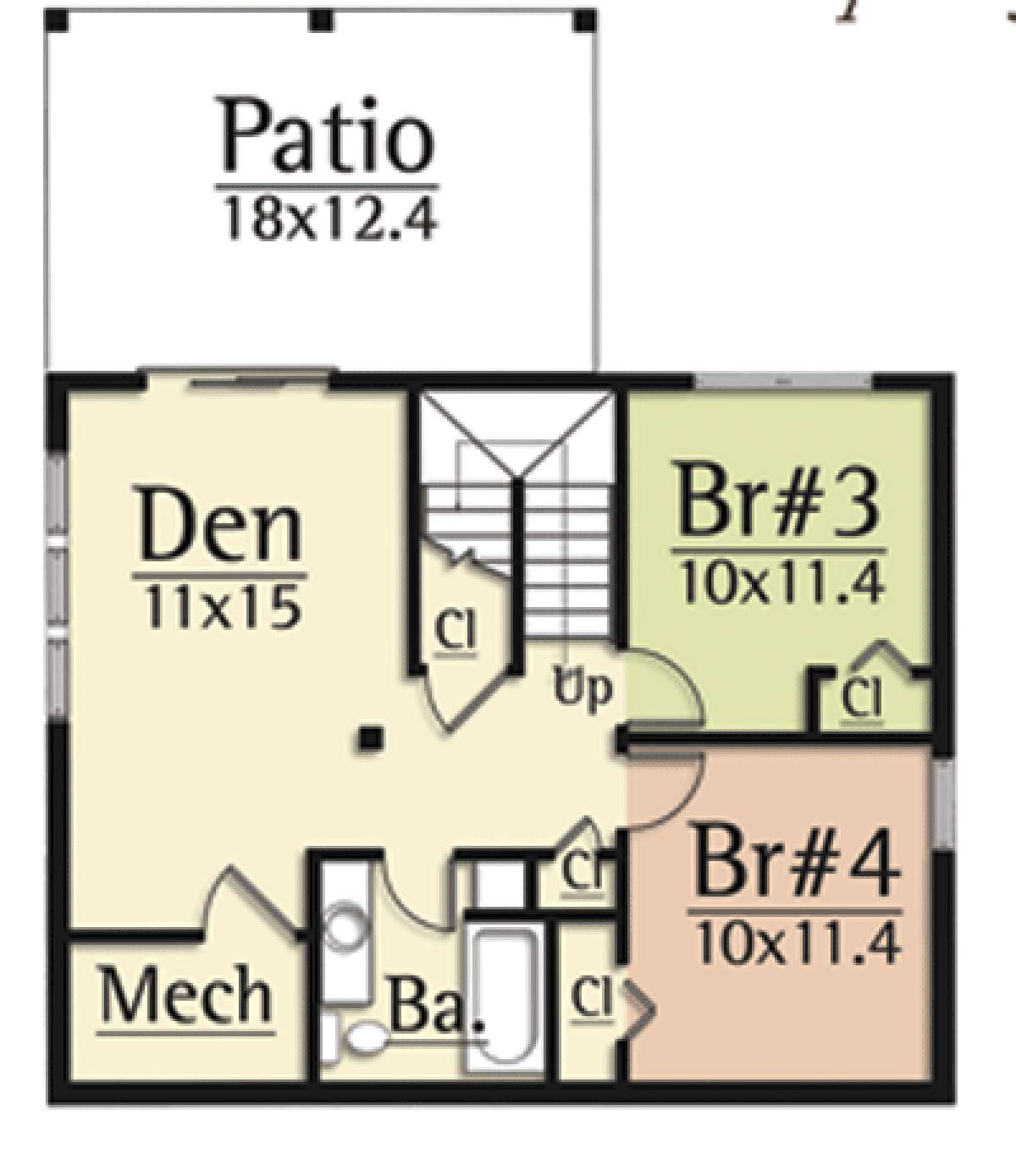

Optional Lower
Optional Lower for House Plan #8504-00022

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

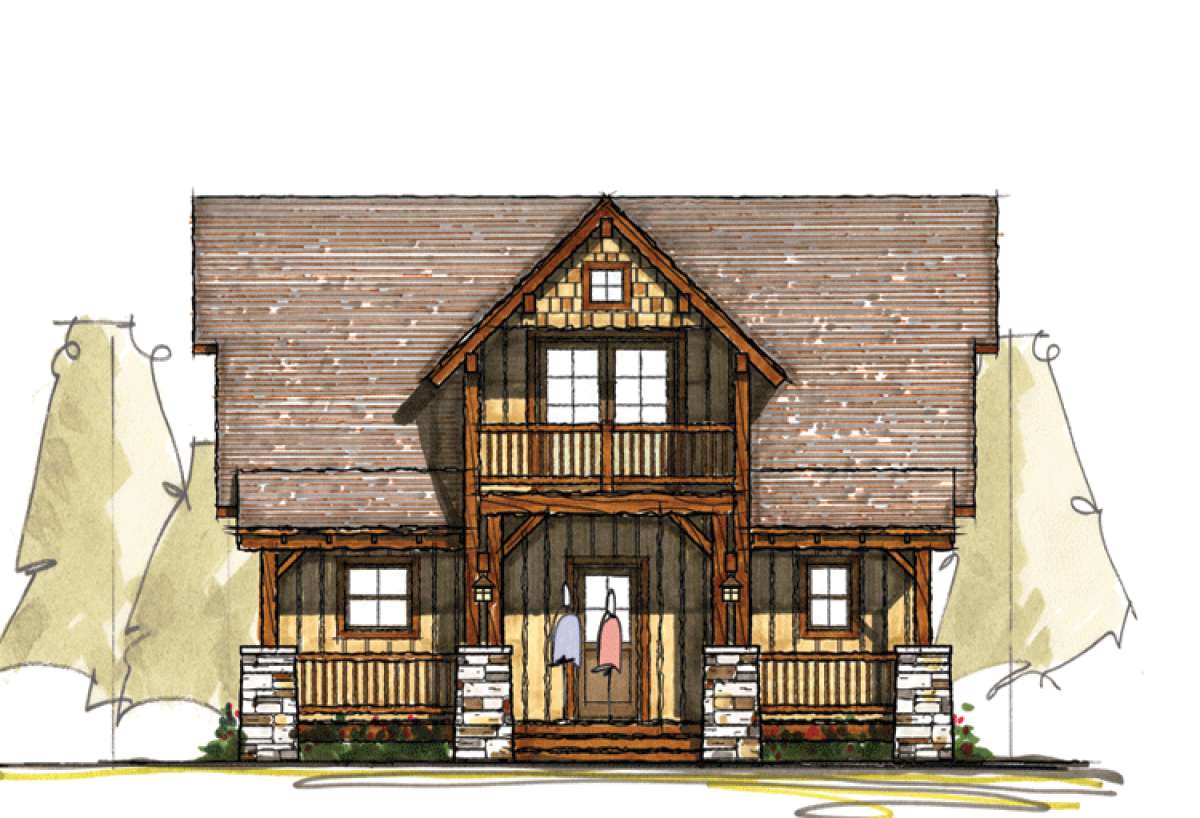

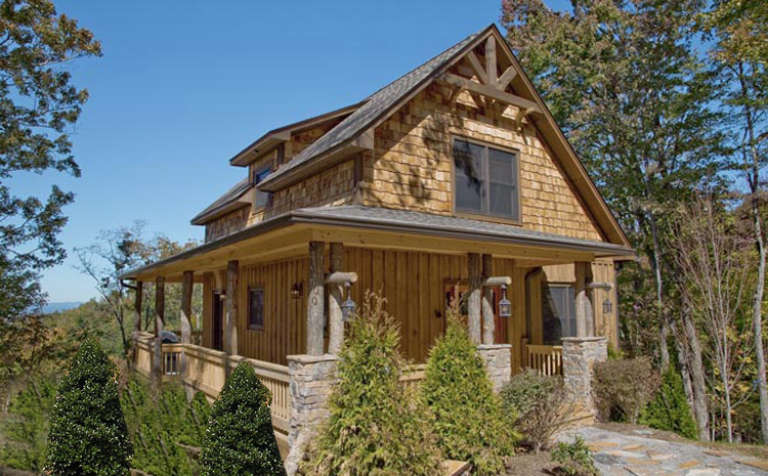

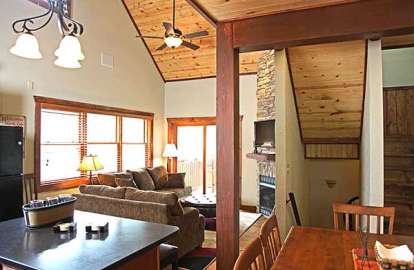

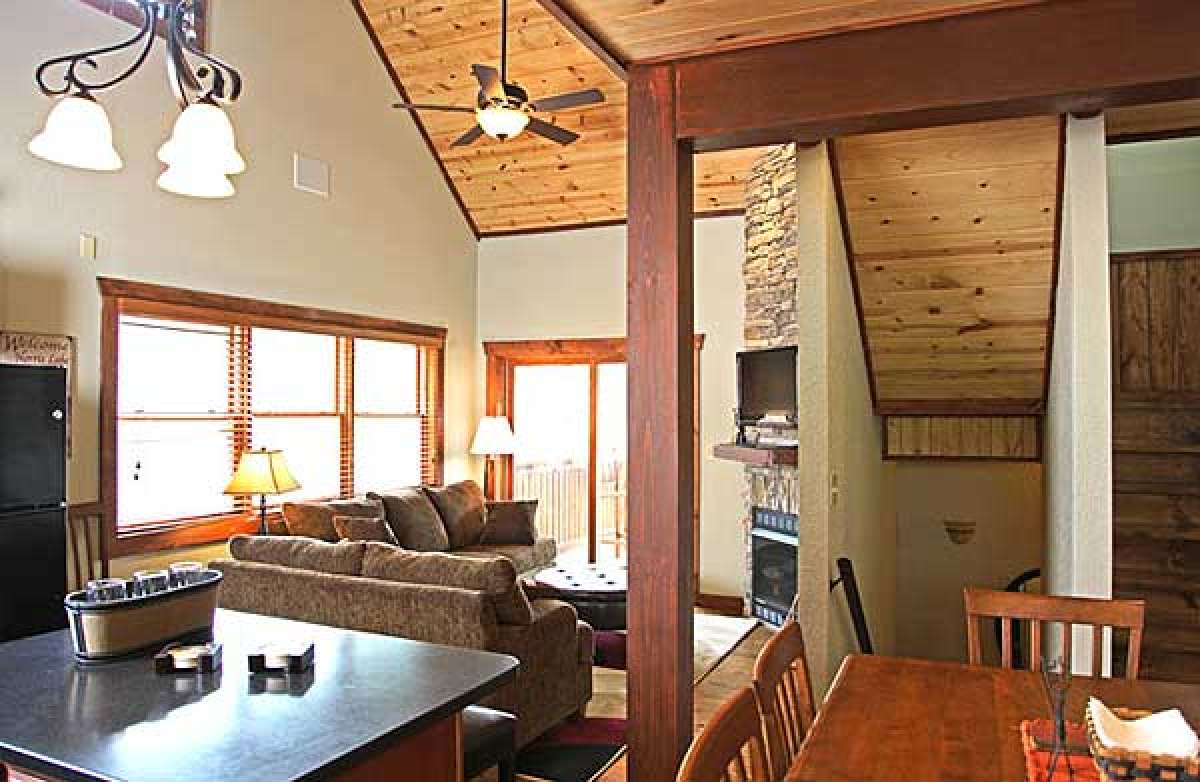

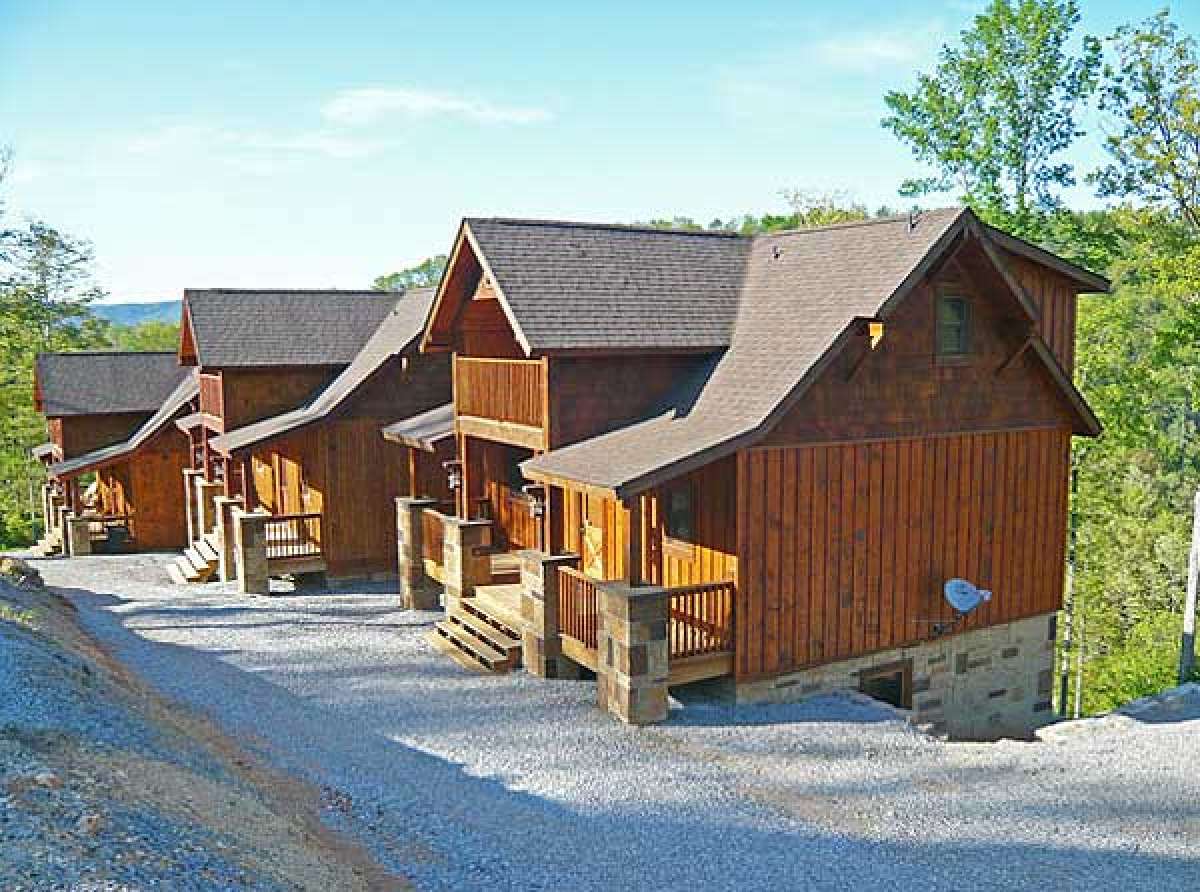

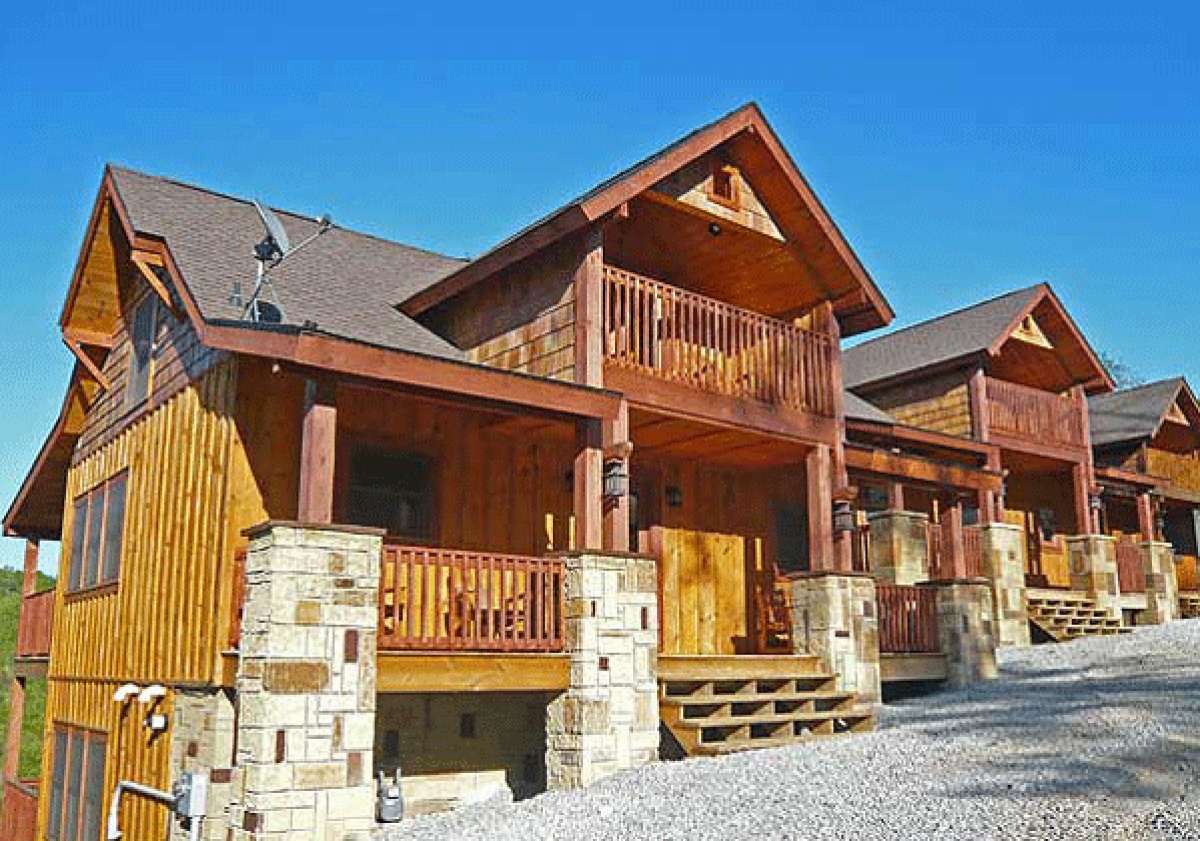

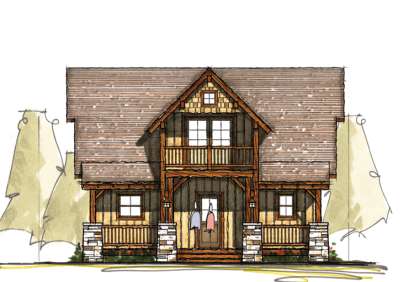

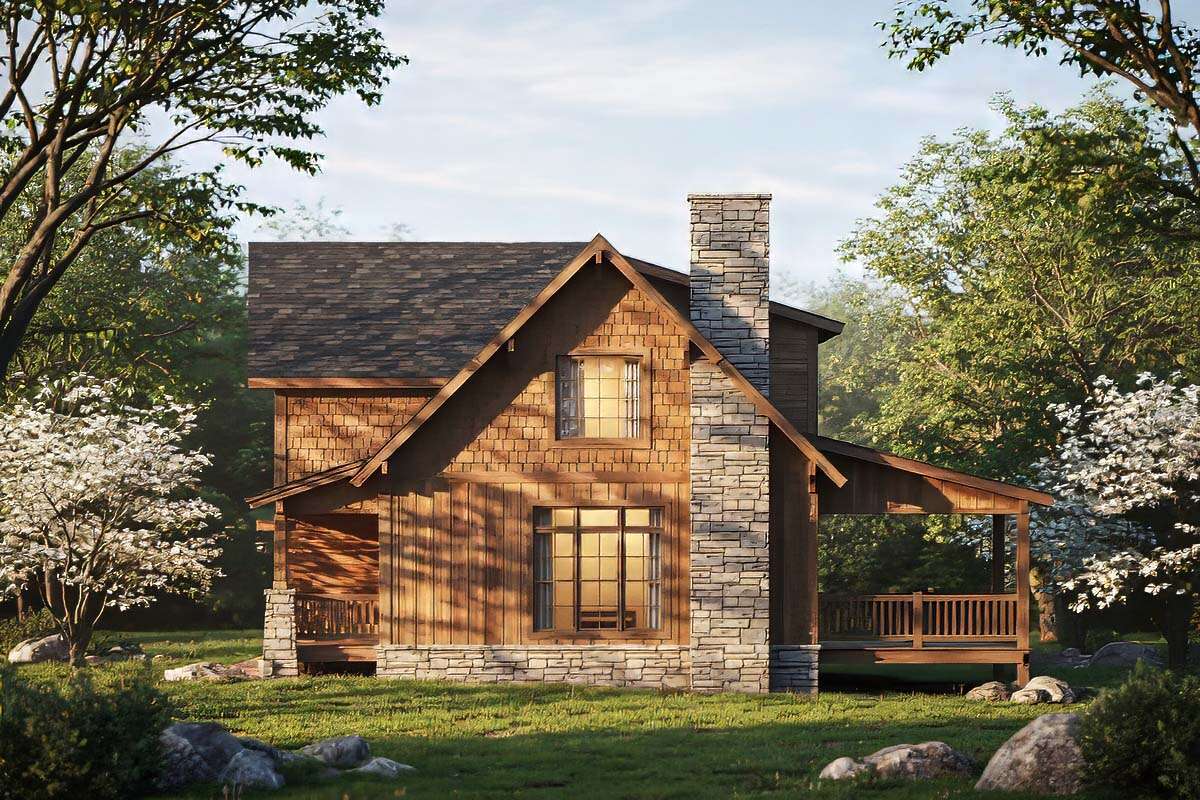

This Cottage house plan is lodge inspired with natural design elements highlighted on the exterior façade. A combination of stonework, wood beams and shingles decorate the front exterior along with double porches which ground and balance the home. Wood framing extends around the sides of the home and the covered main porch is a great spot to greet neighbors and friends while relaxing and/or reading. The approximate total square footage of the home is 1,112 square feet with two bedrooms and two baths in the double storied home. An optional terrace level is available in the walkout basement foundation that is highlighted with two bedrooms, a full bath with linen closet and tub/shower combination. Additionally, there is a den/entertaining space measuring 11’x15’, a storage and mechanical space and a large patio space for outdoor pleasure. The main level of the home has an open layout that focuses on superior dining and living space along with a spacious kitchen. The dining space features a column beam for room delineation and the kitchen is highlighted with a large center island set off point and side and rear walls containing modern conveniences. The rear living room offers a corner warming fireplace, good floor space and access to the rear porch which is large and provides great entertaining value.

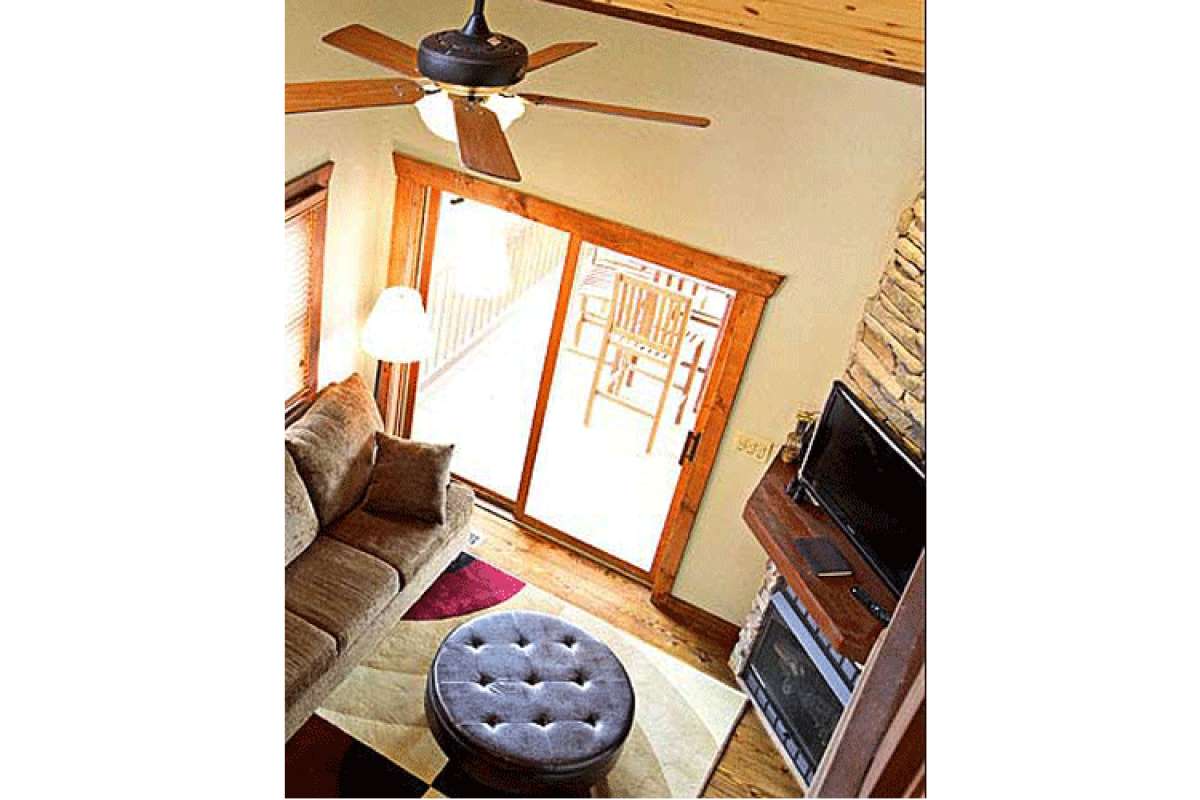

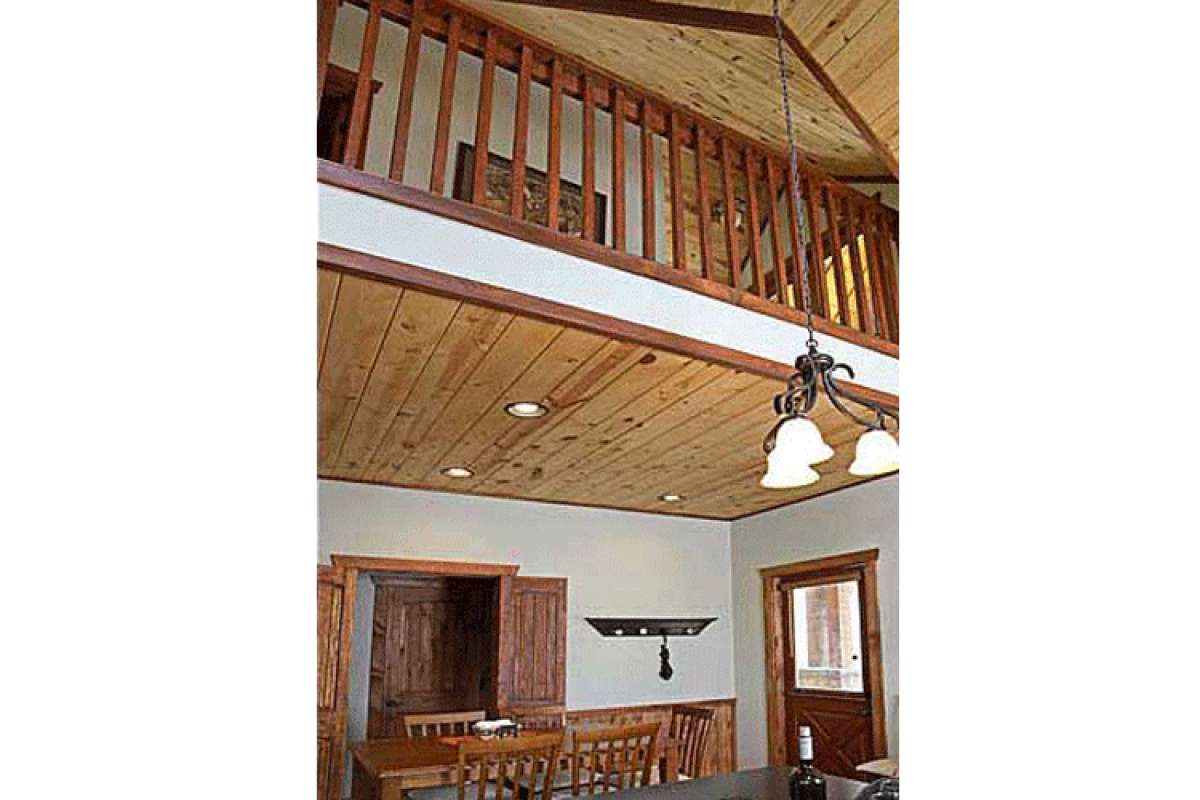

There is a main level master suite that is spacious with generous closet space and double window views. The laundry nook is nestled between the bedroom and the adjacent bath where a large vanity, toilet area and a tub/shower combination resides. The second story staircase showcases overviews into the main living area and culminates onto the loft space with balcony overviews, as well. The L-shaped loft would be ideal as a sitting room, hobby room or home office space adjacent to the second master suite. There is a wonderful porch accessible from the loft perfect for enjoying mountain views or watching the sun set, and good attic space is located at the end cap of the loft. The master suite, itself, features a bedroom with double window views and an attached master walk-in closet. There is an en suite master bath revealing dual vanities, a toilet area and an oversized soaking tub. This home features a fully functional and comfortable interior layout with a naturally highlighted exterior façade.
