Mountain Rustic House Plan 8504-00016

Sq Ft1,722
1/2 Baths1
Width32' 0"
Depth32' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00016
Floorplan 2 for House Plan #8504-00016
Lower Level for House Plan #8504-00016

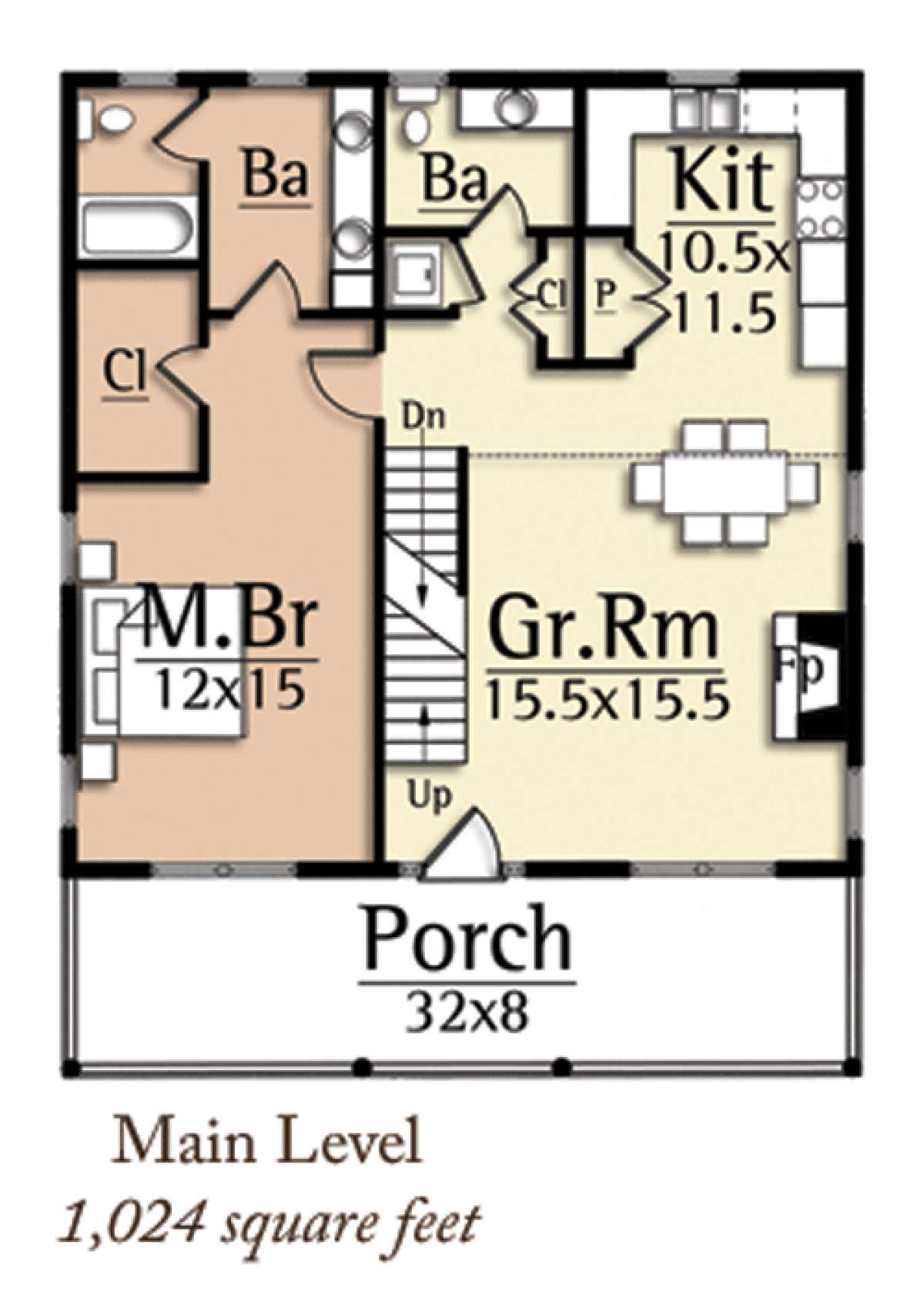

Floorplan 1
Floorplan 1 for House Plan #8504-00016

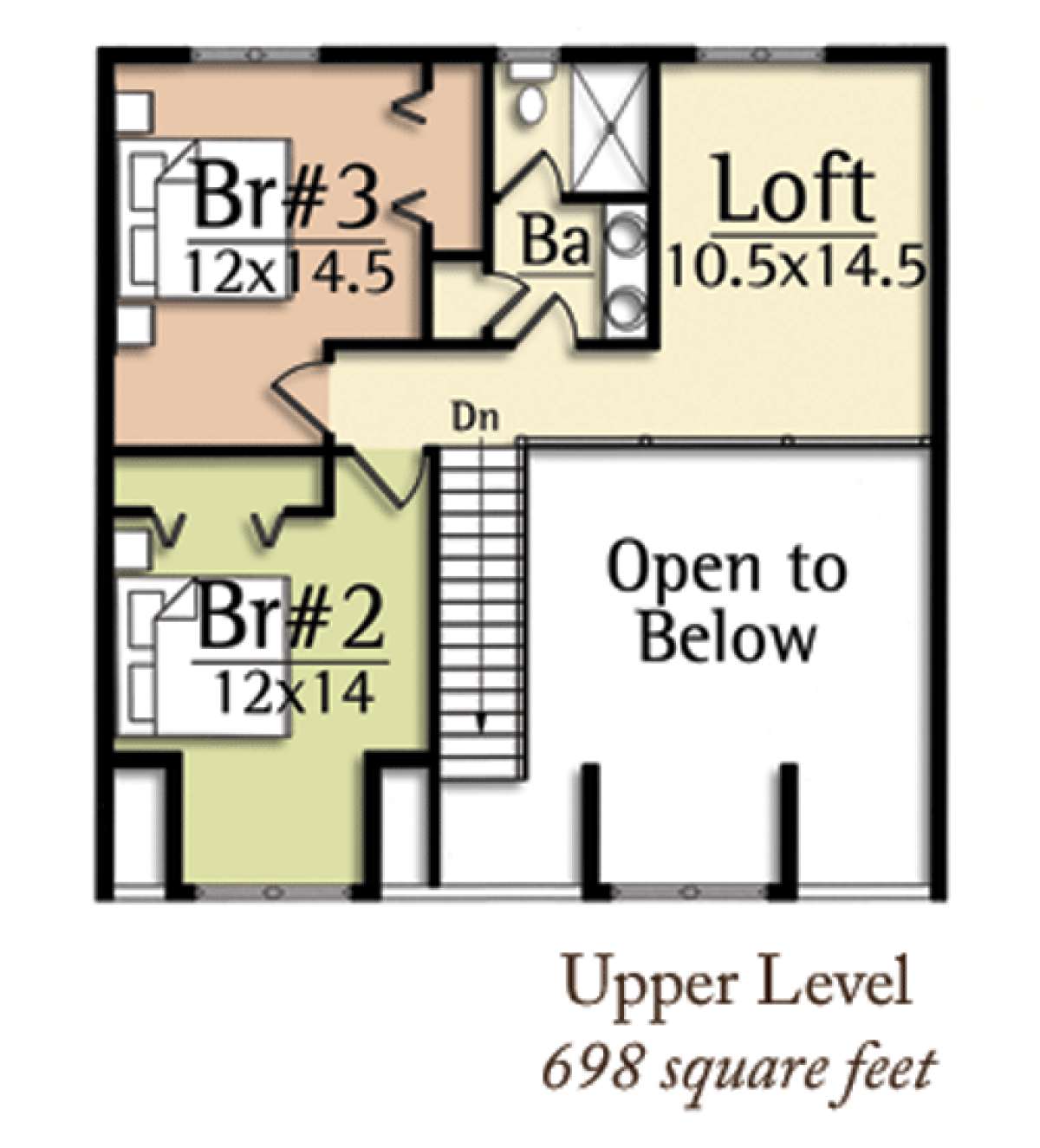

Floorplan 2
Floorplan 2 for House Plan #8504-00016

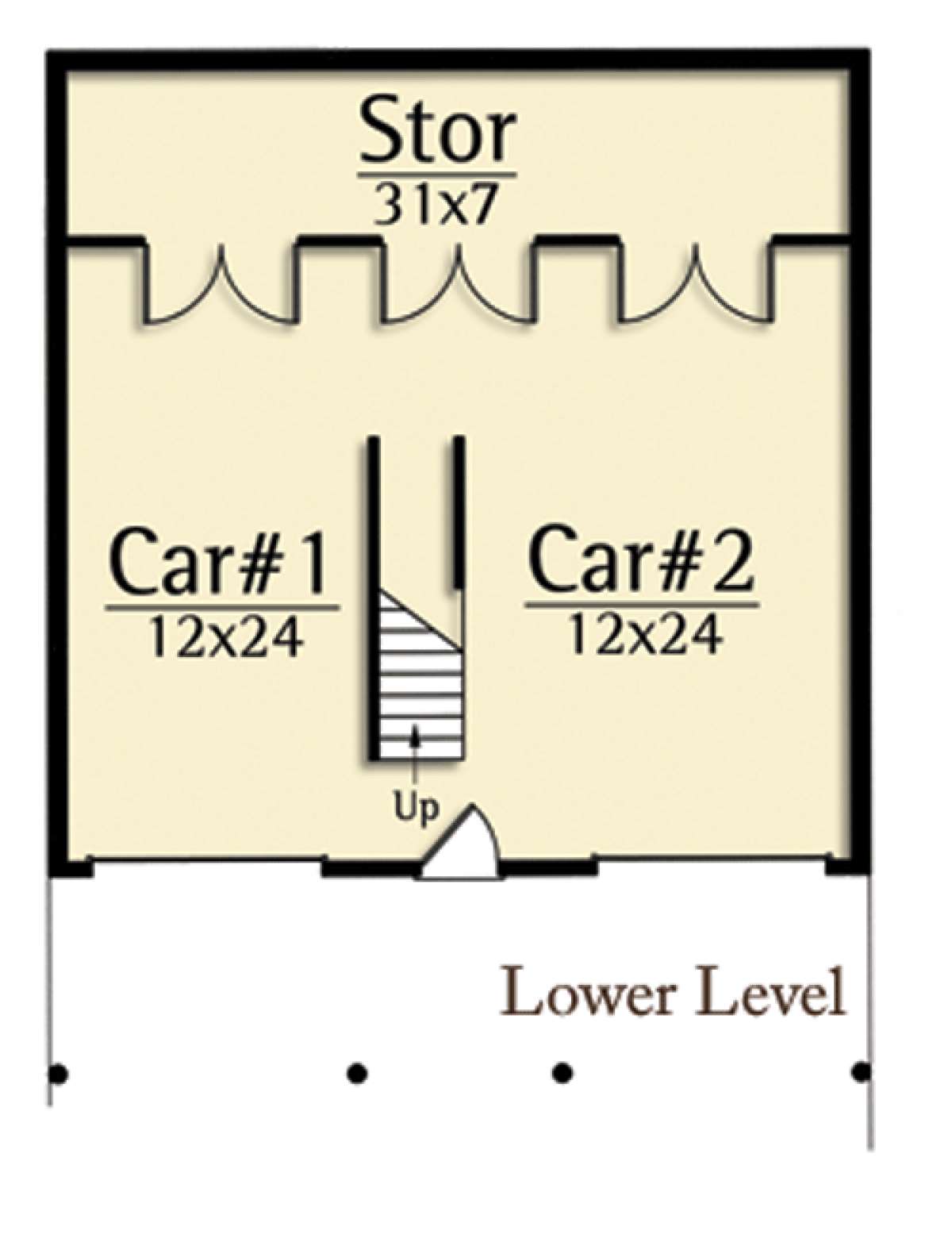

Lower Level
Lower Level for House Plan #8504-00016

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

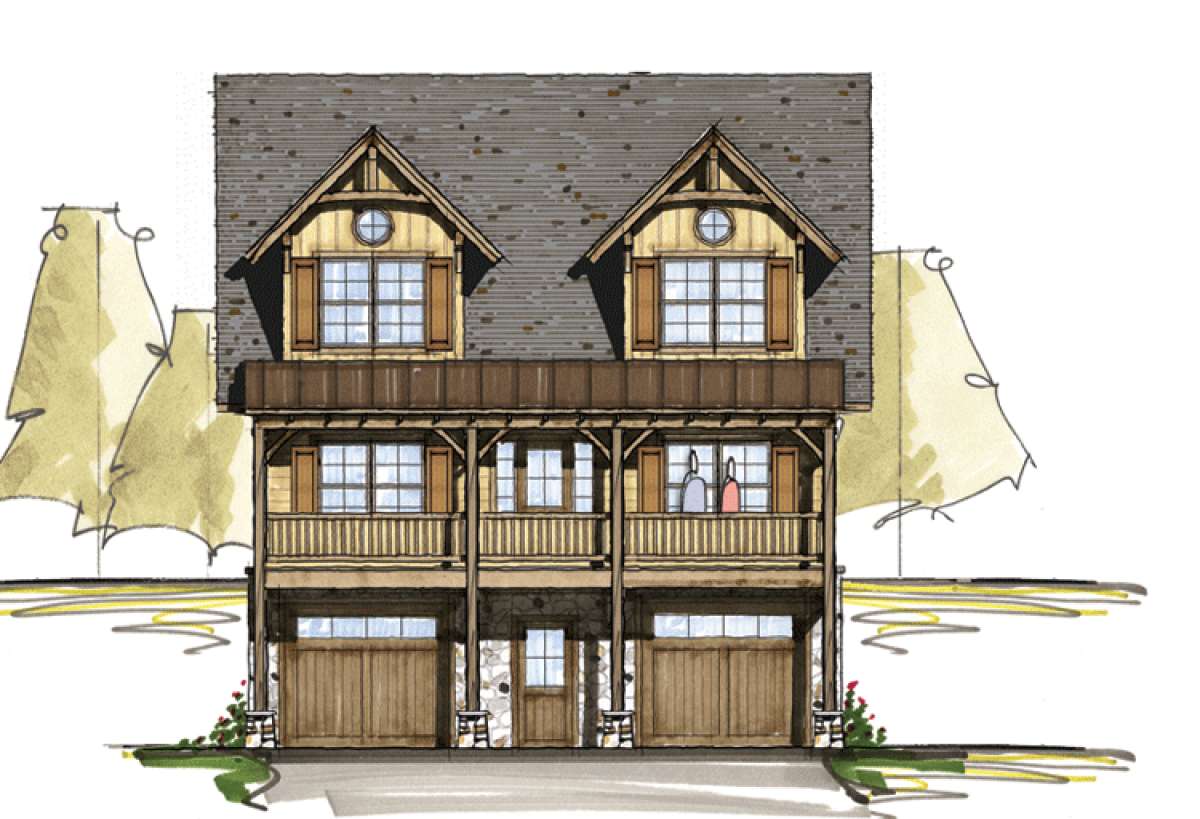

A perfect house plan for the ideal Mountain View or lakefront lot is available in this Rustic home. An exterior comprised of lodge inspired design elements features two large window dormers, a covered porch that spans the width of the home and a two car drive under garage. The garage is huge with vehicle and additional storage room at the rear of the space accessible by three sets of double doors and there is enclosed access to the main level of living in the home. Approximately 1,722 square feet of usable living space conveys a sense of spaciousness on two additional floors that include an open layout, three bedrooms and two plus baths. The home’s width and depth dimensions, both of which are 32 feet, is suitable for a narrow and/or small lot. An exciting floor plan expresses an efficient, open area for family relaxing or spacious entertaining along with an outdoor covered porch measuring 32’x8’. The porch spills into the interior and features great space for continual entertaining featuring a comfortable great room that houses a warming fireplace and second story staircase. Beyond the great room is casual dining space for intimate dinner parties or special occasion family meals and events. The U-shaped kitchen is highlighted with an oversized pantry for food storage, double sink window views and plenty of cabinet and counter space. There is a spacious powder room for guests, a laundry nook and coat closet situated on the first floor as well. There is a main level master suite that enjoys a large footprint encapsulating a sense of privacy and comfort. The master bedroom features floor to ceiling window views overlooking the porch and an attached walk-in closet. There is an en suite bath highlighted with dual vanities, a toilet area and a tub/shower combination for relaxing after a long day’s adventure trekking in the nearby woods or boating.
Family and/or guest space dominates the second story of the home and features a large open loft area that is open to the main living areas below. The loft space could be utilized as a second entertaining space, a reading library or a home office/study as it is situated at one end cap of the floor offering some measure of privacy. Two almost identical sized bedrooms feature generous closet space and double window views. The shared hall bath features an interior linen closet, double lavatories and a private toilet and shower area featuring good space to avoid morning chaos. This three tiered home features luxurious accommodations within the Lodge inspired home.
