24” x 36” sheet size
Foundation/Framing Plan (¼” Scale)
Floor Plans (¼” Scale)
(4) Exterior Elevations (¼” Scale)
Building Section (3/4” Scale)
Roof Plan (¼” Scale)
Electrical Plan (¼” Scale)
View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

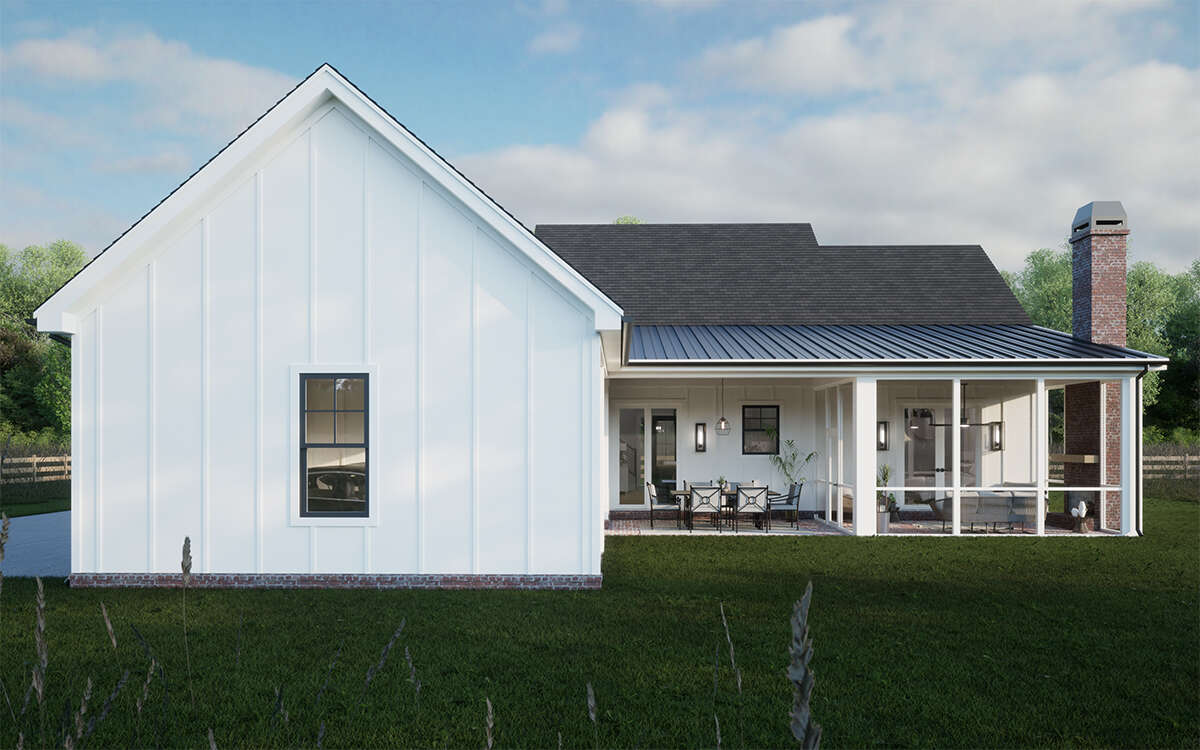

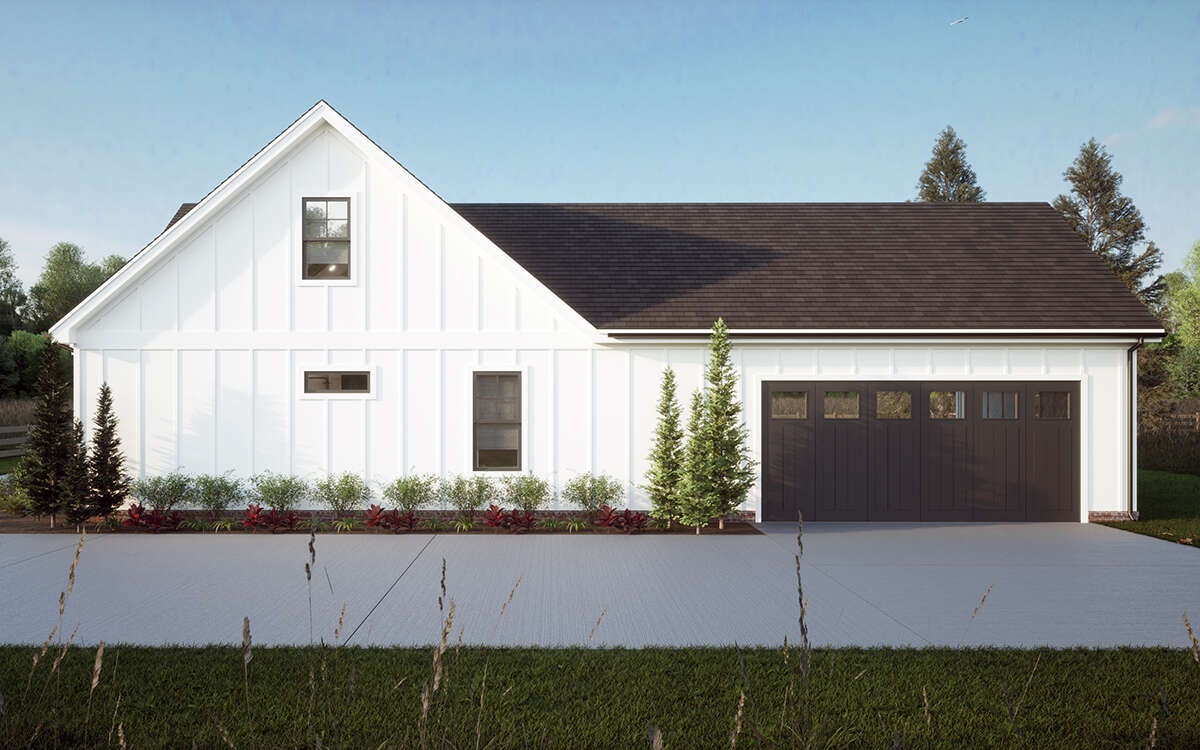

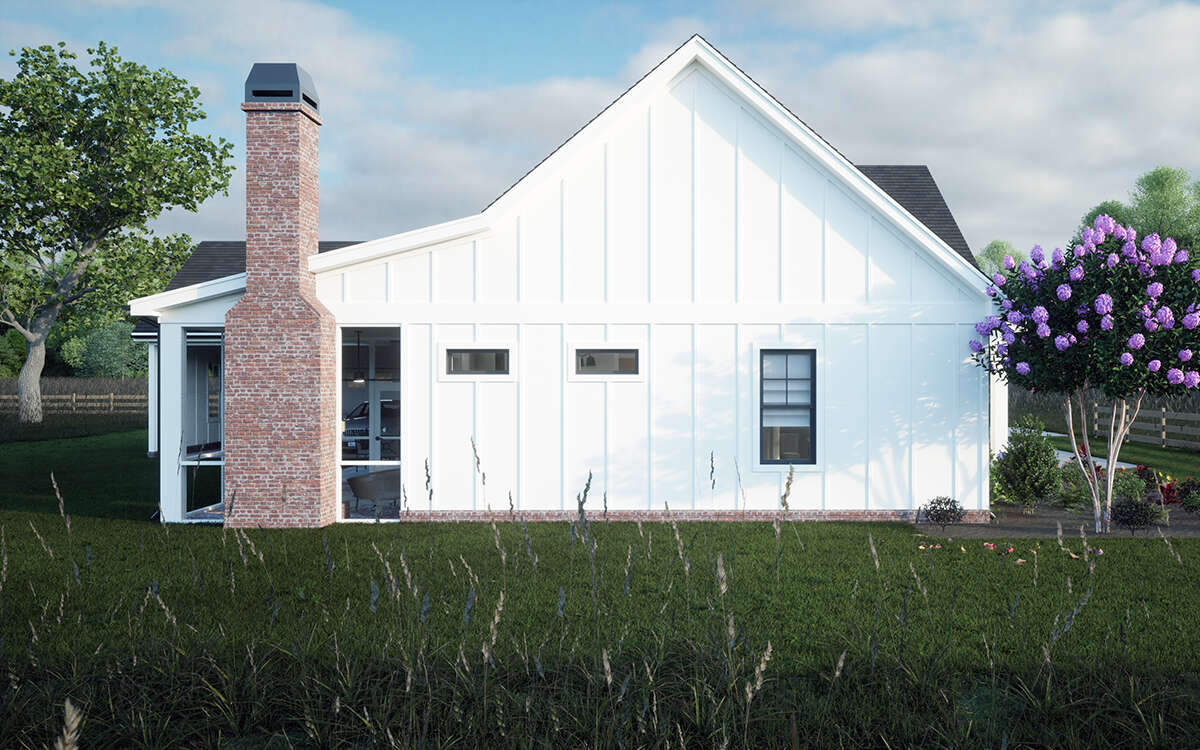

This Modern Farmhouse design features a charming and symmetrical front exterior with an extended covered porch, a center entryway, matching side windows and an overhead gable. Both side extensions are identical in style and both house interior bedrooms with front double window views. There is a rear covered porch as well accessible through a slider door and both the porch and primary suite offer access to the screened in portion of the porch; it is quite spacious and there is a warming fireplace for those chilly mornings and evenings. The 2 vehicle carport is situated at the rear of the home with good car space and within reach of the rear porch; lots of good entertaining and playing outside opportunities for adults and children alike.

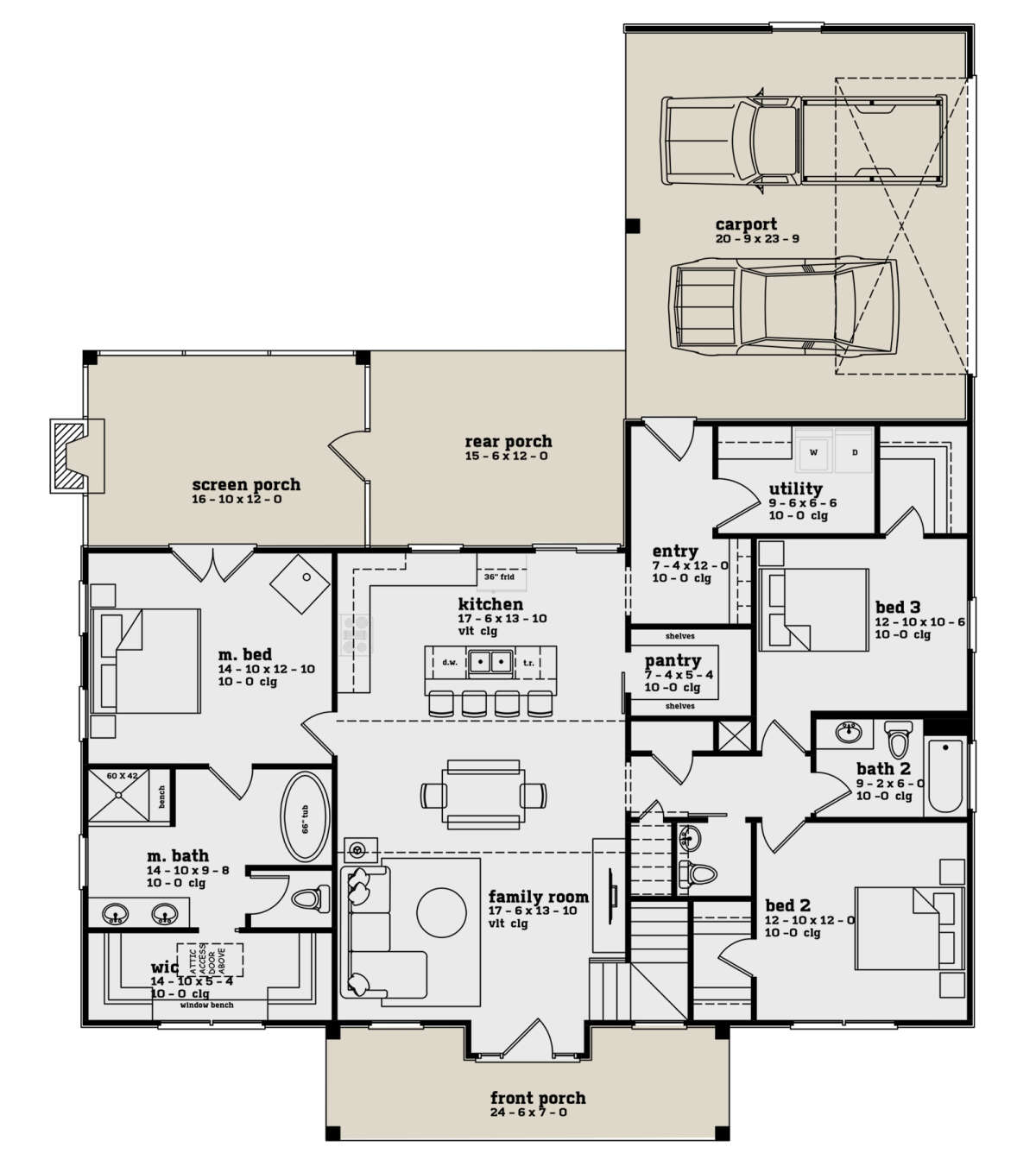

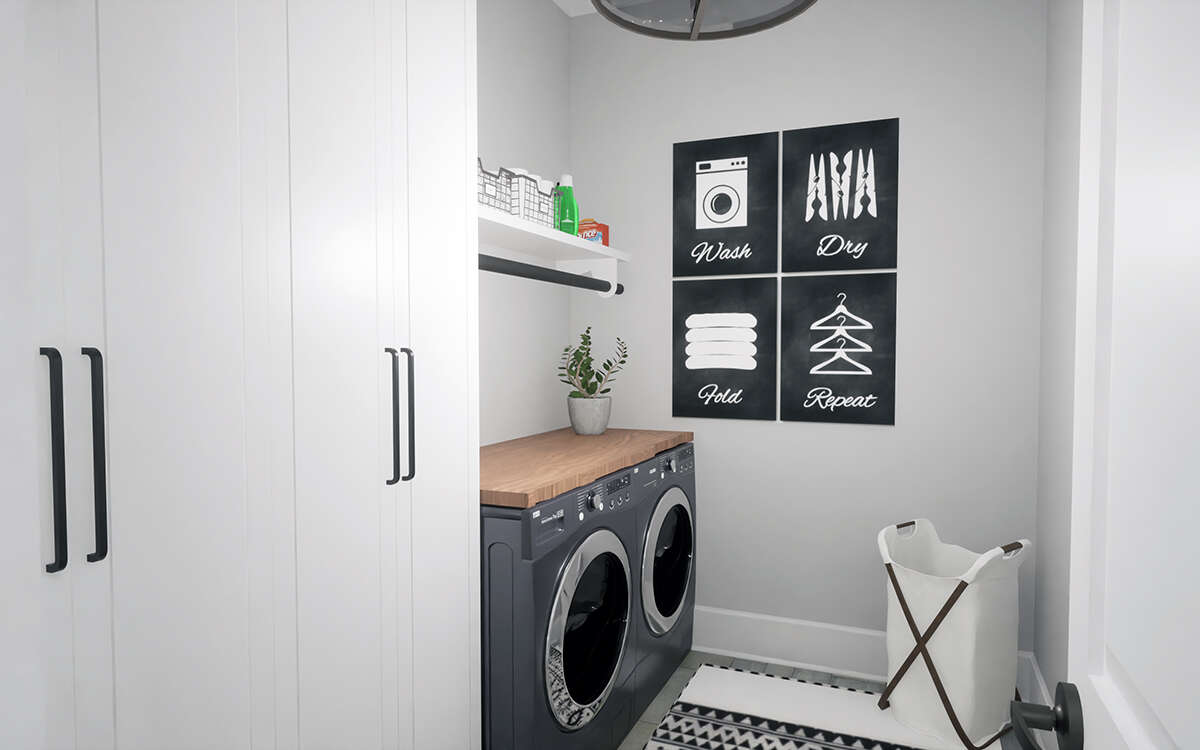

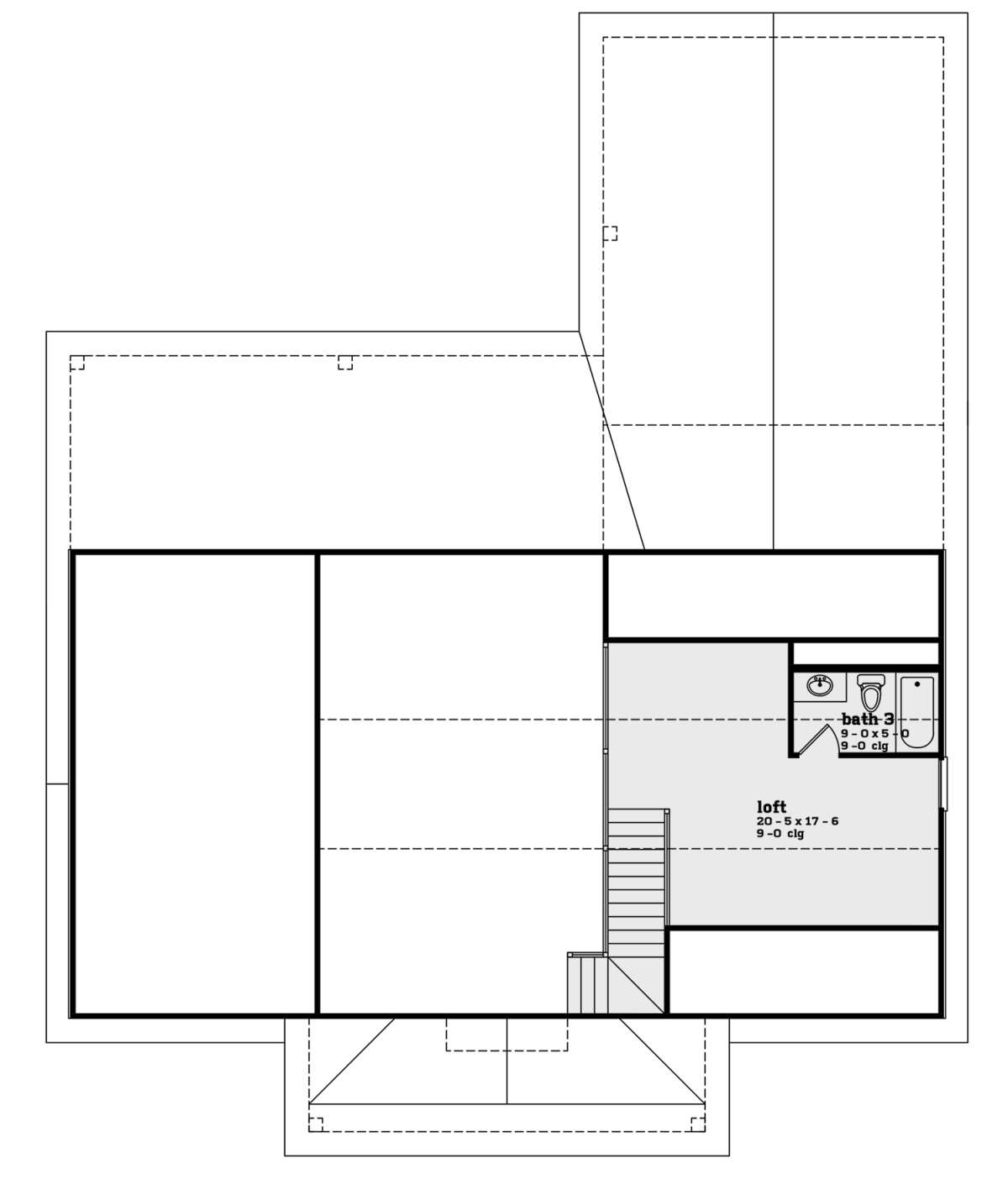

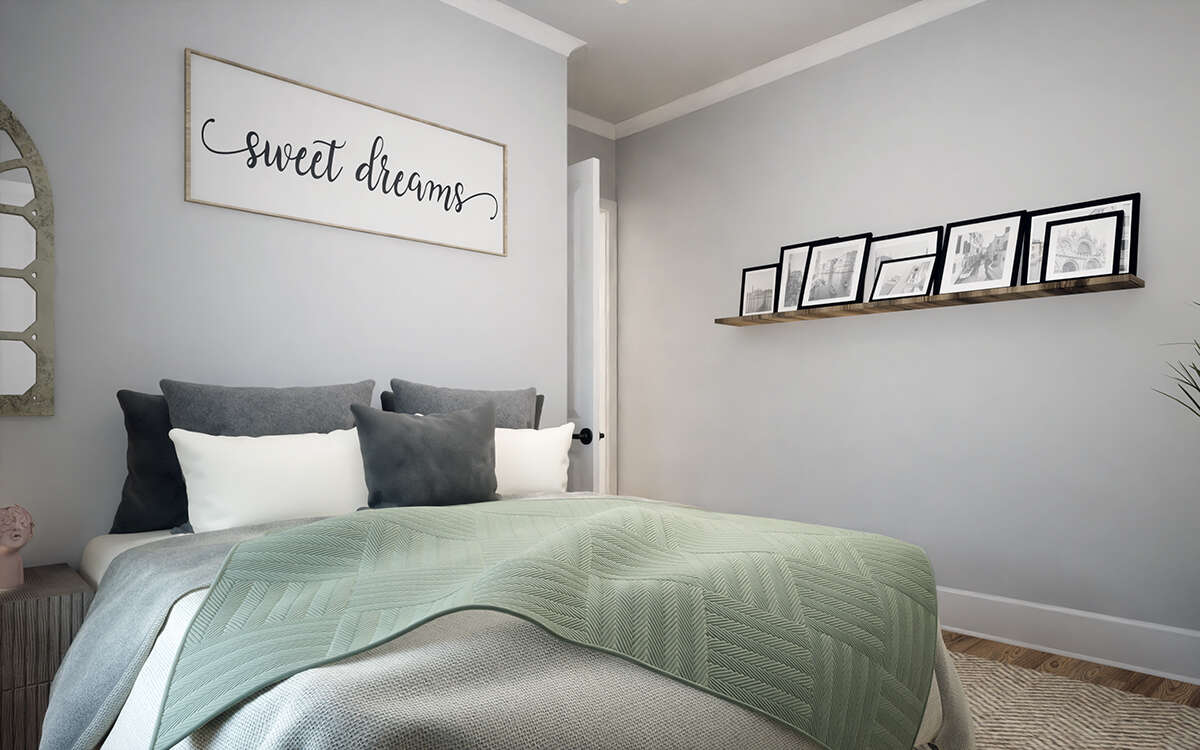

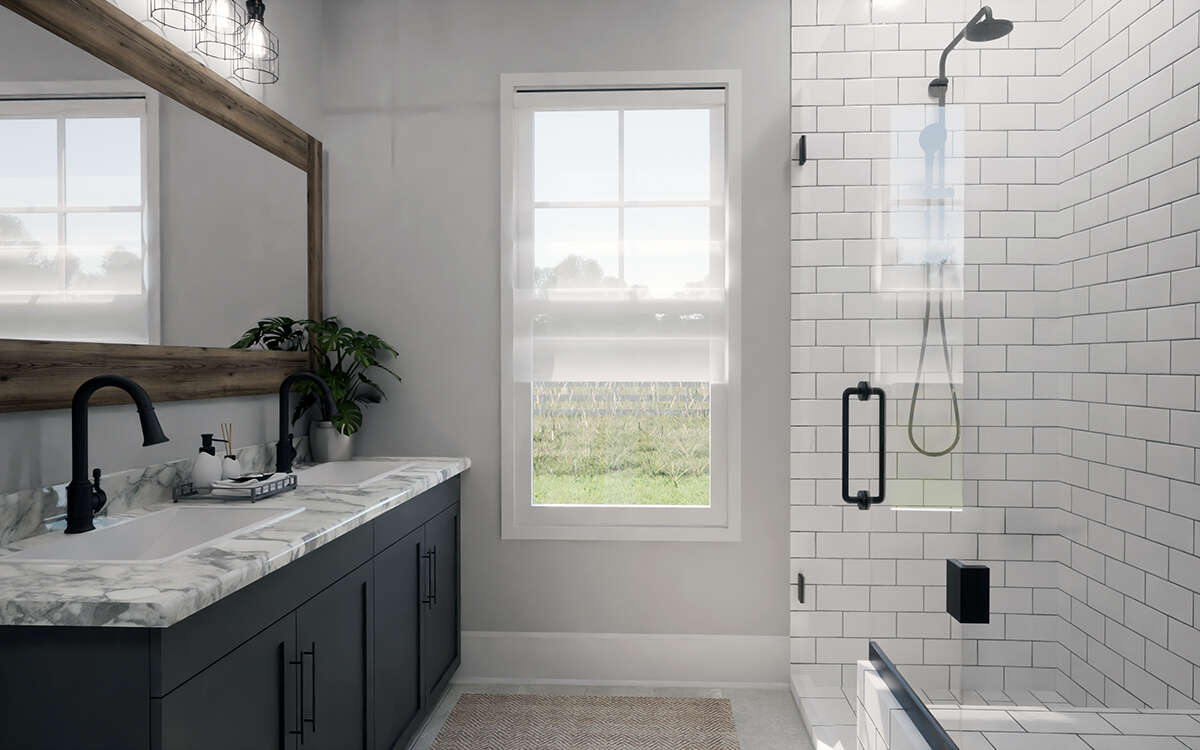

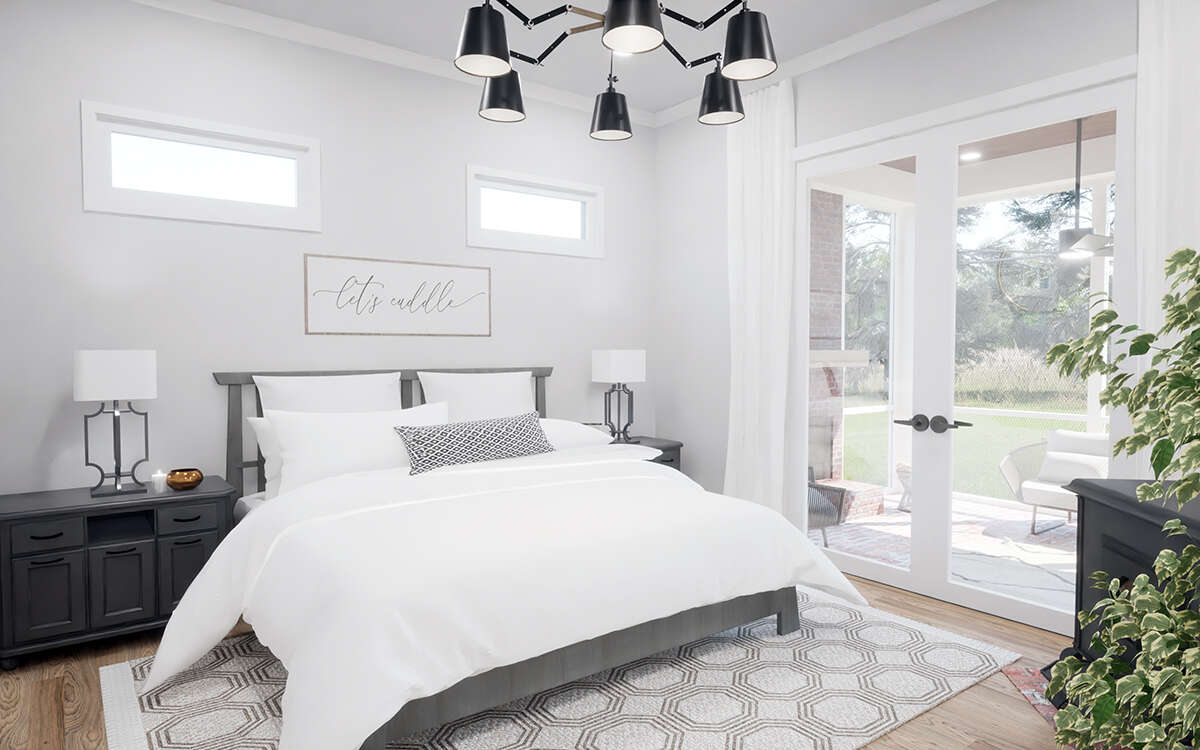

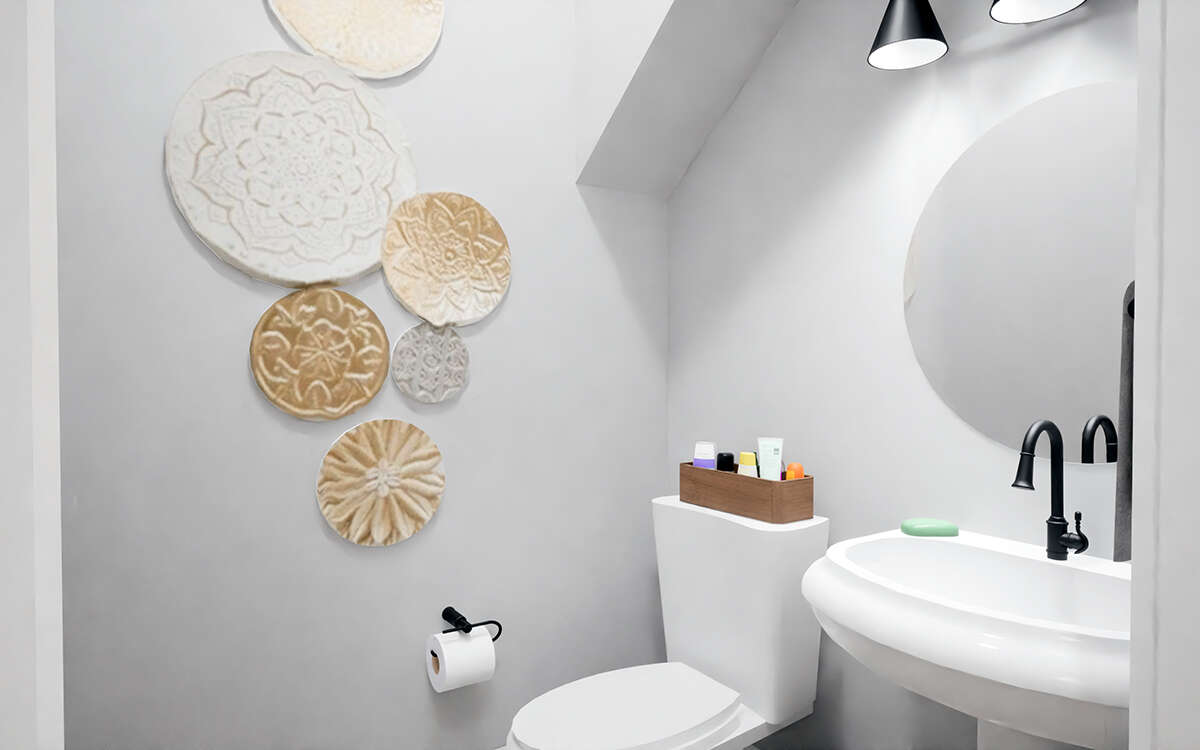

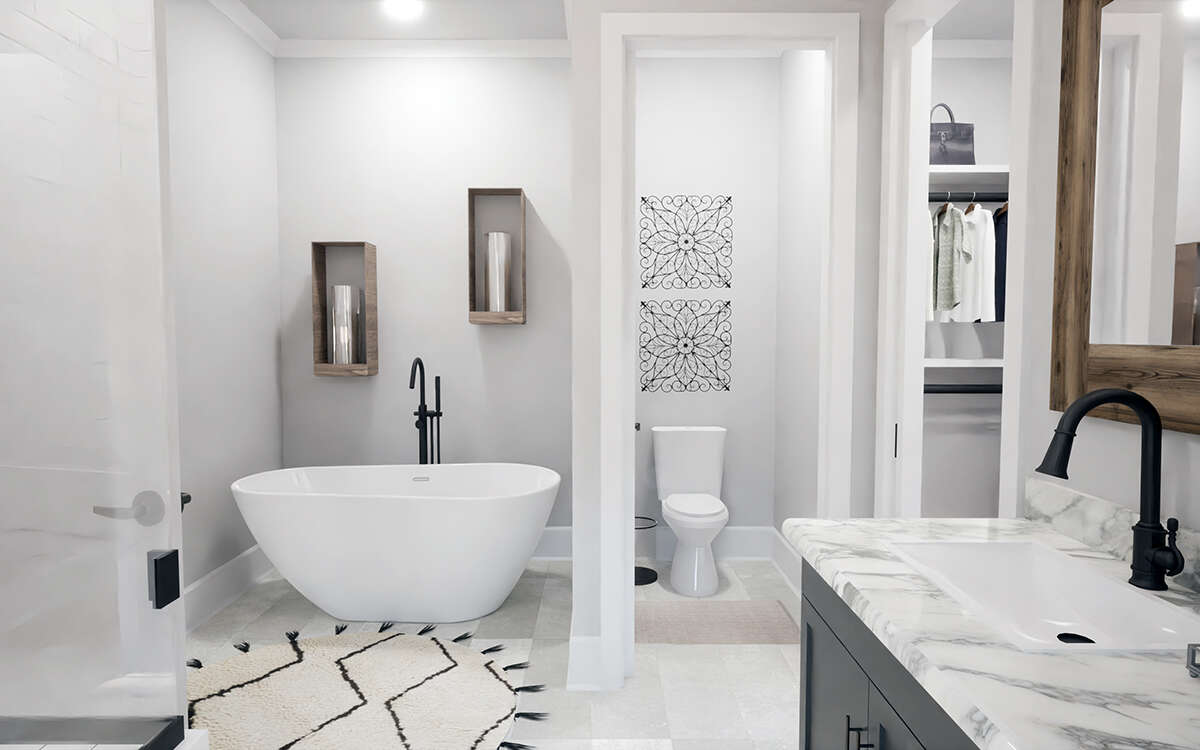

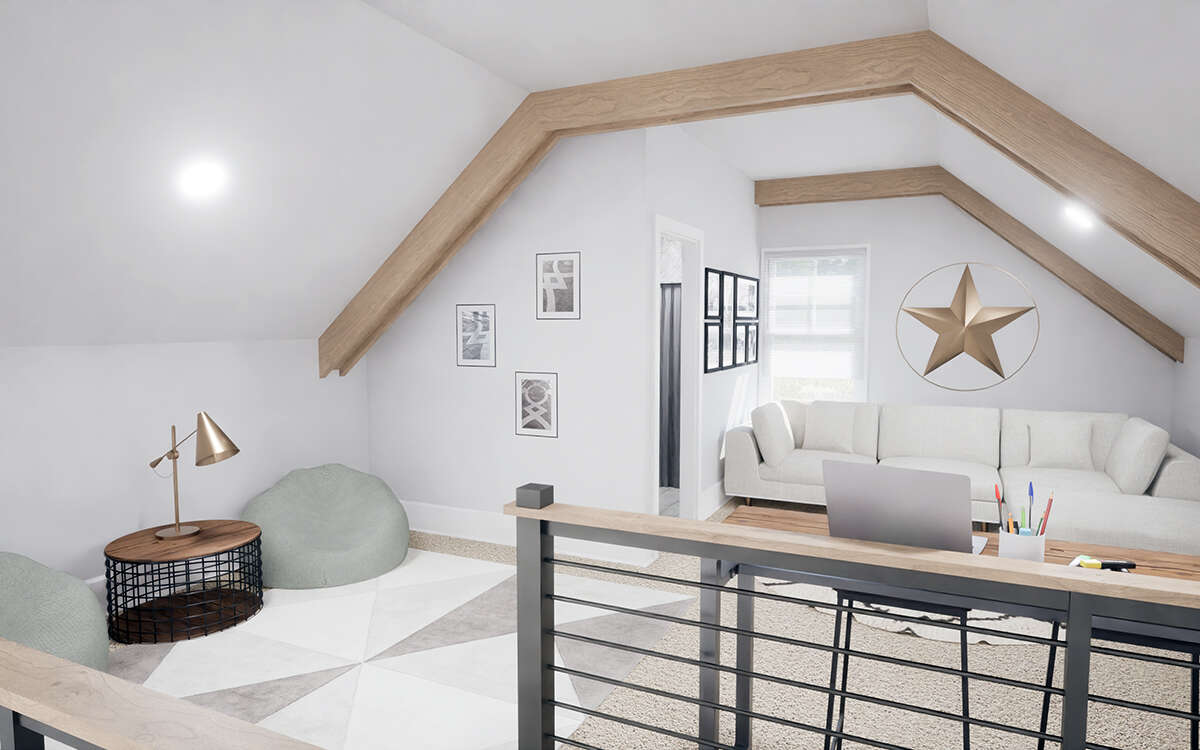

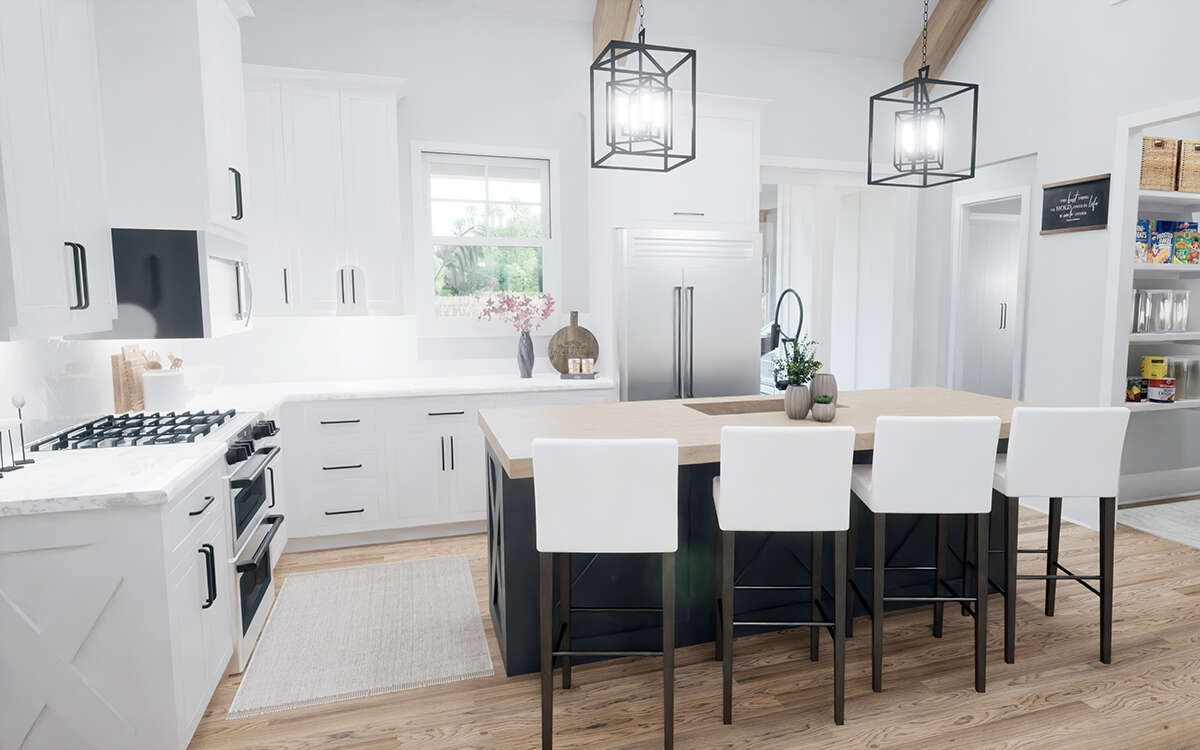

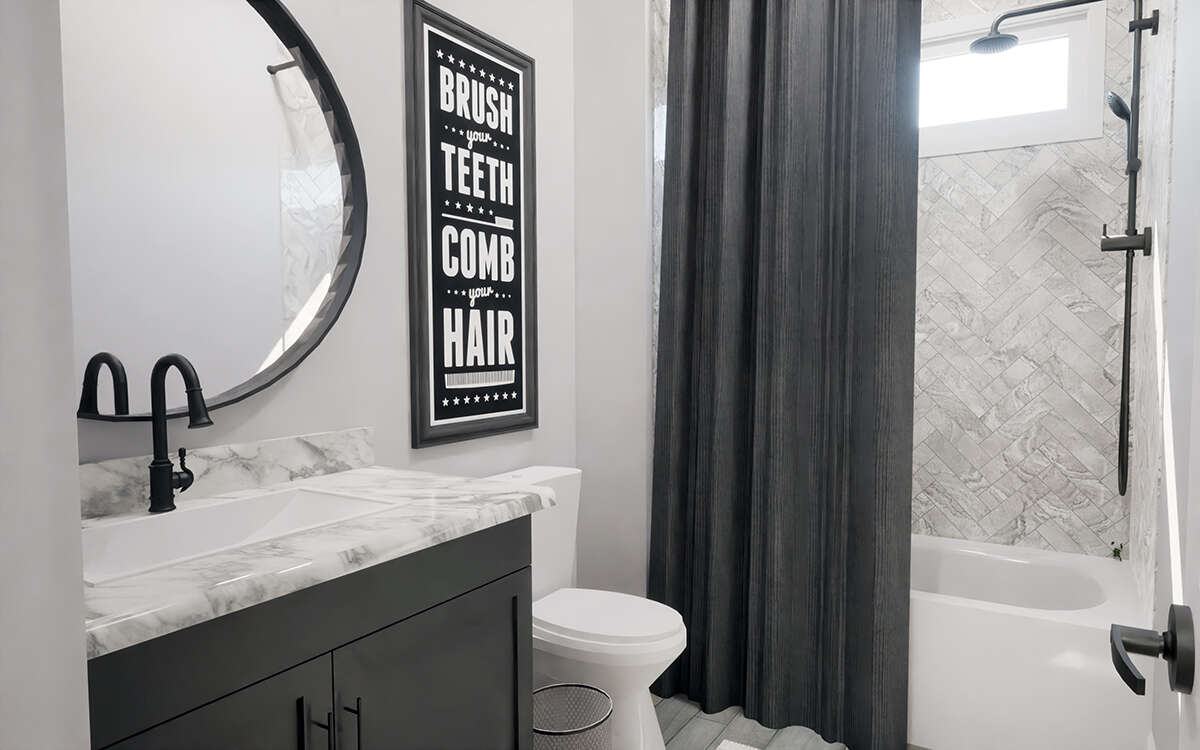

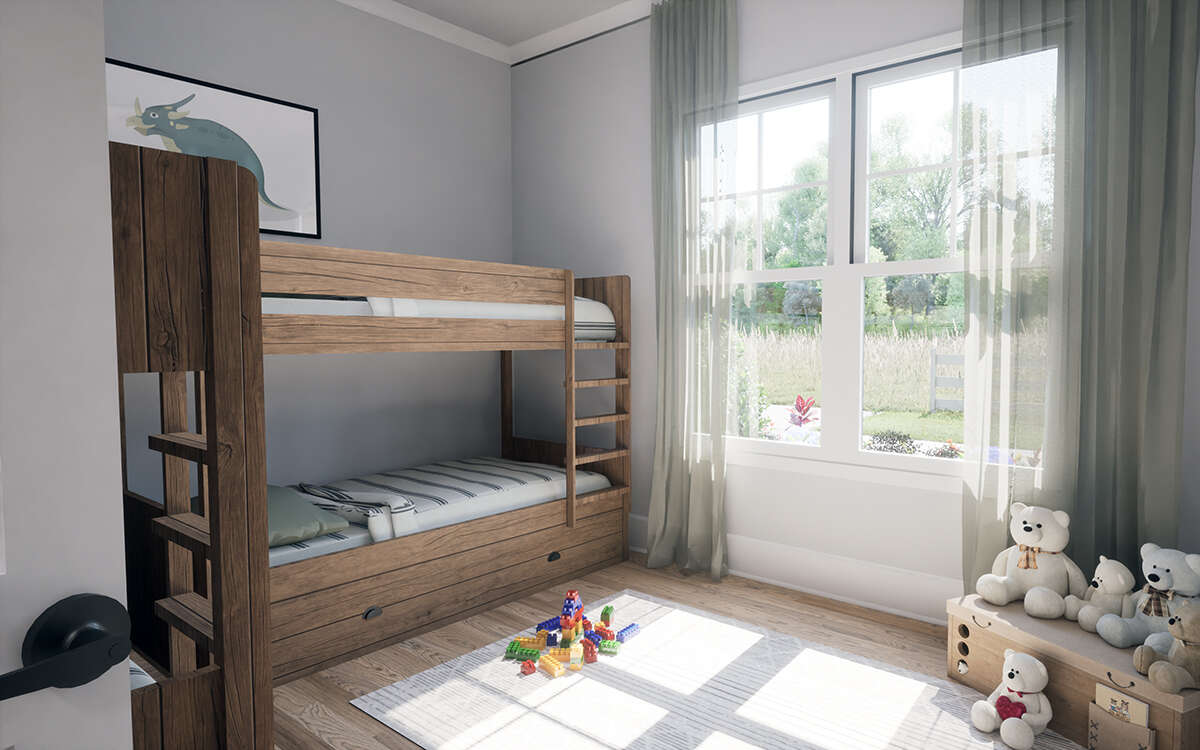

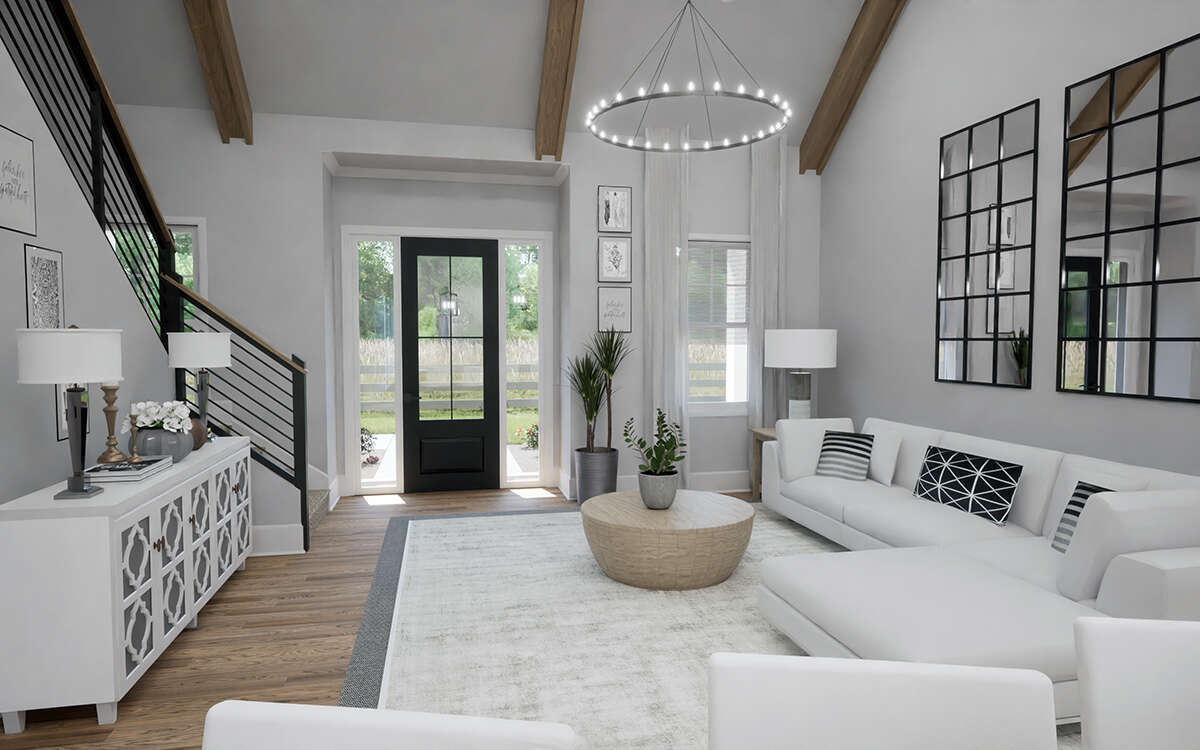

The interior of this Exclusive house plan offers approximately 2,123 square feet of living space with three bedrooms and three plus baths. Entry into the home leads to the open floor plan where there is a family room, dining space and a large kitchen with a huge island and separate walk-in pantry. The primary suite is attached to one side of the home and offers a spacious bedroom, an ensuite bath with both a shower and free standing tub and a private water closet. The walk-in closet is an outstanding large space with shelving, a window bench and attic access. There are two additional bedrooms across the layout; both have good floor space and a hall bath to share with a half bath nearby as well. There is a rear entry/mudroom and utility room located directly off the garage. A large loft is located upstairs, measuring in excess of 20’ x 17’, and the third bathroom; the loft would be ideal as a game room for the children, a home office or a media room. This a a great plan with plenty of interior and exterior space to enjoy as a family.
