Name: House Plan 5829-00035 - Contemporary Plan: 4,356 Square Feet, 4 Bedrooms, 4.5 Bathrooms
Brand: America's Best House Plans
SKU: 5829-00035
Price: 2095.00 USD

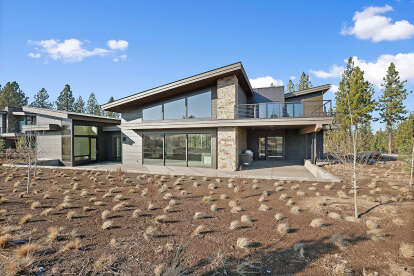

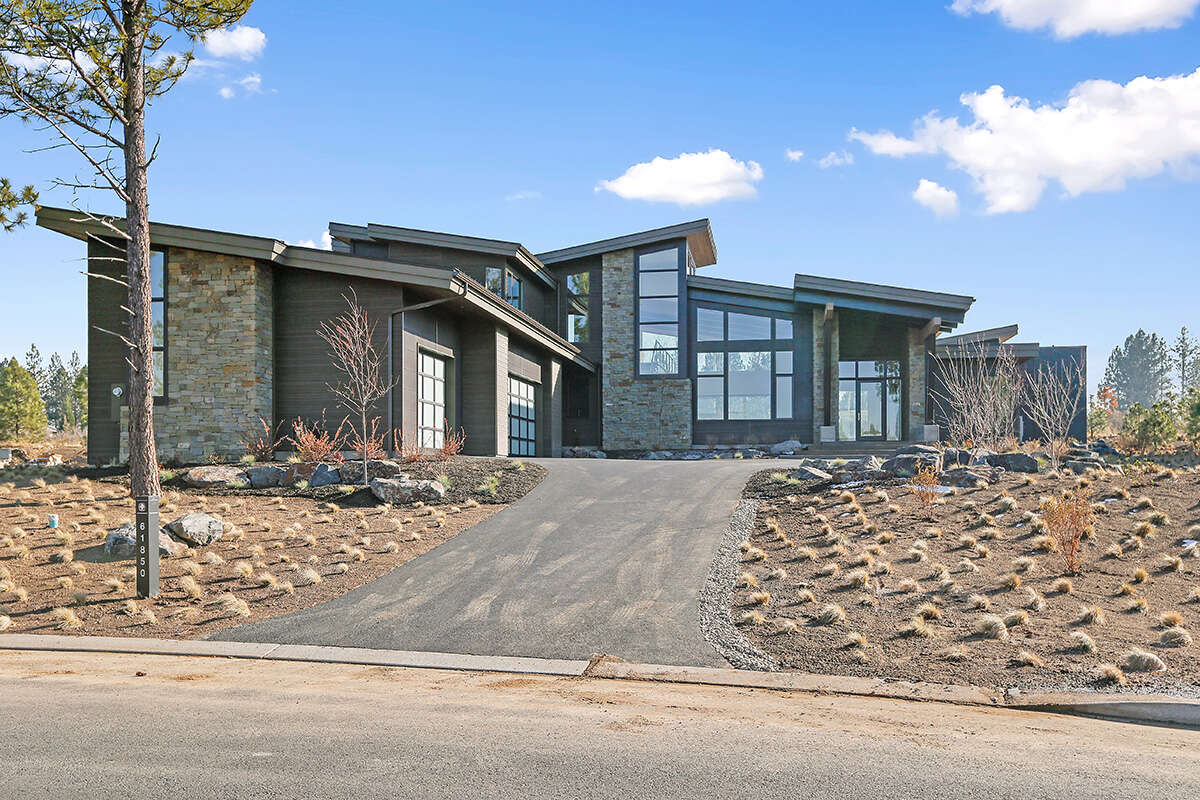

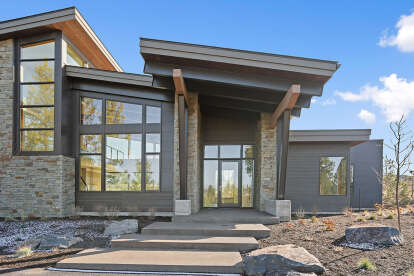

Contemporary House Plan #5829-00035 Elevation Photo

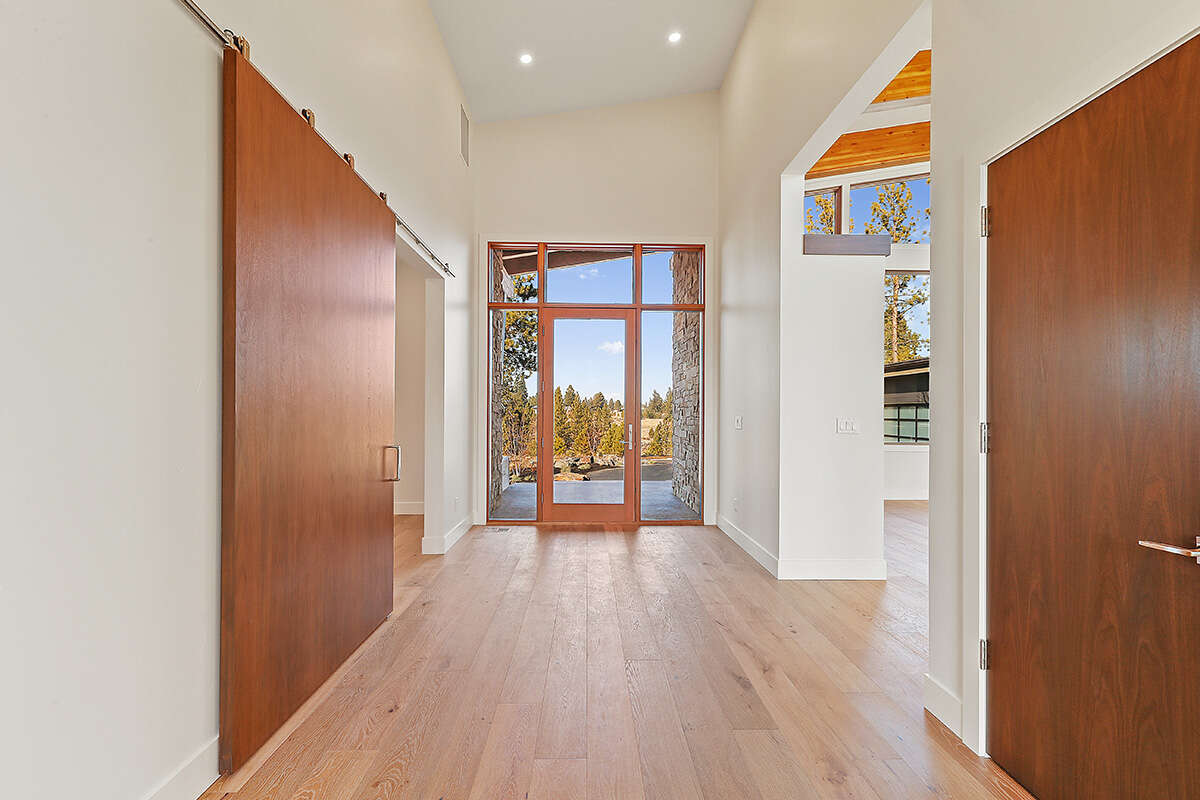

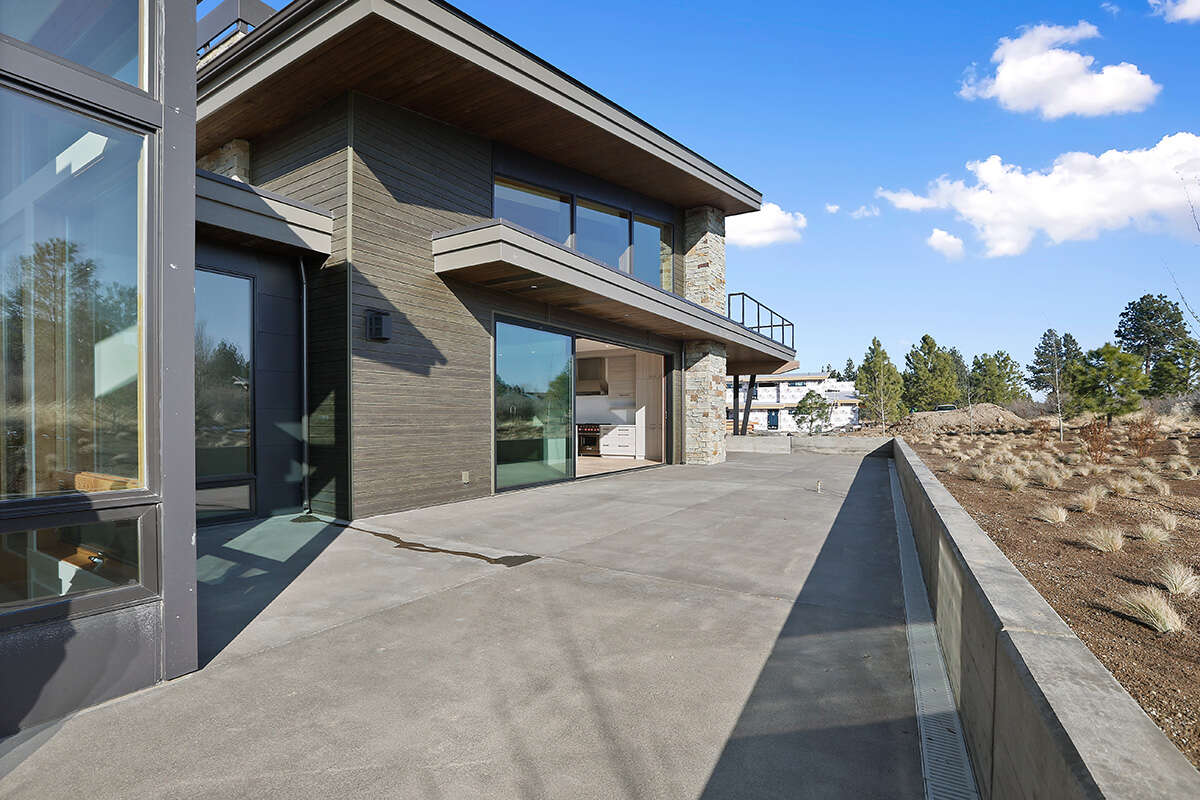

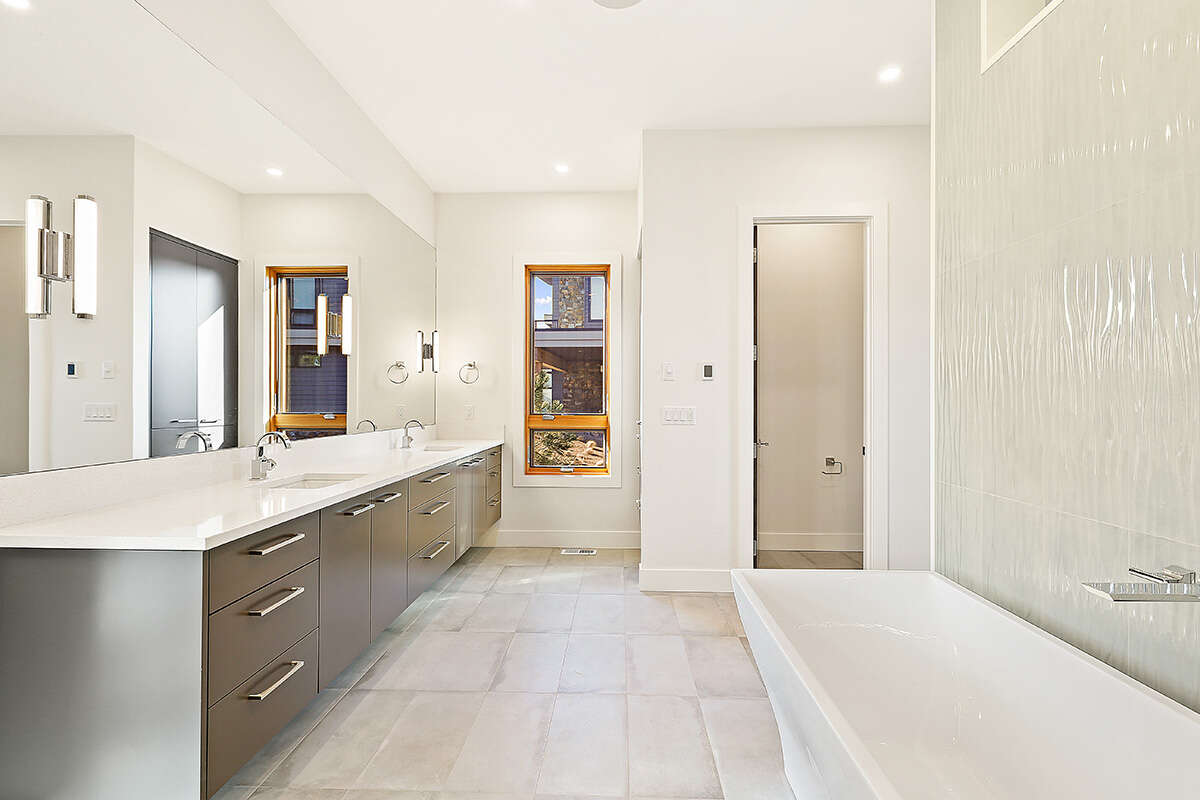

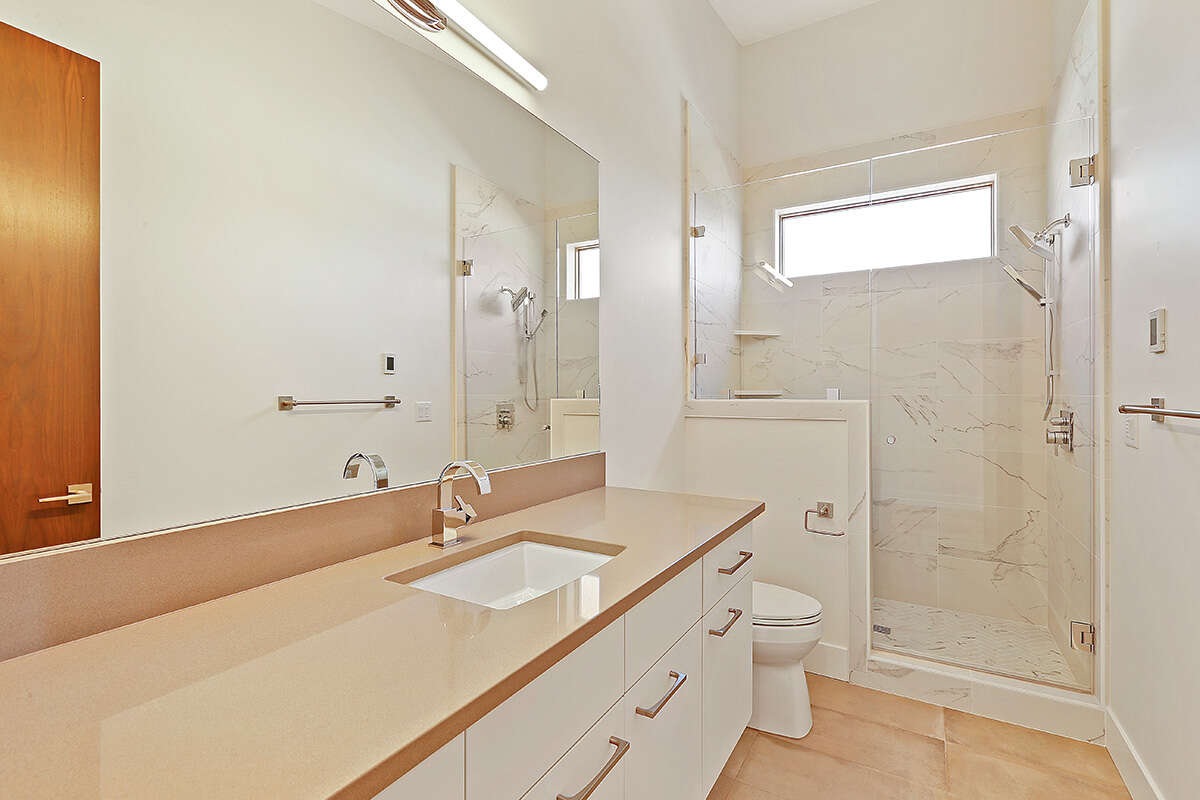

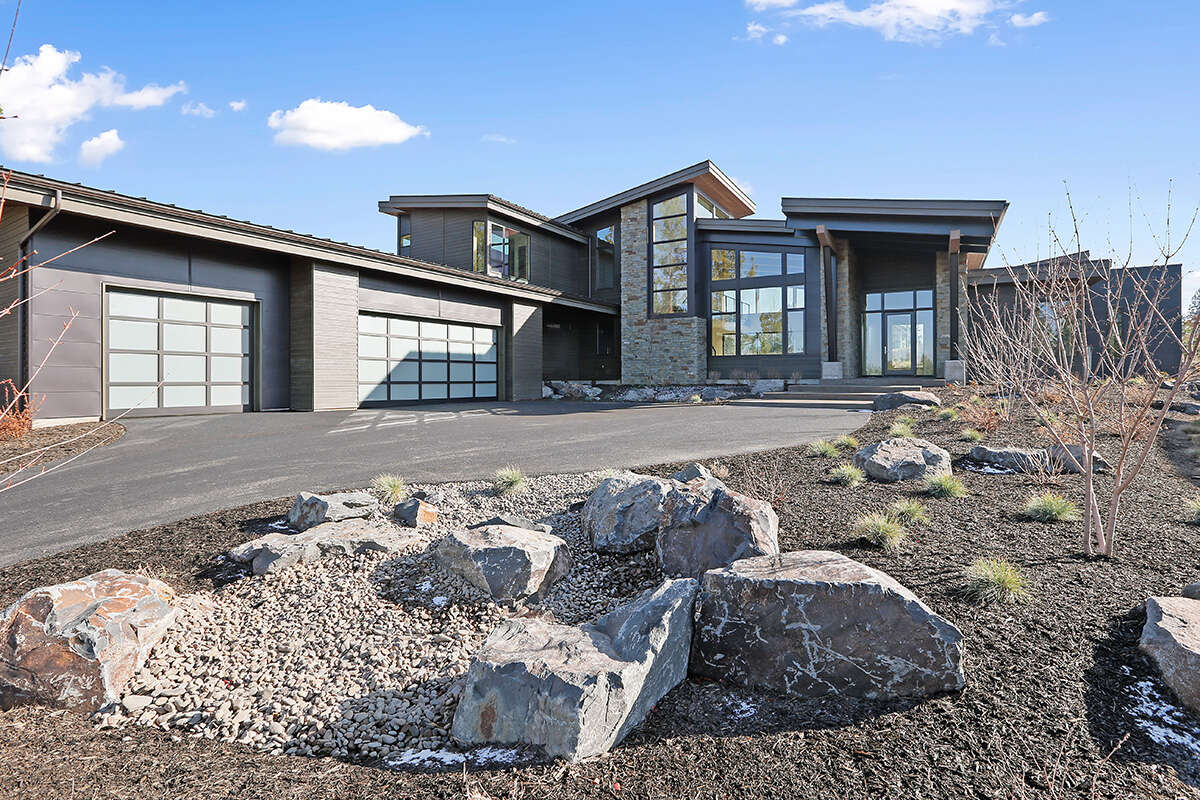

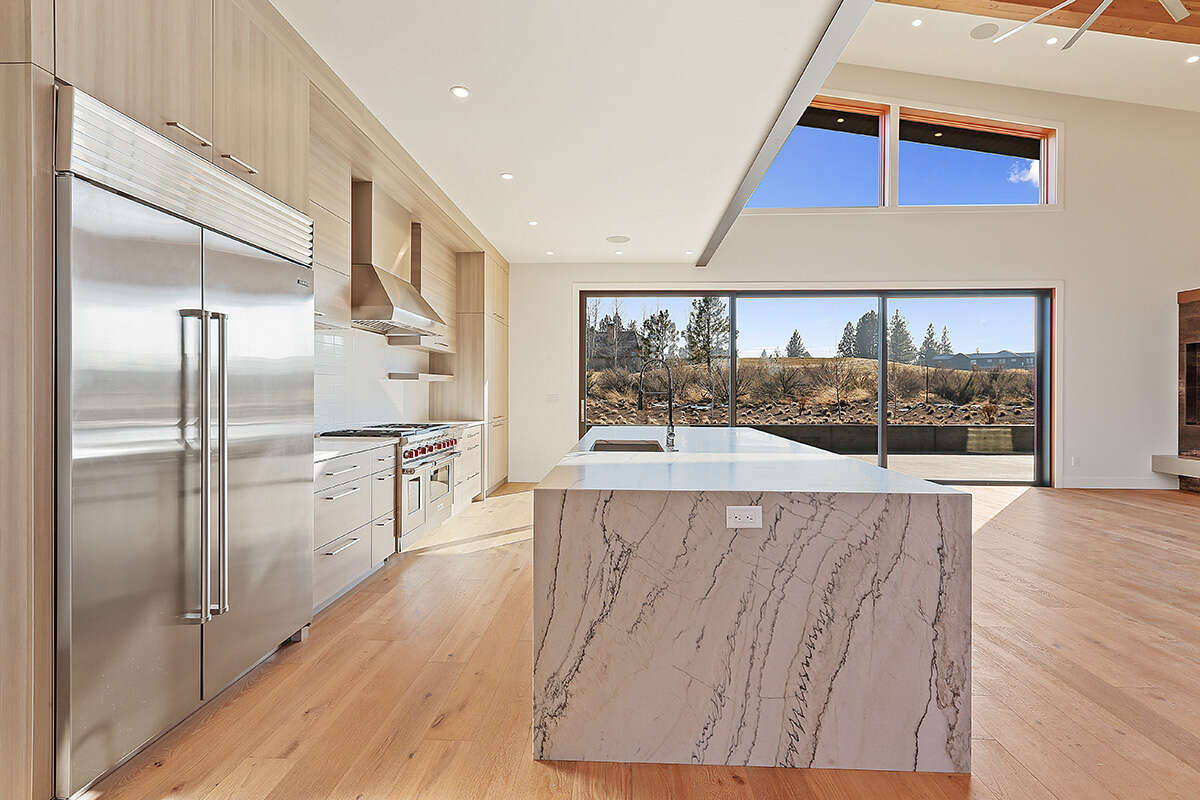

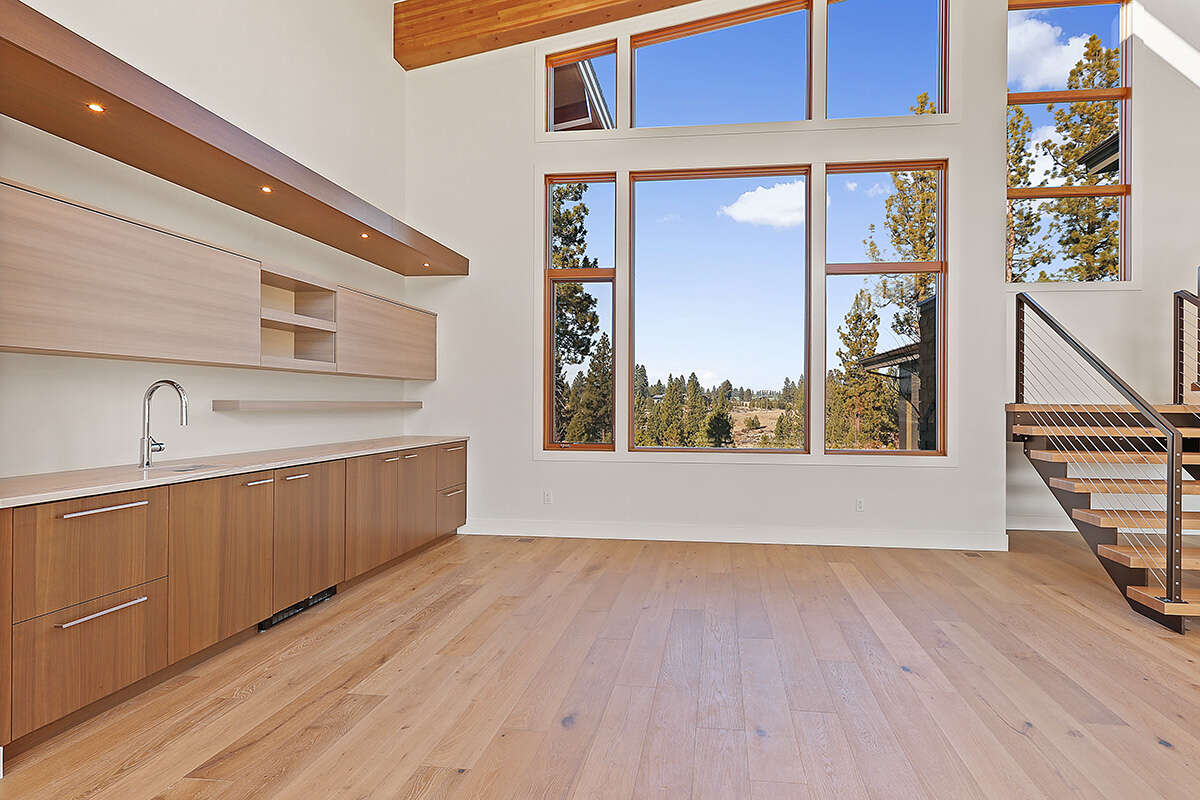

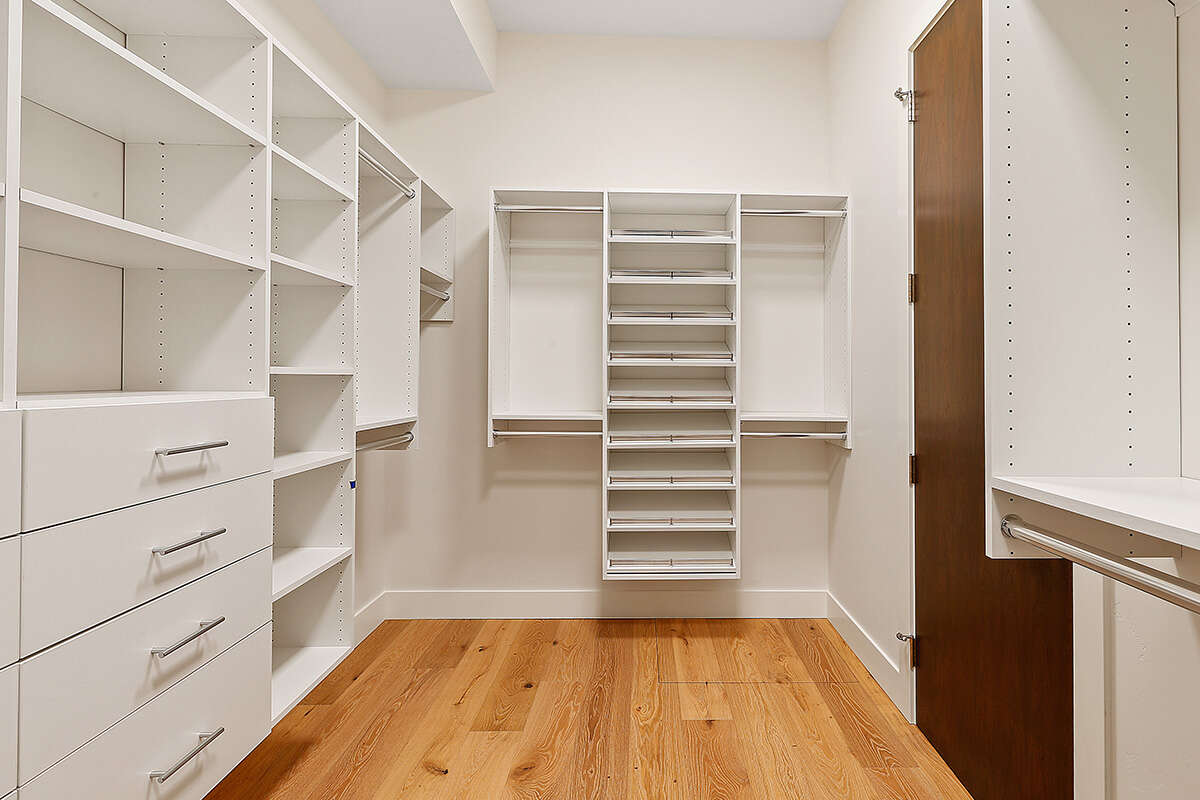

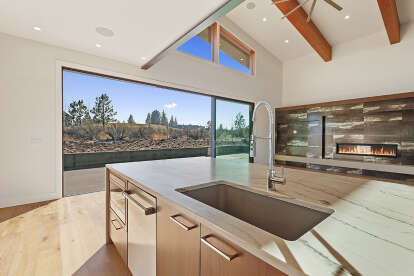

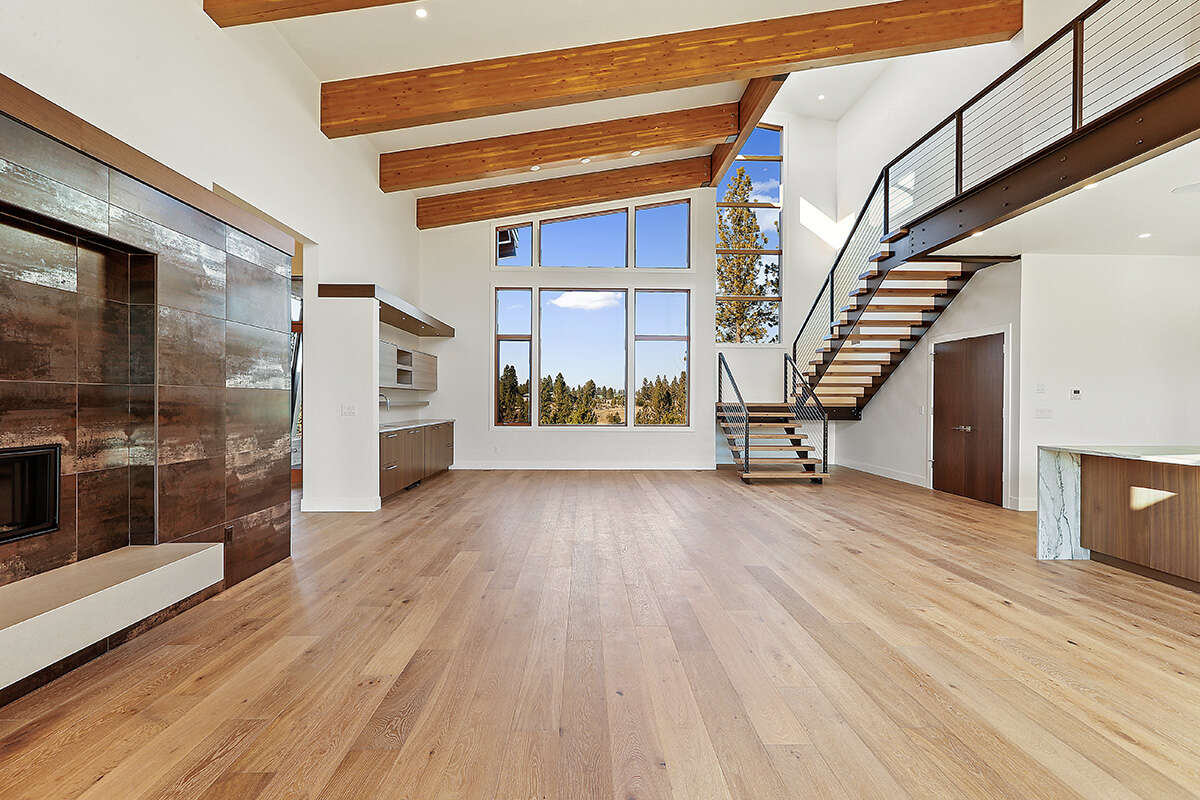

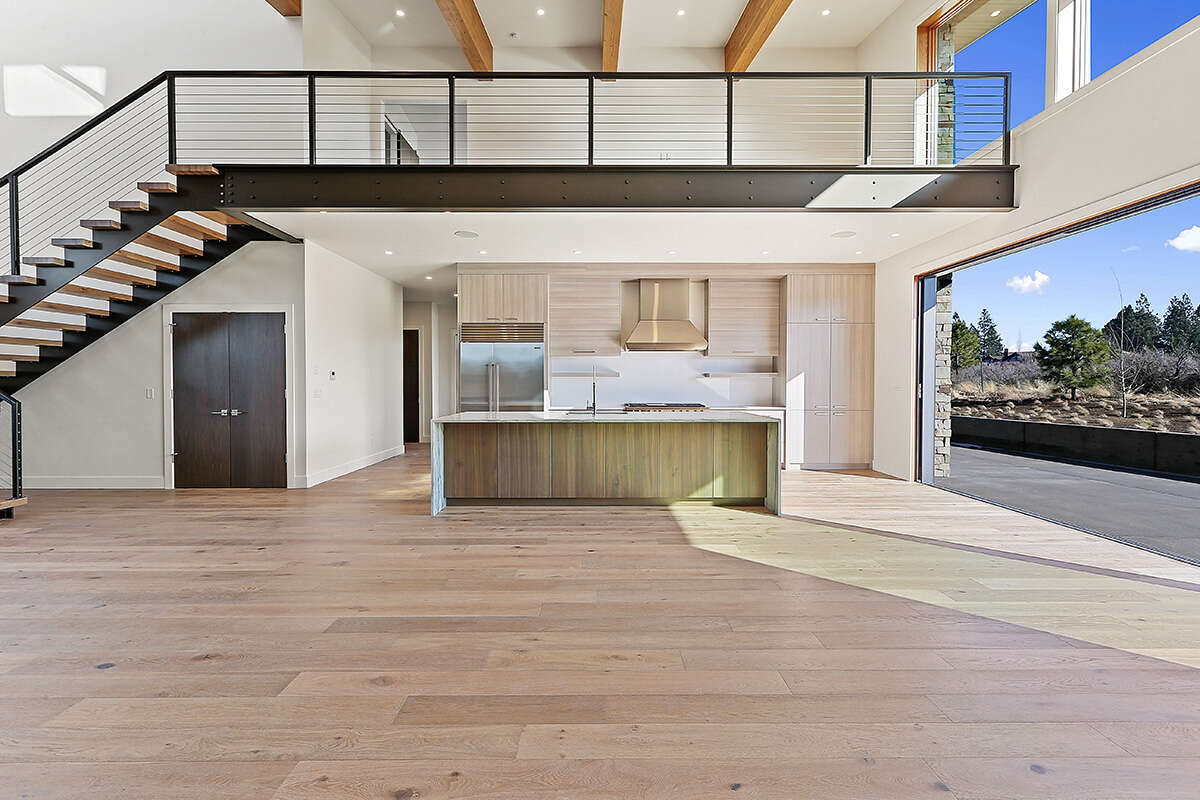

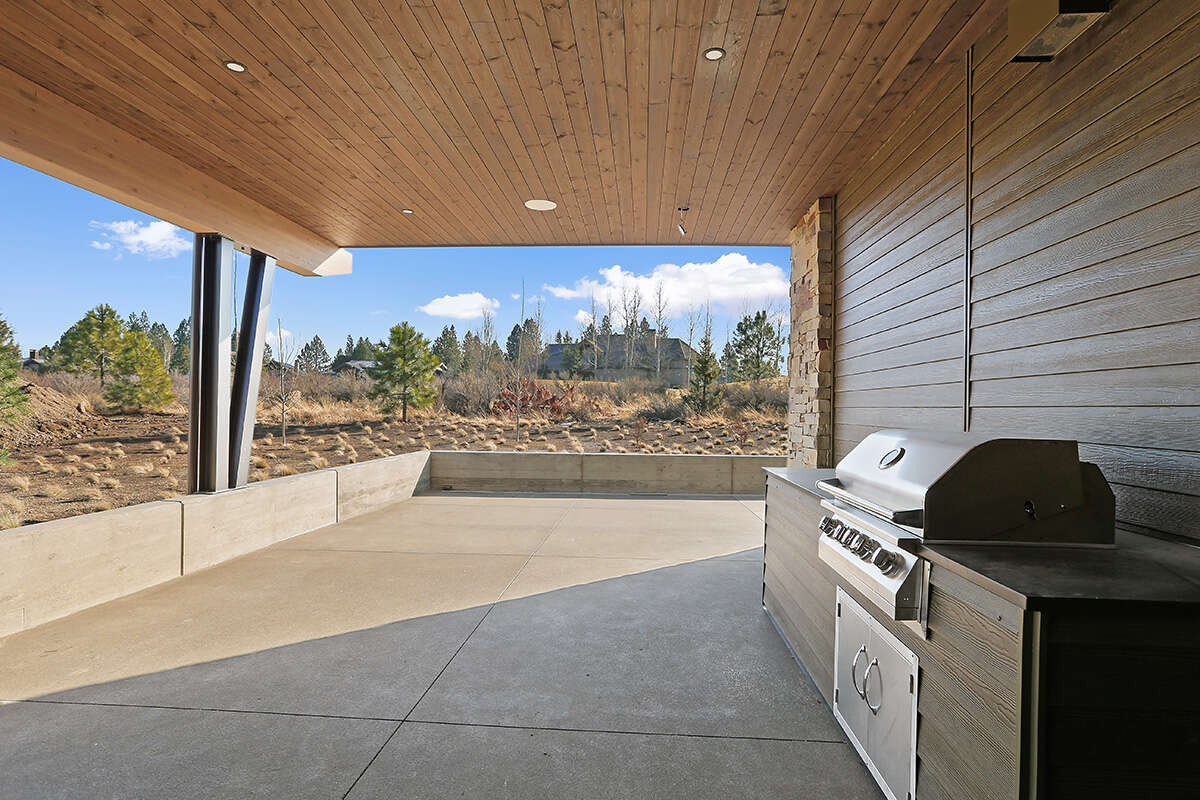

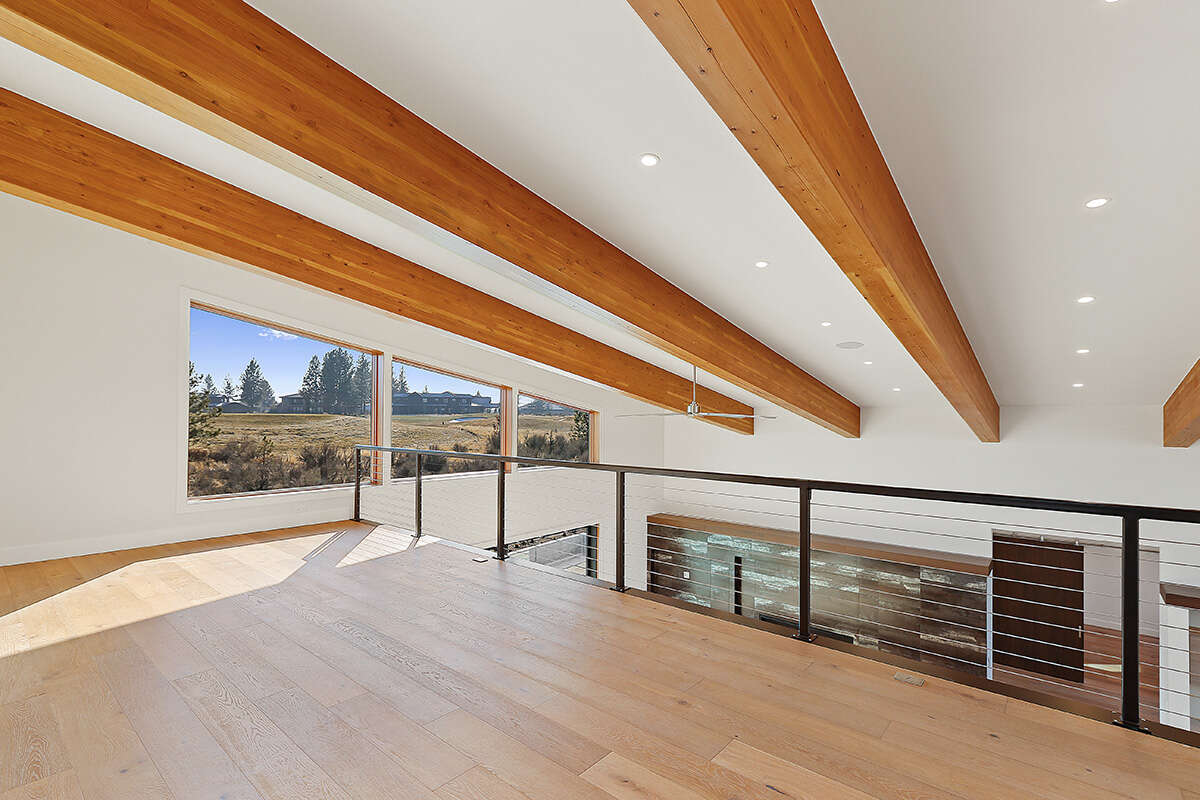

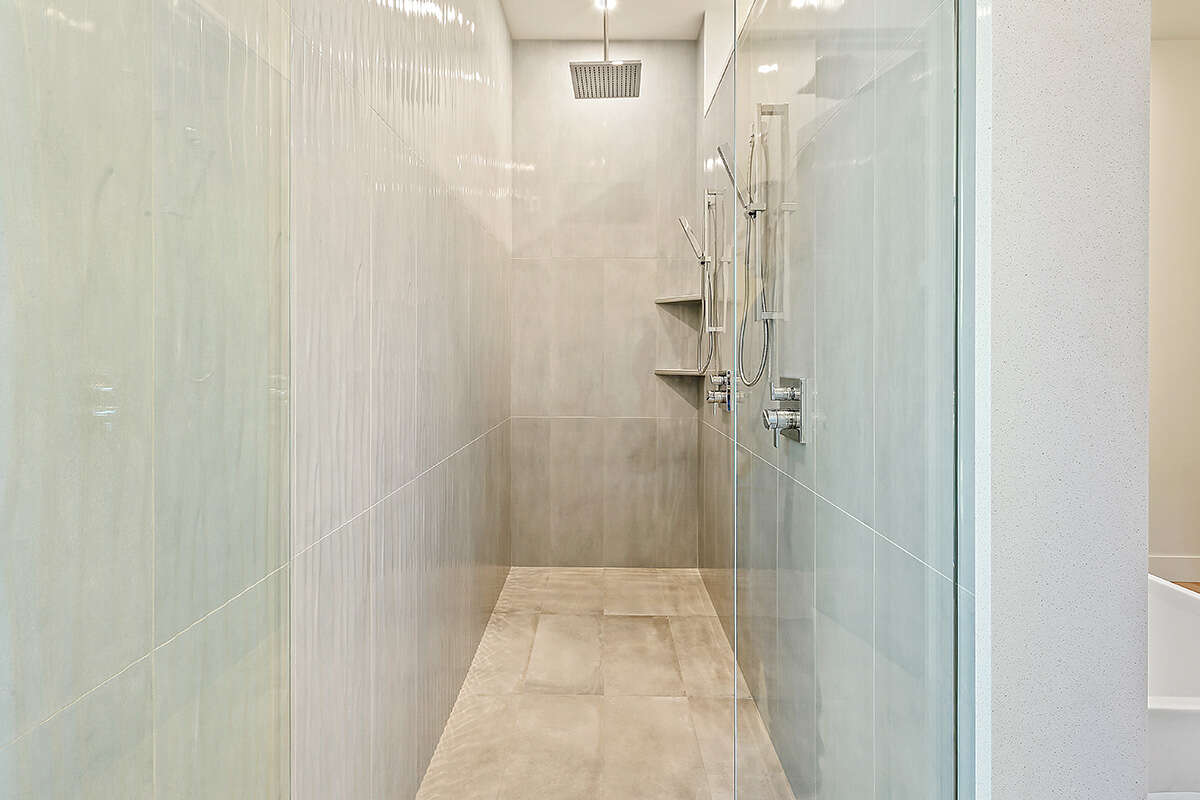

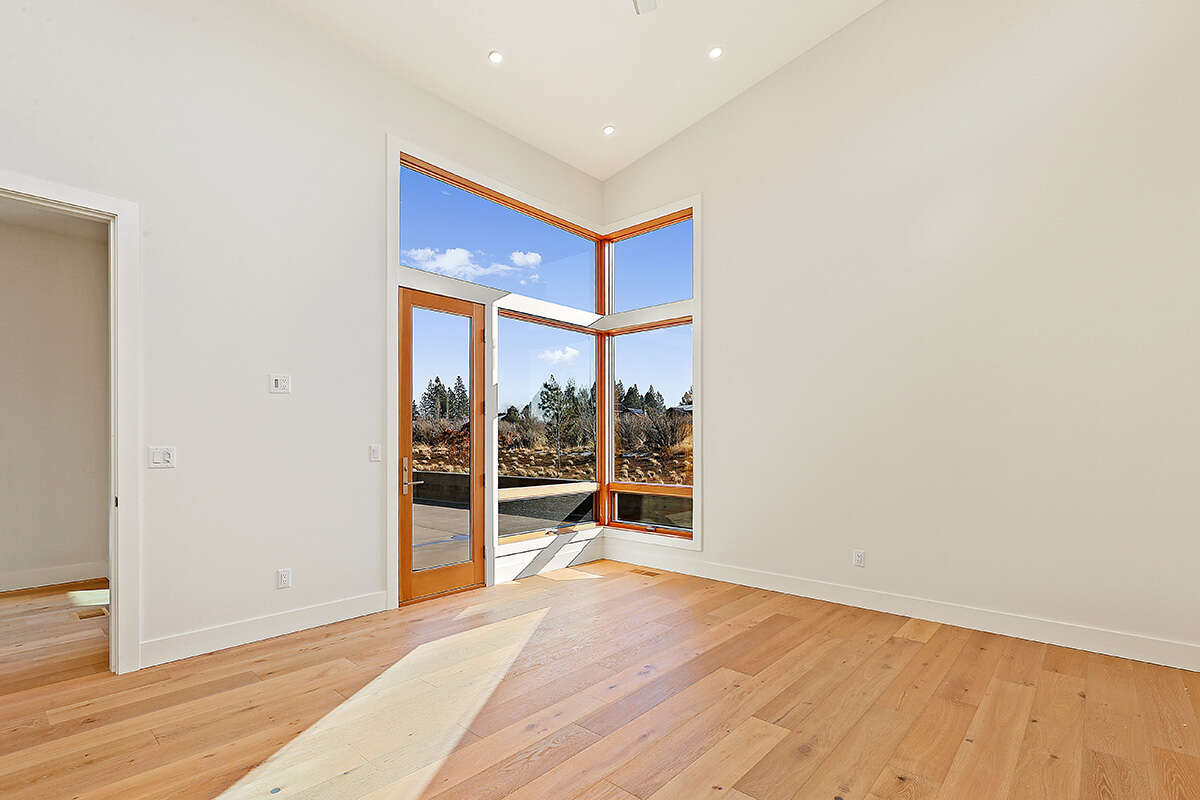

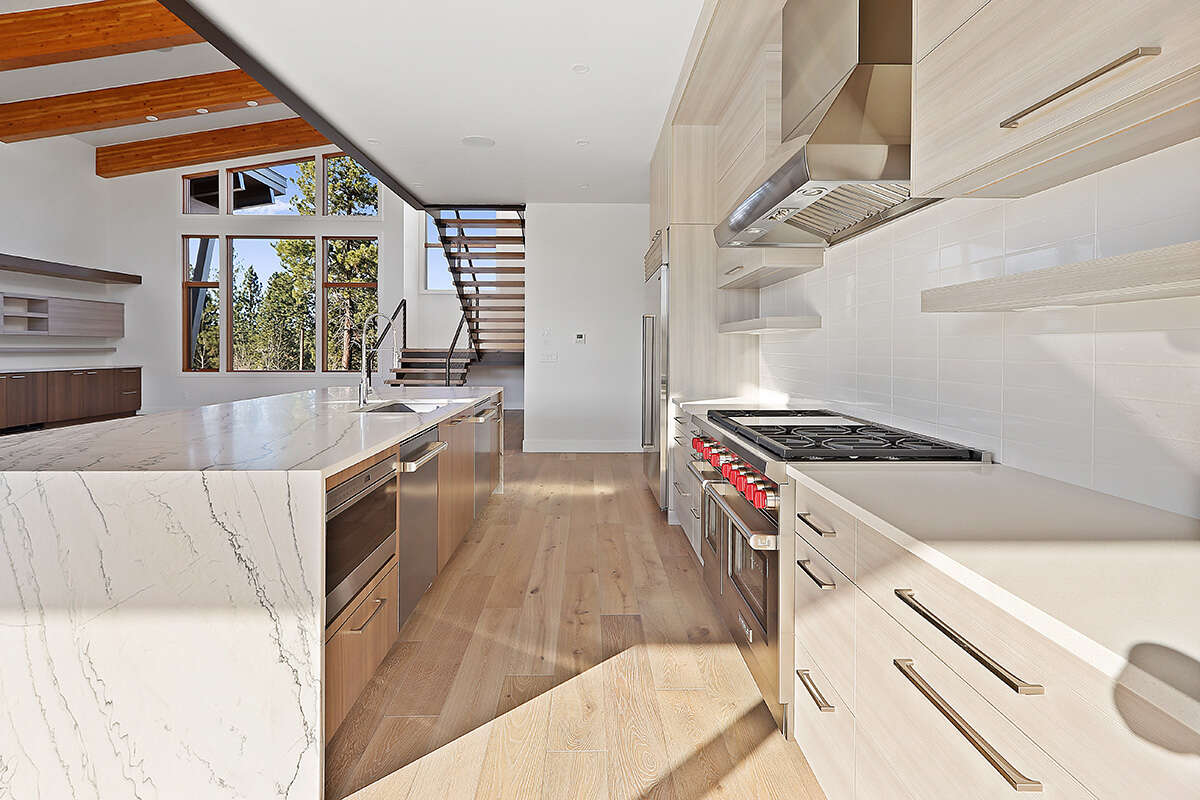

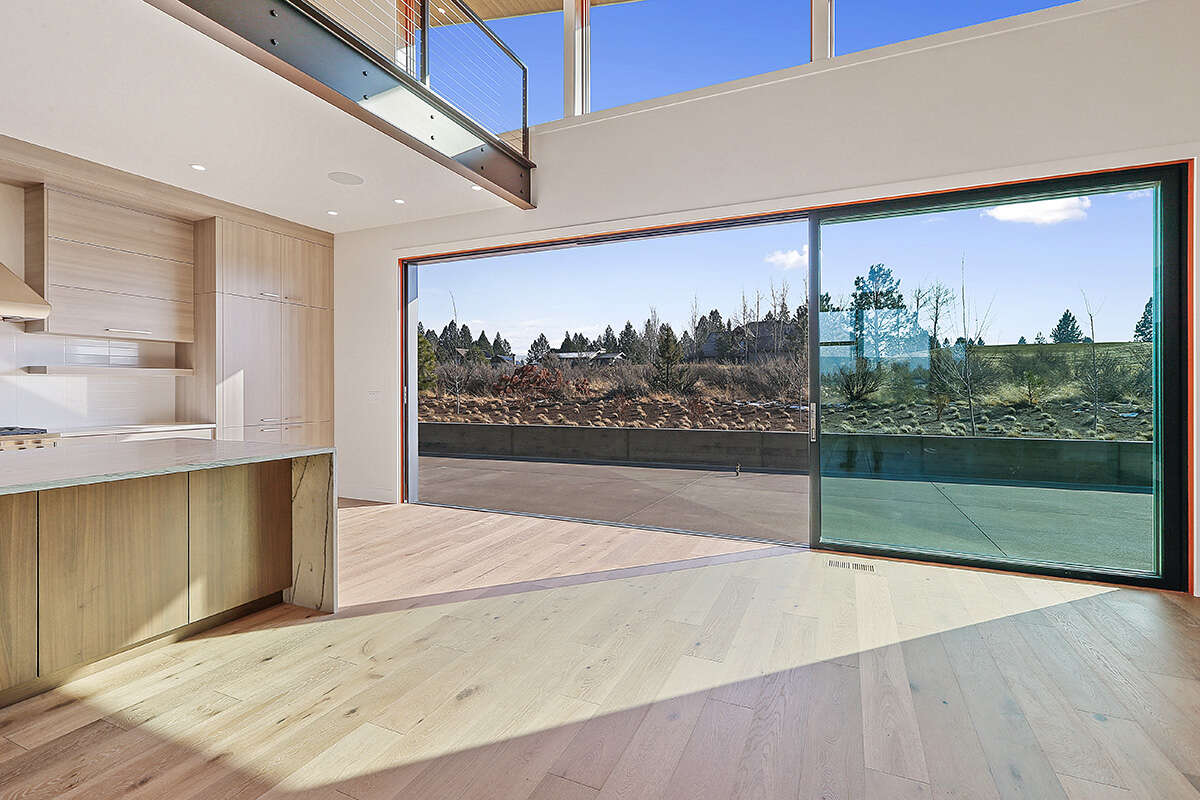

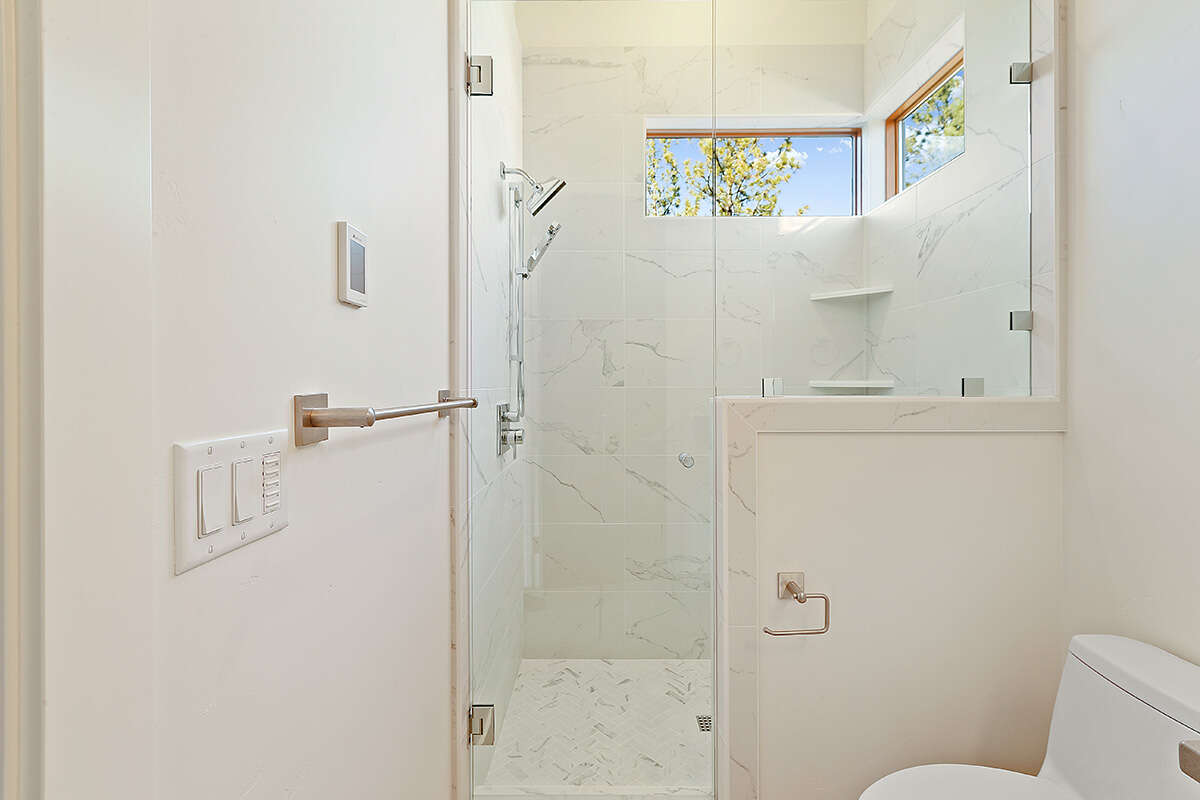

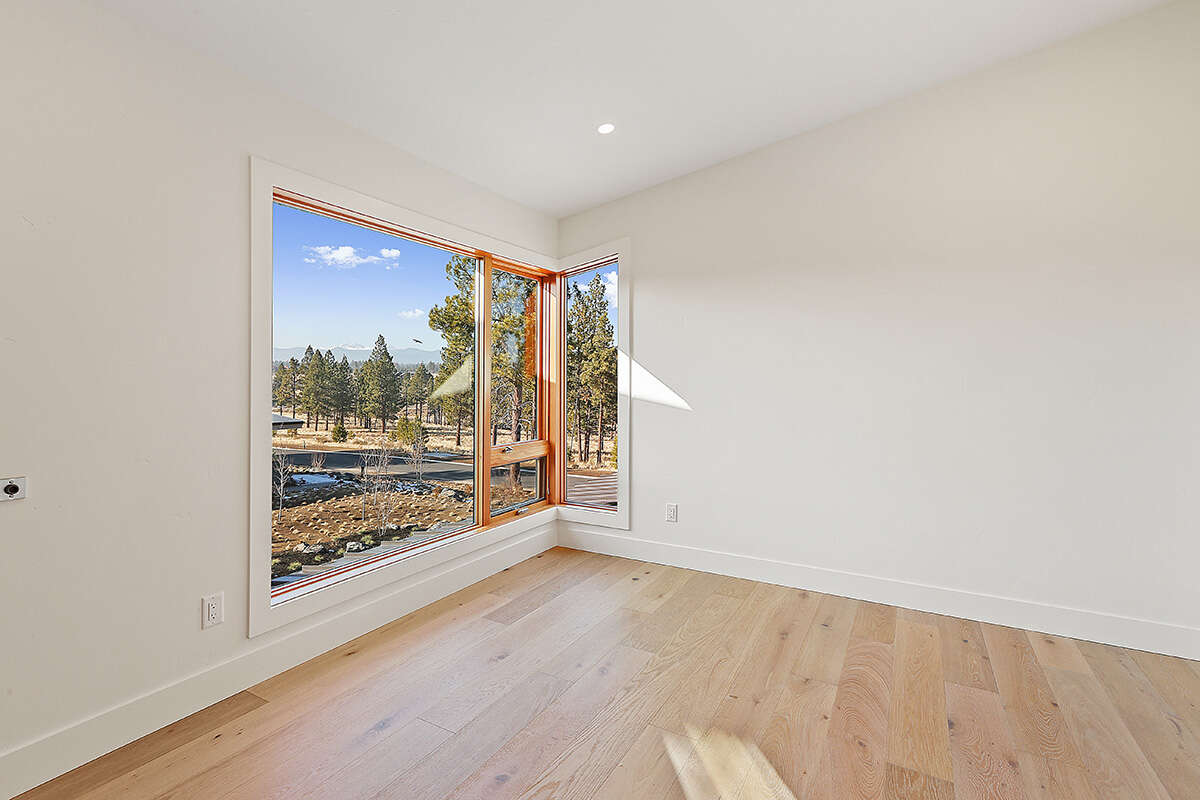

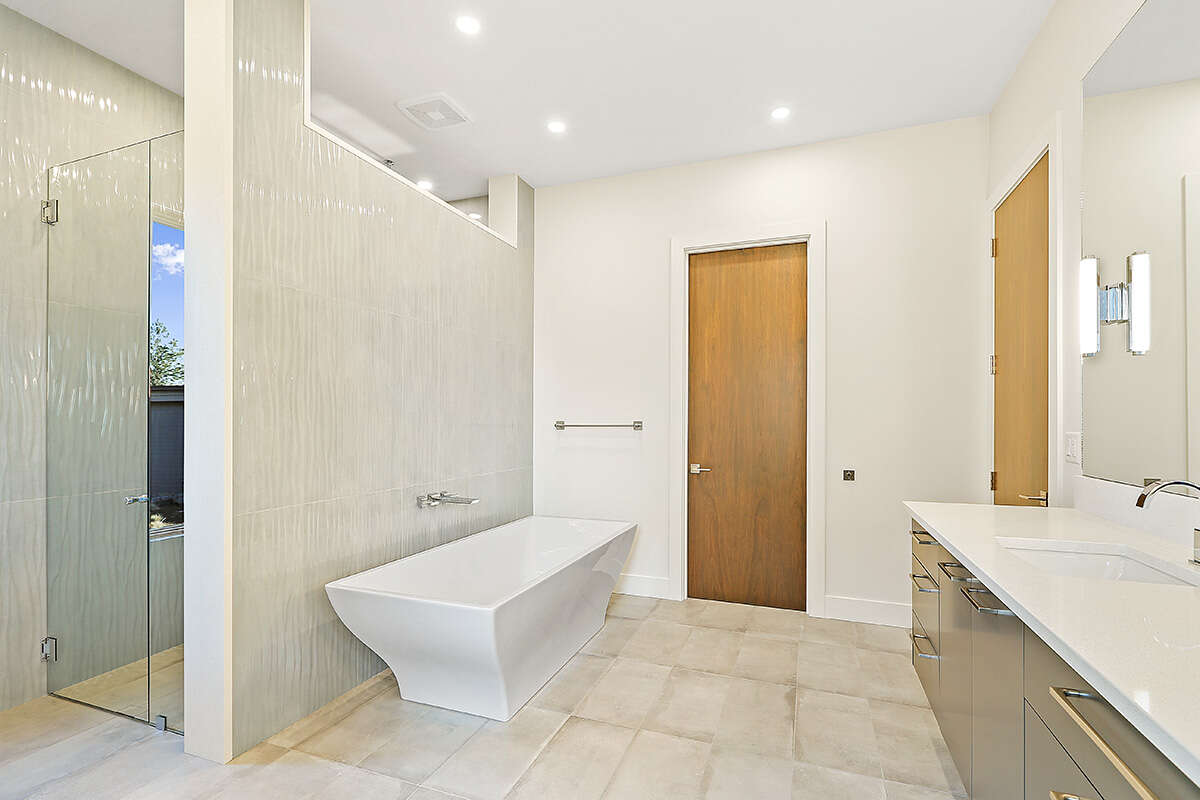

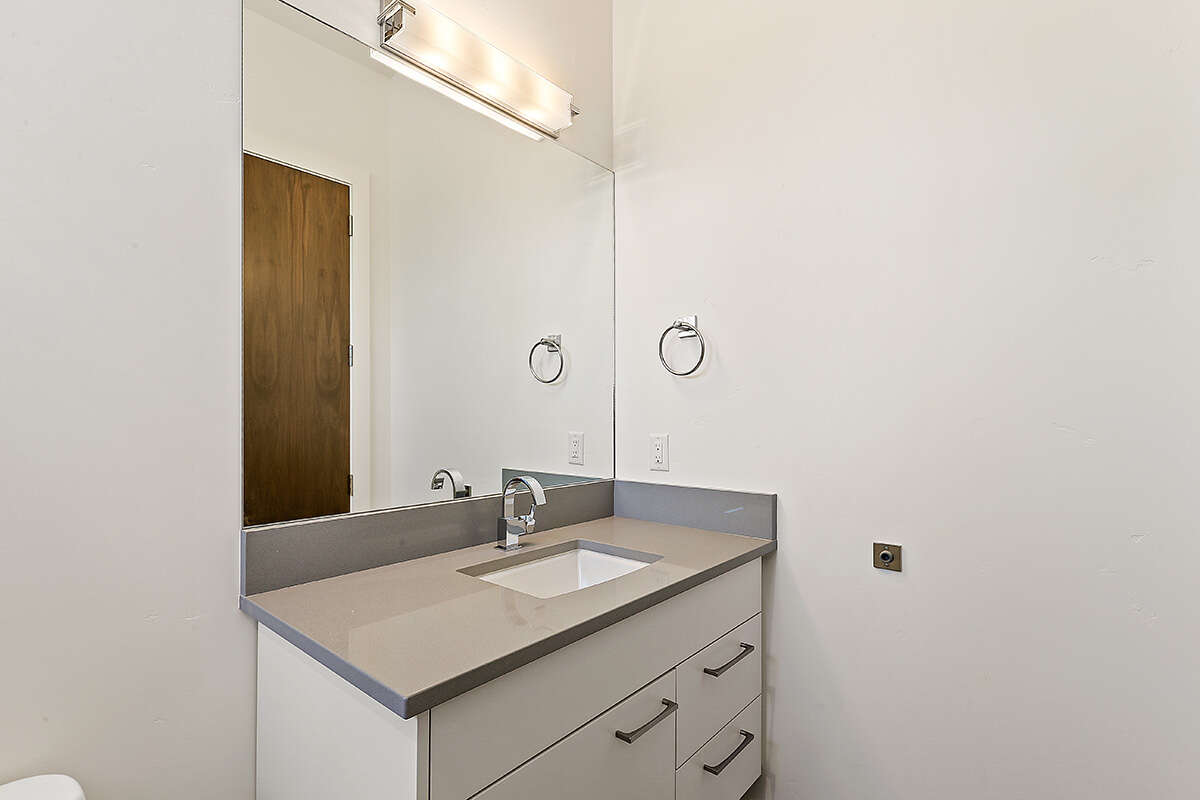

Contemporary House Plan #5829-00035 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,356

Beds 4

Bath 4

1/2 Baths 1

Car 3

Stories 2

Width 91'

Depth 110' 11"

See What's Included

Select Package

PDF (Single Build)

$2,095.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$2,295.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$2,395.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

Reproducible (Single Build)

$2,195.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$2,895.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Crawlspace Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $75.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Mirrored Reverse $195.00

Reverses the plan, however, the text and dimensions will not read correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

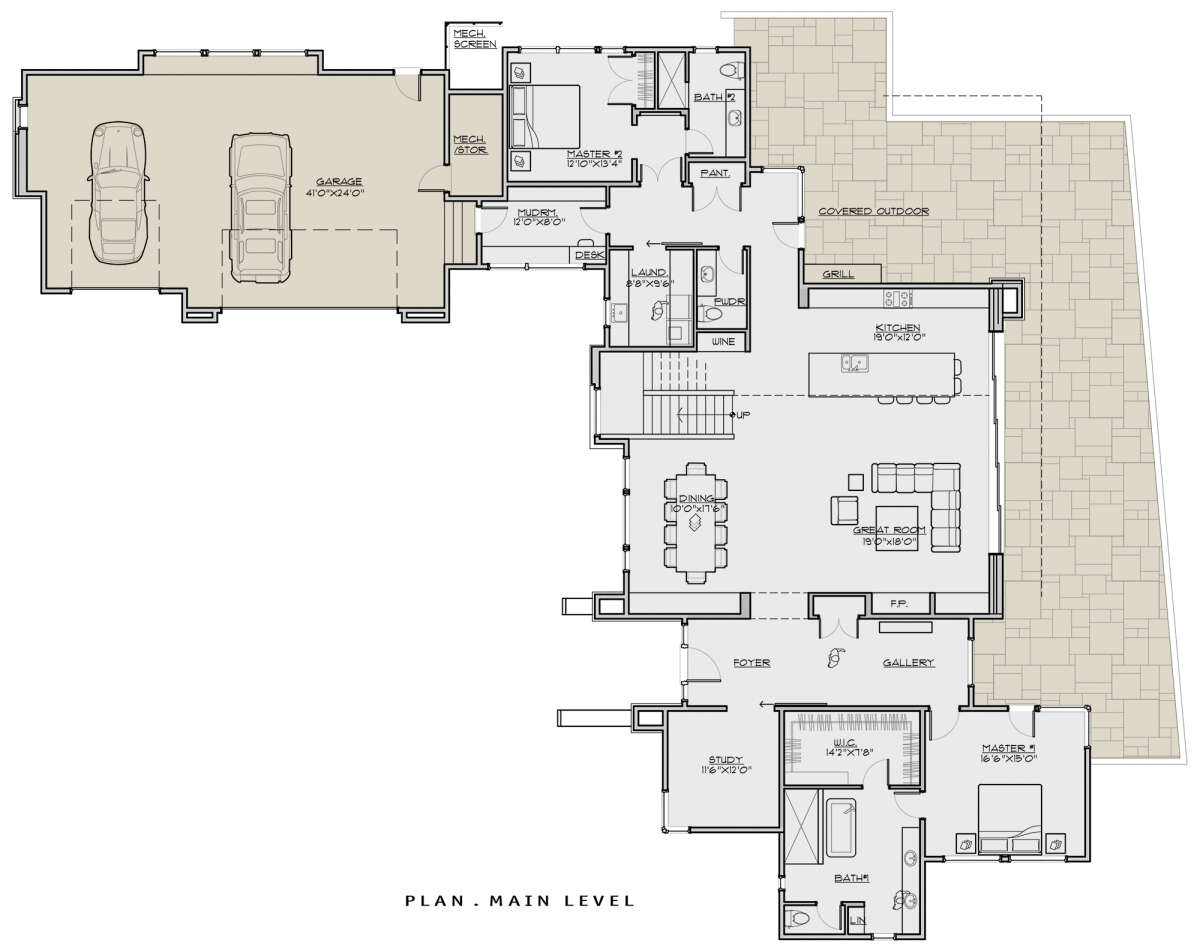

Main Floor

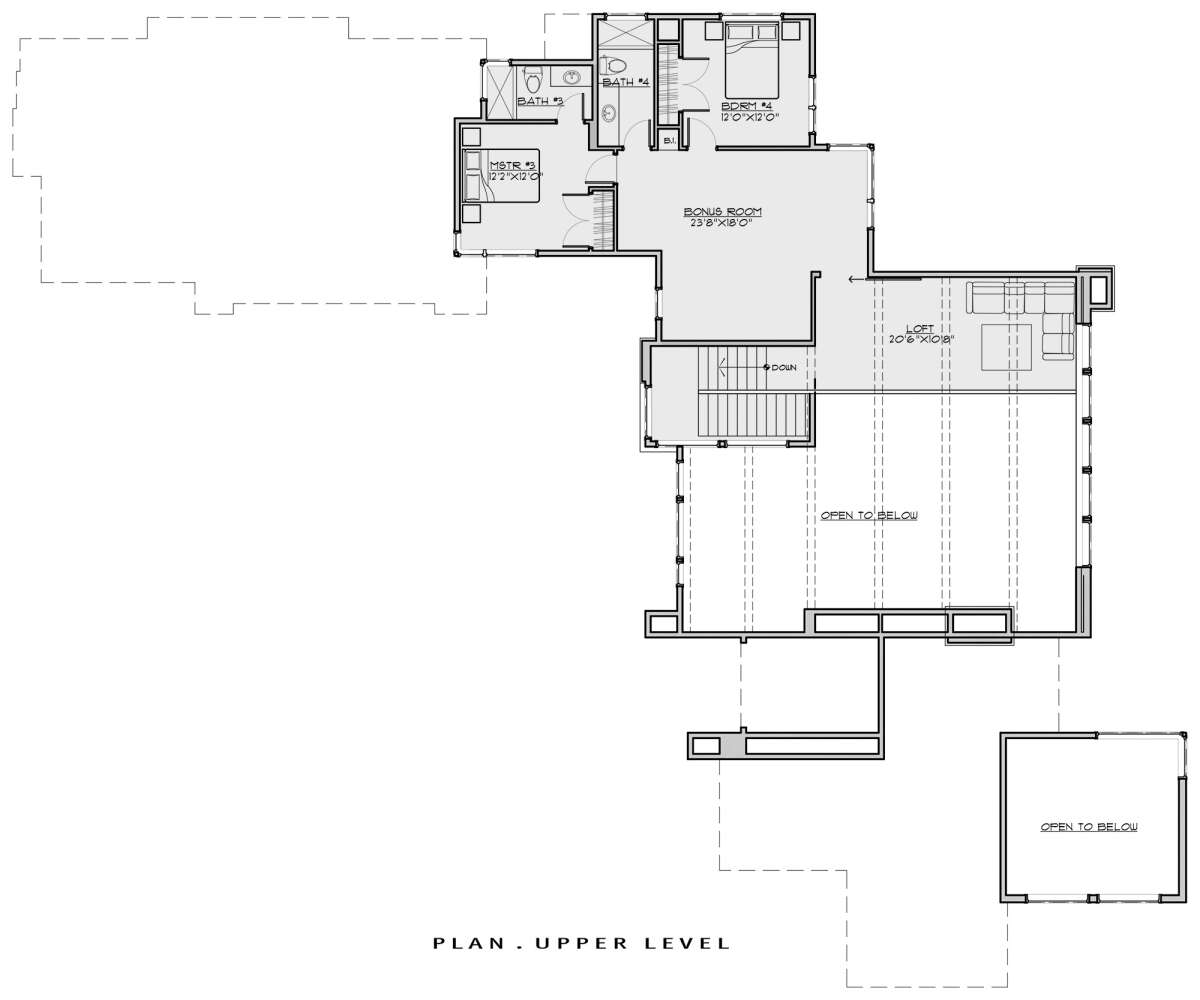

Second Floor

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering or photos of the residence.
Original site plan
Each house plan set includes the site plan of the original build location for reference only. The roof plan is depicted on this sheet, along with pertinent building areas and original design criteria.
Floor Plan(s)
Generally, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 6" exterior walls, but sometimes 8”. Be sure to verify.
Exterior Elevations
Generally, each house plan set includes all applicable front, side, and rear elevations, as well as any special exterior details.
Building sections
In general, each house plan set includes 4 to 7 building sections showing all wall, ceiling, and floor framing along with plate elevations. Interior elevations may be depicted in the section background.
Details
In general, each house plan set contains pertinent structural and architectural details
Foundation Plan
Each house plan set includes one foundation type.
Foundation types typically offered: (each type may or may not be available for a given design)
Crawlspace: Crawlspace is the most typical foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home.
Slab: a few of our plans reflect a "raised slab" which consists of a stem wall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
Floor and roof framing plans
In general, each house plan set includes roof framing and upper floor framing for two-story plans.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan that will show the locations of lights, receptacles, switches, etc. Some plans do not include this sheet, please verify.
License to Build
Each set of construction plans includes ONE license to build.

Ask Us A Question

About This Plan

This 4 bedroom, 4 bathroom Contemporary house plan features 4,356 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
