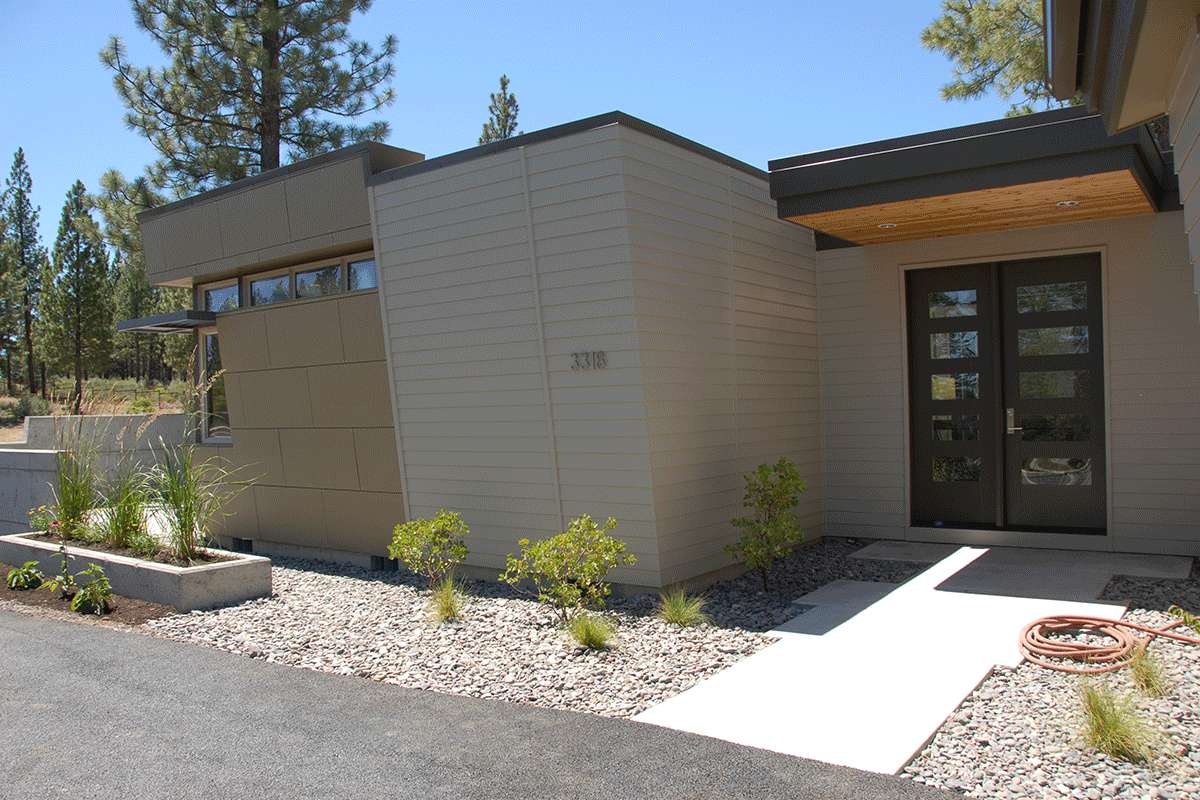

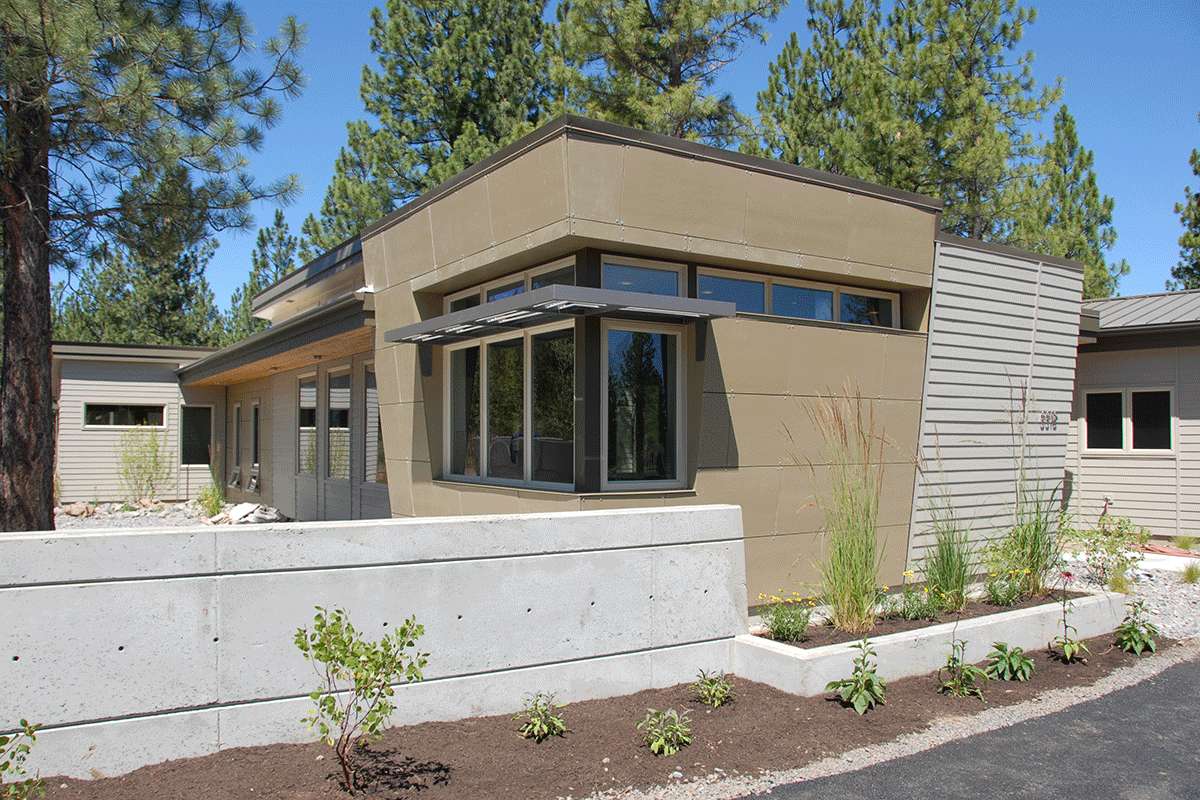

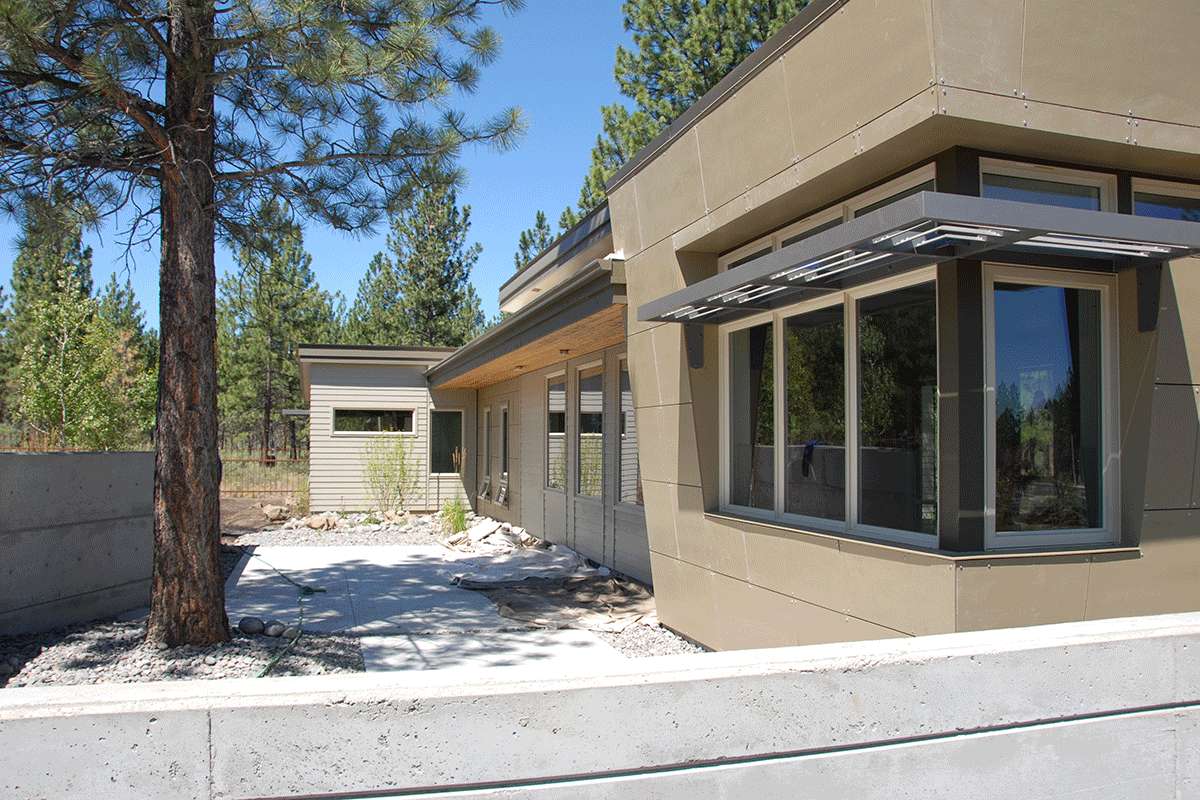

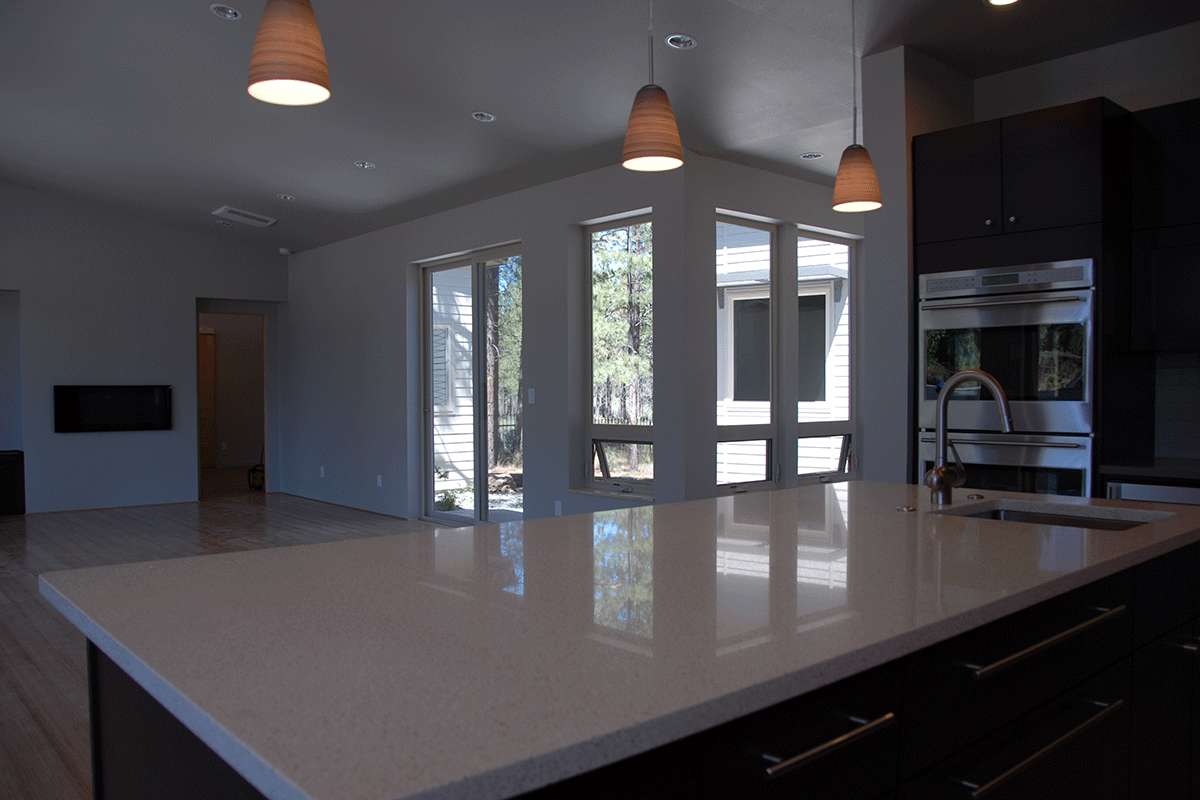

Modern Plan 5829-00011


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,331
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 75'
Depth 102' 6"

Floorplan Drawings

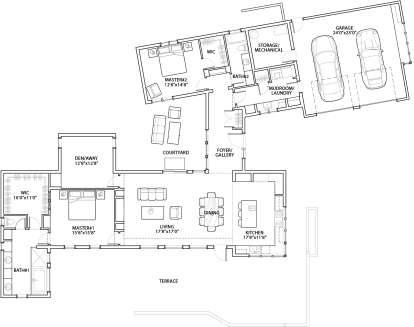

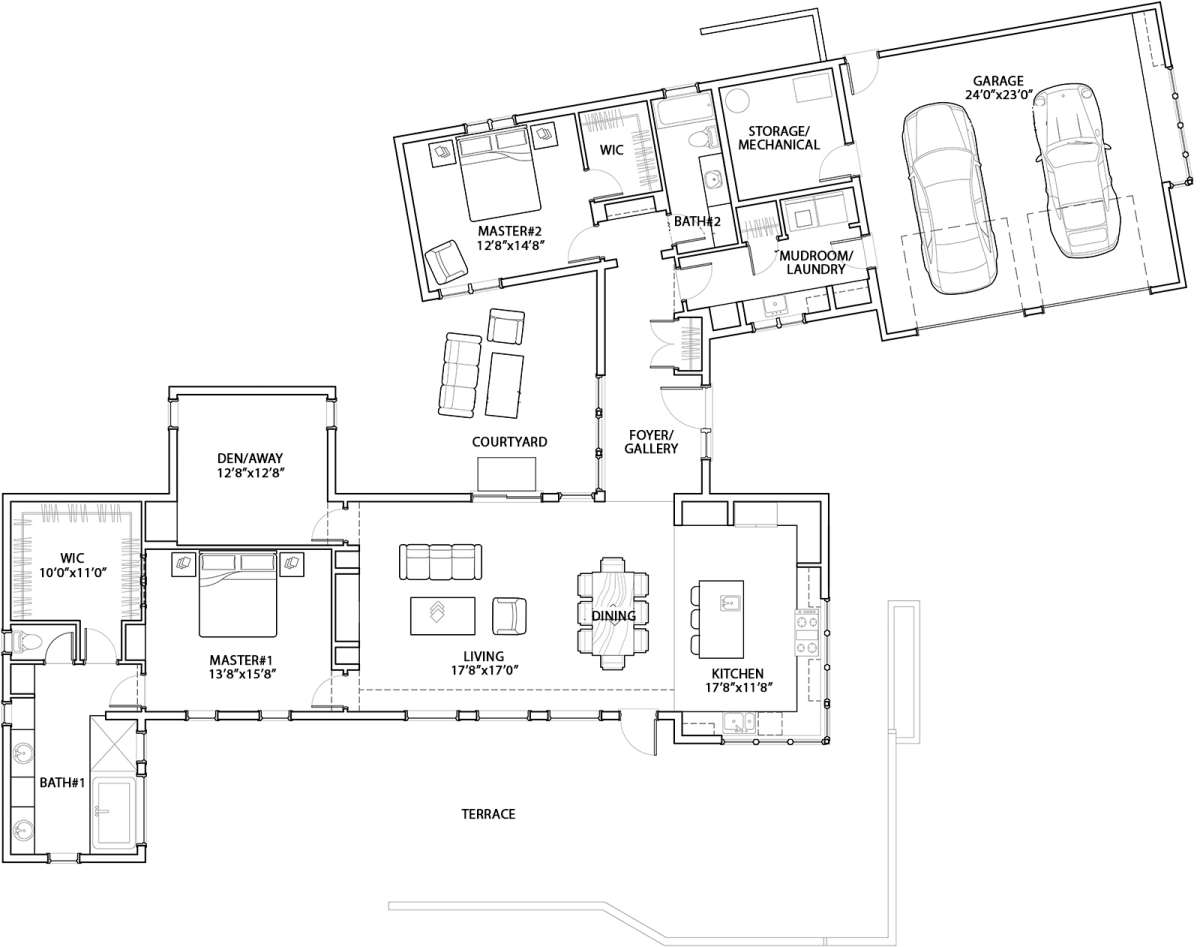

Floorplan 1
Floorplan 1 for House Plan #5829-00011

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering or photos of the residence.
  • Original site plan
    Each house plan set includes the site plan of the original build location for reference only. The roof plan is depicted on this sheet, along with pertinent building areas and original design criteria.
  • Floor Plan(s)
    Generally, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 6" exterior walls, but sometimes 8”. Be sure to verify.
  • Exterior Elevations
    Generally, each house plan set includes all applicable front, side, and rear elevations, as well as any special exterior details.
  • Building sections
    In general, each house plan set includes 4 to 7 building sections showing all wall, ceiling, and floor framing along with plate elevations. Interior elevations may be depicted in the section background.
  • Details
    In general, each house plan set contains pertinent structural and architectural details
  • Foundation Plan
    Each house plan set includes one foundation type.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    Crawlspace: Crawlspace is the most typical foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home.
    Slab: a few of our plans reflect a "raised slab" which consists of a stem wall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
  • Floor and roof framing plans
    In general, each house plan set includes roof framing and upper floor framing for two-story plans.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan that will show the locations of lights, receptacles, switches, etc. Some plans do not include this sheet, please verify.
  • License to Build
    Each set of construction plans includes ONE license to build.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 2 bathroom Modern house plan features 2,331 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
