Mediterranean House Plan 575-00062

Sq Ft2,878
1/2 Baths0
Width64' 8"
Depth92' 8"
Mediterranean House Plan #575-00062 Elevation Photo

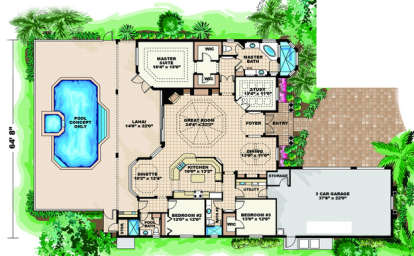

Floorplan 1
Floorplan 1 for House Plan #575-00062
Mediterranean House Plan #575-00062 Elevation Photo
Floorplan 1 for House Plan #575-00062
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #575-00062
Floorplan 1
Floorplan 1 for House Plan #575-00062

Frequently Asked Questions


What's Included in these plans?

  • Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and Window Sizes
    Completely Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan


Warm colors and a tranquil façade decorate this Mediterranean style home with its clay tile roof, Palladian style windows and substantial spiral columns highlighting the grand front entrance. There are approximately 2,878 square feet of interior living space comprised of three bedrooms and three baths. In conventional Mediterranean fashion, there is a front courtyard lending an authentic quality to the home’s façade. A three car garage is equipped with additional storage space and a side yard exit that is handy for storing lawn and sporting equipment. French door access into the home’s interior reveals a spacious foyer and open concept layout for optimal entertaining and family relaxing. There is a study off the foyer, perfect for meeting with business associates/peers or the space could be utilized as a home office. There is a formal dining room situated on the other side of the foyer and the magnificent great room lies just beyond the foyer. The great room boasts of a unique trey ceiling accent, a stately fireplace and built-in cabinetry. Sliding glass doors provide access onto the rear lanai which features a beautiful and extensive outdoor living area with a pool concept for future consideration. The lanai spans the width of the home and provides three entry points into the home. The gourmet kitchen features a plethora of cabinet and counter space including an angled breakfast bar. Family meal preparation and dining time is enjoyable and effortless with the adjoining casual dining space that is encased in surrounding window views. A laundry room is conveniently located directly off the garage and provides a large space for keeping the home tidy and clutter free.
Bedroom two is highlighted with good floor space, generous closet space and an adjacent pool bath with interior and exterior access. The third bedroom is slightly larger with a walk-in closet and access to the nearby full bath. The master suite features French door access onto the lanai for privacy and the bedroom is highlighted with a double step trey ceiling. His and her walk-in closets line the hallway to the en suite master bath which boasts of an extensive array of modern amenities. This is a family friendly home featuring an open concept layout and gorgeous outdoor space.
