Mediterranean House Plan 1018-00054

Sq Ft3,089
1/2 Baths0
Width70' 4"
Depth109' 8"
Mediterranean House Plan #1018-00054 Elevation Photo

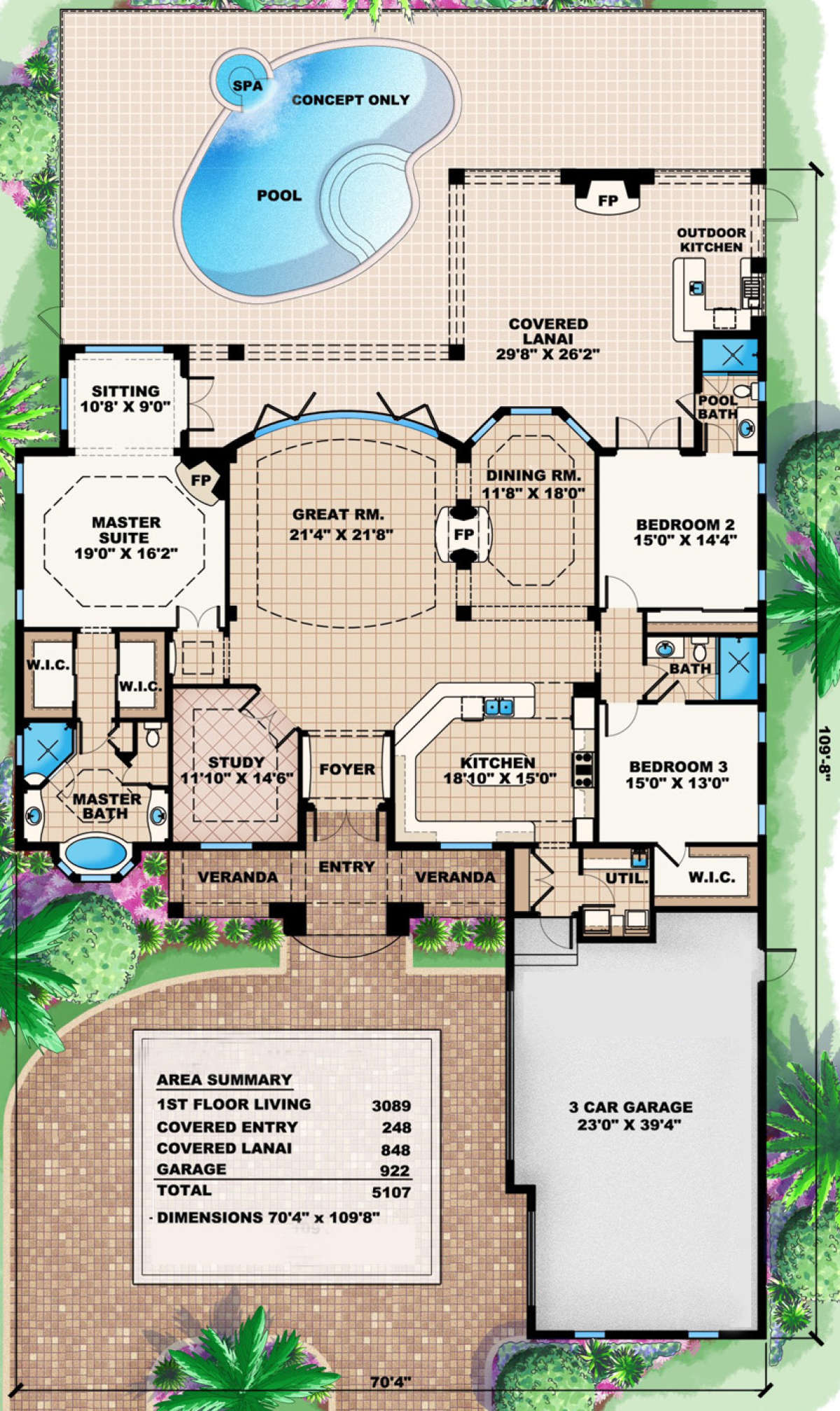

Main Floor
Main Floor for House Plan #1018-00054
Mediterranean House Plan #1018-00054 Elevation Photo
Main Floor for House Plan #1018-00054
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #1018-00054
Main Floor
Main Floor for House Plan #1018-00054

Frequently Asked Questions


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mediterranean house design is bursting with light and energy and features a tidy courtyard exterior façade. The single-story home offers three to four bedrooms and three bathrooms in approximately 3,089 square feet of usable living space. The three car garage measures in excess of 920 square feet offering plenty of vehicle and additional storage space. The foyer opens onto the dramatic great room that is enormously proportioned, houses a double sided fireplace and features folding door access onto the rear lanai. The covered lanai spans the width of the home and has an outdoor kitchen and fireplace making it ideal for entertaining large gatherings of family and friends. There is a spacious formal dining room that shares the double sided fireplace and boasts of a large bayed window overlooking the rear lanai. The gourmet kitchen features a center island and a peninsula wrap around breakfast bar for casual dining along with a plethora of modern amenities that line the rear and side walls. A private study is accessible through French doors, while the utility room is conveniently located off the garage and has closet and counter space for tidy clean-up and appearance.

The split bedroom plan features two oversized bedrooms, each with its own private entrance to a bathroom. The master retreat is situated on the opposite side of the home for privacy and provides a sumptuous oasis for the homeowner’s pleasure and comfort. French door access reveals a master bedroom with a gorgeous tray ceiling accent, corner fireplace, a separate sitting room ensconced in window views and private access onto the lanai. His and her walk-in closets line the hallway to the master bathroom, which is elegantly designed featuring separate dual vanities, a compartmentalized toilet, a separate shower and a lavish garden tub encased in window views overlooking the front garden. A warm exterior façade highlights multiple outstanding outdoor spaces in this Mediterranean home design, and the interior floor plan is fully functional and comfortable.
