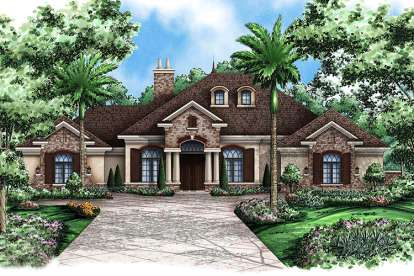

Mediterranean House Plan #1018-00064 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,242

Beds 3

Bath 3

1/2 Baths 1

Car 3

Stories 1

Width 90' 4"

Depth 74' 4"

See What's Included

Select Package

PDF (Single Build)

$1,687.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

Reproducible (Single Build)

$1,687.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,687.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $45.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $450.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $450.00

Convert the exterior framing to 2x6 walls.

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

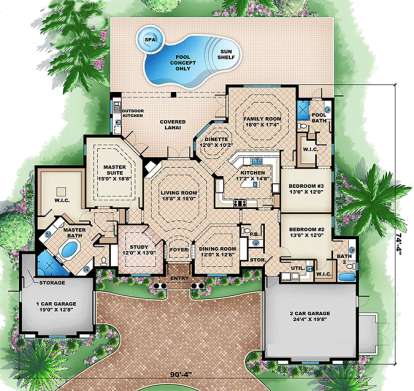

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

Ask Us A Question

About This Plan

This plan is not for sale for use in the following areas without the written consent of the designer:

Collier County, Florida
Lee County, Florida

Smooth stucco walls, fanciful window detailing, open gables and an incredible courtyard entrance and front covered porch outline the exterior of this Mediterranean house plan. Double stacked substantial columned beams, a soaring entryway and a brick laced overhead gable highlight the beautiful entrance into the home’s interior where there is approximately 3,242 square feet of living space. There are three to four bedrooms and three baths in the one story home along with wide opens space perfect for entertaining and a superior lifestyle. The front foyer is flanked by a formal dining space and a private study before opening onto the centrally located living room where there is a corner warming fireplace and French door access onto the rear covered lanai. The lanai is an extensive space with a summer kitchen and the addition of the pool concept really sparks the imagination leading to dreams of a large space in which family and friends can gather in comfort enjoying afternoon cook-outs and outdoor activities. In true Mediterranean fashion, the family spaces are situated in the rear of the home; there is a casual dining nook surrounded with window views and a large family room with lanai access. The grand kitchen features an extended breakfast bar and plenty of counter and cabinet space. The powder room, storage area and utility room are directly accessible from the two car garage and a second, single bay garage is symmetrically designed on the opposite side of the home.

The split bedroom plan features two spacious bedrooms on one side of the home where each boasts of walk-in closets and private baths. The master suite is located on the opposite side of the home for privacy and features a large master bedroom with French door access to the lanai and a double step trey ceiling. There is an enormous master walk-in closet and an en suite master bath featuring a large footprint that includes dual vanities, a compartmentalized toilet area, a large tub and a huge double entrance shower. This home features modern amenities and a gorgeous exterior composed of warm colors reflecting the region it was named for.
