Southern House Plan #5633-00218 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,562

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 65'

Depth 46' 4"

See What's Included

Select Package

PDF (Single Build)

$1,049.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,449.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,049.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,149.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,649.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,049.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $250.00

Crawlspace Foundation $250.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

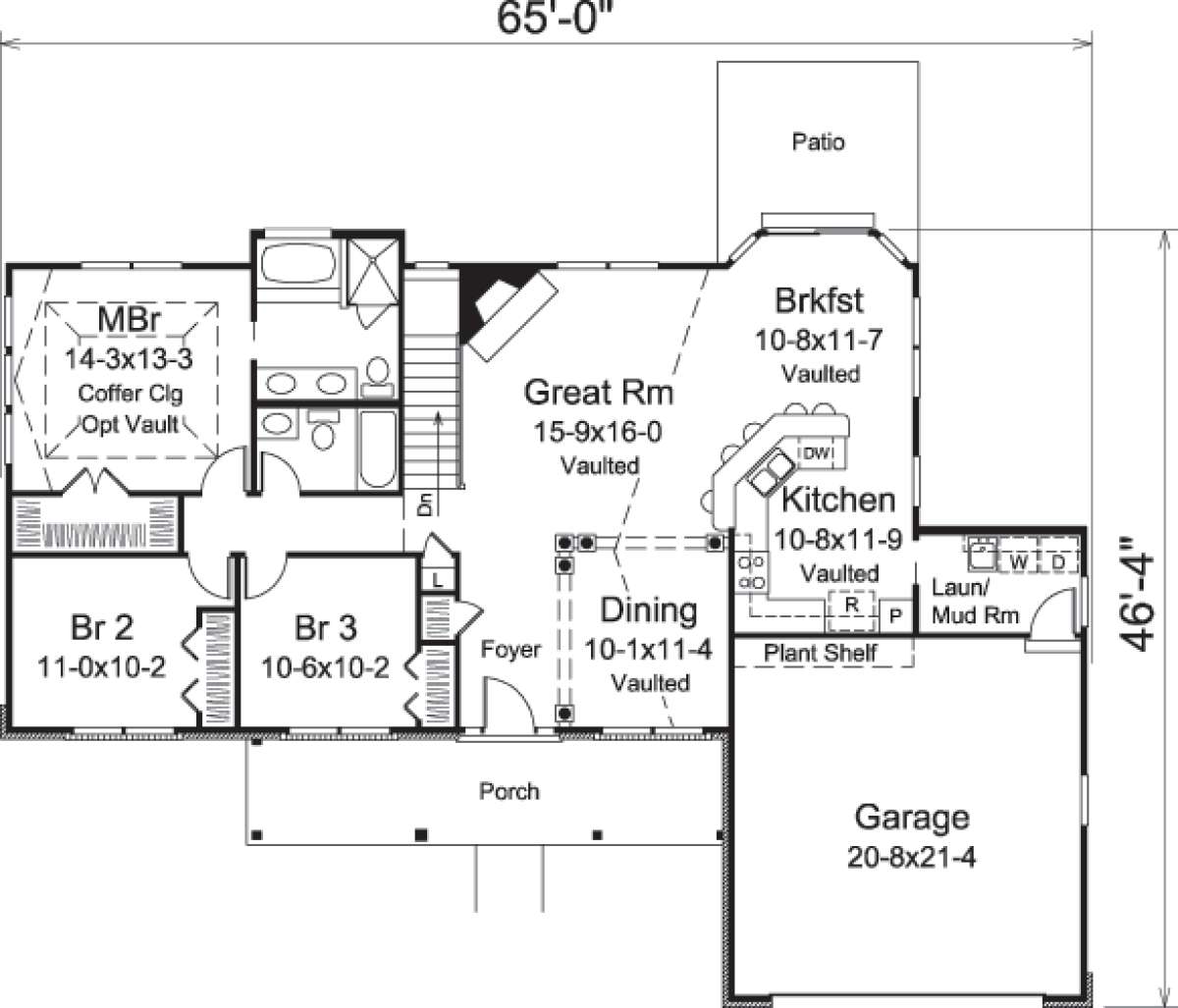

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This amazing Ranch style home design features an abundance of interior floor space and an attractive exterior façade. The exterior of the home is highlighted by a front covered rocking chair porch, siding and brick work and a simple gabled roof. There are approximately 1,562 square feet of living space in the single story home; however, the home’s drawings include a basement foundation which would substantially increase the home’s square footage and versatility. Additionally, there is a two car garage that features plenty of vehicle and storage room 461 square feet. The front covered porch leads to the interior foyer which is spacious, houses a coat closet and opens onto the main living spaces; this open concept floor plan allows for effortless and enjoyable entertaining and family relaxation space. The formal dining room offers definition through its use of columned beams and a vaulted ceiling. The vaulted great room is quite large, has a corner fireplace and great window views. Soaring ceiling heights continue into the breakfast nook and gourmet kitchen; the kitchen is highlighted by an angled breakfast bar, a separate pantry and a plethora of additional counter and cabinet space. The breakfast nook is a great space for casual dining and has an abundance of window features including a beautiful bay window which provides rear patio access. There is an interior laundry/mudroom situated off the garage for ease and convenience.
Three family style bedrooms and baths, a hall linen closet and the lower level staircase are located off the main hallway. Bedrooms two and three are both spacious with ample closet space and share the hall bathroom which contains a vanity space, toilet area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and is highlighted by a coffered ceiling master bedroom with an optional vaulted ceiling. The bedroom features great space and a multitude of window features including a triple wall of windows. There is an oversized master walk-in closet off the bedroom and an elegantly designed master bath. The master bath features dual vanities, a toilet area, separate shower and a beautiful garden tub with window view. This home has a handsome exterior and a fully functional and comfortable interior floor plan which includes a basement foundation that offers unlimited expansion options.
