Southern Plan 048-00237

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,806
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 71'
Depth 50'

Floorplan Drawings

Floorplan 1

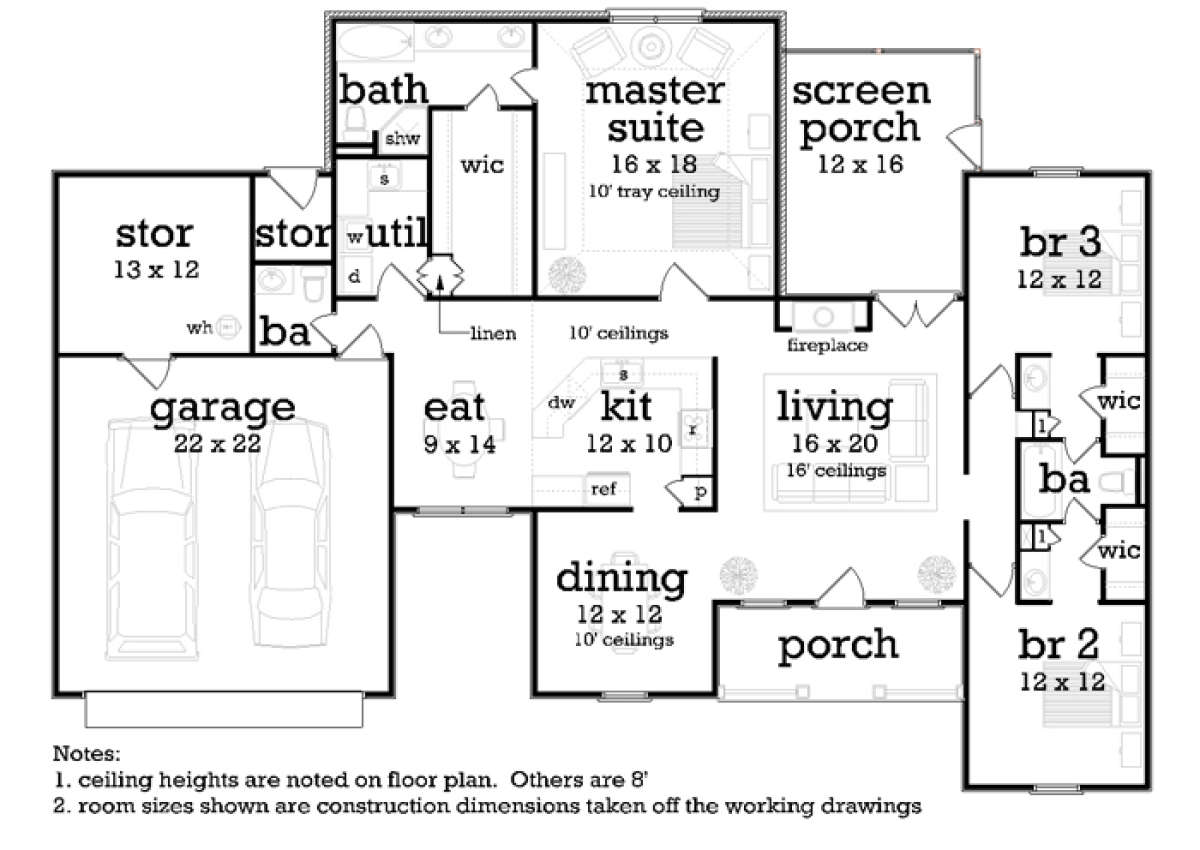

Floorplan 1 for House Plan #048-00237


What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.
  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 2 bathroom Southern house plan features 1,806 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
