Tudor Plan 5633-00189


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,250
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 45'
Depth 52' 8"

Floorplan Drawings

Floorplan 1

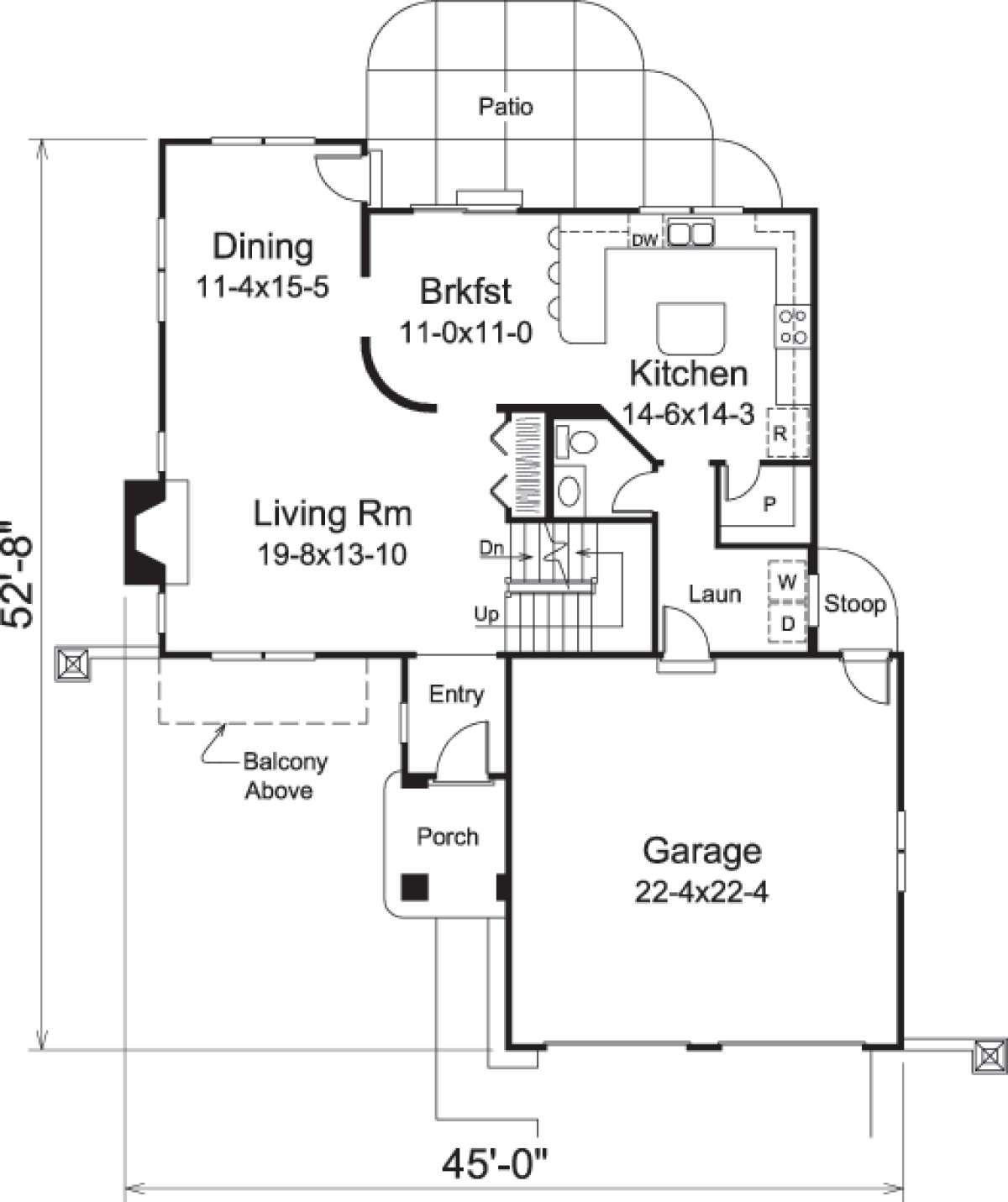

Floorplan 1 for House Plan #5633-00189
Floorplan 2

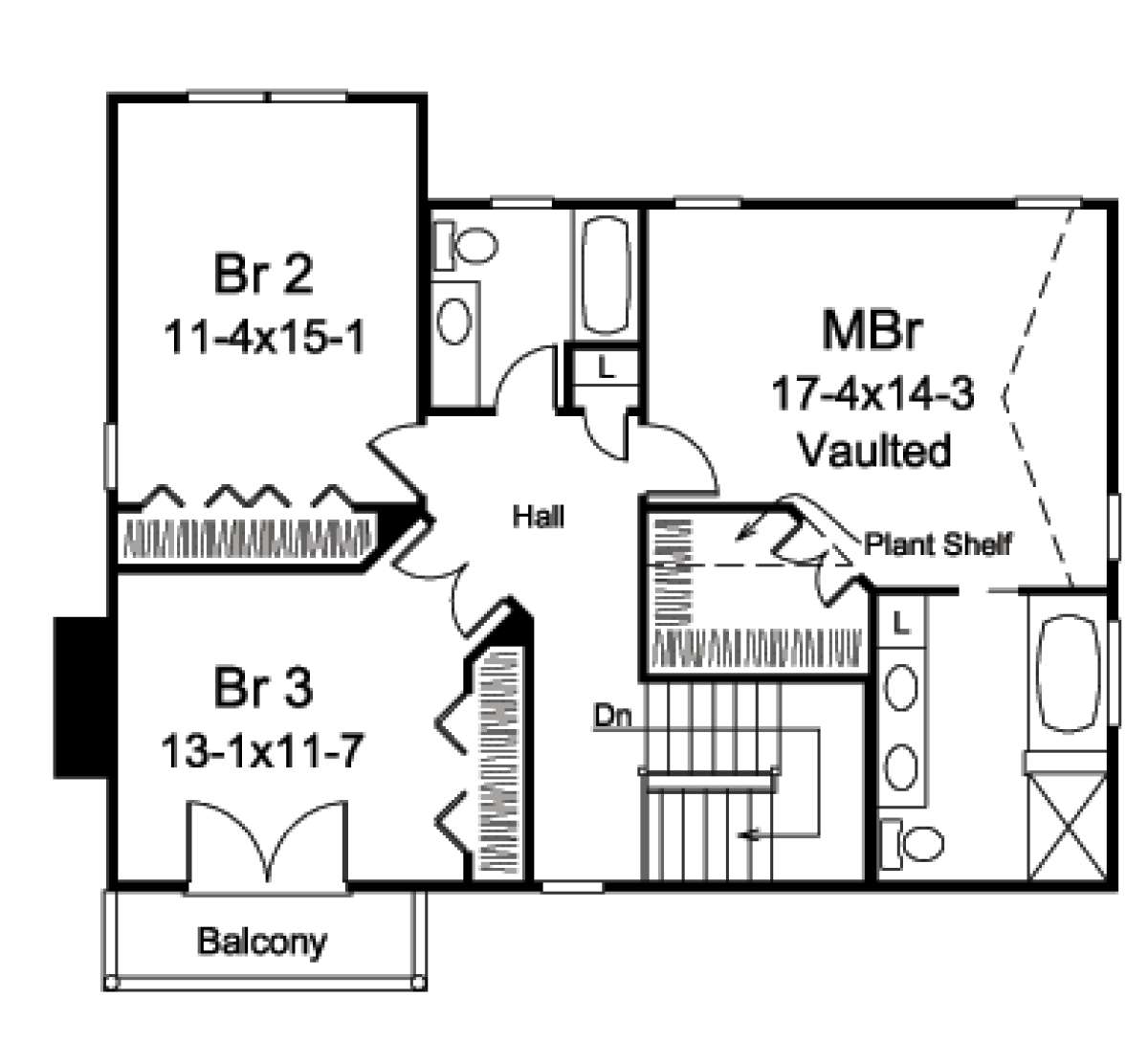

Floorplan 2 for House Plan #5633-00189

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

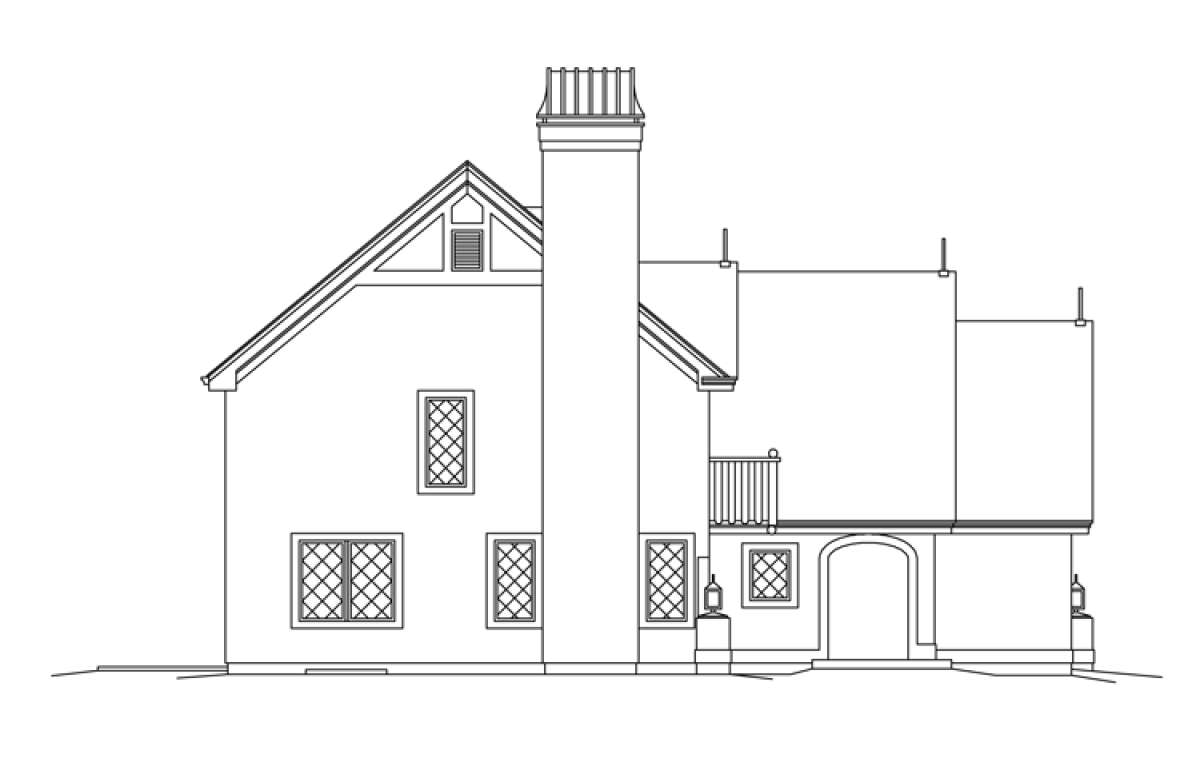

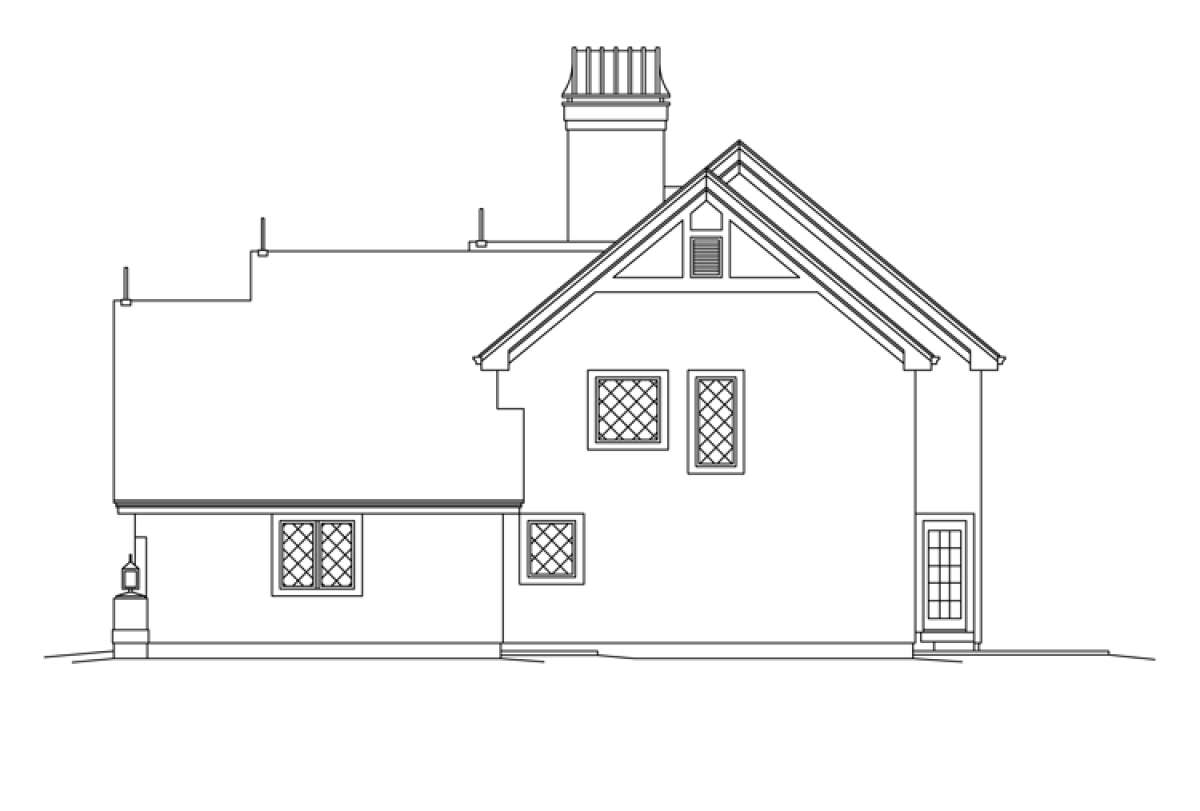

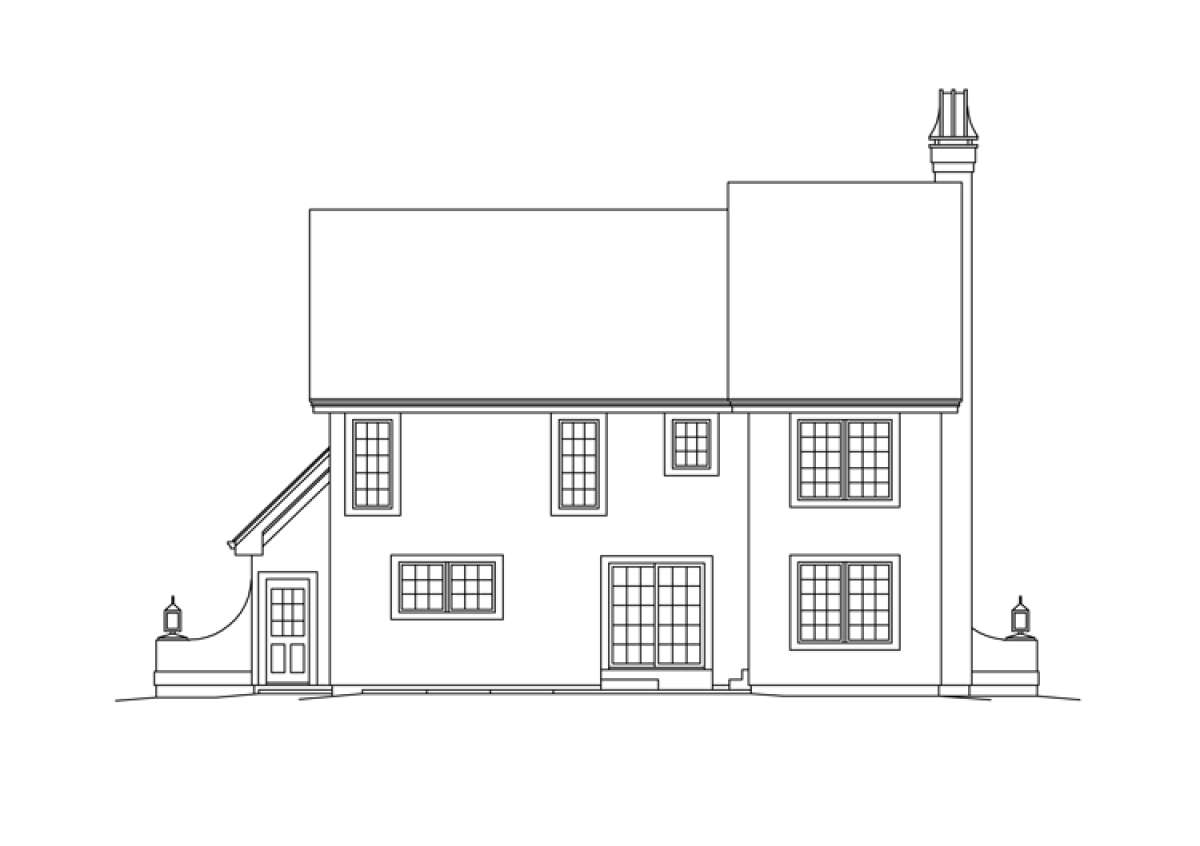

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Exterior accents create timeless appeal in this Tudor styled house plan. Arched openings, decorative gable inserts and a second story balcony accentuate the beautifully crafted “storybook” exterior façade. This delightfully tranquil setting encapsulates and models the ambiance and charm of the interior floor plan where approximately 2,200 square feet of space is highlighted. There are three bedrooms and two plus baths included in the house design along with an accompanying basement foundation which vastly adds to the versatility and value of the home. This expansive space could be used as additional bedrooms, a multi-purpose family room or as an in-law suite. Entrance into the home reveals a copious amount of space in the interior floor plan where an oversized living and dining room is evident. The living room features a handsome fireplace flanked by picturesque window views while the dining space provides rear patio access. There is a casual breakfast nook adjacent to the kitchen breakfast bar area. The family chef will appreciate and enjoy the oversized walk-in pantry and center island within the gourmet kitchen. There is an interior laundry room off the two car garage and a centrally located powder room for guests. Two interior level staircases provide mobility and distance within the home for ease of comfort.
Three bedrooms and two baths are situated on the second level of the home. The second bedroom is quite large with a rear wall of closet space and great window views while bedroom three features French door access into the bedroom and also onto the private balcony along with generous closet space. There is a shared hall bath with a large vanity space as well as a hall linen closet. The vaulted master bedroom is a large comfortable space with plant shelving atop the oversized walk-in closet. There is a luxurious master bath which features dual vanities, a linen closet, separate shower and a garden tub with a view. This home features a striking exterior façade and plentiful interior floor space.
