Tudor Plan 1637-00079

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,810
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 52'
Depth 36'

Floorplan Drawings

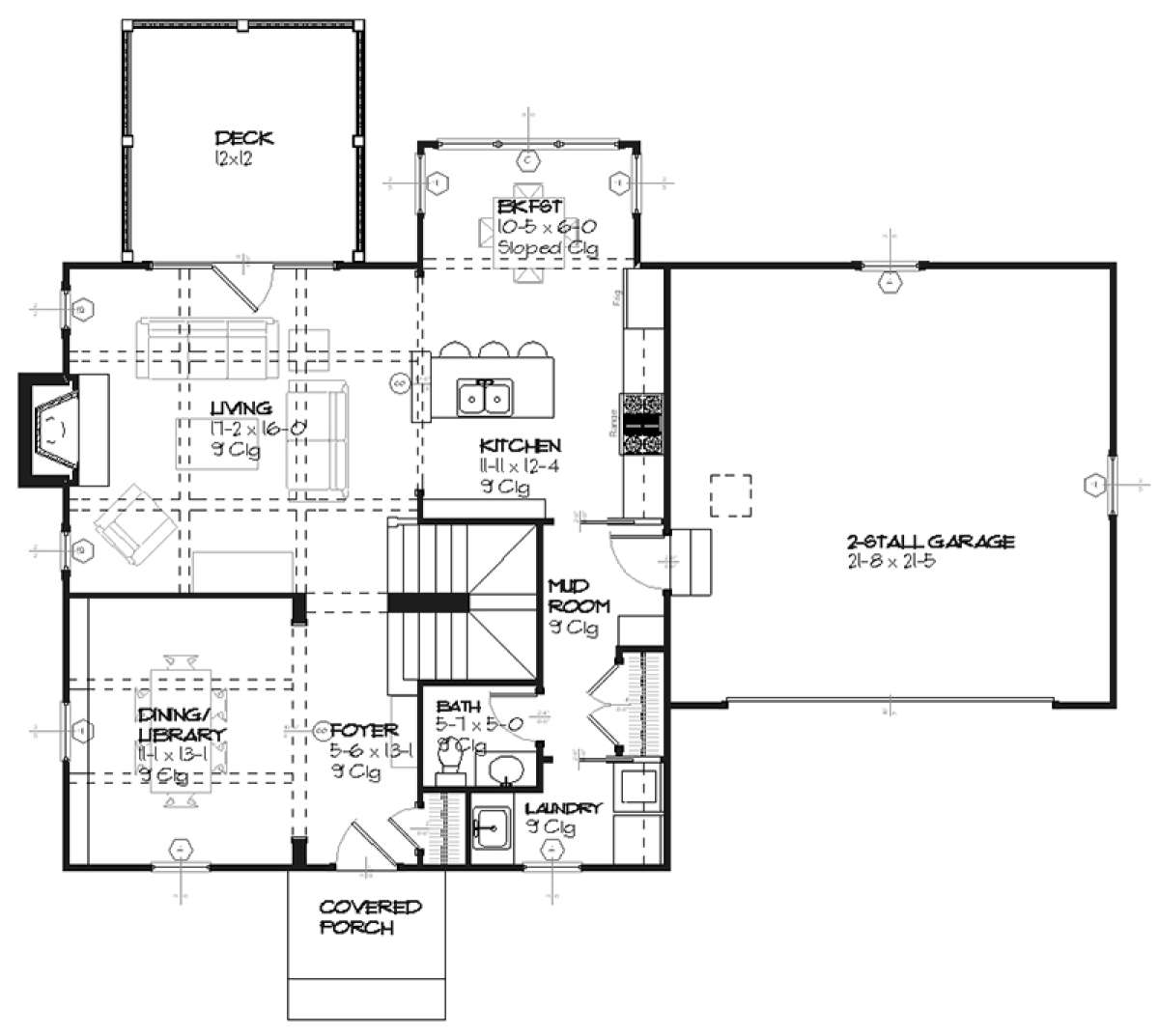

Main

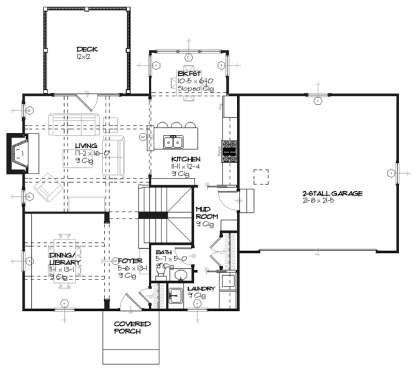

Main for House Plan #1637-00079

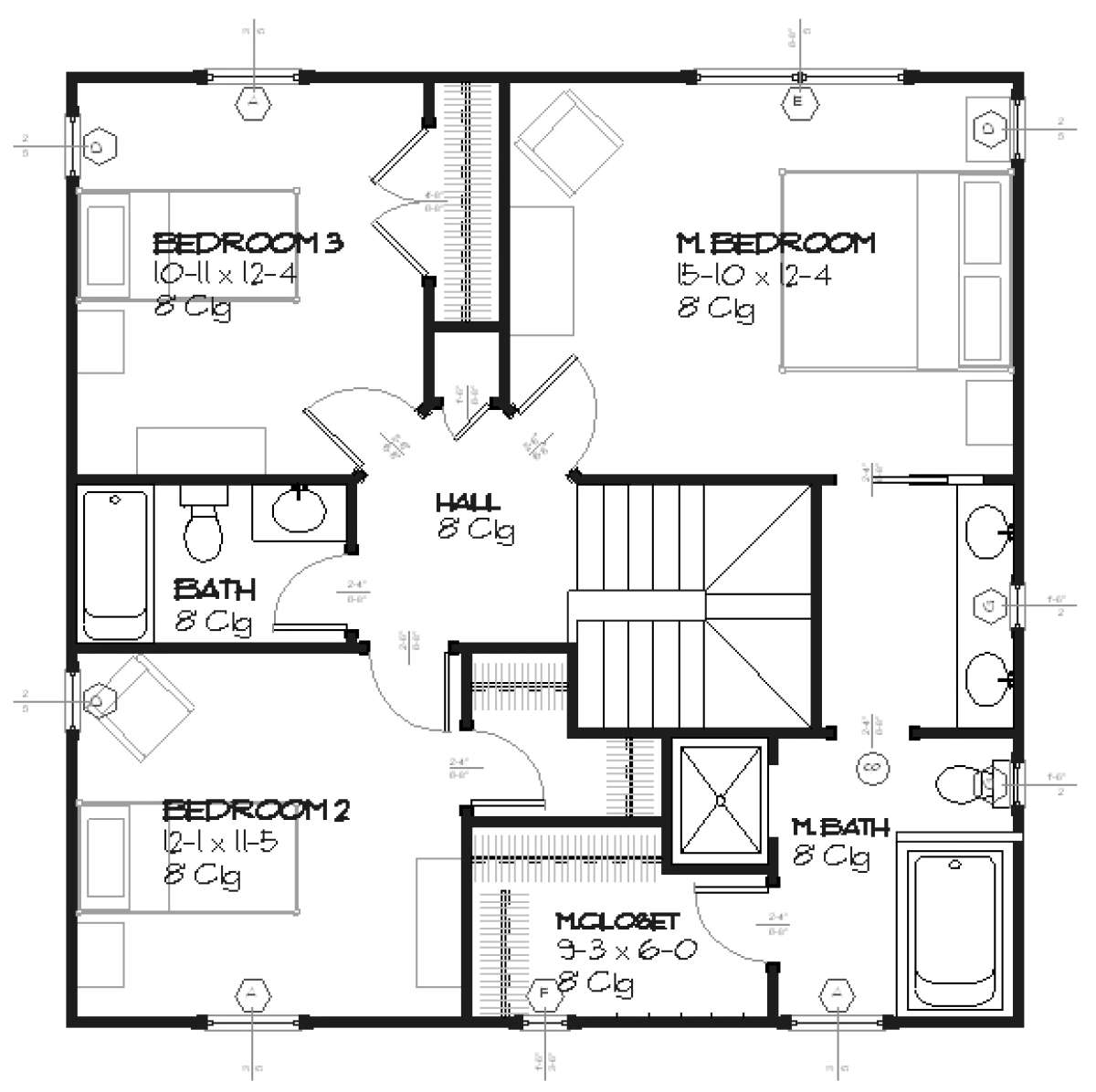

Upper

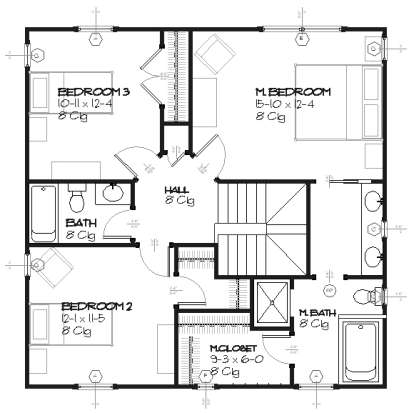

Upper for House Plan #1637-00079


What's Included in these plans?

  • Construction Ready Main Level Floor Plan (1/4"=1-0')
  • Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
  • Lower Level Floor Plans/Foundation (1/4"=1'-0")
  • Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
  • Building Sections/Wall Sections/Eave Details
  • Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
  • Roof Overview Plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

*Due to the unique custom packaging this designer offers please allow 3-5 business days for the shipment of this home plan, thank you.*
