Southern House Plan 5633-00159

Sq Ft1,941
1/2 Baths0
Width70' 4"
Depth35' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00159
Floorplan 2 for House Plan #5633-00159

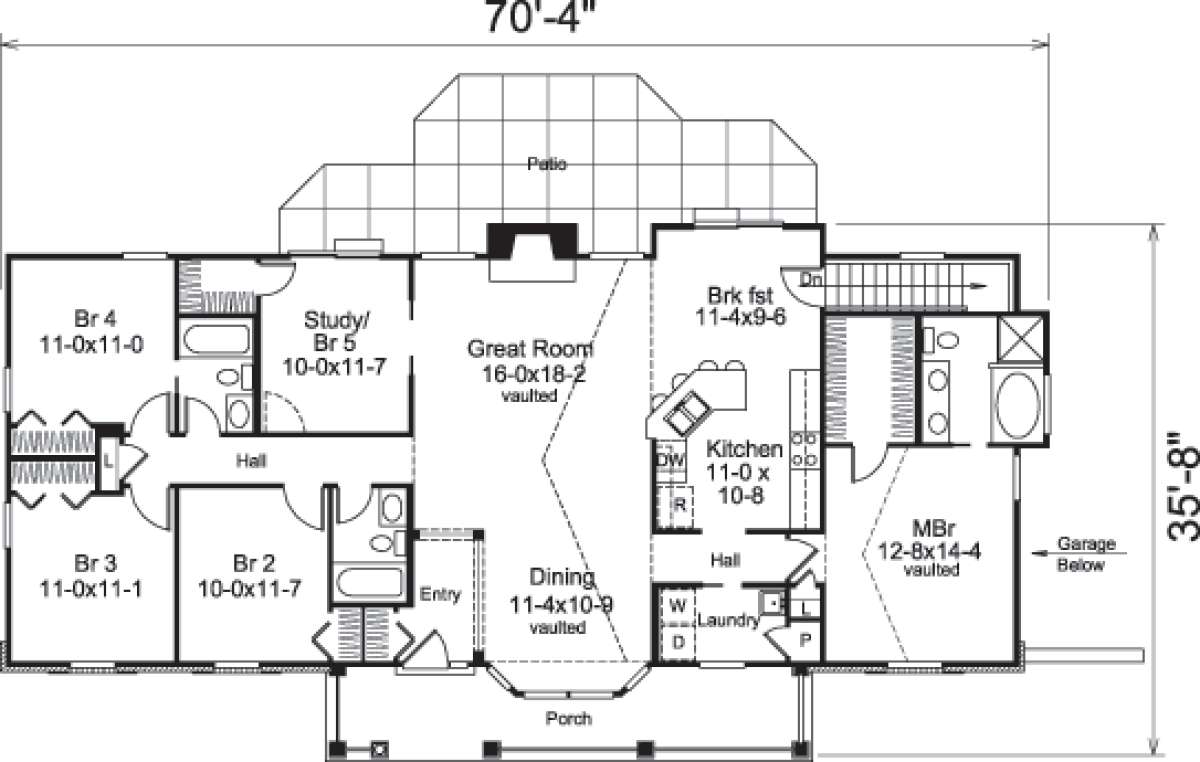

Floorplan 1
Floorplan 1 for House Plan #5633-00159

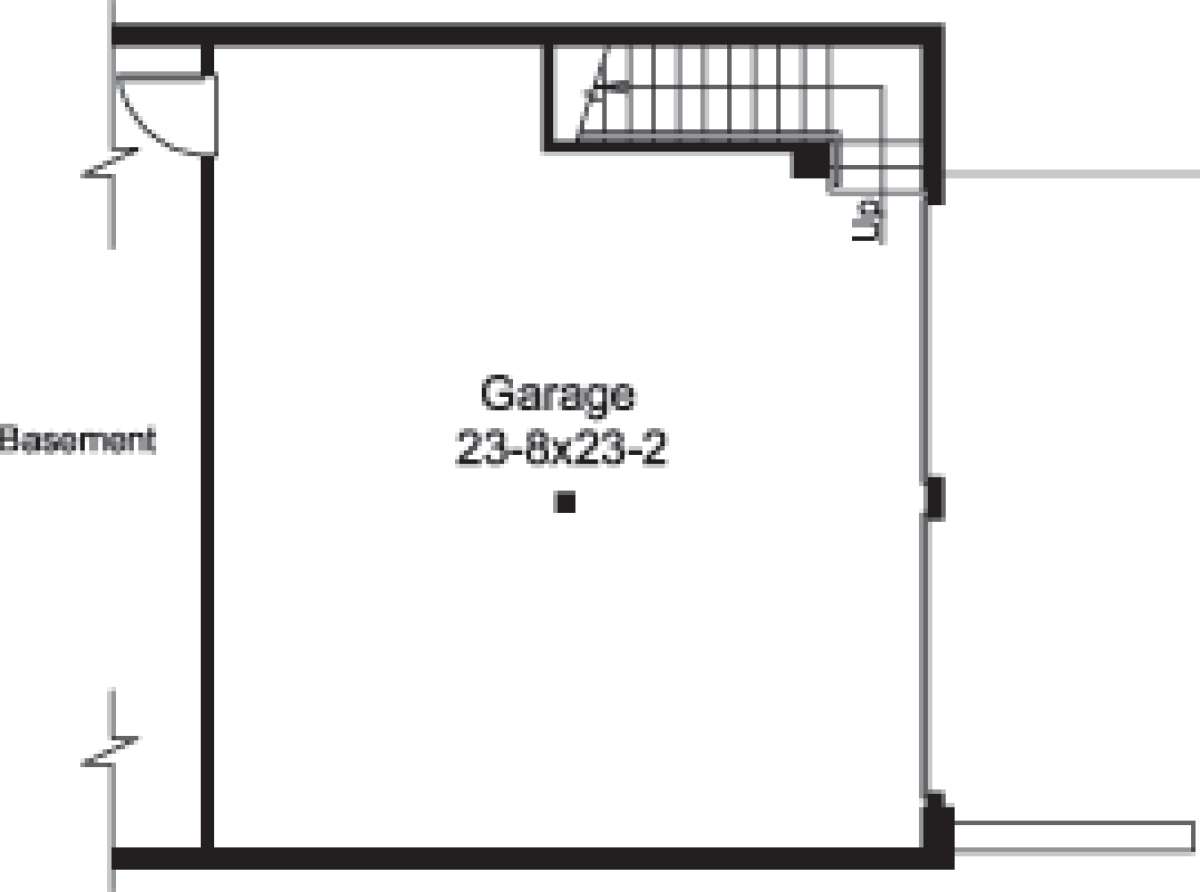

Floorplan 2
Floorplan 2 for House Plan #5633-00159

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

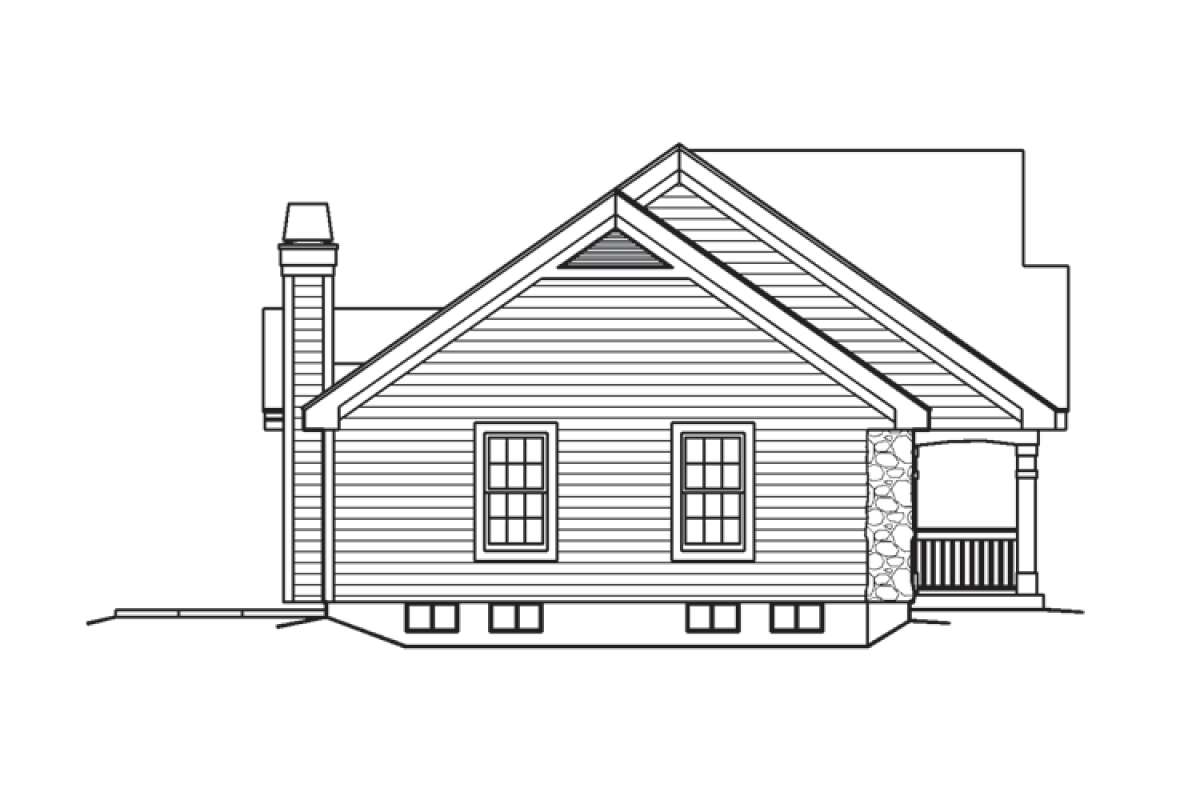

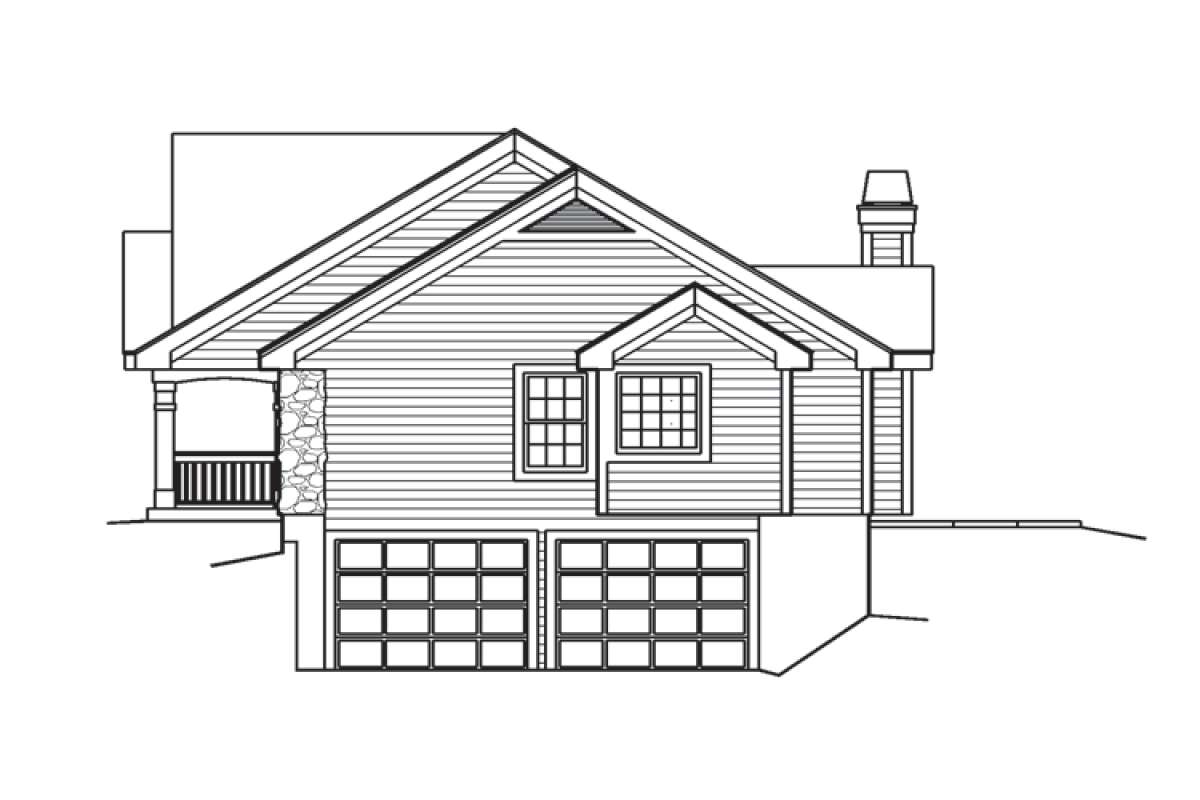

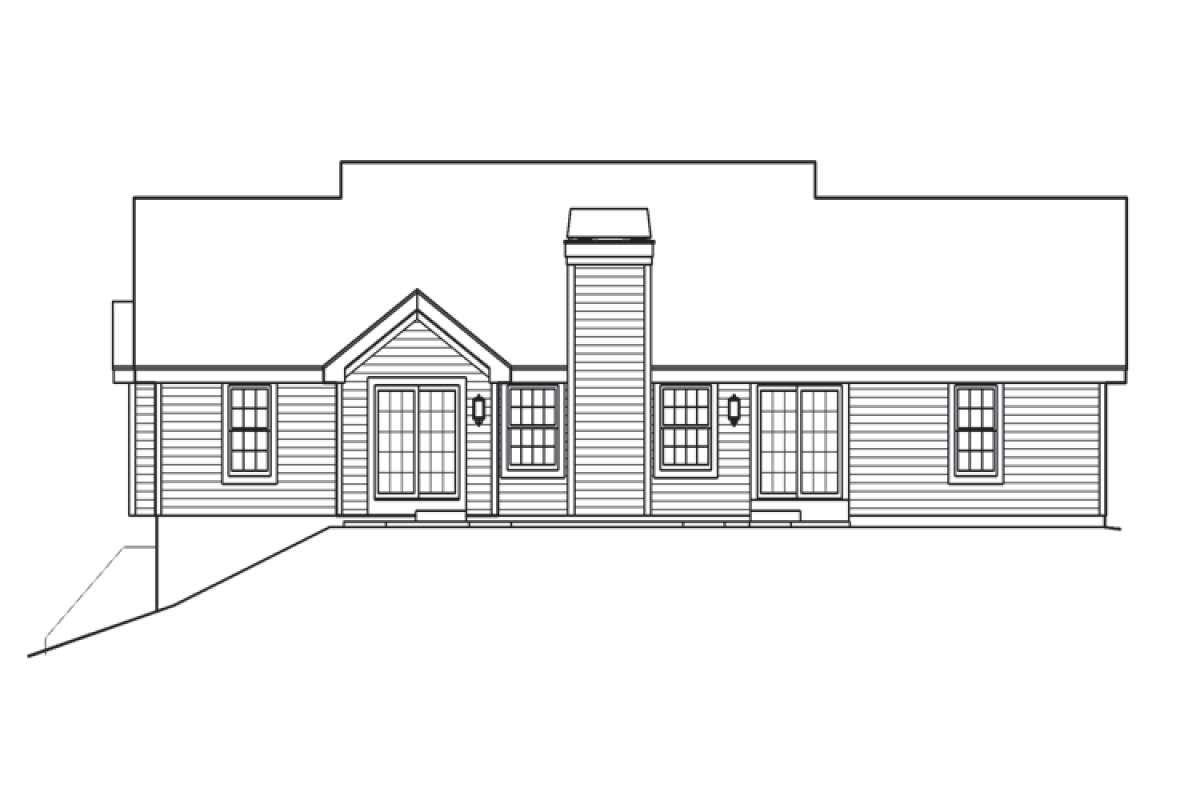

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

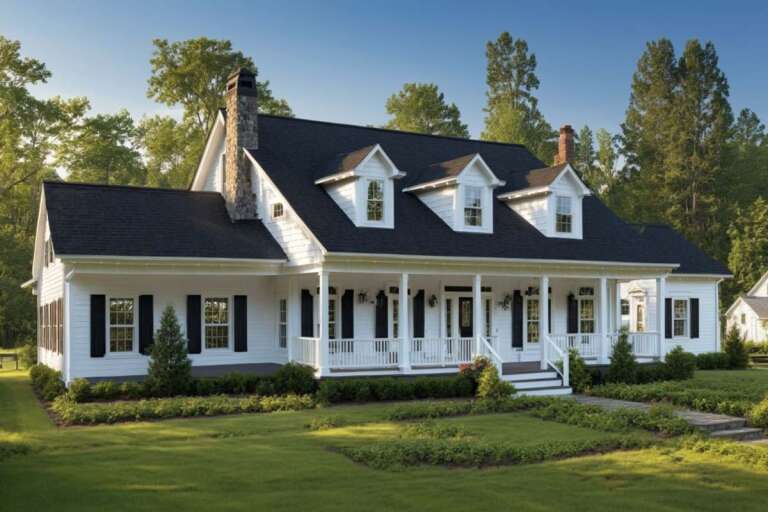

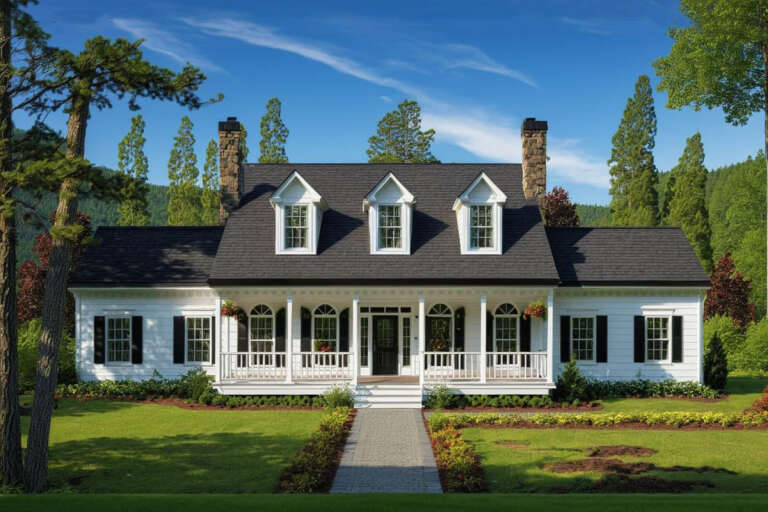

Cutting edge design meets industry standards in craftsmanship in this Southern house plan. Plentiful interior floor space and a walk-out basement foundation feature approximately 3,800 square feet of living space. This home design is ideal for large and active families who value their private space and inversely, love to entertain. The intriguing exterior façade boasts of wide eaves, multiple gables and an expansive front covered porch highlighted by open railing and substantial beams. A huge drive under garage adds an additional 548 square feet of space; plenty of room for an active family’s lifestyle containing multiple vehicles, lawn and/or sporting equipment. There are five bedrooms and three baths in the home and airy open living spaces. The greeting foyer houses a coat closet before opening onto the main living spaces. Picturesque window views flank the handsome fireplace in the vaulted great room and a vaulted dining space basks in the sun drenched bayed window. There is a breakfast bar in the gourmet kitchen and loads of work/prep space while the breakfast room provides rear patio access. A large laundry room has a sink area and a pantry for food storage.
The split bedroom plan is awesome for privacy purposes. The master suite features a large vaulted bedroom with great window views and an oversized master walk-in closet. The luxurious master spa inspired bath is highlighted by dual vanities, a toilet area, separate shower and a garden tub with views. There are four additional bedrooms situated on the opposite side of the home; all four are spacious with generous closet space. The fifth bedroom has a walk-in closet and rear patio access making it ideal as a guest room or home office/study. There are two hall bathrooms and a hall linen closet. All in all, this home has interior space a large family desires with expansion possibilities and great outdoor space.
