Traditional Plan 5633-00157


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 5,321
Beds 4
Bath 5
1/2 Baths 1
Car 3
Stories 2
Width 109'
Depth 65' 8"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00157
Floorplan 2

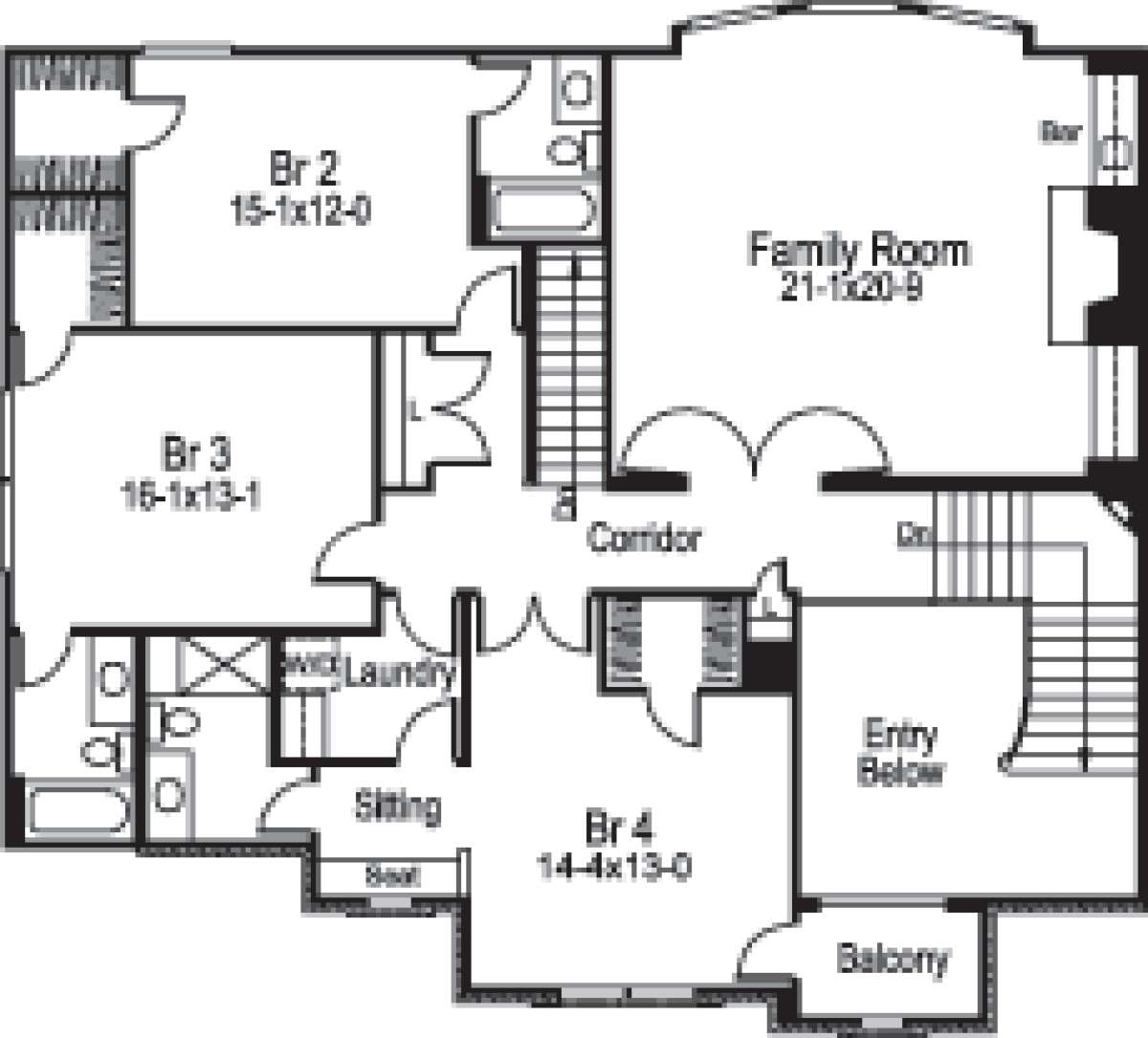

Floorplan 2 for House Plan #5633-00157

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

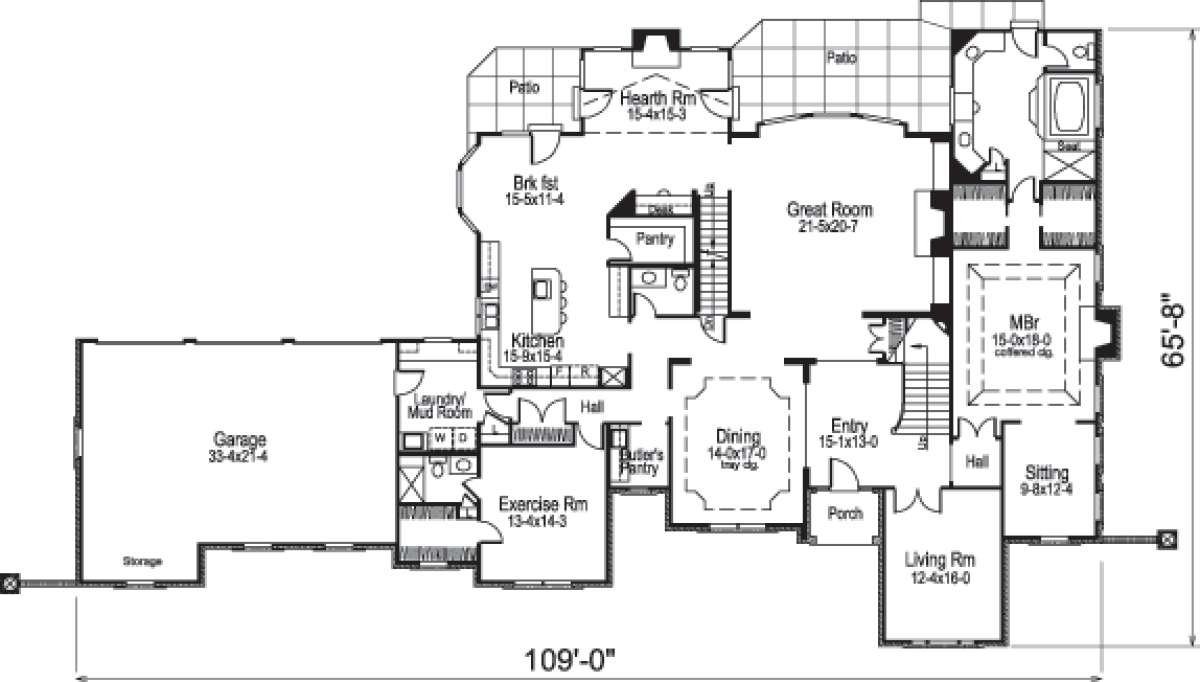

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

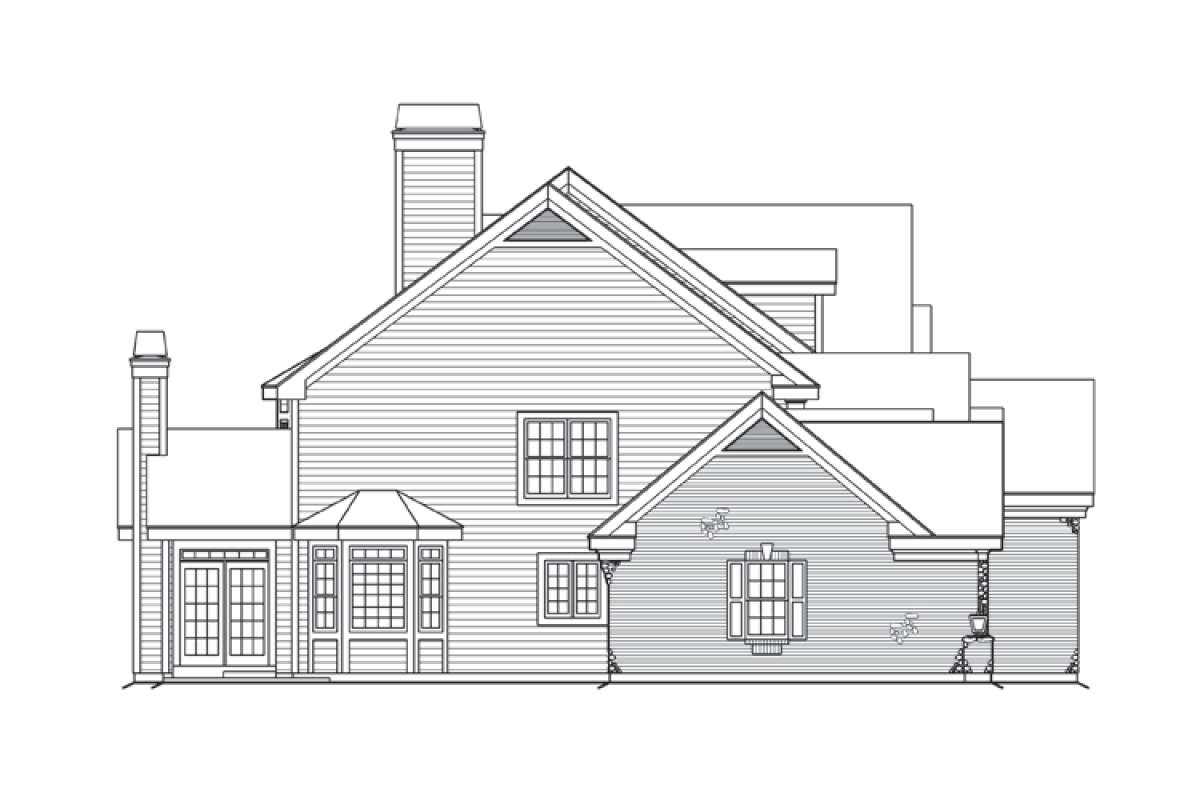

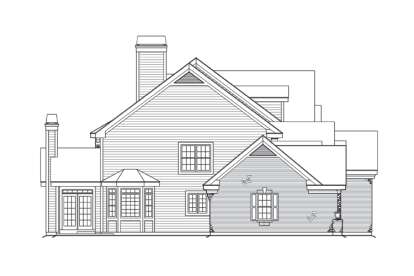

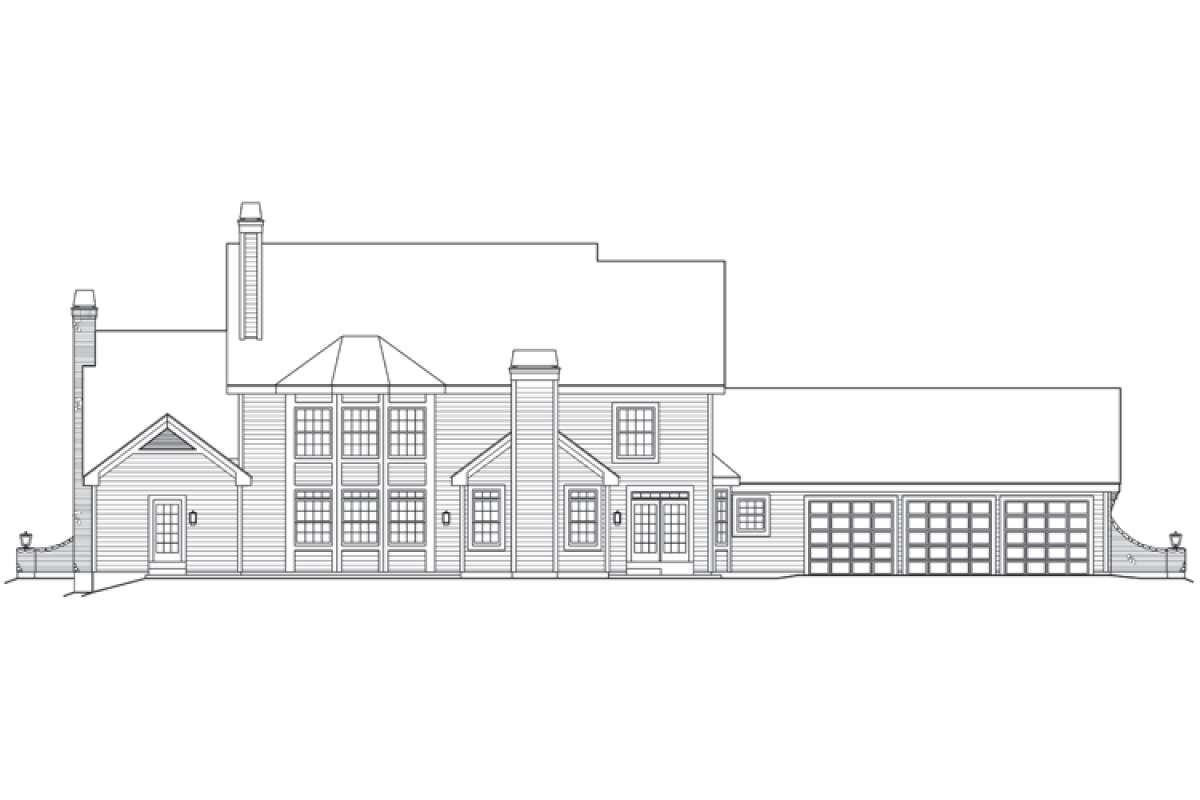

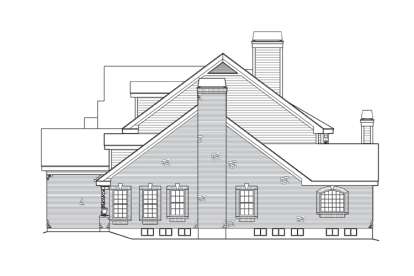

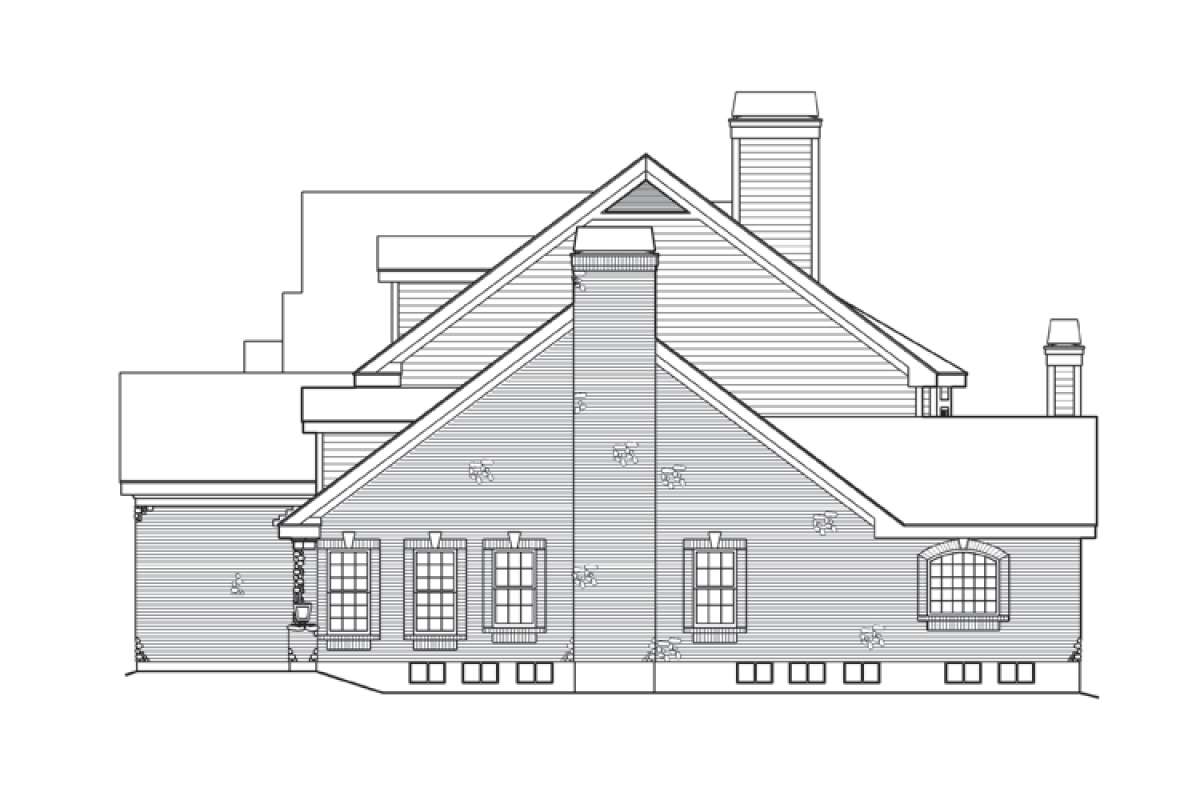

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

For the ultimate in timeless appeal, look no further than this traditional house plan which features luxurious comfort and accommodations. There are a wealth of impressive design options featured on both the exterior and interior of this luxurious home that combines great function with astonishing form. The exciting and sophisticated structure is created with a combination of stone, brick, roof dormers and multiple gables which highlight the exterior. The interior floor plan is just as dazzling with approximately 5,321 square feet of living space on two floors and the home’s drawings feature a basement foundation which provides increased flexibility and value, not to mention, additional square footage. A grand entry foyer and a wide, finely constructed staircase with niche provide an inviting and elegant atmosphere in which to enter the home. Formal living and dining rooms provide attractive entertaining space and the enormous great room contains a warming fireplace, built-in cabinetry and a gracefully bowed wall of windows overlooking the rear patio. The hearth room is in close proximity to the two patio spaces and includes soaring ceiling heights and a cozy fireplace. The gourmet kitchen has a large center island snack bar, a cavernous walk-in pantry and opens onto the casual breakfast room. A rear hallway includes a laundry/mudroom off the three car rear entry garage and access to the exercise room/guest suite with walk-in closet and private full bath. The master retreat is a true oasis and provides modern elegance and grand amenities including a large coffered ceiling bedroom with fireplace and separate sitting room. His and her walk-in closets line the hallway to the elegantly designed master bath which features dual vanities, a separate shower, garden tub and a private courtyard.
Ascending the second story staircase provides balcony overlooks and abundant living and sleeping space. The second floor family room features a wet bar, fireplace and arched bay window creating a cozy and private space for the family to relax and enjoy one another’s company. Bedrooms two and three are complete suites which feature large spacious bedrooms with walk-in closets and private full baths. The fourth bedroom is a comparable master suite with an outstanding layout including a large bedroom flanked by a private balcony and sitting room, a walk-in closet and private full bath. This stylish and modern home features an elegant exterior façade and the absolute best in well appointed entertaining space and private family spaces.
