Craftsman House Plan 7806-00005

Sq Ft3,039
1/2 Baths1
Width102' 4"
Depth72' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #7806-00005
Floorplan 2 for House Plan #7806-00005

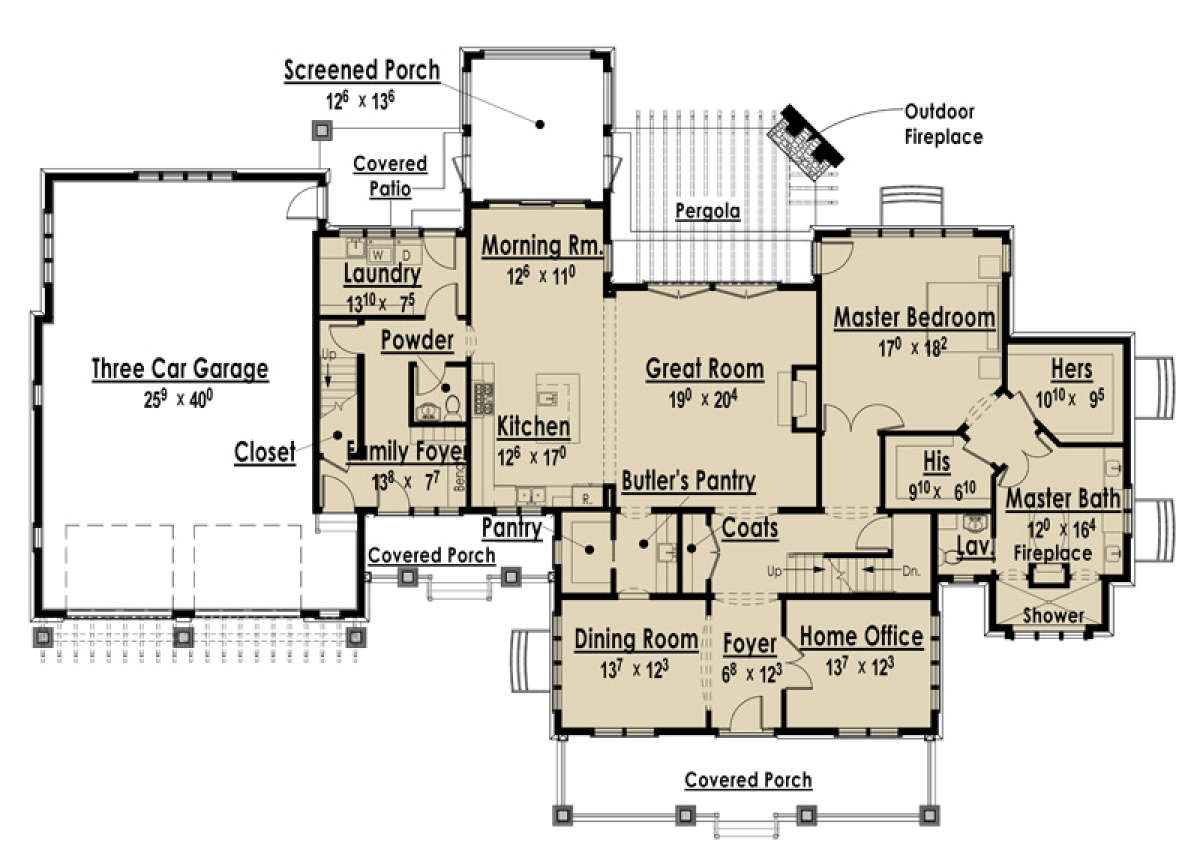

Floorplan 1
Floorplan 1 for House Plan #7806-00005

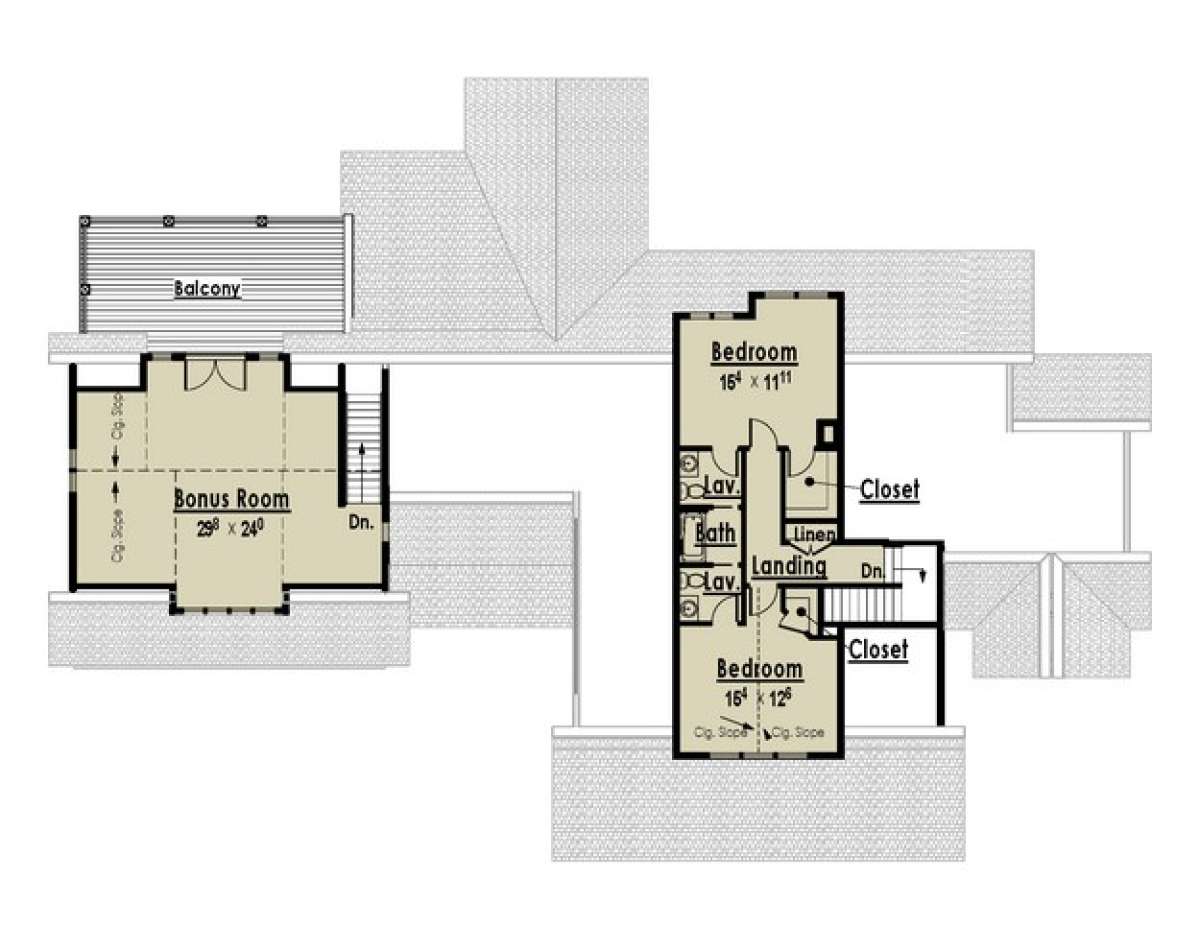

Floorplan 2
Floorplan 2 for House Plan #7806-00005

Frequently Asked Questions


What's Included in these plans?

  • Floor plan
  • Foundation Plan
  • Exterior Elevations
  • Building Section(s)
  • Wall Section
  • Roof Plan
  • Door Schedule
  • Window Schedule
  • 3-d Views of Exterior
  • Structural Notes
  • Electrical Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

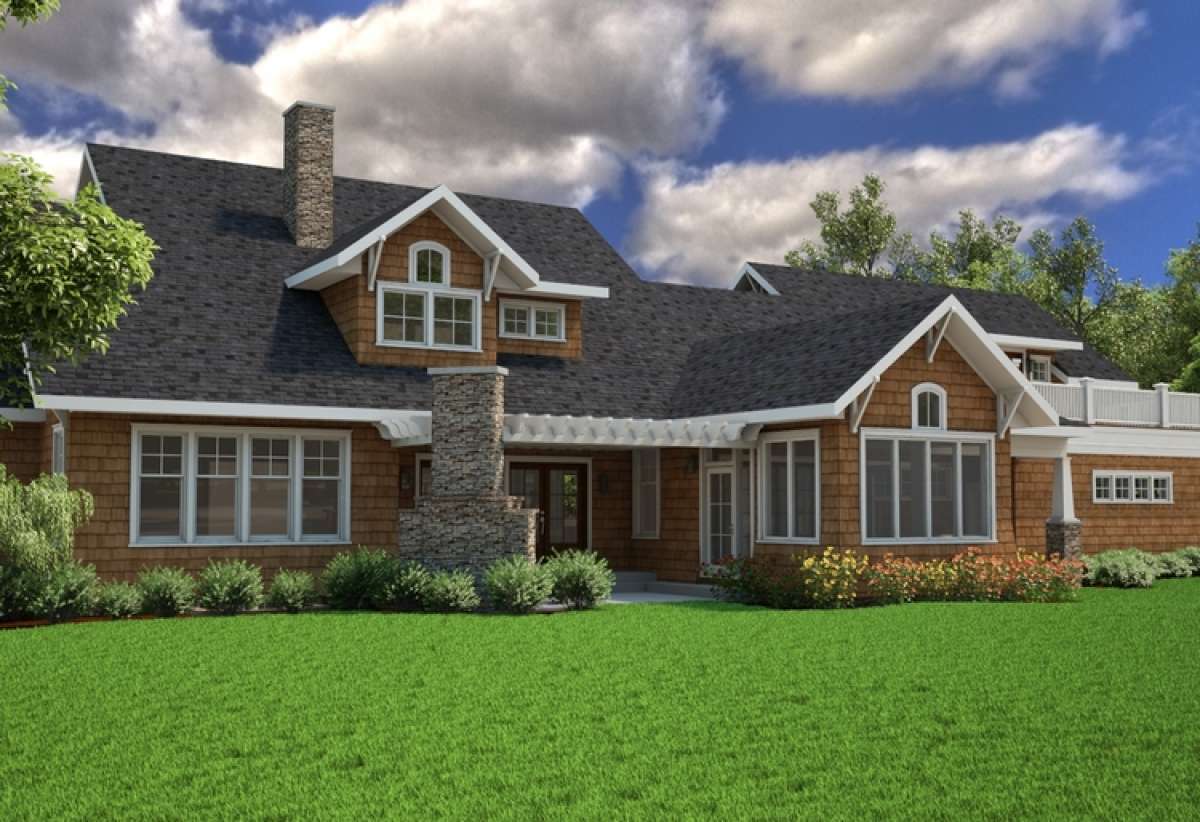

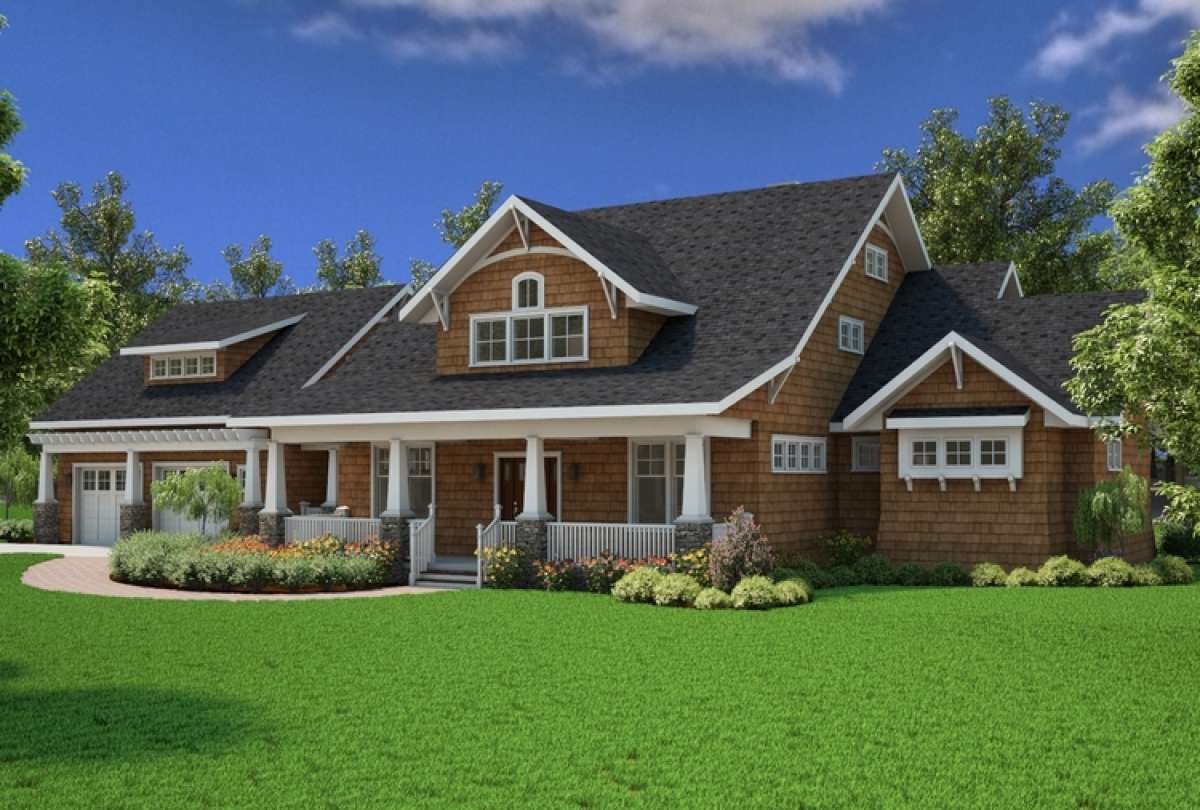

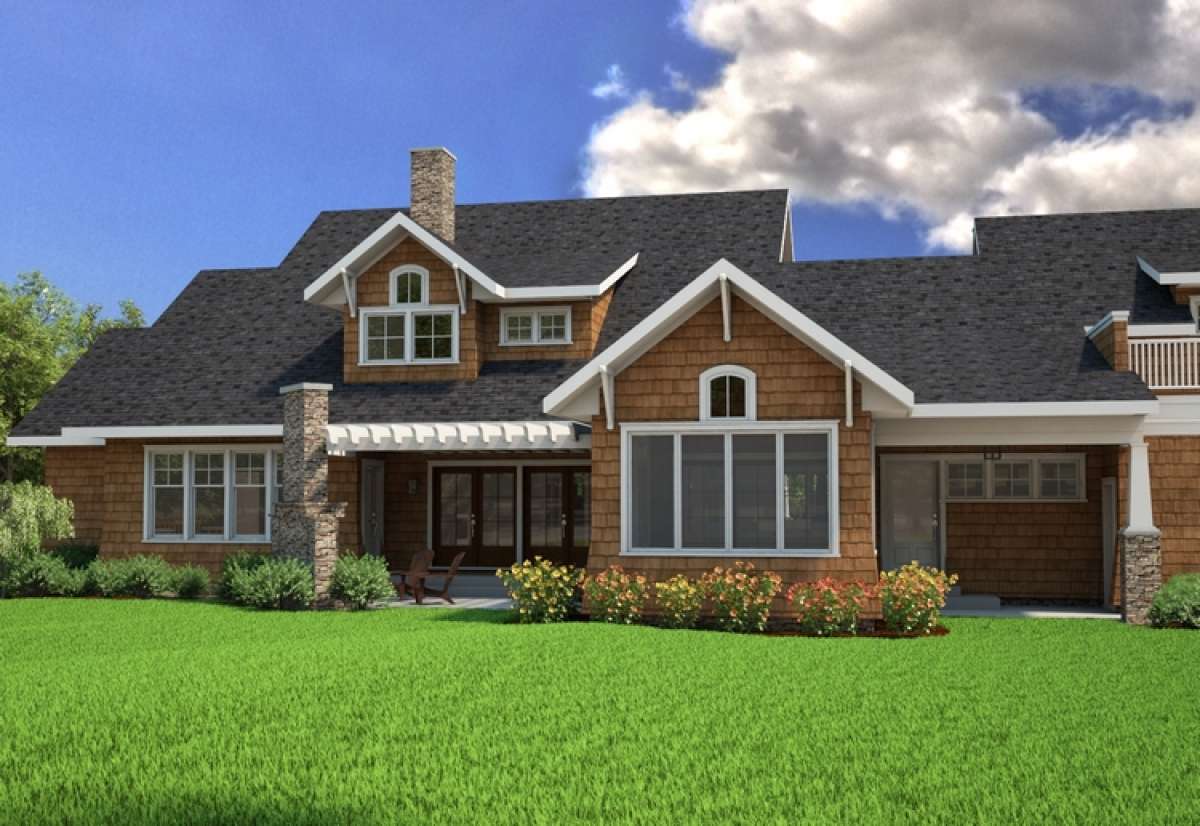

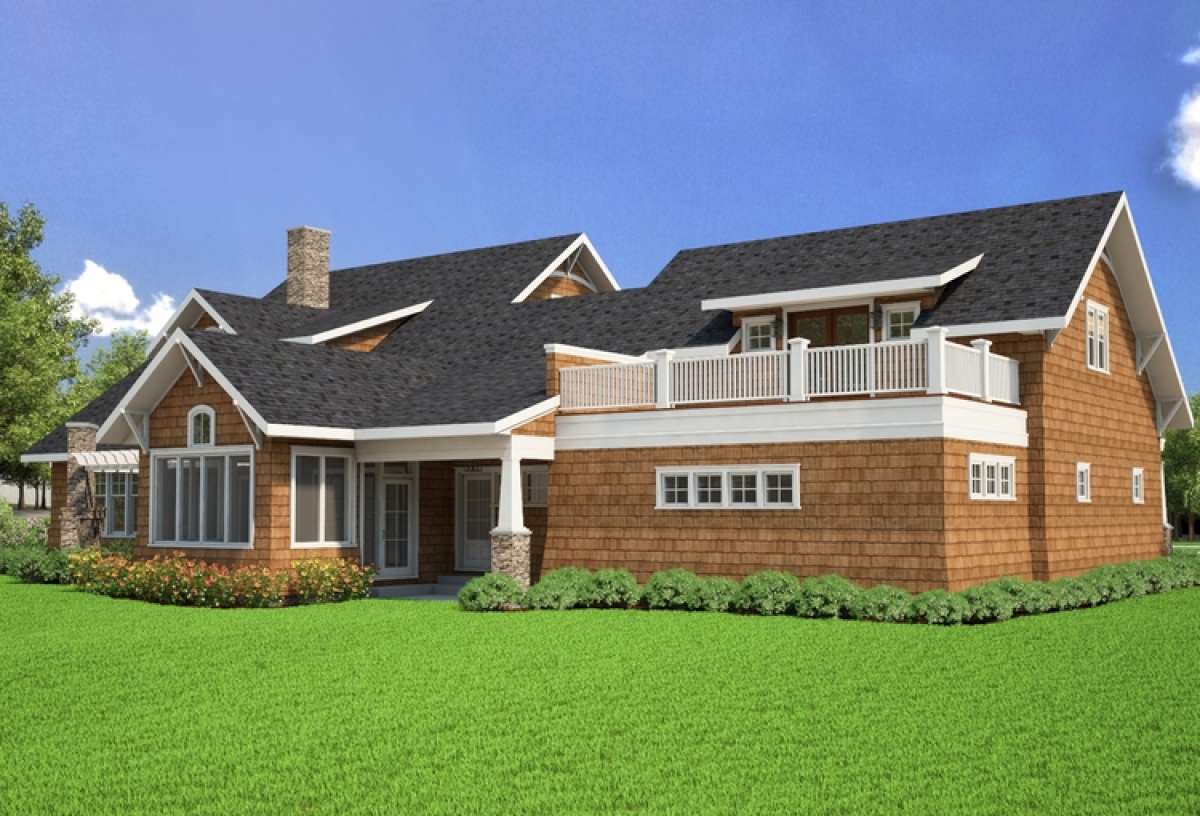

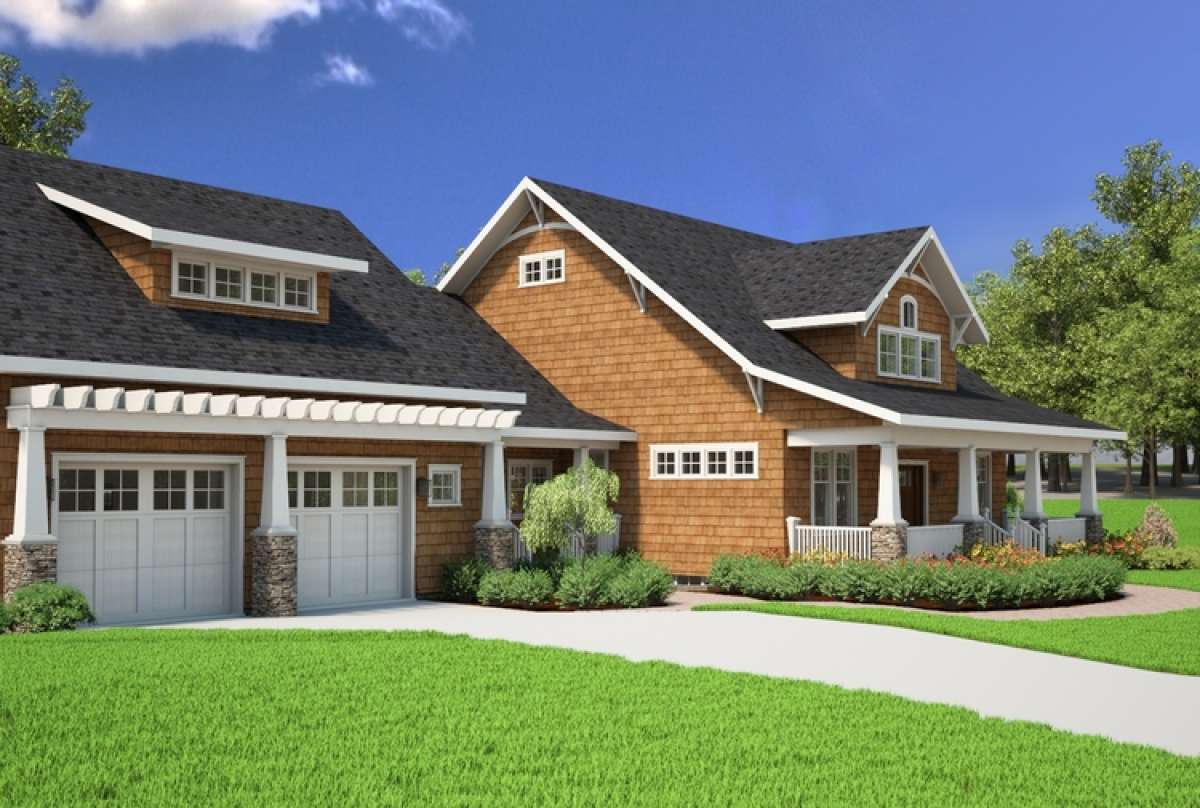

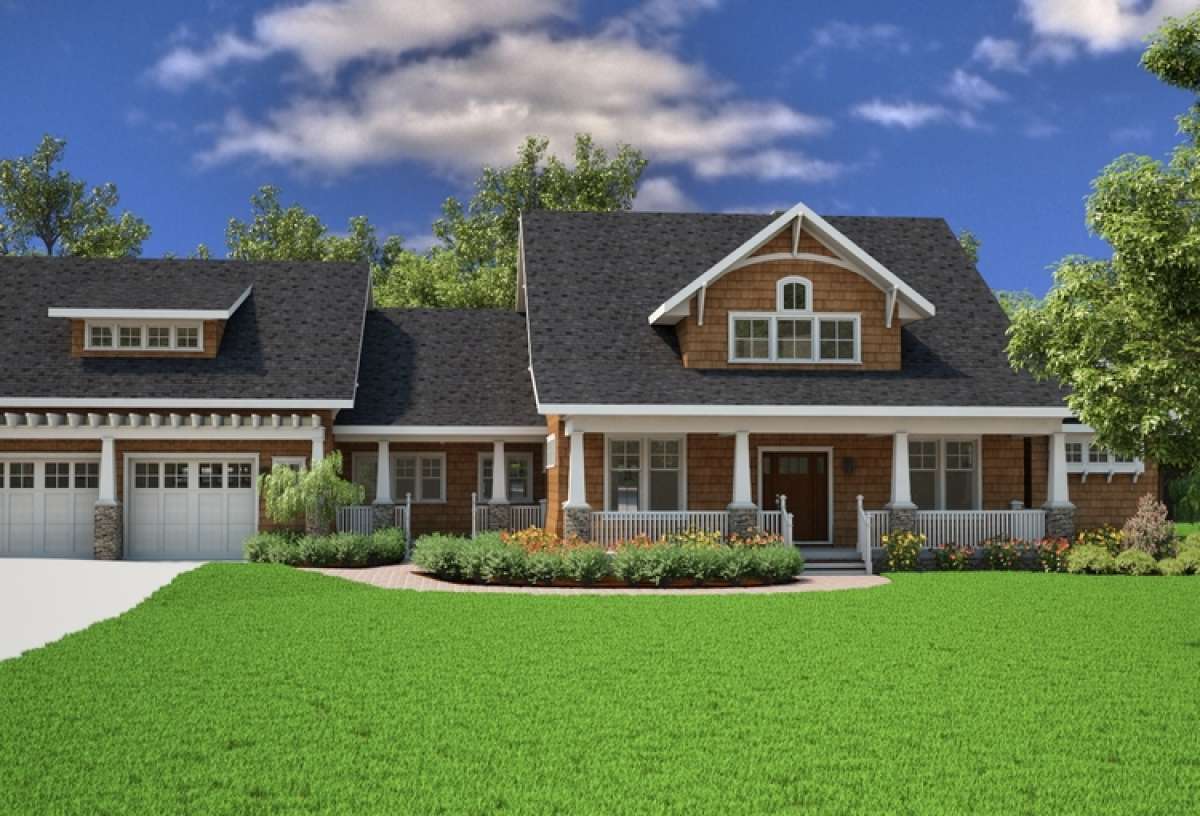

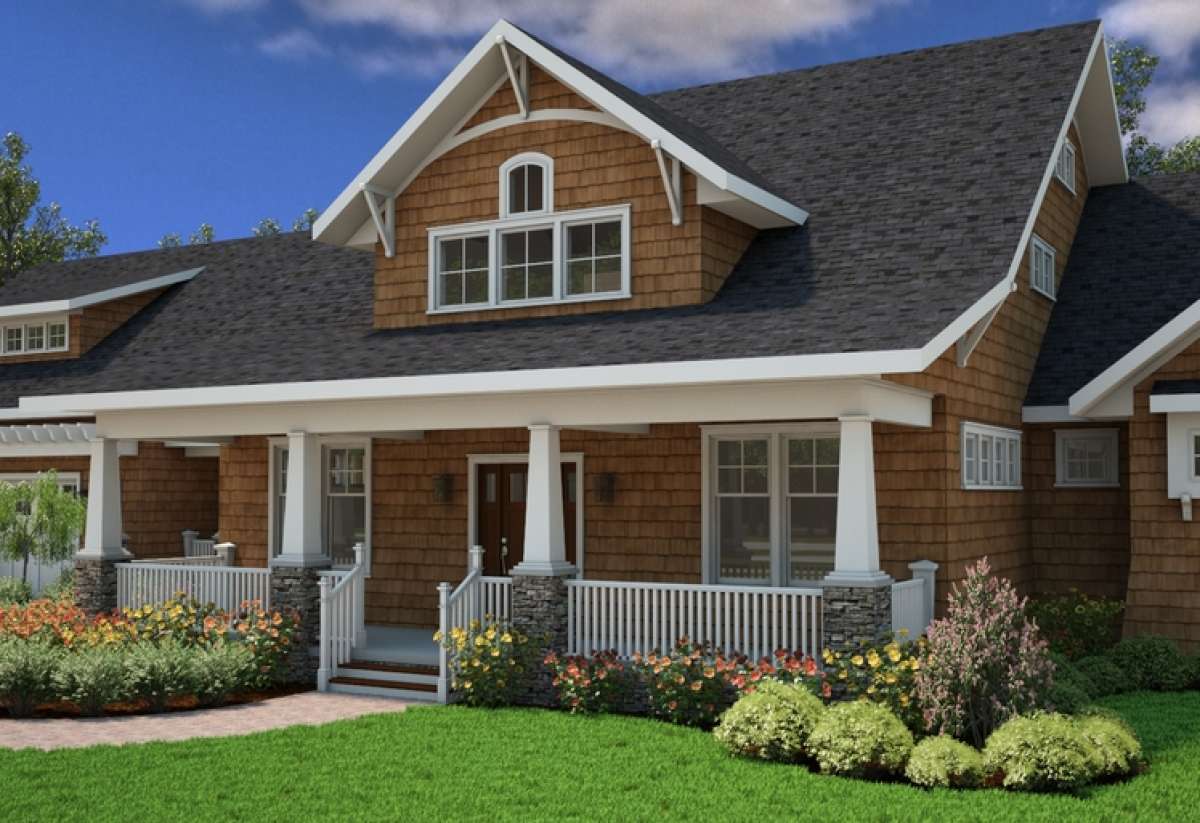

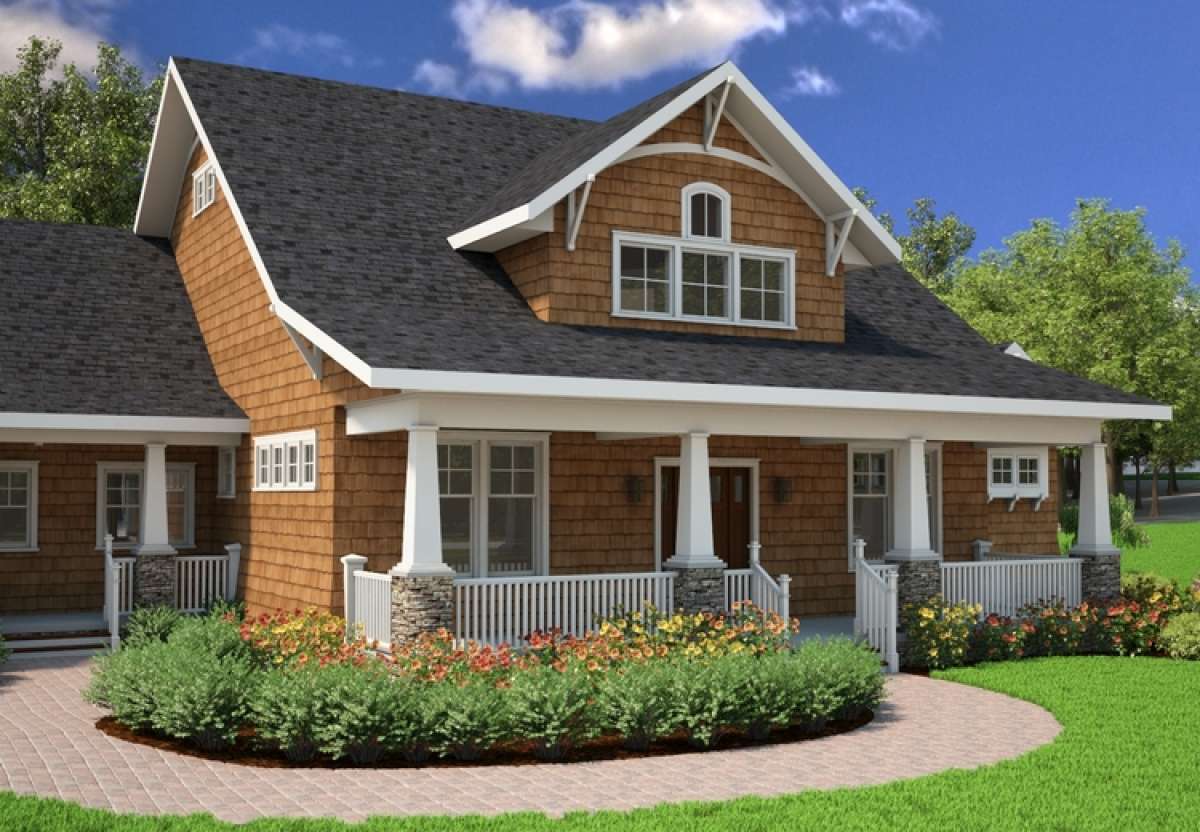

Beautifully constructed craftsmanship outlines the exterior of this sprawling Craftsman house plan. Cedar shakes are a perfect backdrop for the home and overhead decorative window gables, exposed rafters and a large shed dormer add visual interest and warmth. There are a pair of front covered porches highlighted with open railing, stone pillars and tapered beams. The interior floor plan features approximately 3,039 square feet of family living space including three bedrooms and two plus baths in the 1.5 storied home. A huge bonus room, an unfinished basement foundation and the enviable sized three car garage add additional storage space, versatility and value to the home. A home office and formal dining room flank the spacious front foyer before stepping into the great room where there is a handsome fireplace, rear access to the pergola covered outdoor space and a warming fireplace. The open concept design continues with the kitchen and morning room where a center island with breakfast bar, loads of counter and cabinet space and the sun drenched morning room are located. Both a butler’s pantry and huge food storage pantry lie between the formal dining room and kitchen. Adjacent to the pergola are a screened porch for three season outdoor living and a covered patio. The second covered porch features the informal family foyer where a mudroom, a rear staircase, a half bath and the laundry room are situated. The main level master suite enjoys privacy and a large footprint with private access to the outdoor space, his and hers oversized walk-in closets and a sumptuous master bath with a central fireplace, a wall-to-wall shower and dual vanities.
The 599 square foot bonus room sits atop the garage, has a private balcony and offers plenty of space for a hobby/craft room or artist’s studio. The second level of the main home features two oversized family bedrooms with walk-in closets; one of which is enormous, great window views and each bedroom has a private vanity and toilet space within the jack and jill bath. This family friendly home is showcased with a spectacular façade brimming with curb appeal, a spacious interior floor plan with designer and custom amenities and expansion space in the unfinished basement foundation.
