Cottage House Plan 5633-00138

Sq Ft1,072
Beds2
Baths2
1/2 Baths0
Stories1
Cars2
Width52' 0"
Depth40' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

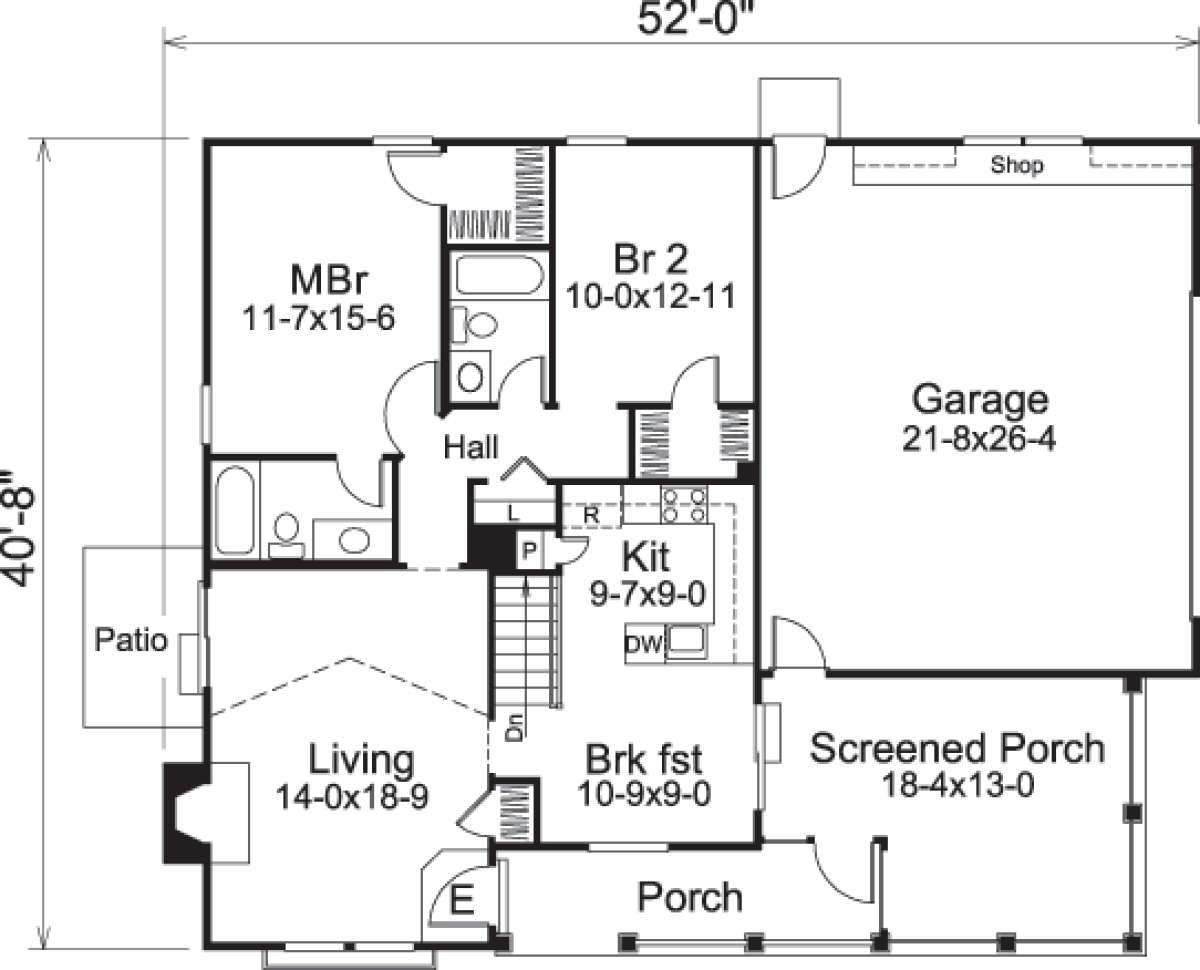

Floorplan 1 for House Plan #5633-00138

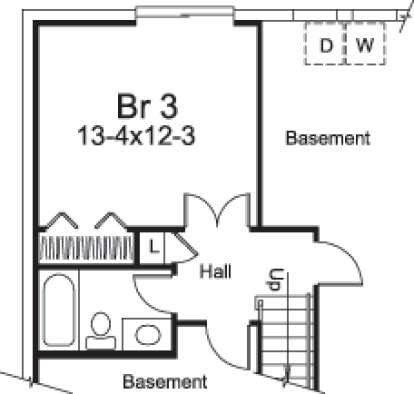

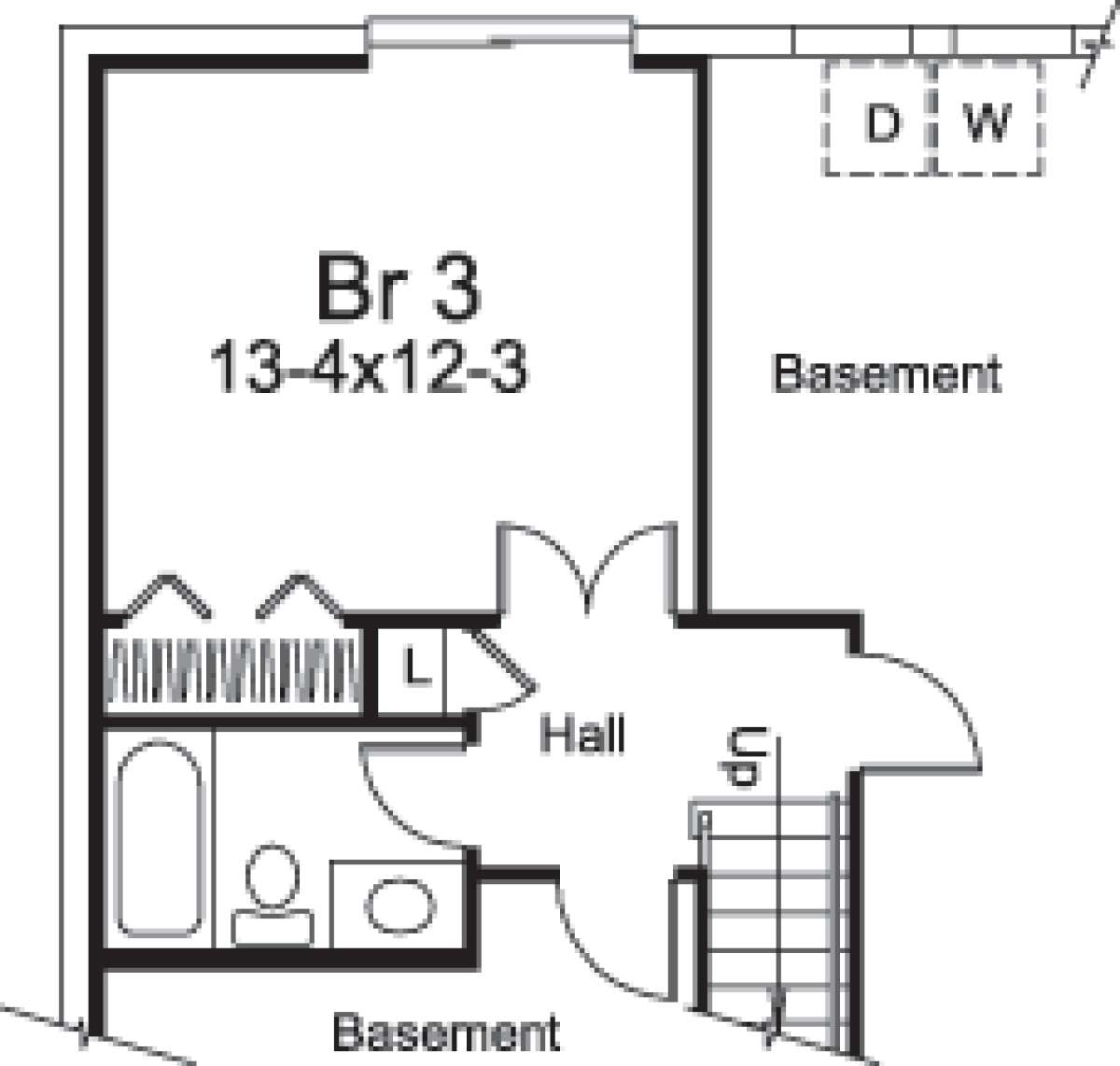

Floorplan 2 for House Plan #5633-00138
Floorplan 1
Floorplan 1 for House Plan #5633-00138
Floorplan 2
Floorplan 2 for House Plan #5633-00138


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

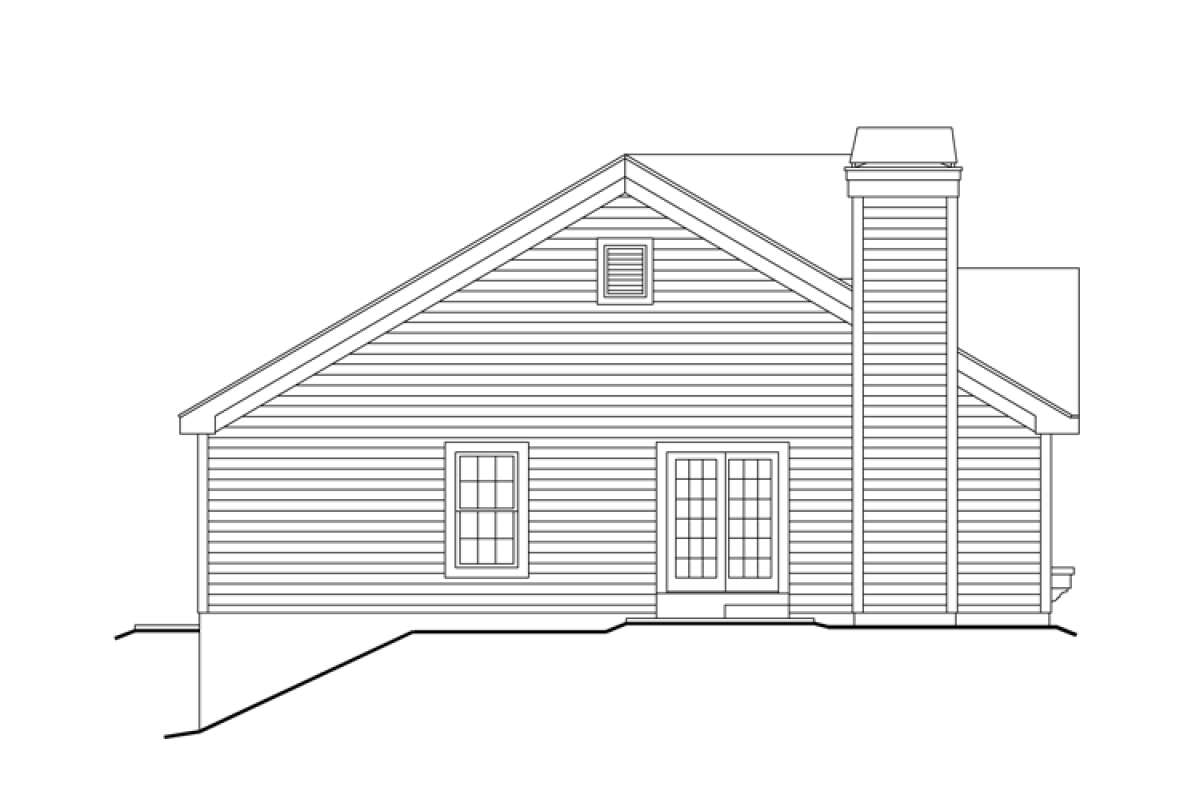

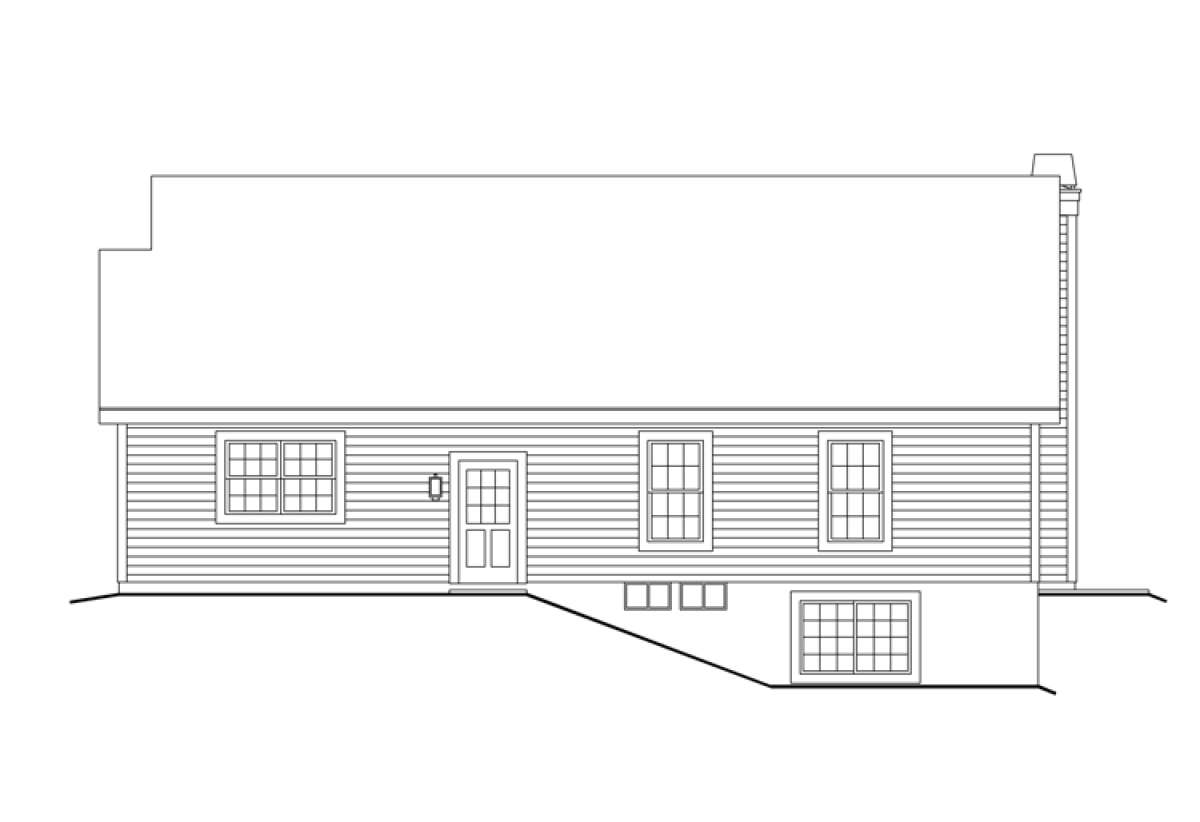

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This All-American iconic Ranch styled home features a lovely exterior exuding charm and character. The Cottage house design is accentuated with architectural features designed to “stir the senses” and include a Palladian style window feature, decorative accents in the gabled roofs and an expansive front covered porch. The interior floor plan features approximately 1,072 square feet of living space on two floors which incorporates two bedrooms, two baths and optional living space in the basement level. The two car, side entry garage features 571 square feet of additional space which includes a workshop and rear yard accessibility. The front covered porch is highlighted by entrance into the home and access to the large screened porch; both spaces ensure comfortable and enjoyable entertaining and family relaxing options. Entrance into the home is highlighted by a vaulted living room which features a handsome fireplace, side patio access and measures in excess of 14’x18’. The U-shaped kitchen, containing a separate pantry, and casual dining nook are adjacent to the living room and provide accessibility to the screened porch through sliding glass doors.
The second bedroom features generous floor space and a walk-in closet. There is a hall bath with a tub/shower combination, good vanity space and a toilet along with a hall linen closet. The main floor master suite boasts of a large bedroom with oversized walk-in closet and private en suite bathroom which features a vanity, toilet and a tub/shower combination. There are 345 square feet available in the optional basement level space which includes a third bedroom with ample closet space, a private bath and hall linen closet along with the laundry room. This All-American home boasts of a gorgeous exterior façade and an interior floor plan that is comfortable and versatile.
