Cottage House Plan 5633-00145

Sq Ft801
1/2 Baths0
Width57' 0"
Depth36' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

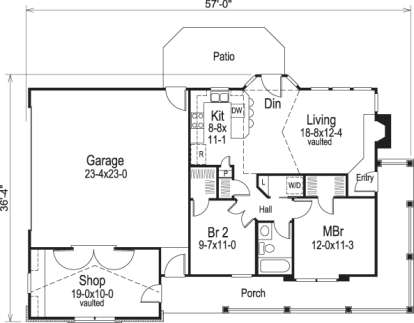

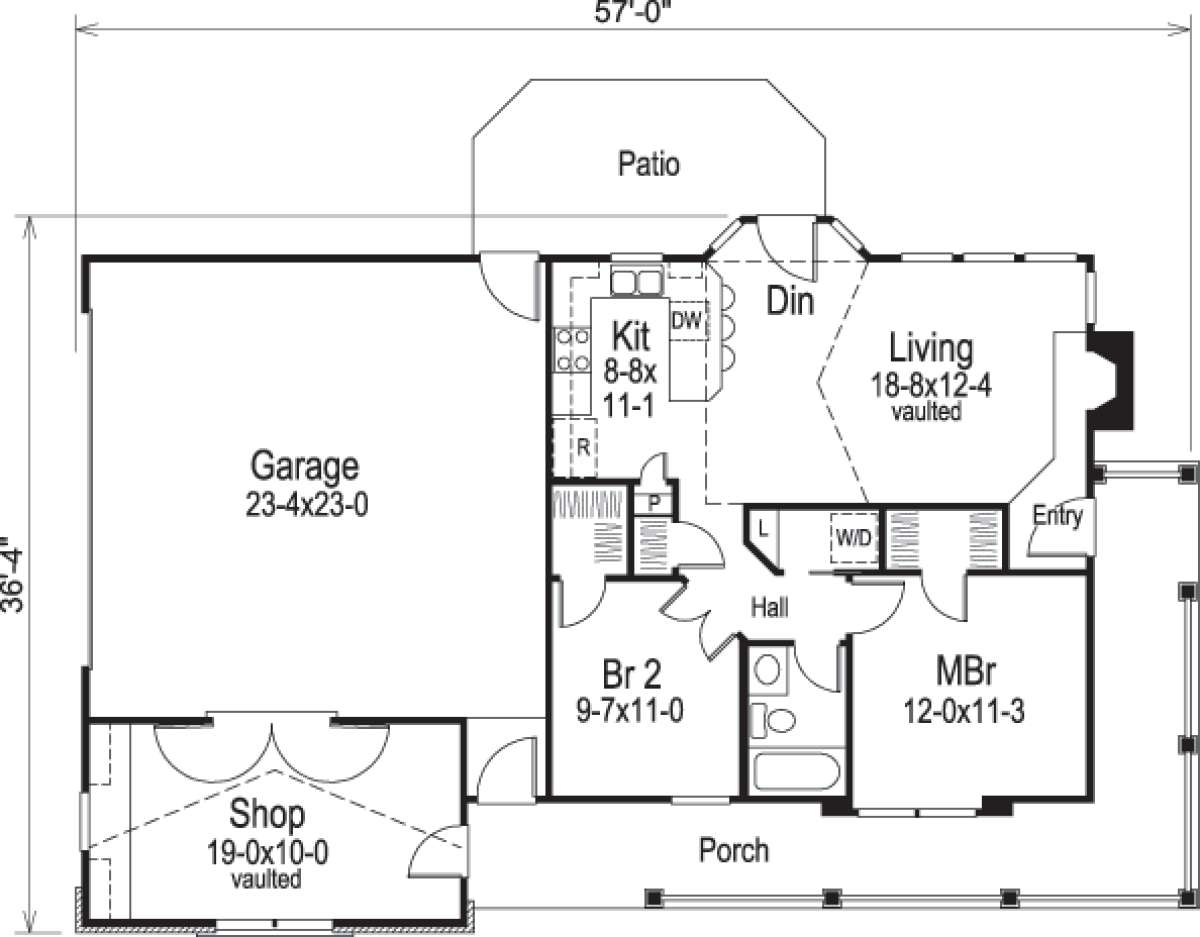

Floorplan 1 for House Plan #5633-00145
Floorplan 1
Floorplan 1 for House Plan #5633-00145

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

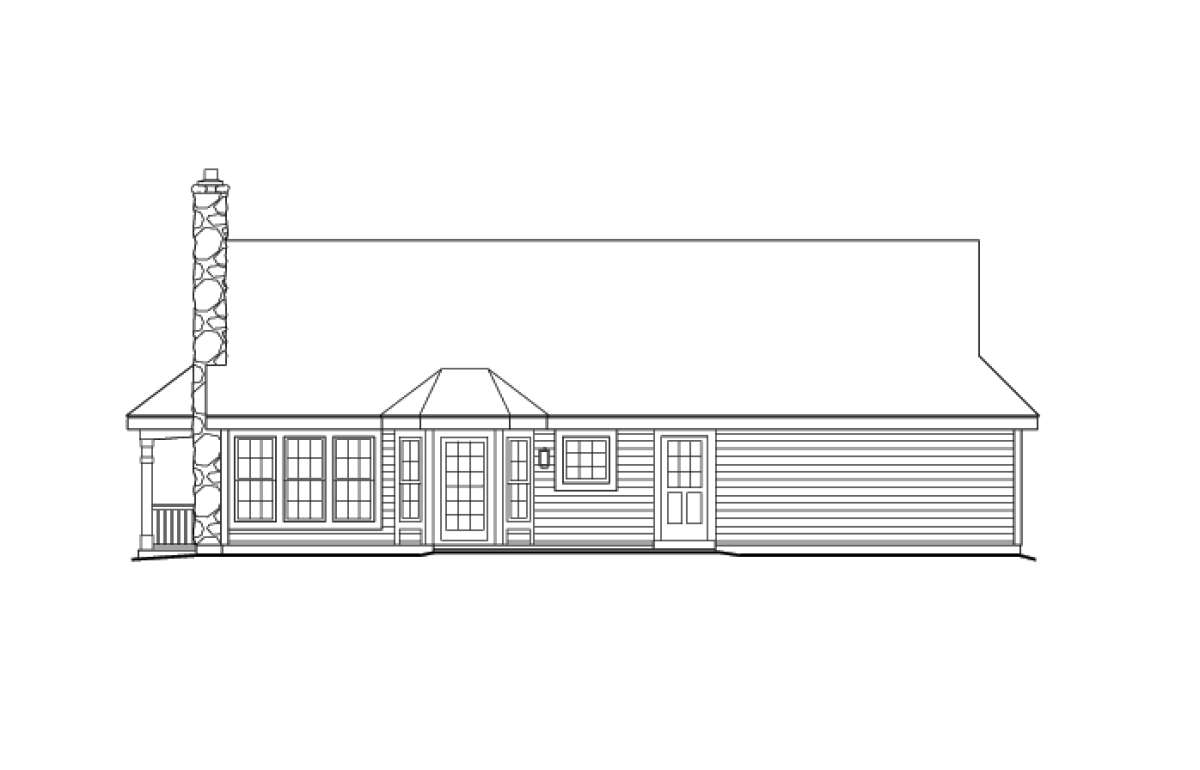

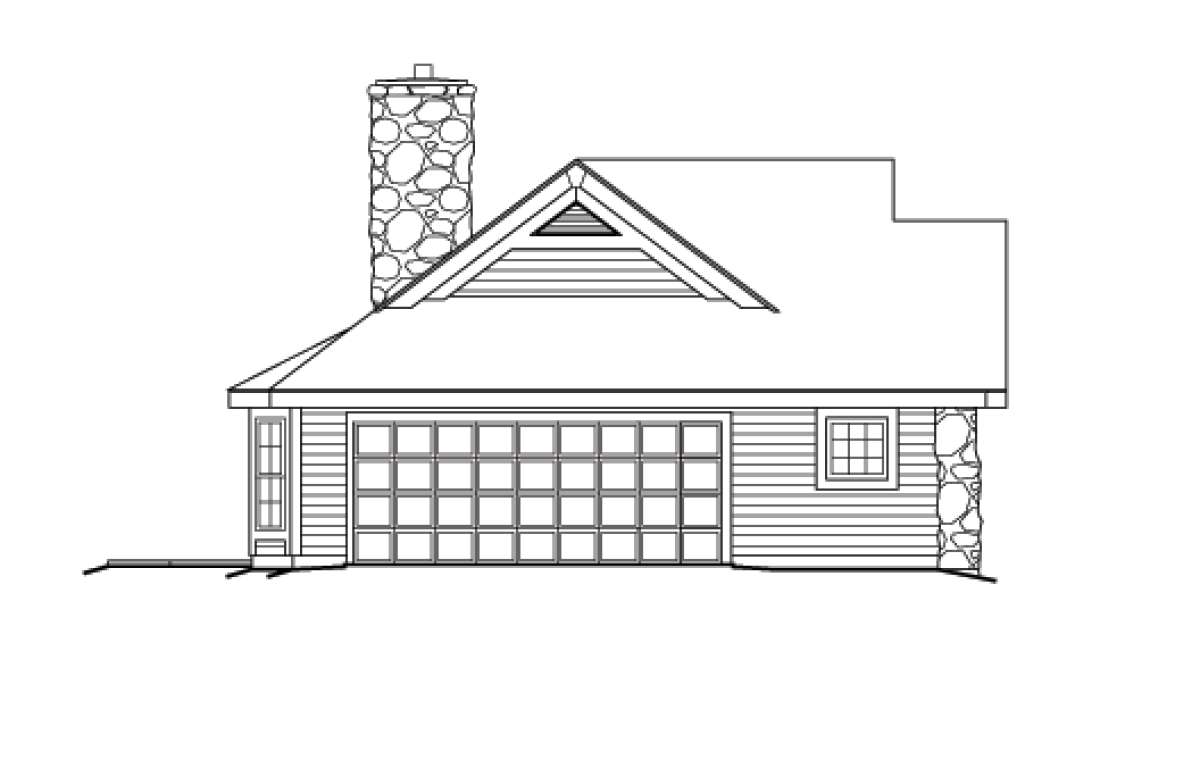

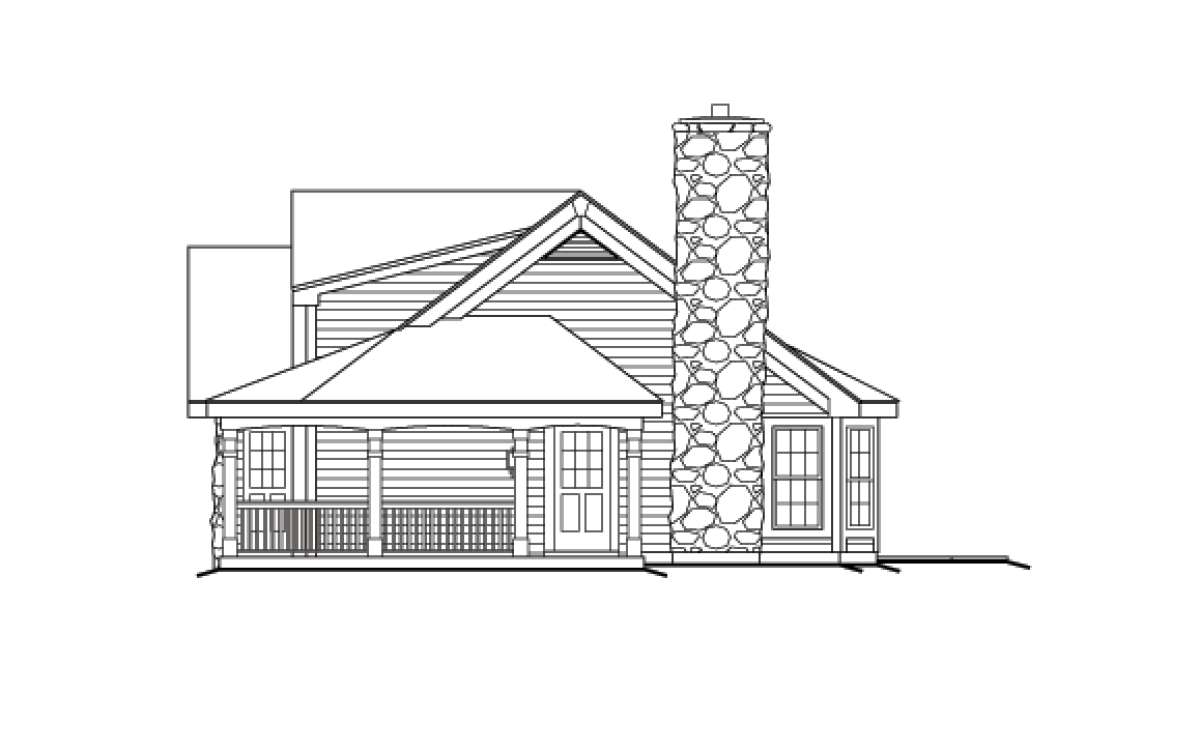

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The exterior façade of this beautiful Cottage home is highlighted with stunning stonework, a double window dormer and a fantastic wraparound porch. The expansive front covered porch features arched openings, open railing and the stone chimney is a visually pleasing architectural design element. This approximate 800 square foot home has two bedrooms and one bath along with an outstanding garage area. The front stonework feature with Palladian style window houses the 553 square foot garage and shop area. This is a side entry two car garage with a vaulted workshop area, measuring 19’x10, and the Palladian window allows for an enormous amount of infused light to spill onto the space. There is built-in cabinetry and front porch access making this space ideal as a shop, hobby room, artist’s studio or home office. Entrance off the front porch into the home is through the greeting foyer and subsequent vaulted living room. The living room features a handsome stone fireplace and a triple wall of windows before opening onto the dining space which provides rear patio access. The open concept floor plan is enhanced by a kitchen breakfast bar which is open to the dining space and there is a separate pantry and plenty of additional counter and cabinet space situated in the family friendly kitchen. The hallway leads to the sleeping quarters which feature two bedrooms; bedroom two has generous floor space and a walk-in closet. The master bedroom has a double window view and a large walk-in closet. There is a shared hall bath which is spacious and the hallway contains an extra storage closet, linen closet and the laundry nook. A slab foundation is included with the floor plan. This beautiful Cottage house plan features an open and functional floor plan ideally suited for a small family or empty nesters.
