Southern House Plan 5633-00128

Sq Ft1,991
Beds3
Baths3
1/2 Baths1
Stories1
Cars2
Width85' 10"
Depth40' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

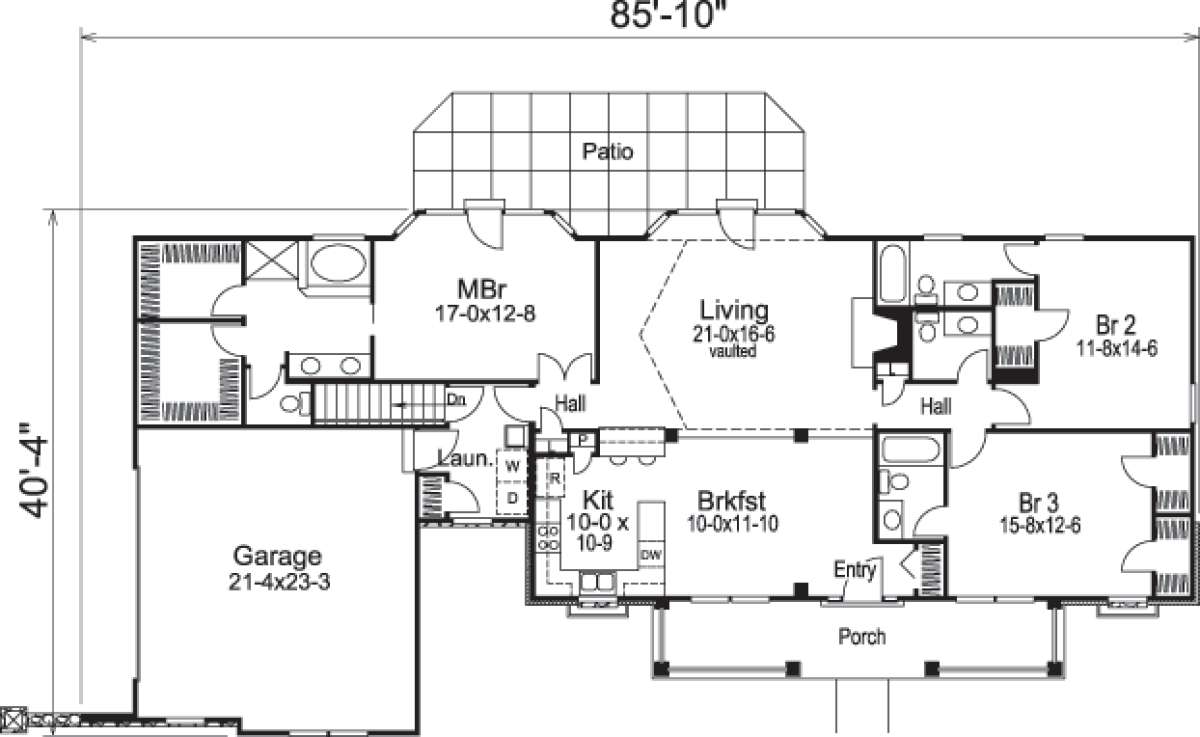

Floorplan 1 for House Plan #5633-00128
Floorplan 1
Floorplan 1 for House Plan #5633-00128


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

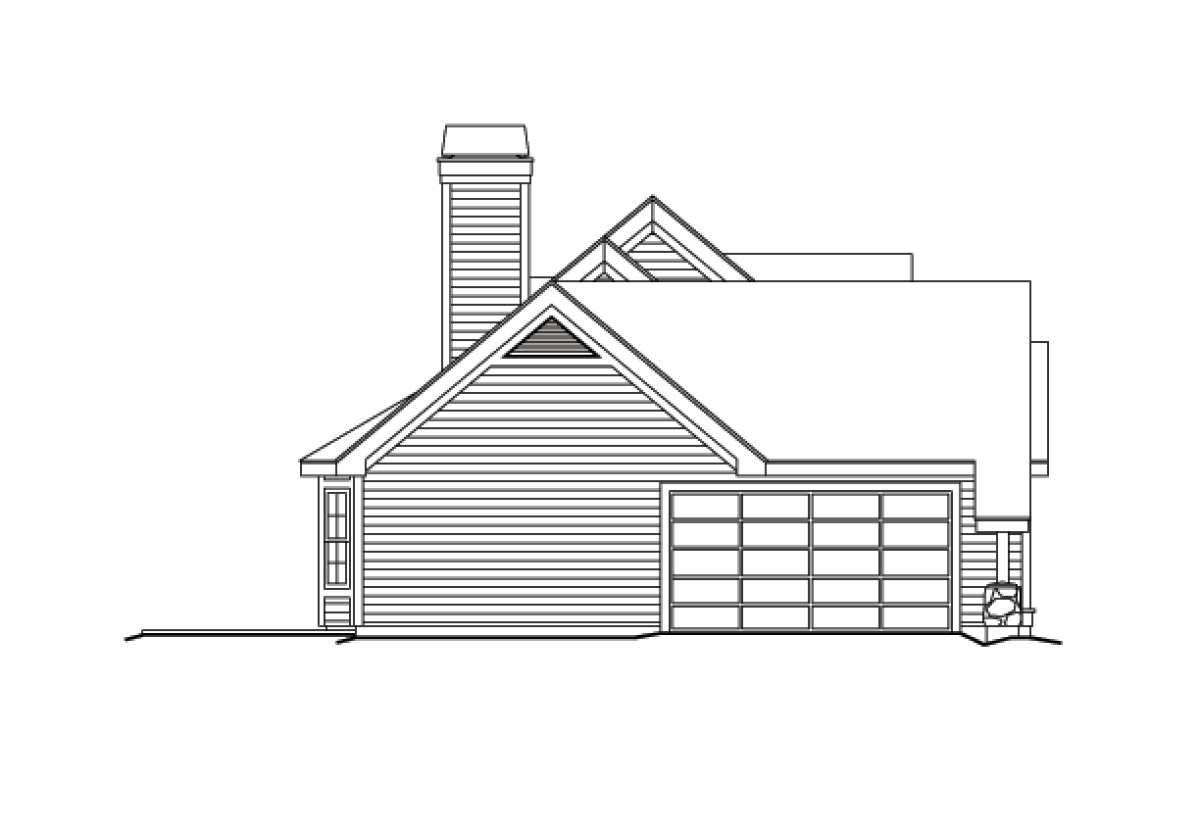

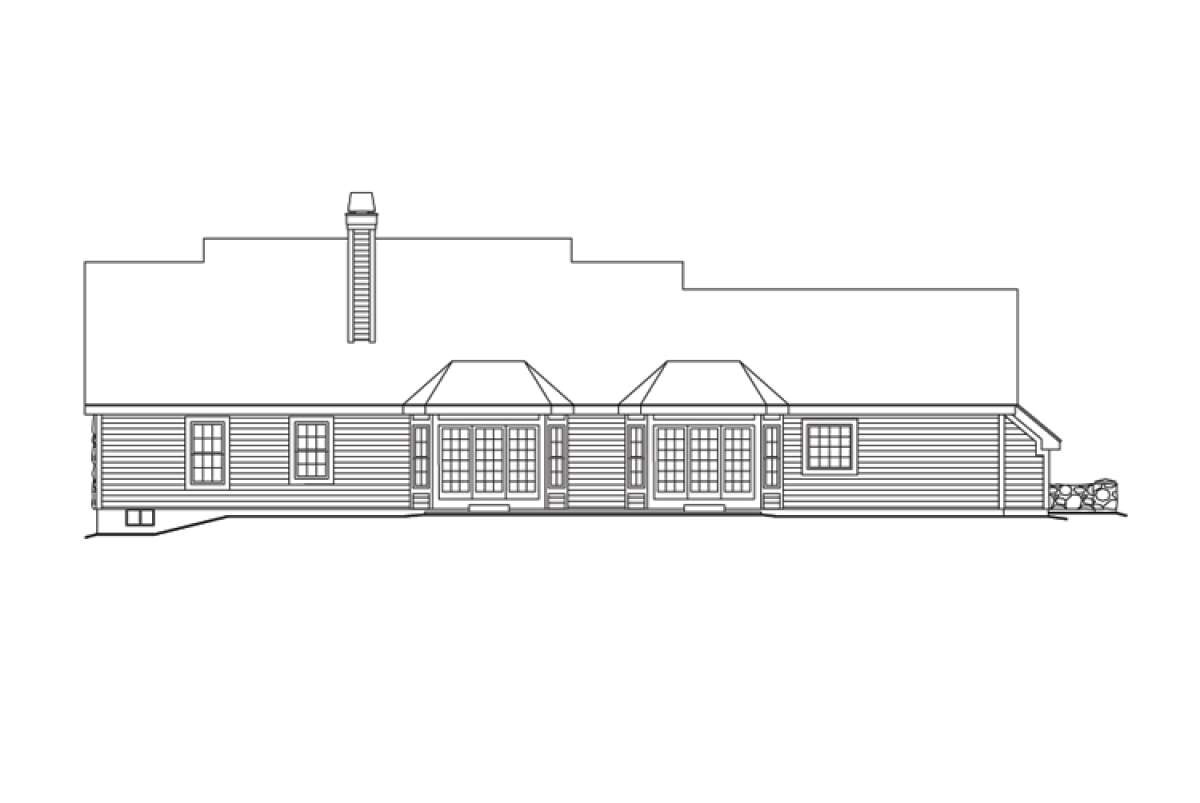

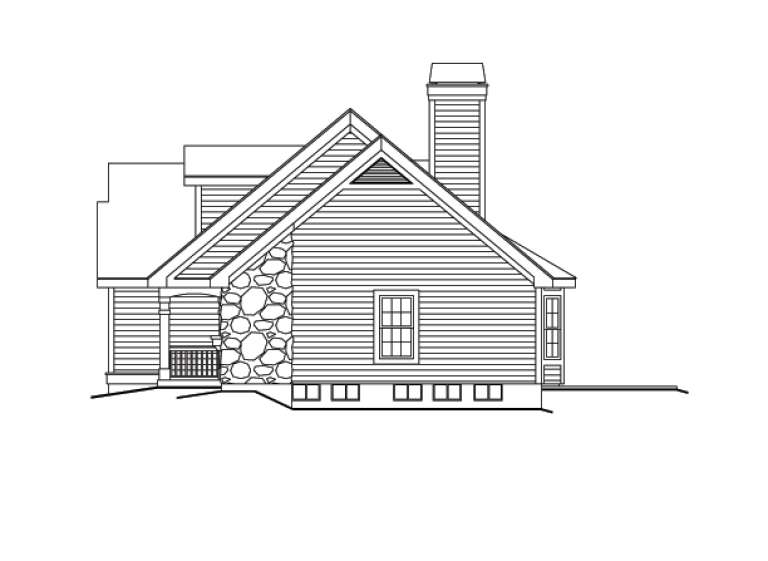

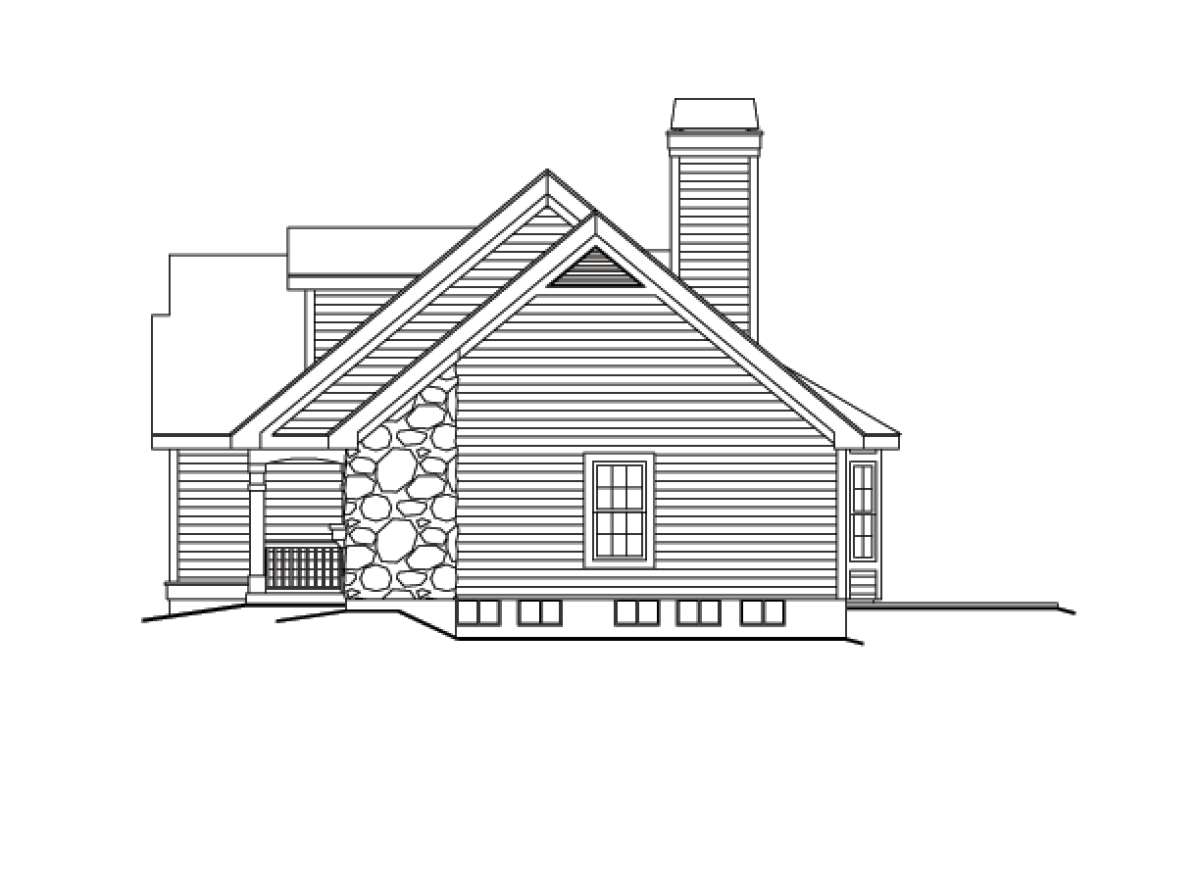

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

The exterior façade of this sprawling Southern house plan is inviting and a great spot to greet family and friends. This traditional Ranch features unlimited curb appeal with triple window dormers, stonework and a porch with open railing and beams which would be ideal to invite neighbors over for a glass of sweet tea or cup of coffee where you could sit in oversized rocking chairs and rock your troubles away. The home’s interior offers right at 2,000 square feet of living space and incorporates three bedrooms and three plus baths into the space. A basement foundation offers an additional 1,943 square feet of living space and would be ideal for casual entertaining and great family space such as a recreation, multi-purpose or hobby room along with additional bedrooms and/or baths or even an in-law suite. There is a huge two car, side entry garage with plenty of vehicle and storage space which leads to the conveniently located laundry room. Storage space and bathrooms abound in the home and bedroom suites are featured in the space. Bedrooms two and three enjoy large footprints with spacious bedrooms, private full baths in each and the second bedroom is highlighted with a walk-in closet while the third bedroom features double walk-in closets. There is a hall powder room and linen closet for guests as well. The split bedroom plan features the master suite in direct opposition to the other bedrooms for privacy. The master bedroom is accessed through French doors and features a beautiful space; the room is large and showcased by an enormous bayed window with private rear patio access. There is a retreat spa inspired master bath with a garden tub and the bath boasts of the absolute best in modern amenities including dual vanities. His and her oversized walk-in closets are situated at the rear of the space for convenience.
Expansive open space is evident in the main living areas which consist of a vaulted living room with handsome fireplace and rear patio access. A family friendly kitchen features great cabinet and counter space including a breakfast bar and separate pantry while the enormous breakfast room is a fantastic casual dining space where you can host holiday and special occasion event. This home offers a traditional exterior, loads of expansion possibilities and a modern design with ergonomic living.
