Traditional House Plan 5633-00127

Sq Ft2,695
Beds3
Baths3
1/2 Baths0
Stories1
Cars2
Width76' 0"
Depth55' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

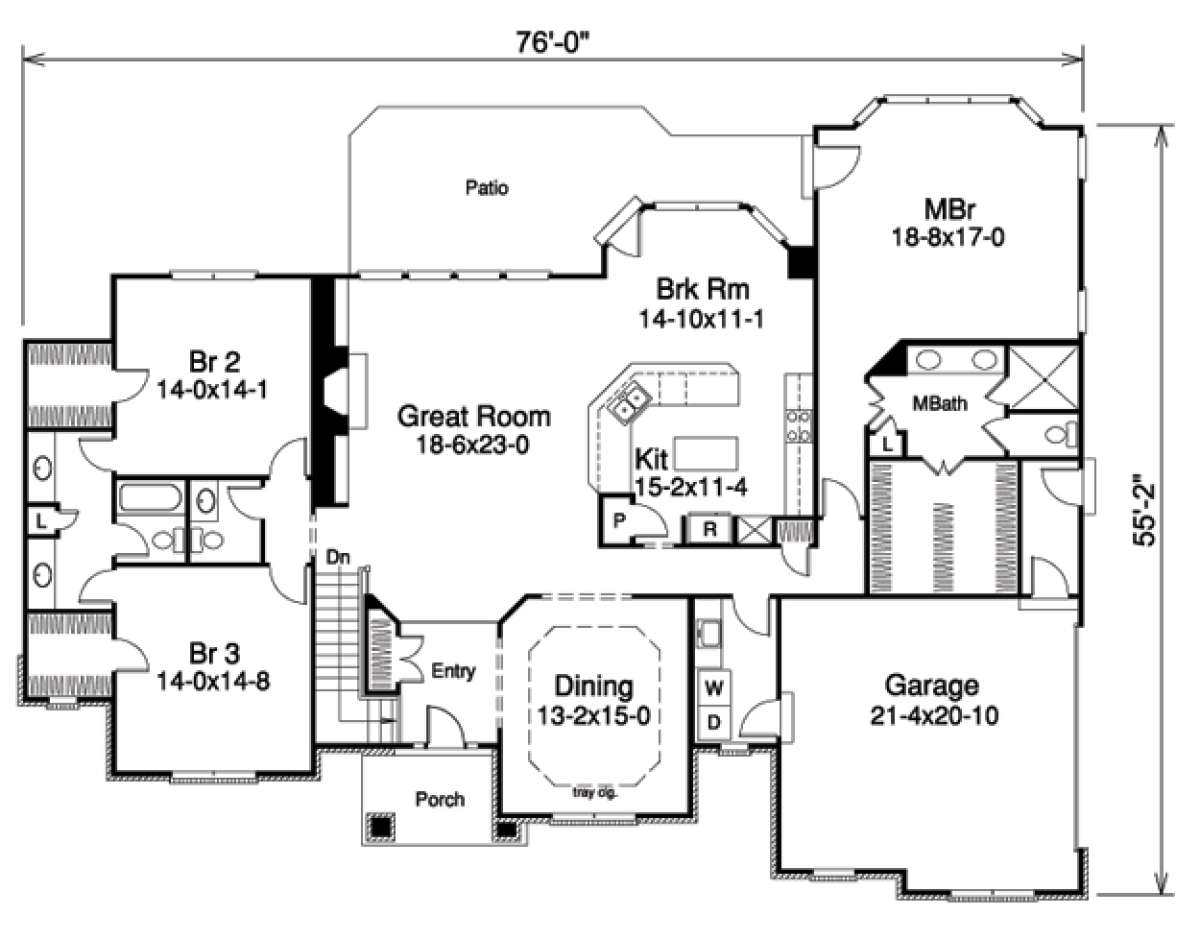

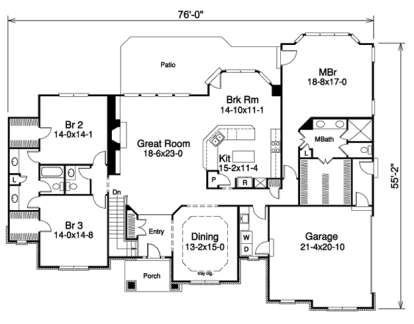

Floorplan 1 for House Plan #5633-00127
Floorplan 1
Floorplan 1 for House Plan #5633-00127


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

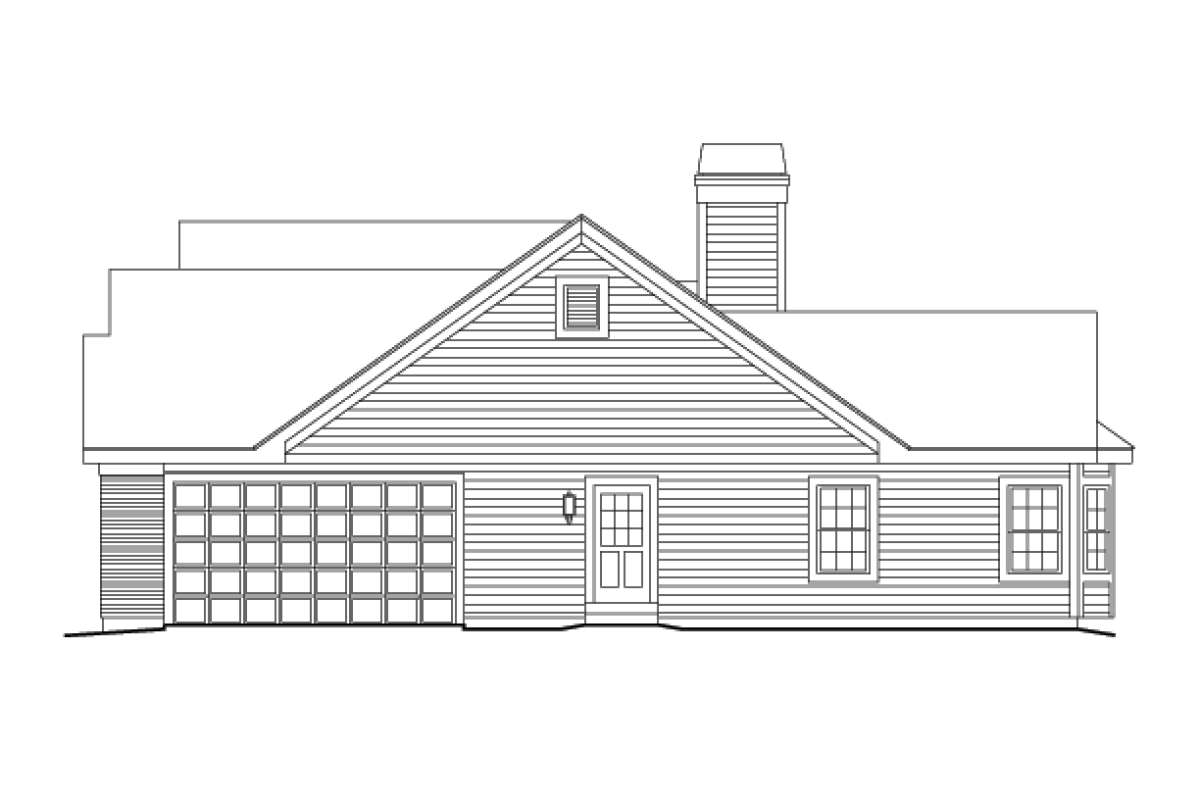

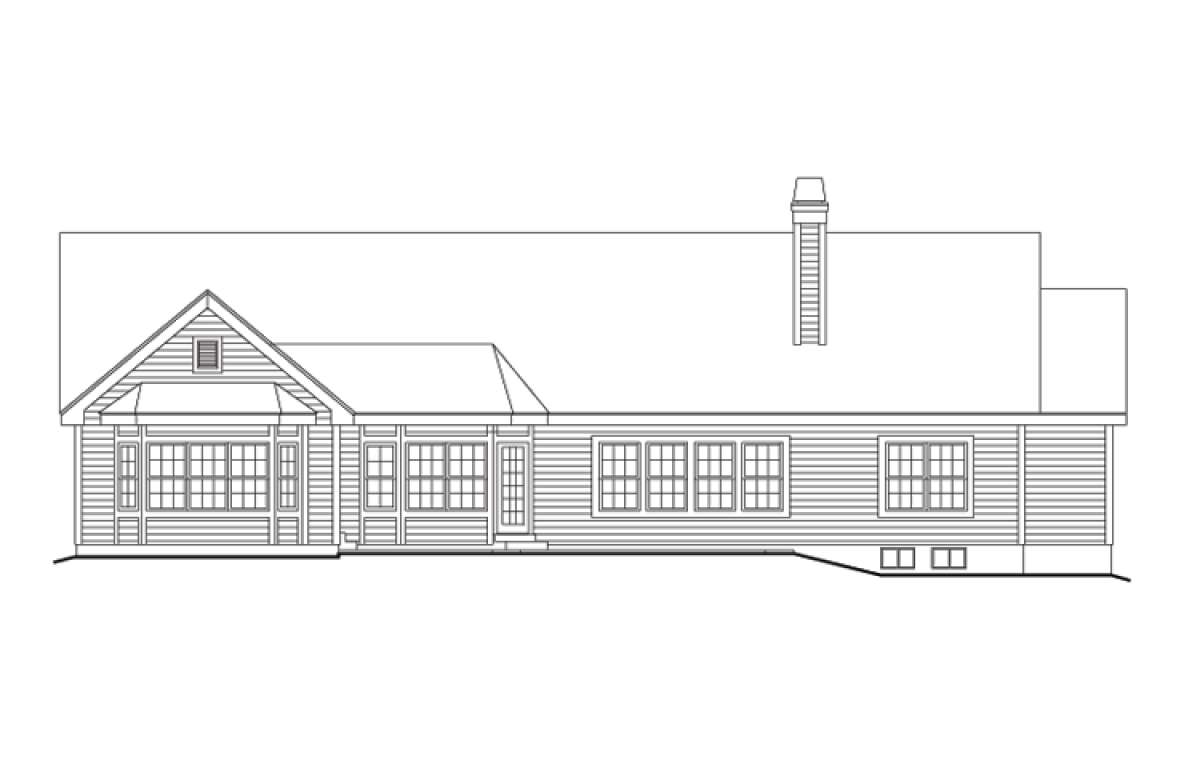

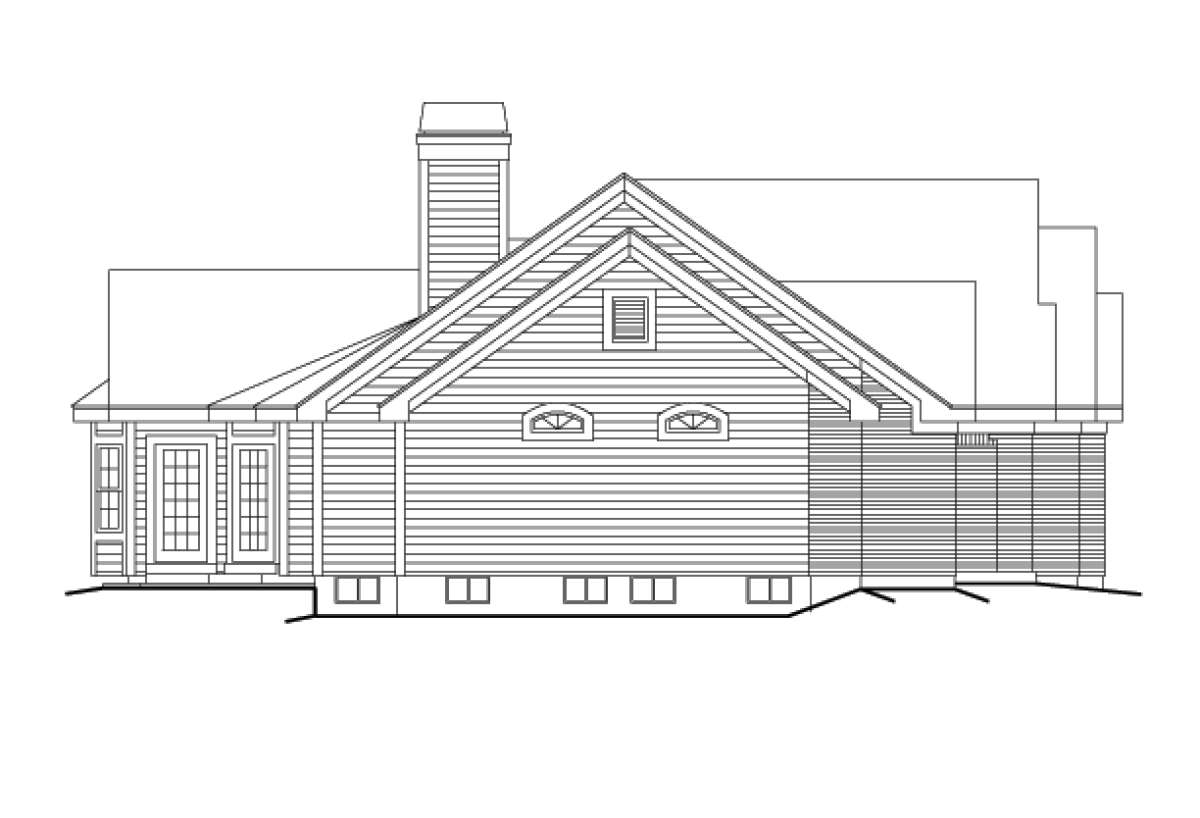

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

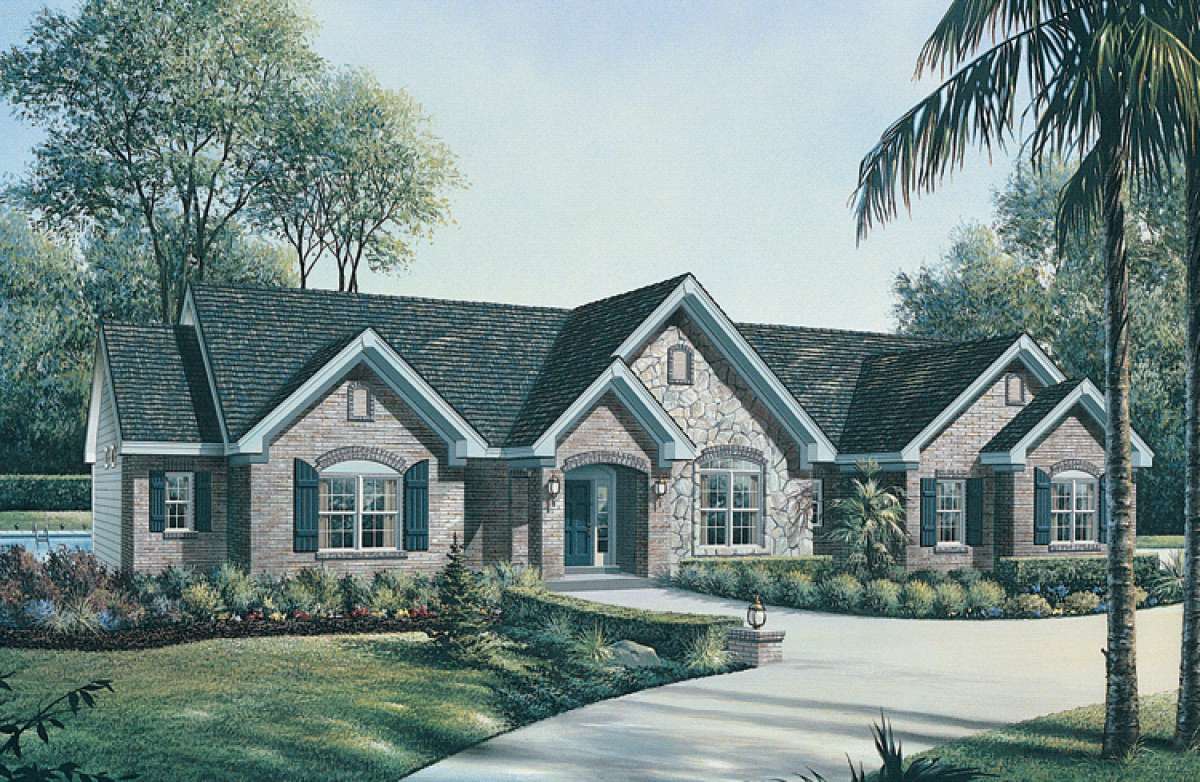

A mixture of brick and stonework is highlighted on this traditional home’s exterior and the interior floor plan features an abundance of space for a large family. The low maintenance exterior combines an array of roof lines, siding and arched window accents to offer excellent curb appeal. The interior features wide open spaces and a split bedroom plan that complements the Ranch design beautifully. The three bedroom, three bath home is situated on a basement foundation offering dual purpose and function which would culminate in excess of 5,300 square feet of living space upon completion. Front entrance into the home features a spacious foyer, a lower level staircase and is open to the formal dining room. The dining room has a trey ceiling and second point of access from the great room which houses built-in cabinetry and a center fireplace. This space is bright and sunny with a rear wall of windows and opens onto the kitchen and breakfast room. The casual dining space provides rear patio access and is encased in a large bay window. The gourmet kitchen is highlighted by abundant counter space, a separate pantry and a center island. The two car, side entry garage features rear storage that is accessible from both the garage and side yard making it ideal for storing lawn and sporting gear. An interior laundry room with sink area is conveniently situated off the garage.
Two family styled bedrooms offer generous floor space, great window views and each contain a walk-in closet. There is a front half bath for guests and the jack and jill bathroom between the bedrooms feature dual vanities, a linen closet and a compartmentalized toilet. The master suite is a striking combination of form and function where the master bedroom is accessed off the extended hallway and features a large bedroom with oversized bay window and private access to the rear patio. The master bath includes dual vanities, a linen closet, a compartmentalized toilet and a large shower with an enormous walk-in closet accessible through French doors. This Ranch home features a comfortable and fully functional floor plan with an expandable basement foundation.
