Traditional Plan 5633-00006


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,260
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 62'
Depth 38'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00006

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

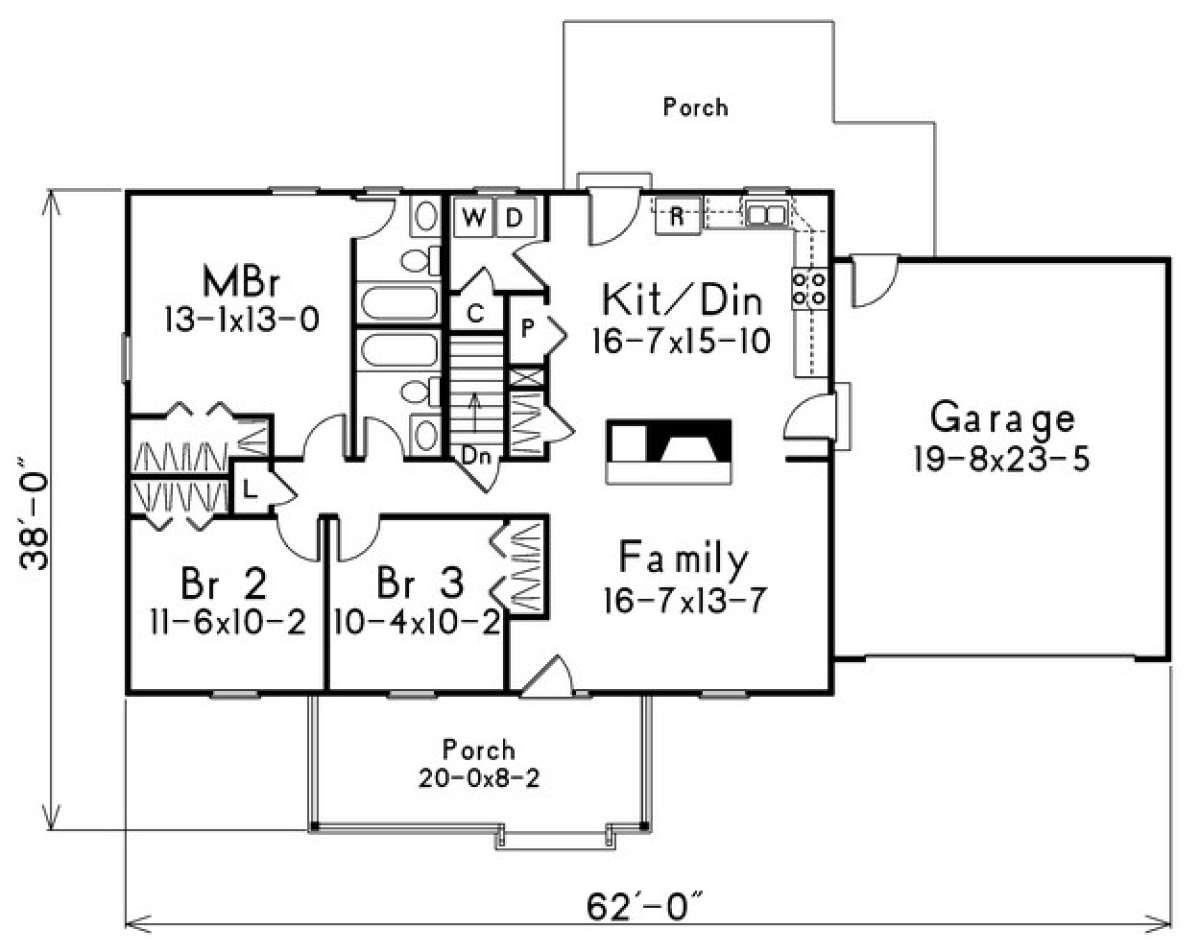

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

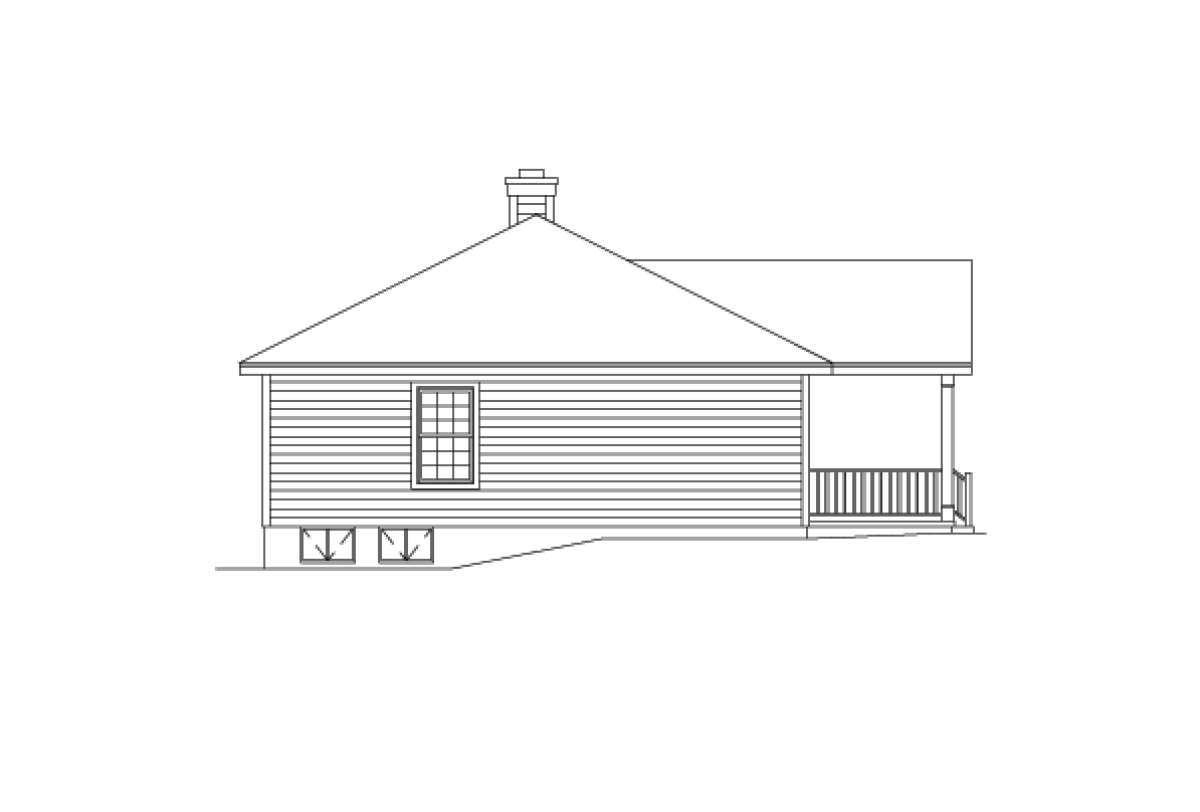

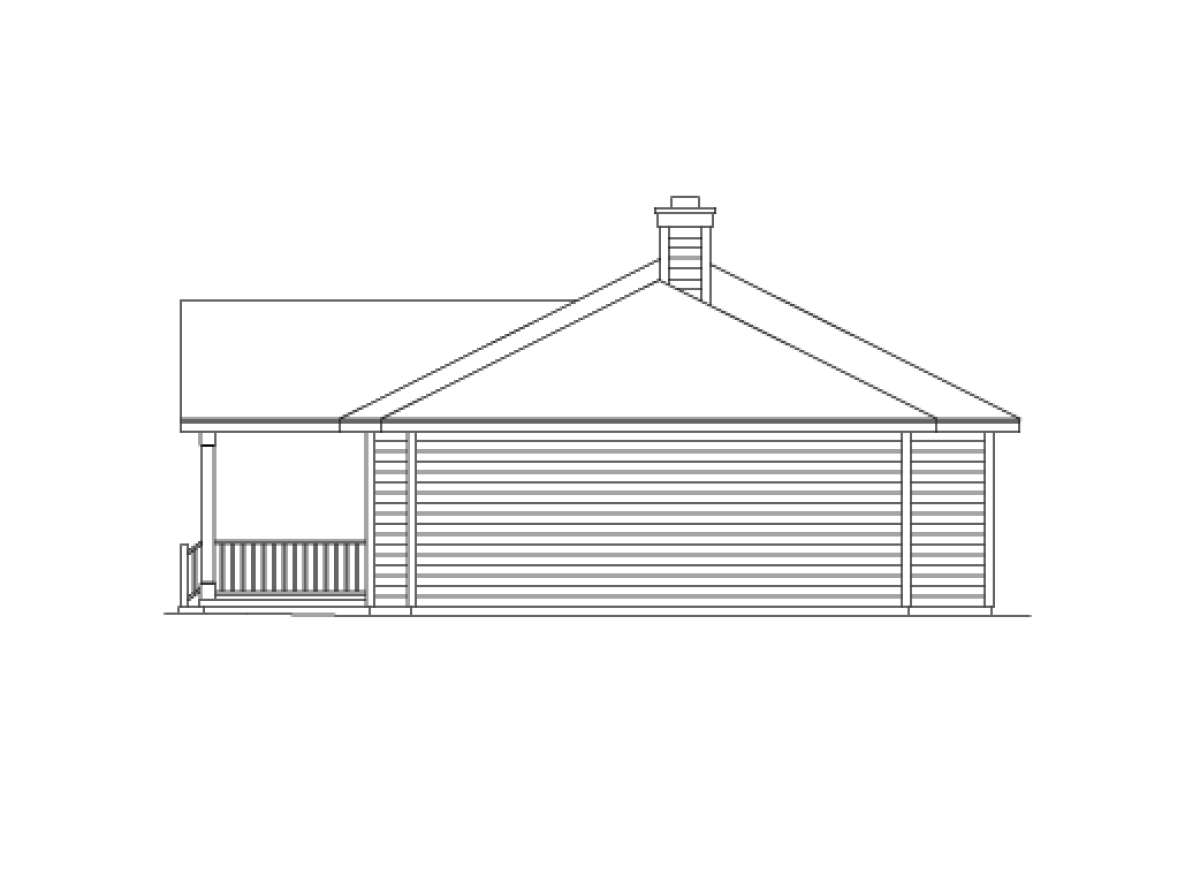

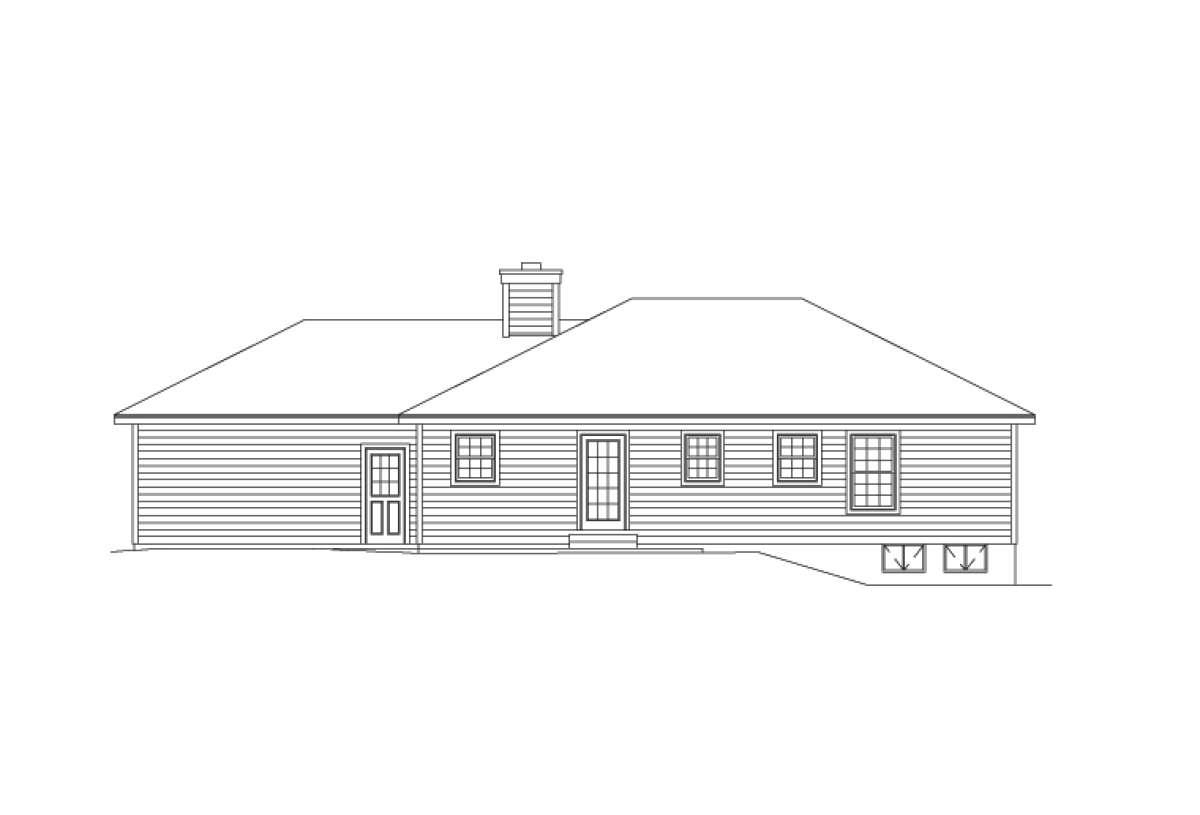

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This home’s expansive front covered porch frames the exterior and gives the home enormous curb appeal and an inviting entrance into the home. Simple construction, clean lines and the front covered porch with open railing highlight the exterior façade and a spacious floor plan is featured in the home’s interior. There are approximately 1,260 square feet of living space containing three bedrooms and two baths in this single floor Ranch plan. There is an additional 460 square feet in the two car garage and the house drawings include a slab, crawl space and basement foundation. The basement foundation would mirror the main level of the home and encompass another 1,260 square feet of living space. Entrance into the home is off the front porch into the open concept design where a large living room is highlighted by a center wall fireplace feature which offers room definition. The kitchen and dining space is highlighted by a separate pantry, back and side walls containing modern amenities and plenty of counter and cabinet space and easy access to the garage. The rear porch is accessible as well from the kitchen/dining space creating an enjoyable and effortless space in which to entertain family and friends. There is a laundry nook and storage closet situated on adjacent back wall of the kitchen for ease and convenience.
Travelling the home’s hallway, there is access to the bedrooms, bathrooms and the lower level staircase. Bedrooms two and three are both spacious and each contains generous closet space. There is a shared hall bath with vanity and toilet space along with a shower/tub combination and a hall linen closet. The master suite is spacious, has great window views and features an oversized closet. The en suite bath includes a vanity, a toilet area and a shower/tub combination. This home features a functional and versatile floor plan ideal for a small family and the expansion possibilities are limitless.
