Luxury House Plan 5633-00099

Sq Ft3,420
Beds4
Baths3
1/2 Baths1
Stories2
Cars3
Width80' 4"
Depth57' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00099
Floorplan 2 for House Plan #5633-00099

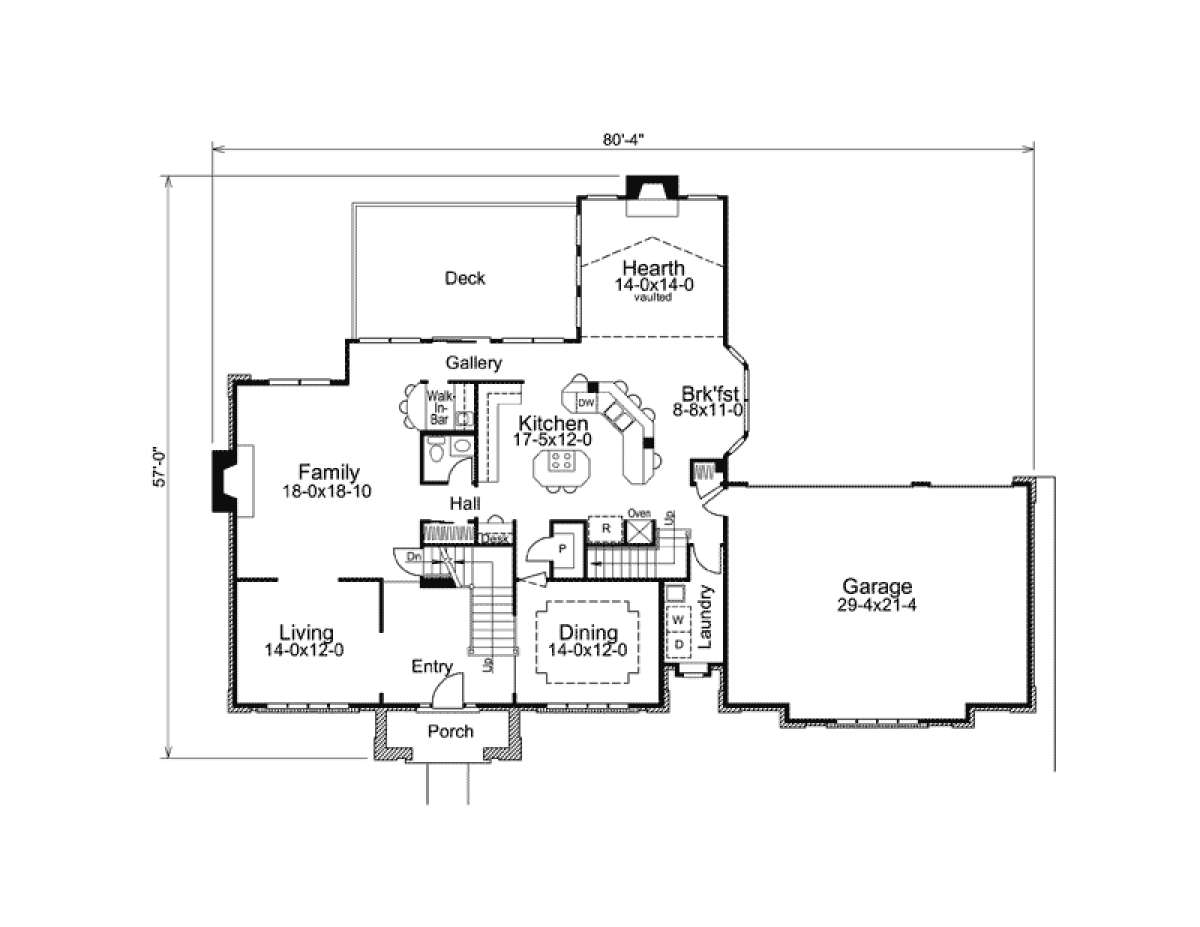

Floorplan 1
Floorplan 1 for House Plan #5633-00099

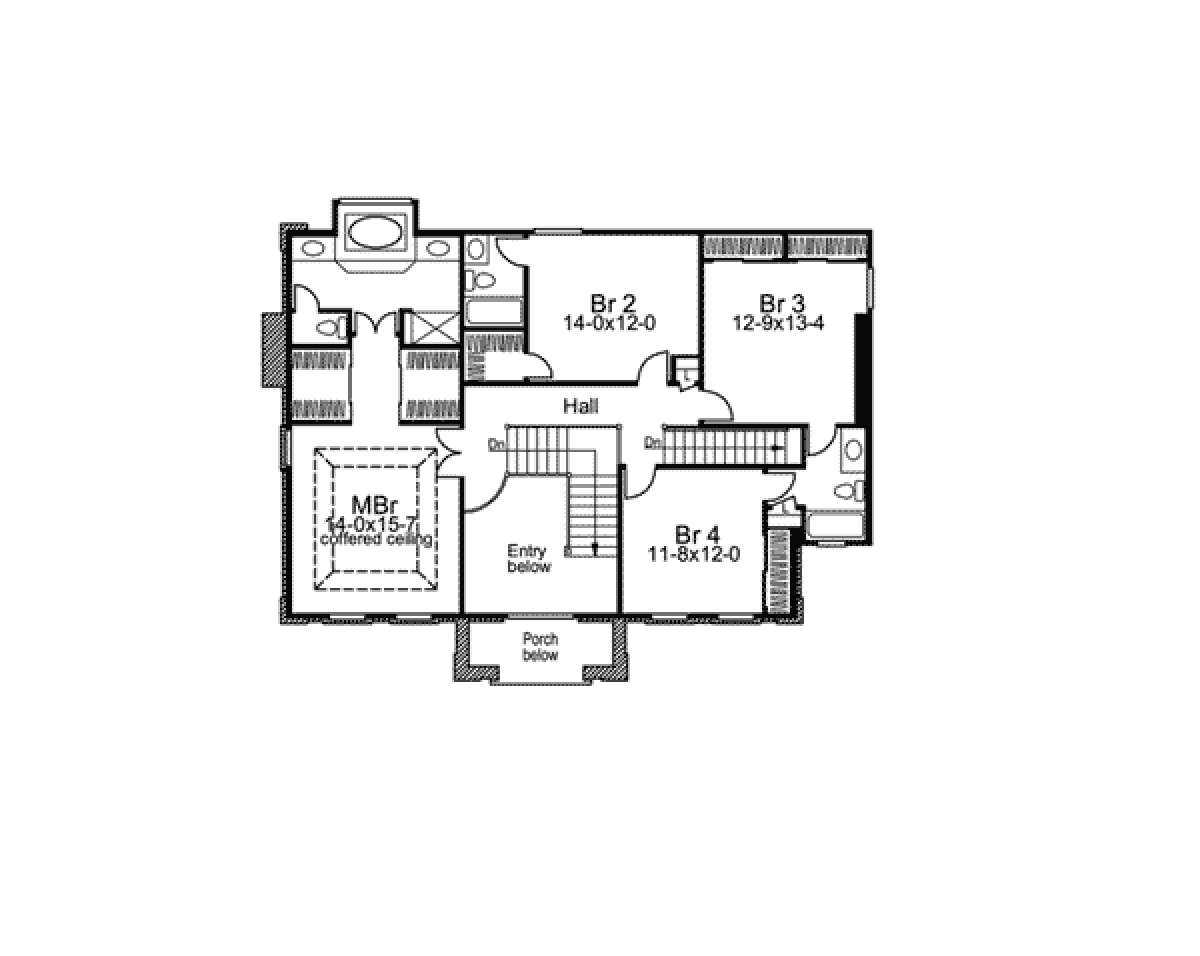

Floorplan 2
Floorplan 2 for House Plan #5633-00099


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

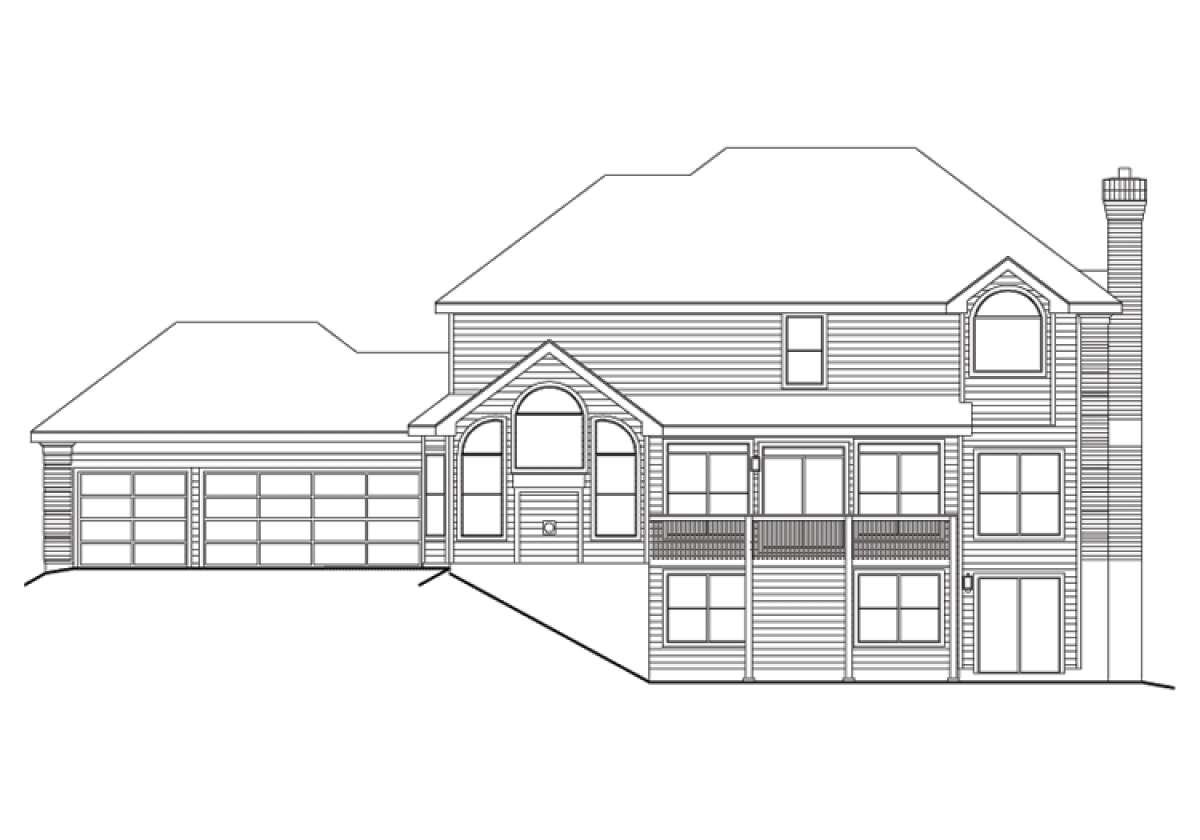

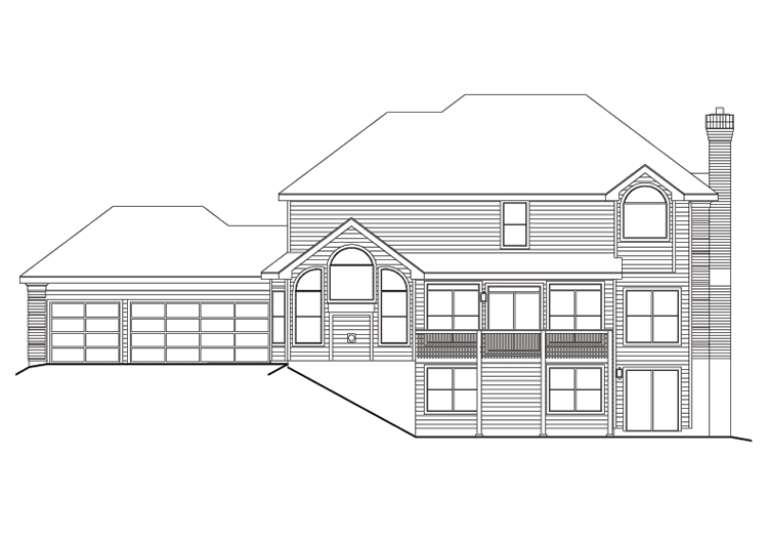

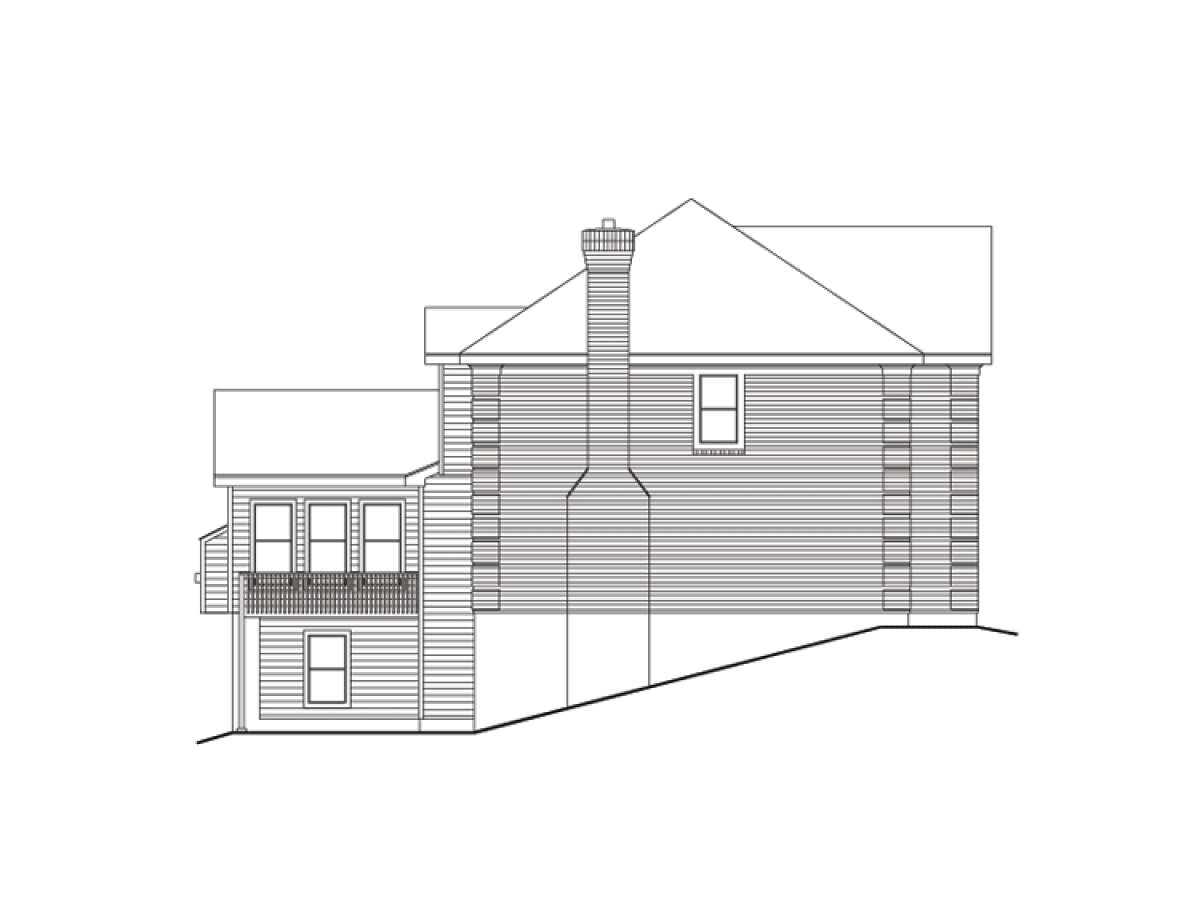

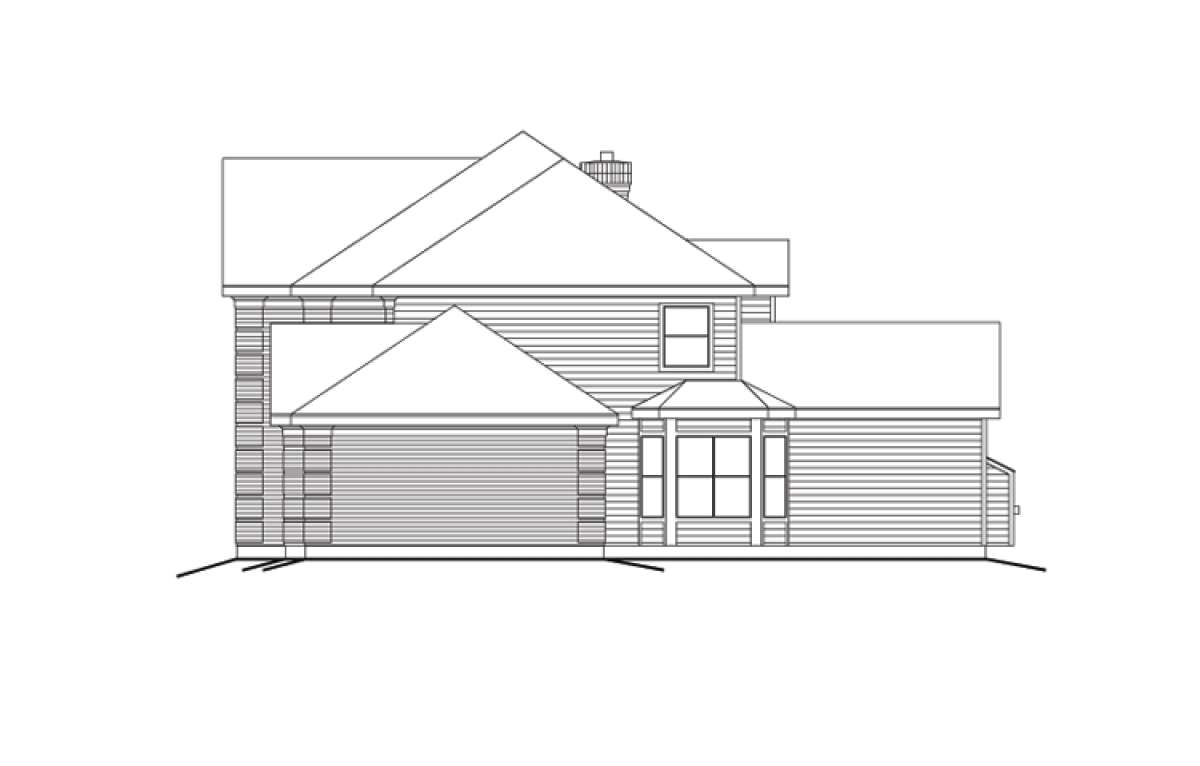

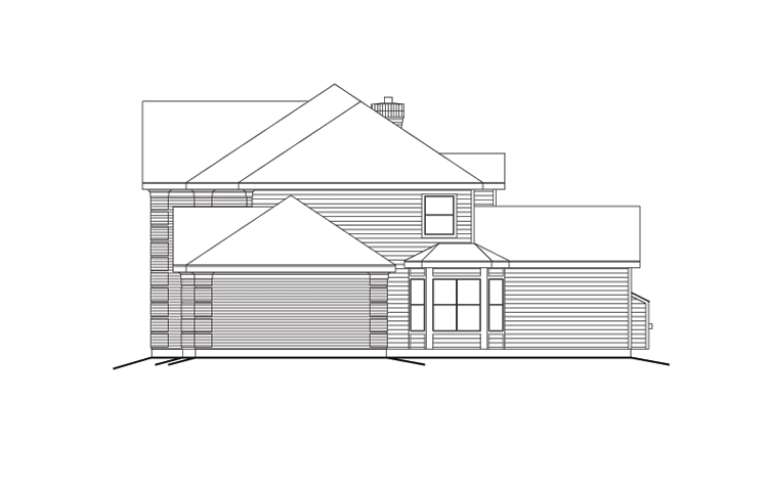

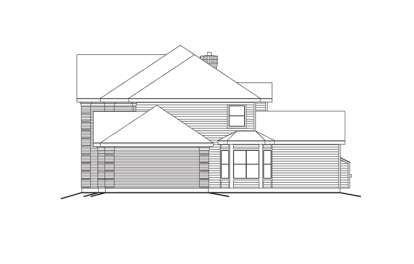

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This prestigious home features a luxurious exterior and a family oriented floor plan with plenty of entertaining space as well. A hip roof style, elliptical windows, central focal grand entrance and brick facade with quoins emphasize a home that offers stylish and sophisticated living. The home’s interior is equally grand with approximately 3,420 square feet of living space including four bedrooms and three plus bathrooms. A walk-out basement and three car garage provides plenty of storage and expansion space as well. The gracious foyer has a flared staircase and is flanked by a formal living and dining room. Both rooms are quite large with the dining room possessing a trey ceiling accent and are havens for entertaining and enjoying special family occasions and events. There is an enormous kitchen featuring a cook top island, a walk-in pantry, angled breakfast bar and a computer desk. A breakfast room is tucked into the bay window and a rear vaulted hearth room with fireplace is warm and cozy. The splendid gallery with rear deck access connects the hearth room and family room which has a wet bar and second fireplace. There is a powder room for guests and the laundry room is conveniently located off the garage for ease and convenience.
Modern elegance and efficiency is evident on the second floor living space. Bedroom two features superior floor space, a walk-in closet and private full bath. The third and fourth bedrooms are above average square footage with generous closet space and a shared hall bath with private access from each bedroom is available. The master suite is luxuriously designed with a beautiful coffered ceiling offered in the master bedroom and there is French door access into the suite. His and her walk-in closets line the hallway to the lavish en suite bath. The master bath is stocked with superior amenities including dual vanities, a compartmentalized toilet, separate shower and a garden tub. This house design features a classic exterior with an efficient and fully functional floor plan.
