Traditional House Plan 5633-00087

Sq Ft3,657
Beds4
Baths3
1/2 Baths1
Stories1
Cars3
Width61' 0"
Depth73' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

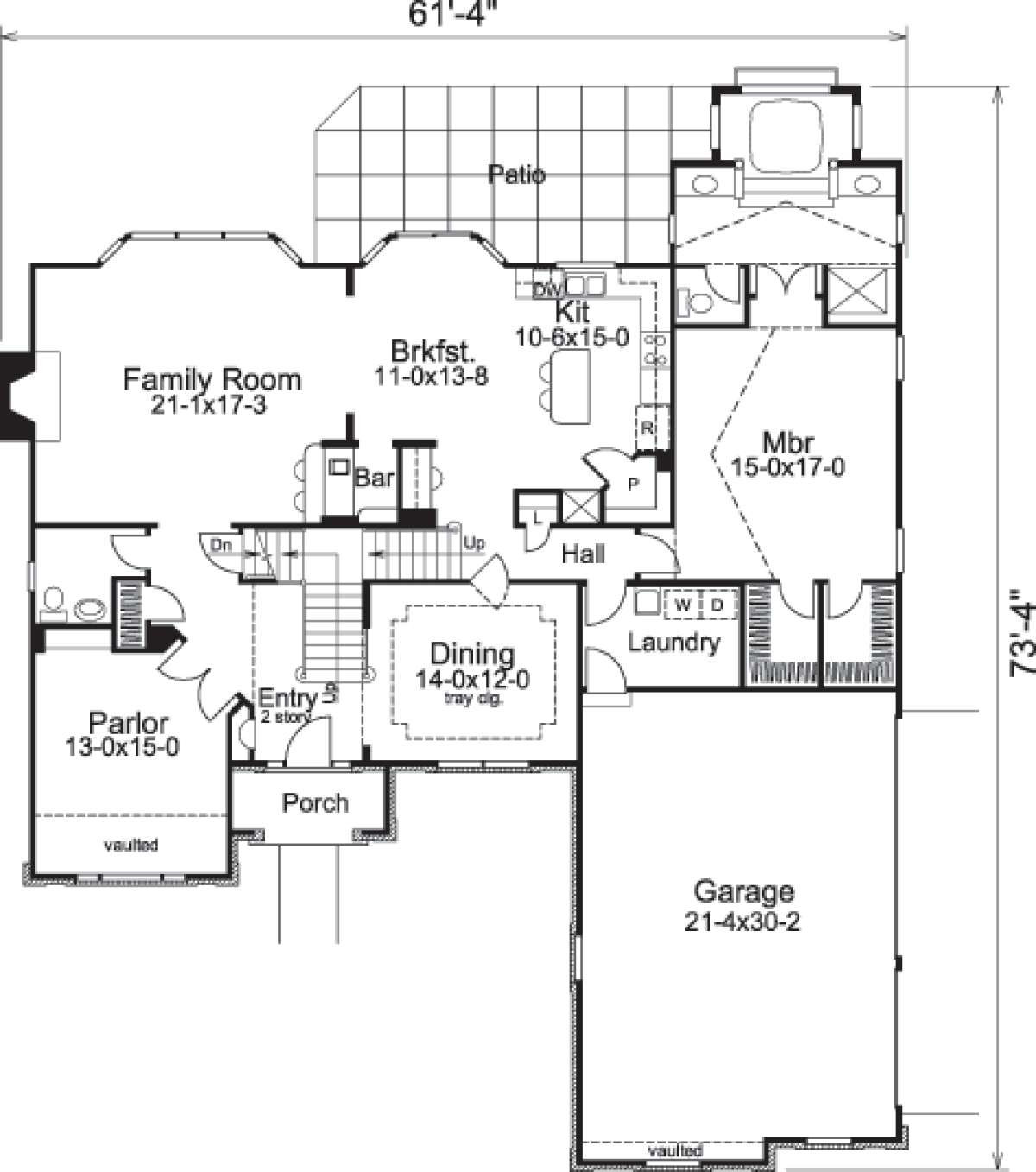

Floorplan 1 for House Plan #5633-00087

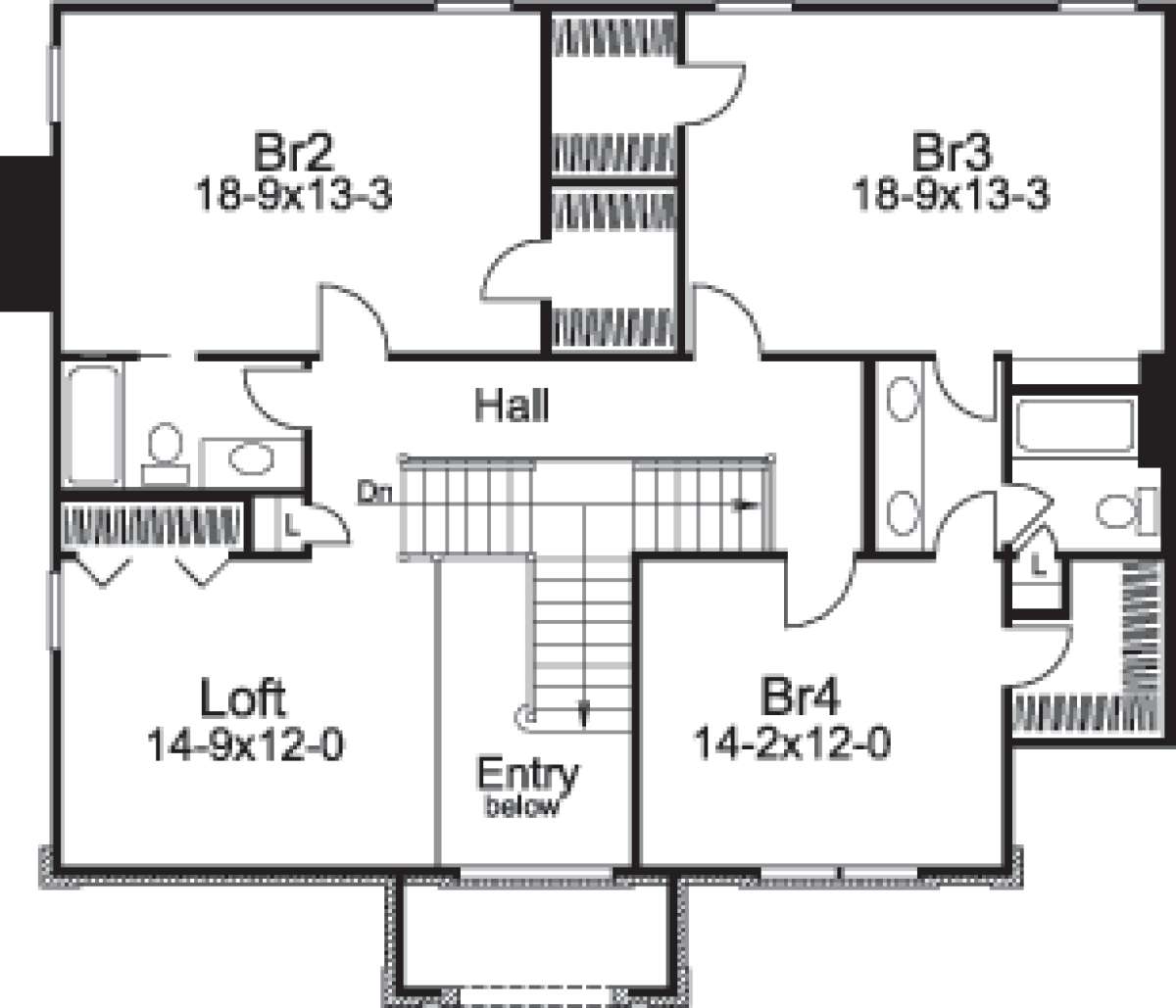

Floorplan 2 for House Plan #5633-00087
Floorplan 1
Floorplan 1 for House Plan #5633-00087
Floorplan 2
Floorplan 2 for House Plan #5633-00087


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

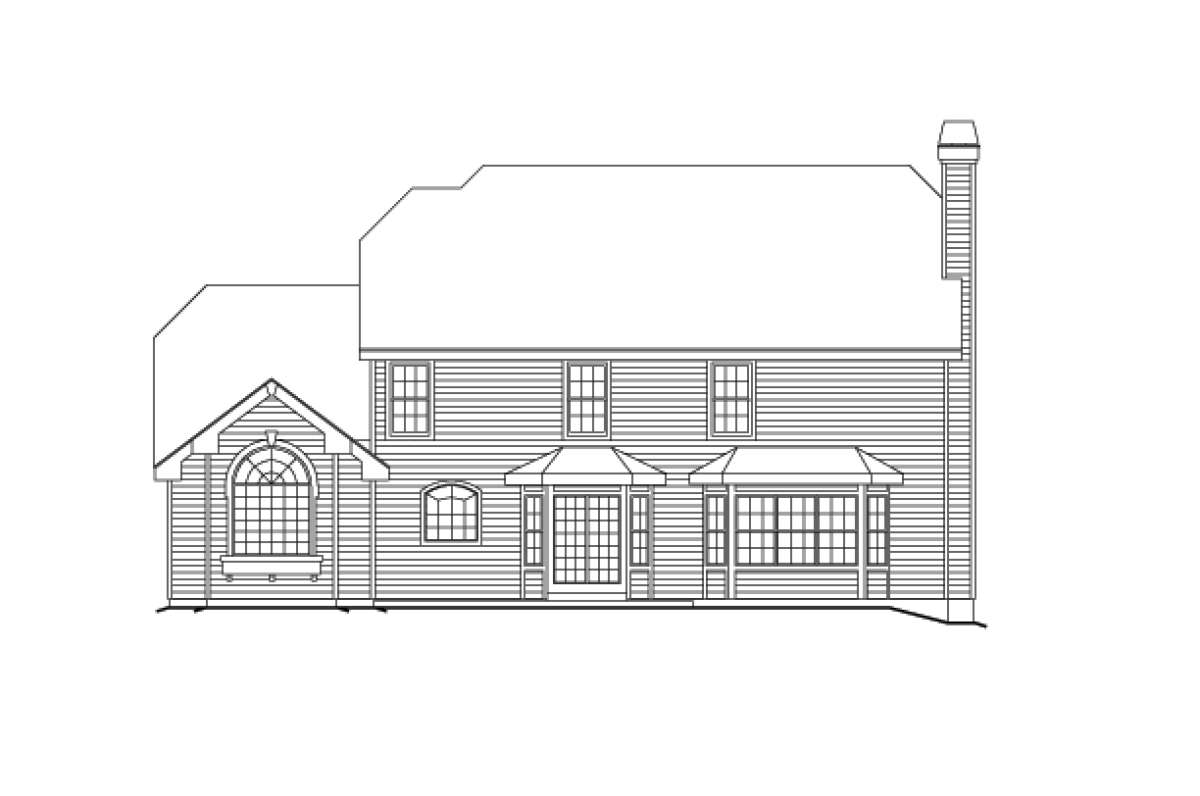

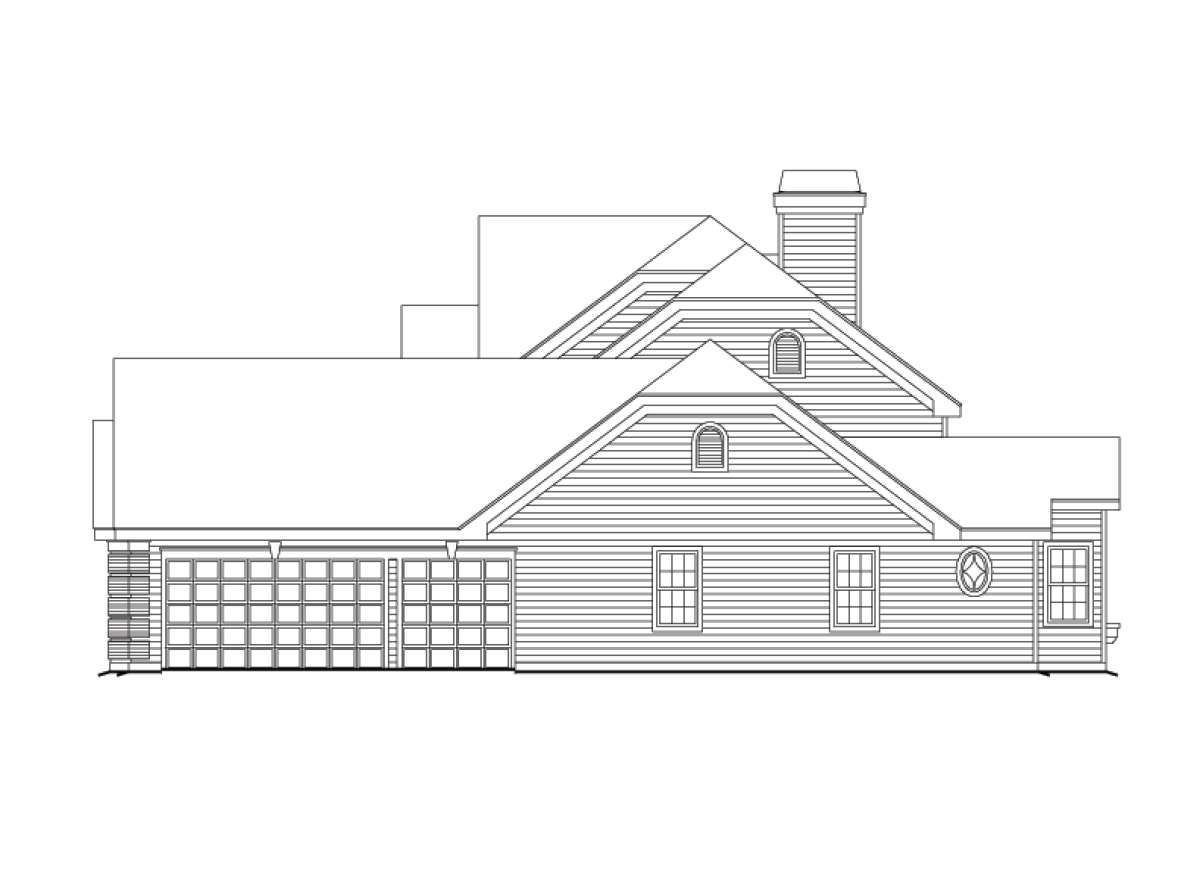

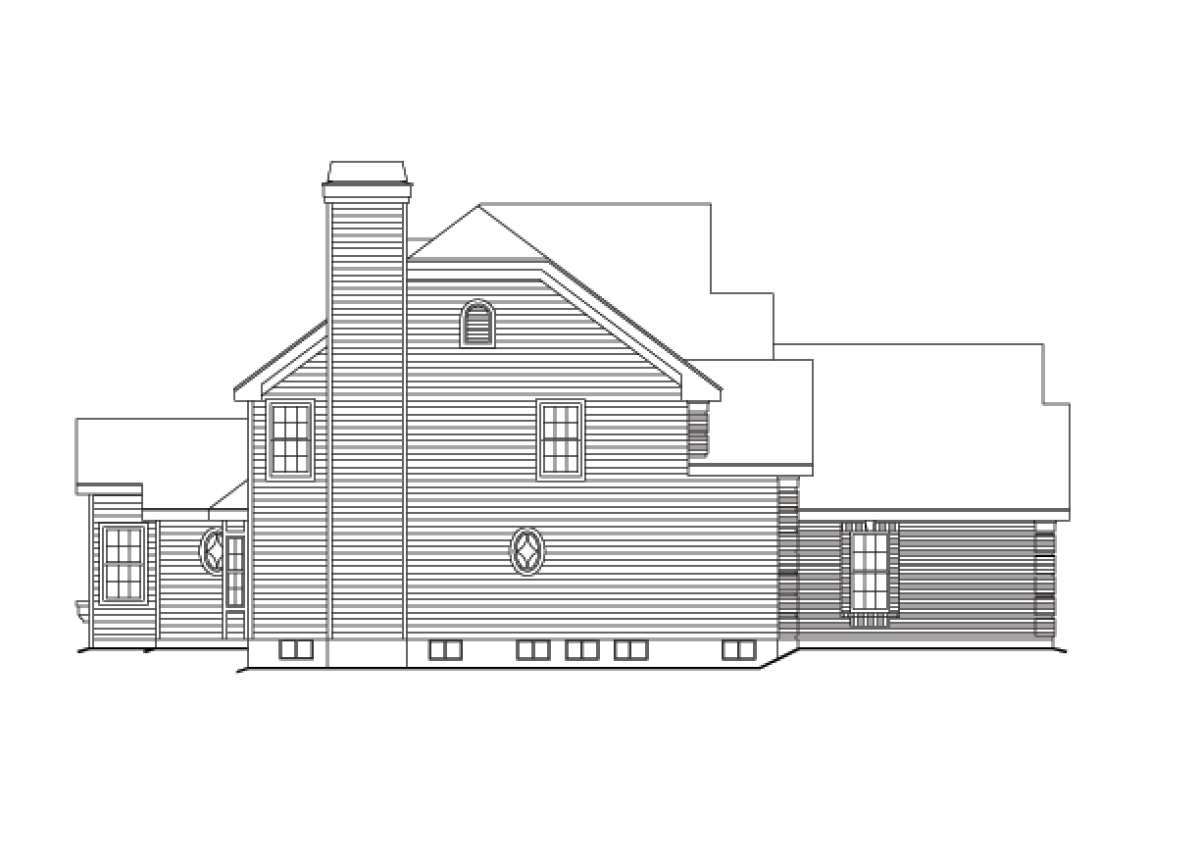

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Stately elegance defines the exterior of this traditional brick home design. Multiple gables, Palladian styled windows and a two story grand entrance combine beautifully to offer amazing curb appeal. There are approximately 3,657 total square feet of living space which incorporates four bedrooms and three plus baths into the home luxurious interior. The dramatic two story front entrance features a stylish niche, a convenient powder room and French door access into the private parlor. The parlor is a great space for a home office/study where business associates and intimate friends would be comfortable. There is a formal dining room opposite the parlor which features a trey ceiling and pass-thru to the grand kitchen. The state-of-the-art kitchen is highlighted by an enormous walk-in pantry, a breakfast island, a command/computer center and a 40’ vista looking through to the family room. The family room houses a center wall fireplace and there are double bayed windows; one in the family room and the other holds the casual breakfast room where rear patio access is provided. The interior laundry room is conveniently situated off the oversized garage and there is a powder room for guests. The master suite is situated on the main level for privacy and features a large vaulted master bedroom with his and her walk-in closets. The vaulted master bath is luxurious and is highlighted with marble steps and Roman columns leading to the majestic sized whirlpool tub encapsulated in a grand scale Palladian window.
The second story features three additional bedrooms; each one features generous floor space and either single or double walk-in closets. There is a flex/loft space as well with ample closet space which could function as a playroom, children’s homework station or a fifth bedroom. The second bedroom has private access to the hall bathroom and there is a jack and jill bathroom with double vanities located between the third and fourth bedroom. This luxurious home features an abundance of space for a large family to comfortably live for years.
