Southern Plan 5633-00062


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,321
Beds 3
Bath 2
1/2 Baths 0
Car 1
Stories 1
Width 54' 8"
Depth 37'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00062

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

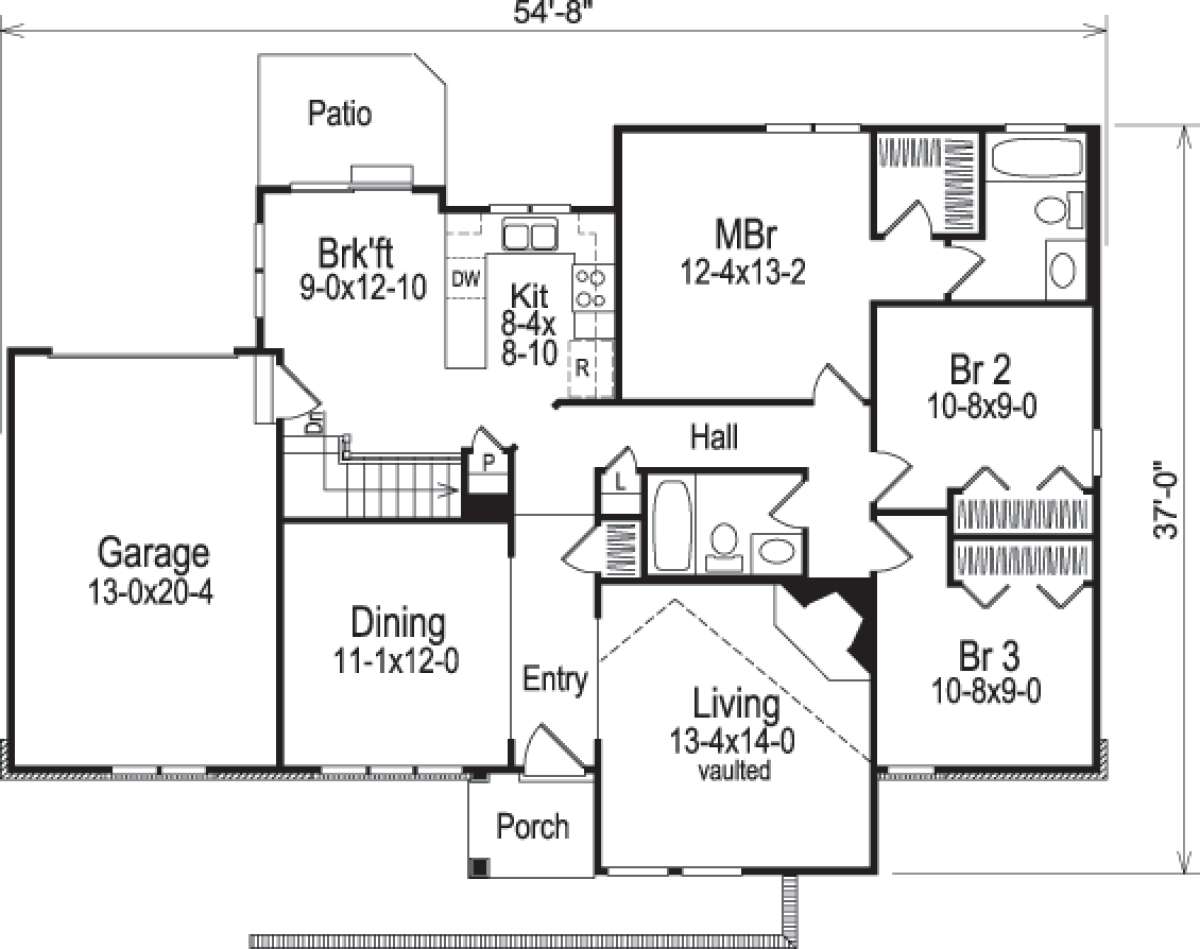

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

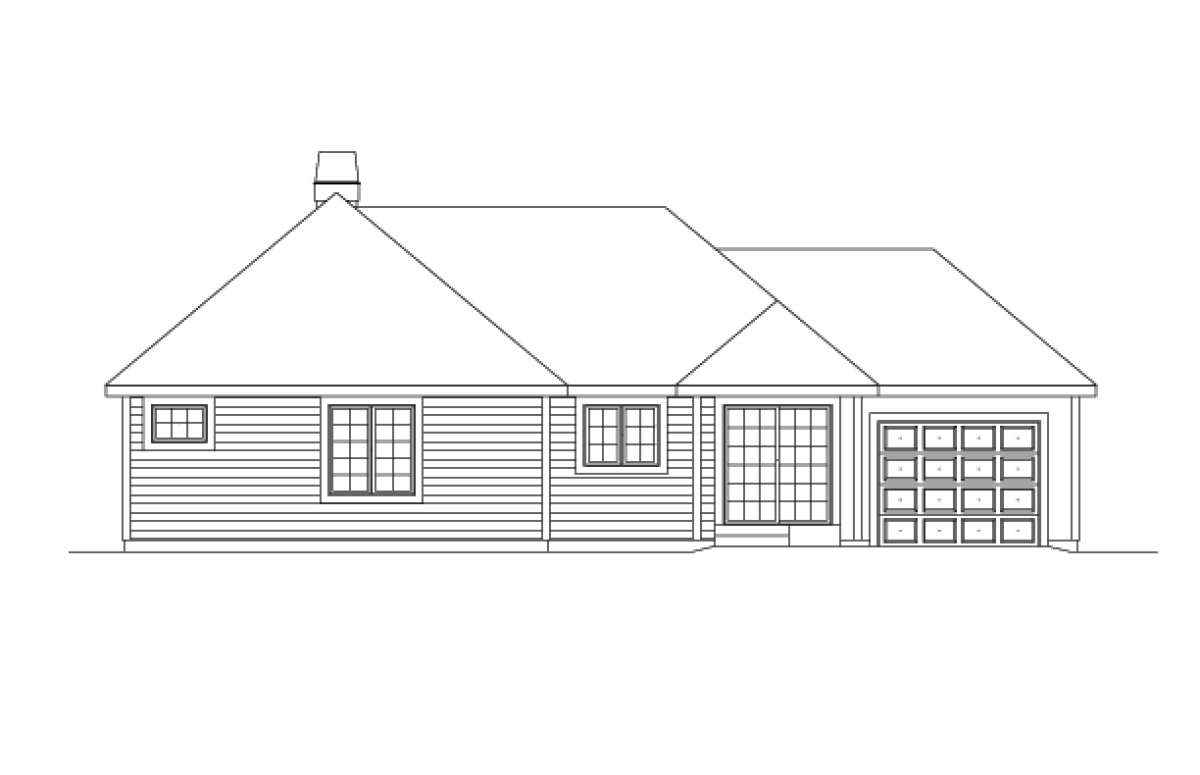

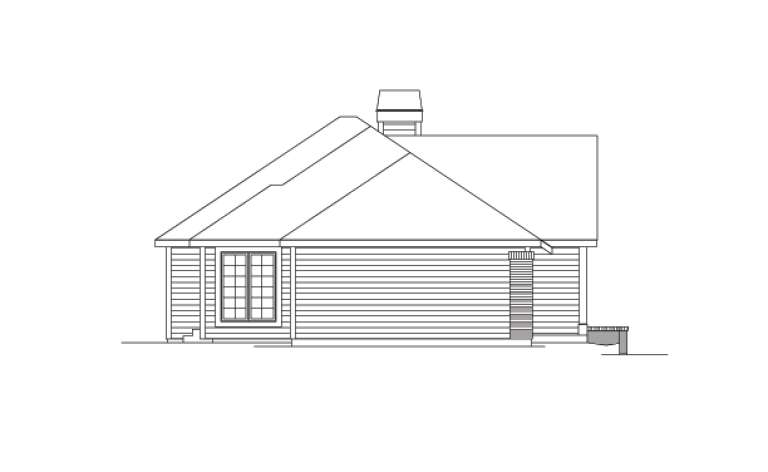

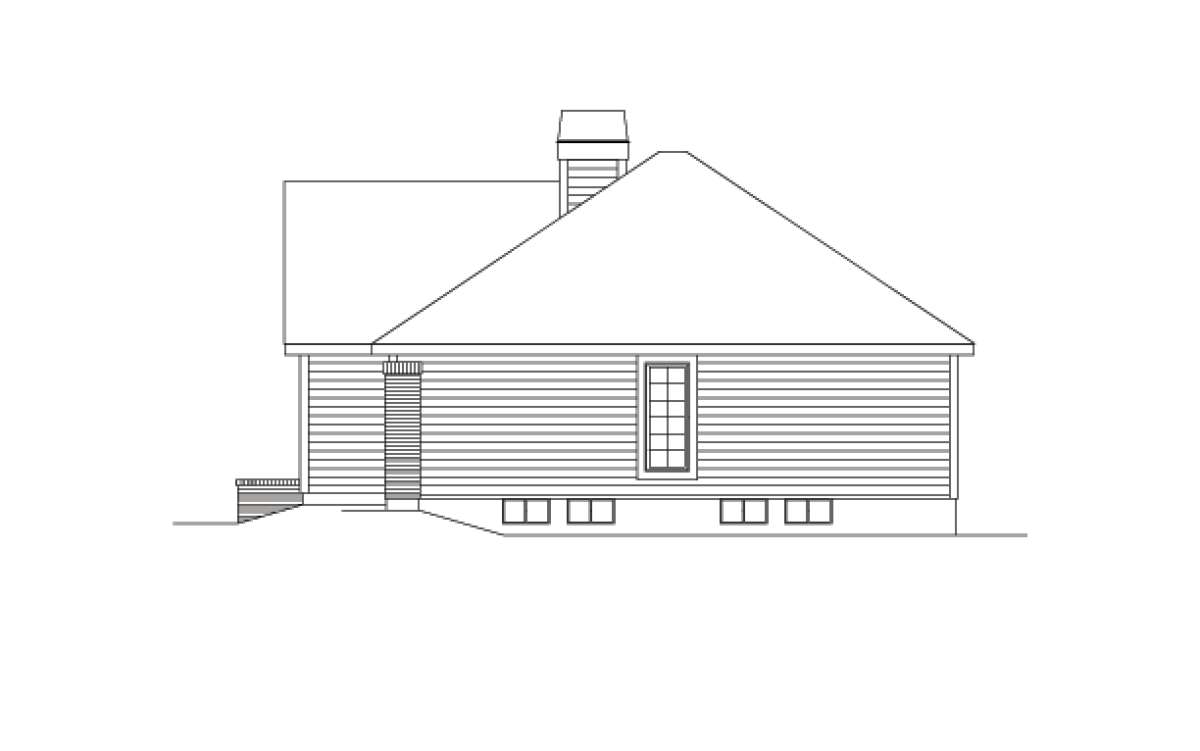

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Contemporary styled home is highlighted by a mid-century inspired focal window feature and an elegant brick exterior. The A-framed focal window features extensive glass inserts and blends beautifully with the brickwork and front covered porch entrance while the elongated front brick wall add visual interest and charm to the home. There are approximately 1,321 square feet of living space in the home’s interior which incorporates three bedrooms and two baths into the space. The home’s drawings include a basement foundation which mirror the first floor’s interior space and would substantially add value and versatility to the home. The entrance foyer is flanked on either side by the formal dining and living room and houses a coat closet as well. The dining room is spacious and features a triple wall window view overlooking the front yard. The vaulted living room measures in excess of 13’x14’, features a handsome corner fireplace and towering window views overlooking the front enclosed garden area. The U-shaped kitchen is highlighted by a separate pantry, window sink views and an abundance of counter and cabinet space. There is a casual breakfast room which is immersed in light from two large windows and glass sliding doors leading to the rear patio. The back staircase leads to the lower level and family laundry room.
The home’s main hallway houses the family sleeping quarters and bathrooms. There are two spacious family styled bedrooms; each with generous closet space and window views. The shared hall bath features a vanity space, toilet area, tub/shower combination and there is a shared hall linen closet. The master suite features a large bedroom with double window views and there is an oversized master walk-in closet. The master en suite private bath is highlighted by a large vanity space, toilet area and a tub/shower combination. This family friendly home is highlighted by a bold exterior façade and a functional interior floor plan which includes unlimited expansion possibilities in the lower level basement.
