Ranch Plan 5633-00048


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,092
Beds 3
Bath 1
1/2 Baths 1
Car 1
Stories 1
Width 40' 4"
Depth 42'

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00048

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

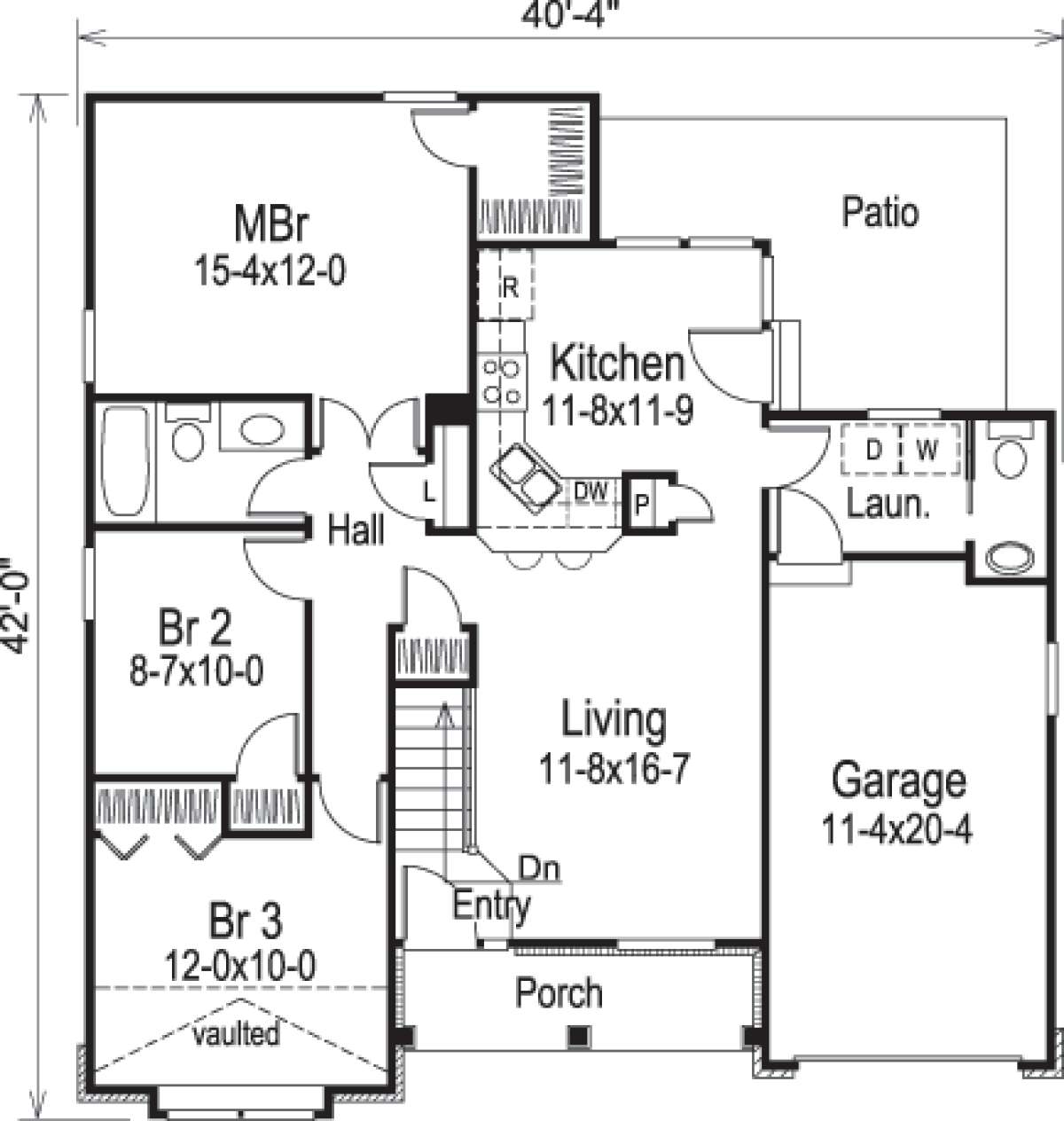

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

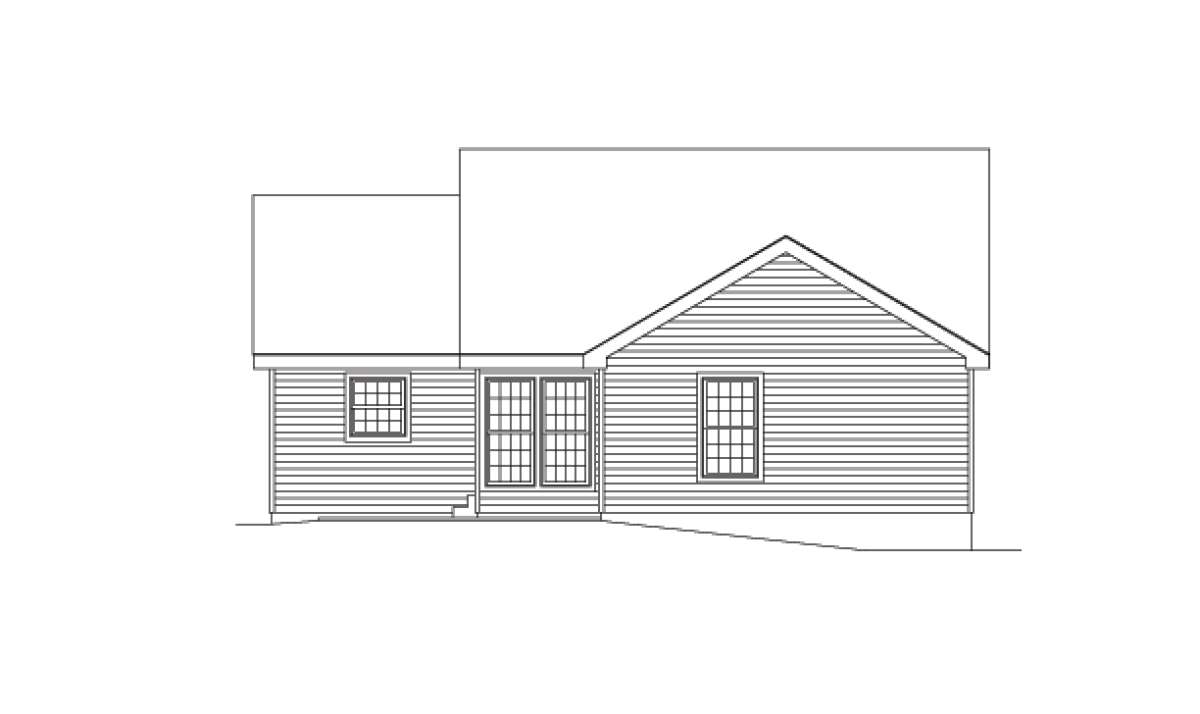

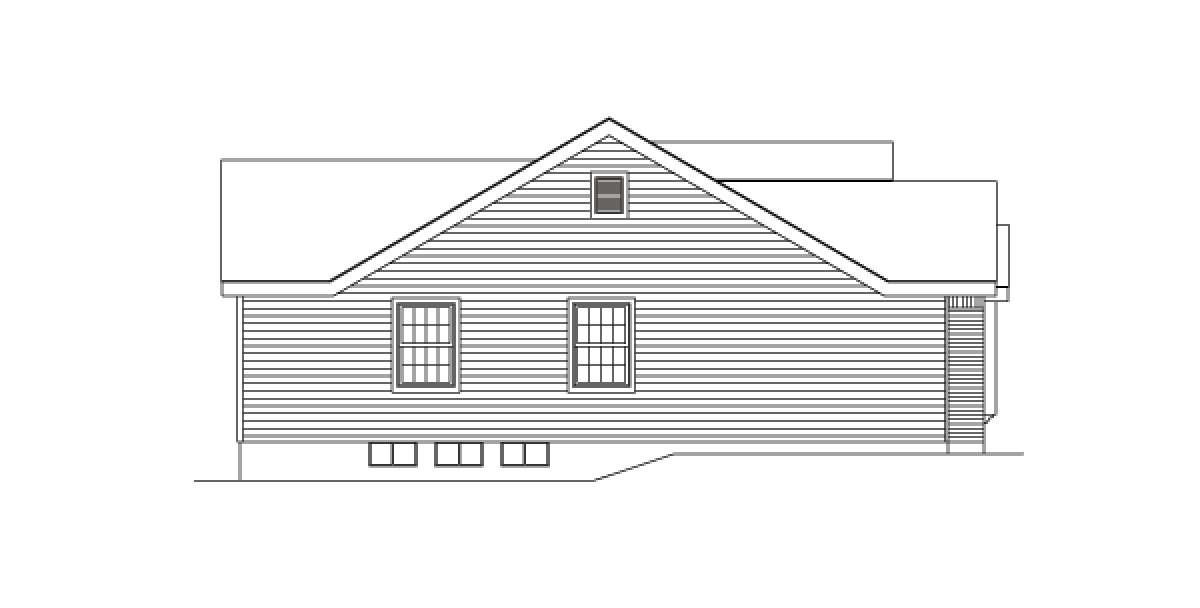

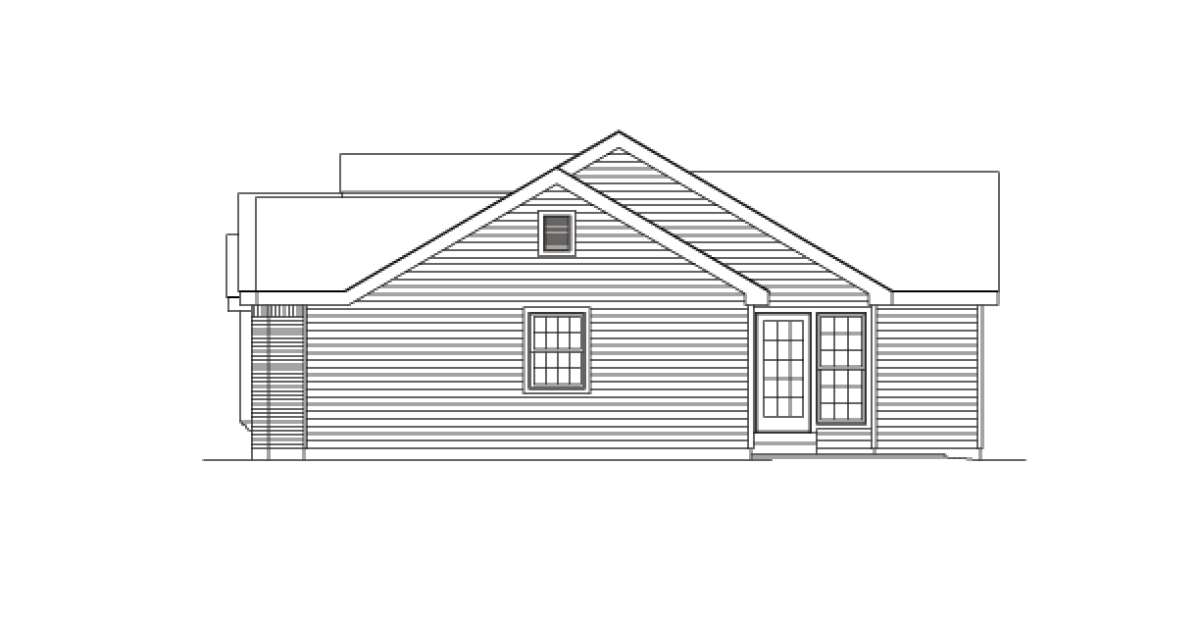

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This innovative Ranch home has three bedrooms and 1.5 baths in approximately 1,092 square feet of living space. There is a one car garage which adds an additional 230 square feet to the house plan and is great for vehicle or other paraphernalia storage. A basement foundation increases the home’s living space and value and the house plan drawings also include a slab or crawl space foundation. This is a great Country floor plan which offers an abundance of comfortable living space and a flexible and versatile house plan. The exterior of the home features a handsome façade with two window dormers, brick and siding, and a covered front porch. Front door entrance leads to the open concept design which features an impressive size living room. The kitchen breakfast bar is open to the living room and the family friendly kitchen is highlighted by accessibility to the rear corner patio where entertaining and dining al fresco goes “hand in hand.” Great cabinet and counter space are also featured in the kitchen along with a separate pantry and loads of window views overlooking the rear yard and patio space. There is an interior utility room and half bath for guests located off the garage for ease and convenience.
The hallway contains three bedrooms and the family baths along with a shared linen closet and storage closet. The second bedroom features ample floor space and a walk-in closet while bedroom three is spacious with a vaulted ceiling, a wonderful window feature and ample closet space. There is a shared hall bath for the family style bedrooms. The master suite features French door access into the large bedroom with an oversized walk-in master closet. This is a family friendly floor plan that is versatile and comfortable with the basement expansion option.
