Craftsman Plan 5631-00120

Name: Craftsman Plan - 2,725 Square Feet, 1-4 Bedrooms, 1.5 Bathrooms | Floor Plan #5631-00120 | America's Best House Plans
Brand: America's Best House Plans
SKU: 5631-00120
Price: 1950.00 USD
Availability: InStock

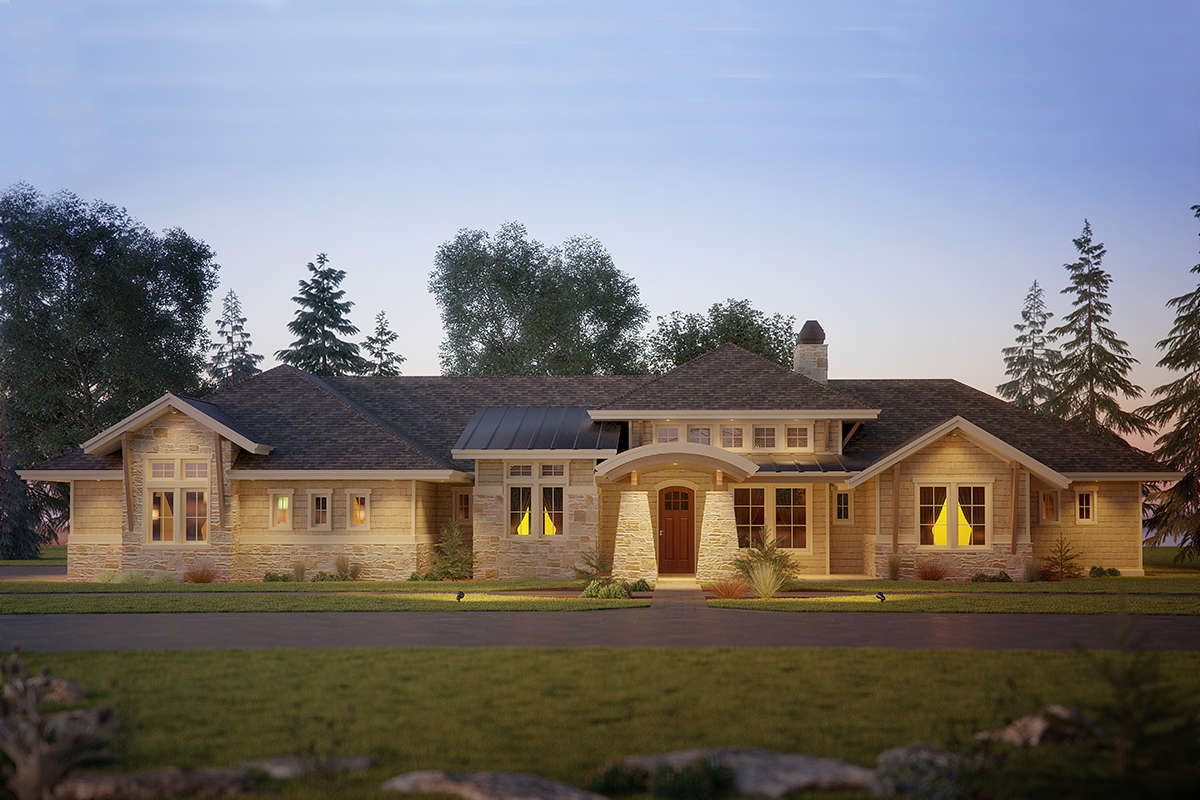

Craftsman House Plan #5631-00120 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Sq Ft 2,725

Beds 1-4

Baths 1

1/2 Baths 1

Cars 3

Stories 1

Width 102' 9"

Depth 63'

See What's Included

Select Package

PDF (Single Build)

$1,950.00

ELECTRONIC FORMAT Recommended
One Complete set of construction drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for printing copies locally.

CAD Files (Single Build)

$3,450.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.
Important Notice: This plan is designed using Softplan and delivered in .dwg format. Please call our office to ensure compatibility with your CAD program prior to purchase.

Select Foundation

Basement Foundation $0.00

Slab Foundation $595.00

Crawlspace Foundation $595.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $245.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $325.00

A complete material list for this plan plus purchased options excluding right reading reverse, windows and doors and any modifications. Product requires 5-7 business days to complete.

View Sample ABHP Material List

Need a different option?

Get a free modification quote

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

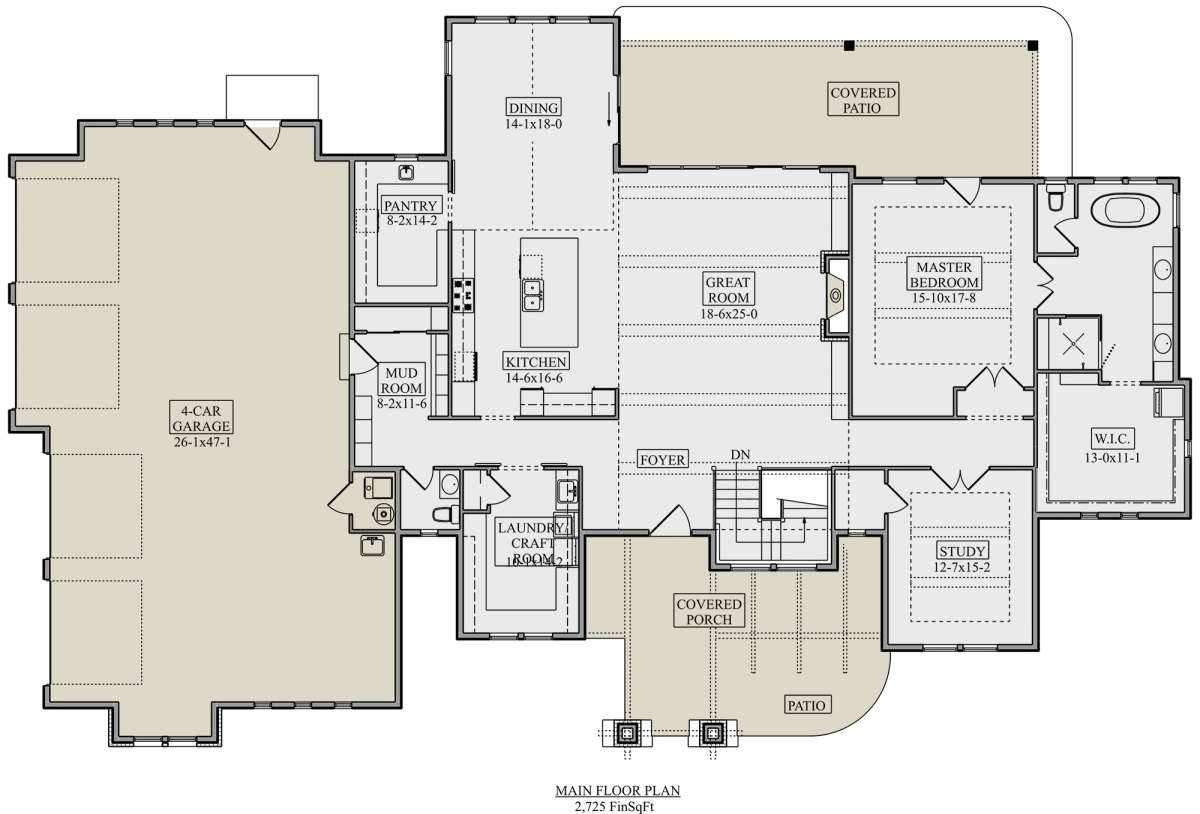

Main Floor

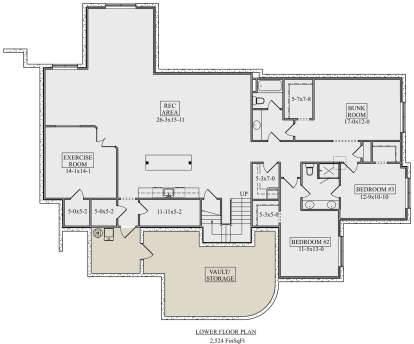

Basement

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 2,725 sq. ft. First Floor: 2,725 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 4,049 sq. ft. Basement: 2,524 sq. ft. Garage: 1,525 sq. ft.

Bedrooms: 1-4

Full Baths: 1

Half Baths: 1

Floors: 1

Garage Size: 3 car

Width: 102ft.-9in.

Depth: 63ft.

Height: 23ft.-2in.

Foundation:

Basement Foundation PAID OPTION Slab Foundation PAID OPTION Crawlspace Foundation

Main Roof Pitch: 7:12

Exterior Framing:

2x6 Wood

CEILING HEIGHTS

Basement: 9 feet

First Floor: 10 feet

What's Included in these plans?

Cover Page- includes plan schedule, general notes and square footages
Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
Floor Plans (floors per each design)- Scale varies per size of home
Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
Roof Plan- Birdseye view showing ridges and valleys
Section(s)
Electrical Plans

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

Designed with remarkable curb appeal, this attractive Craftsman house plan offers approximately 5,249 square foot of wide, open living spaces on both the main floor and the basement. The enormous four car garage houses enough space for vehicles and garden equipment or tools.

Upon front entrance, the great room, island kitchen, and dining room create a spacious, open feeling. The stately fireplace, huge walk-in pantry, and sliding door access to the covered patio are highlighted features of these rooms. The mud room is conveniently off the garage and contains built-in lockers. The guest powder room is nicely tucked between the laundry room and mud room. The master bedroom has its own access to the covered patio, an incredible en suite, and two spacious closets. The study completes the main floor and could easily function as another bedroom is needed.

The basement hosts a number of amenities and secondary bedrooms. The enlarged recreational area contains a sink area and a small island for a wet bar as well as two walk-in storage areas. The secondary bedrooms offer walk-in closets and share a Jack and Jill bathroom with dual vanities and a shower. The bunk room would function perfectly as a guest suite as there is a full bathroom and walk-in closet.
