European Plan 849-00003

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,564
Beds 2
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 83'
Depth 76'

Floorplan Drawings

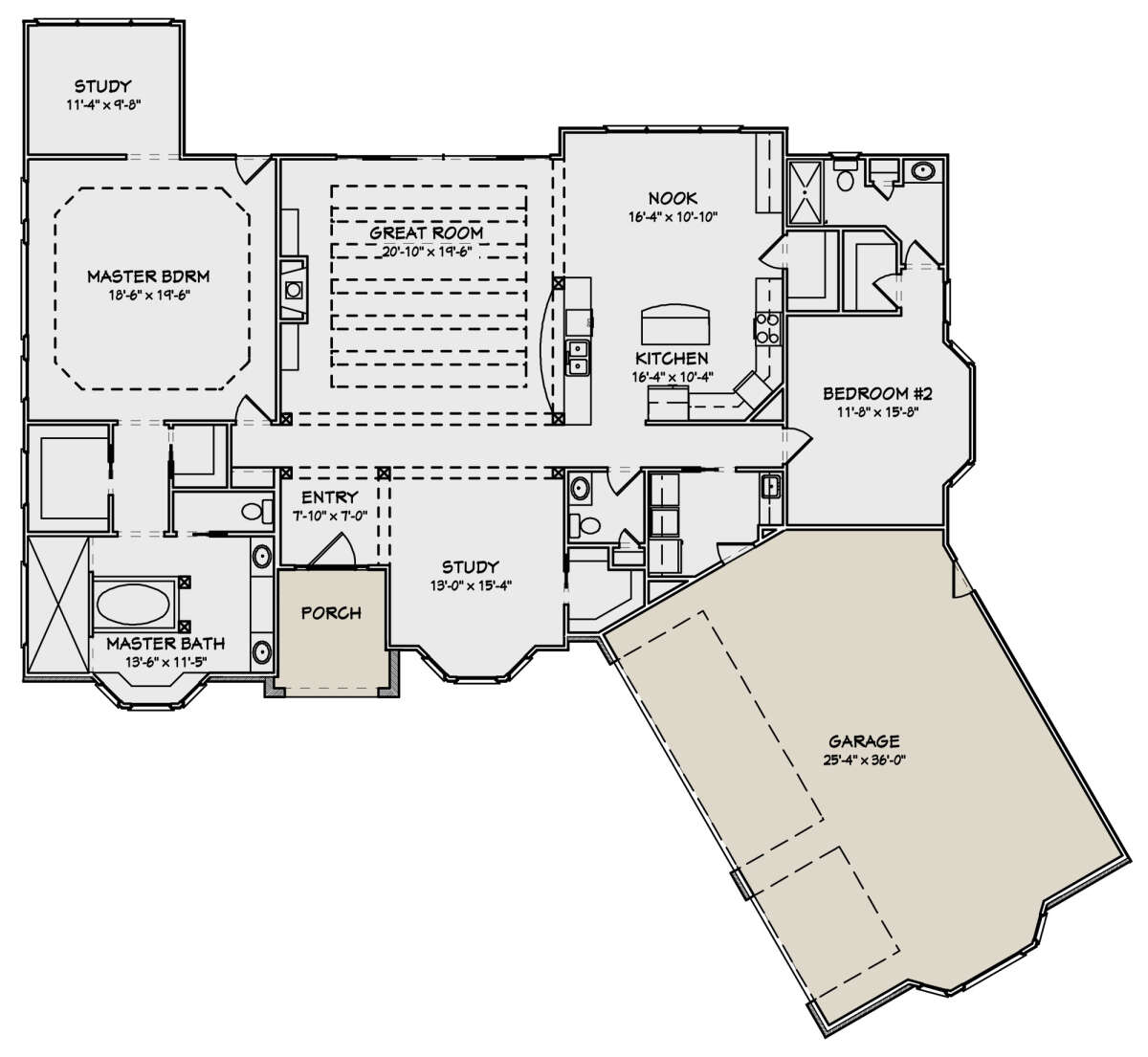

Main Floor
Main Floor  for House Plan #849-00003

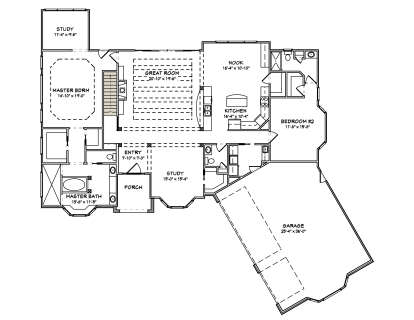

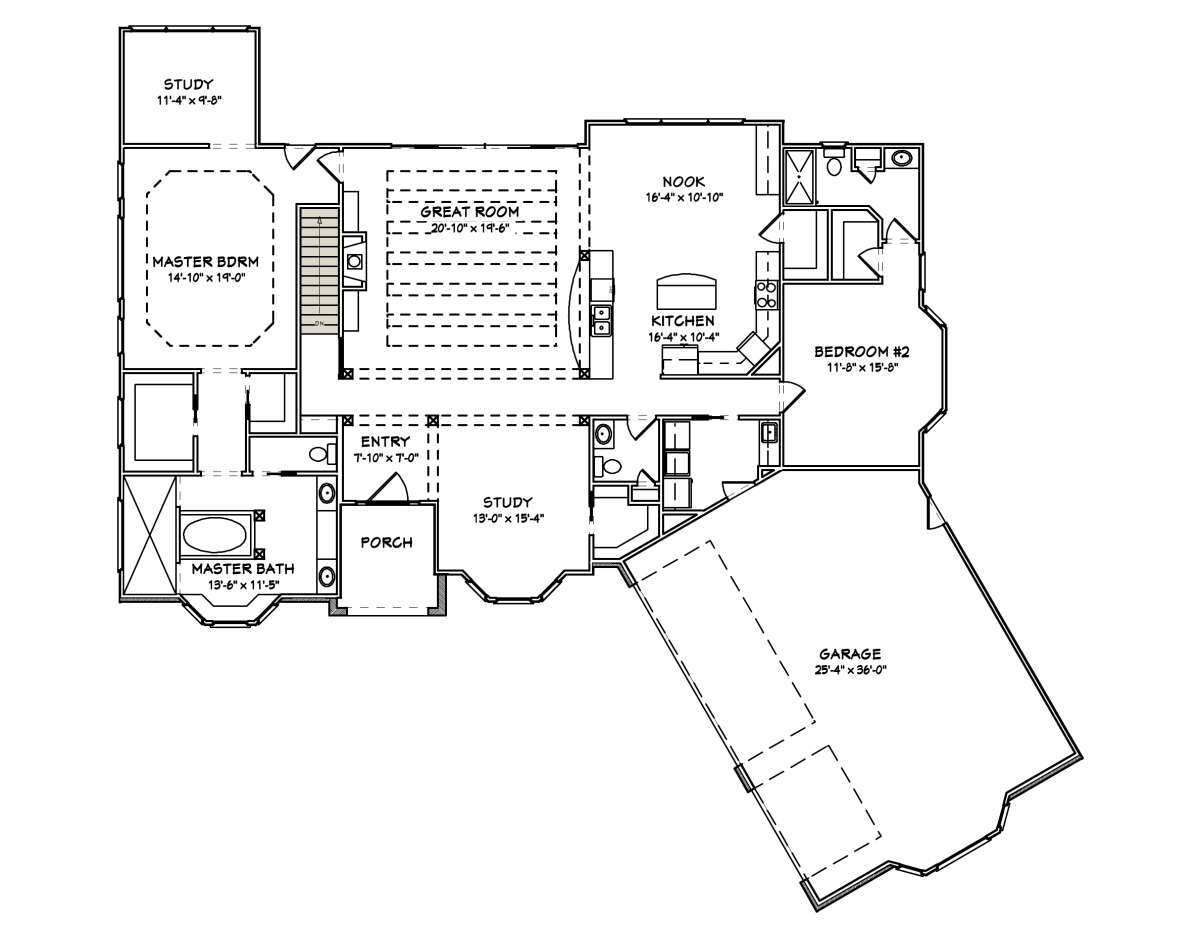

Main Floor w/ Basement Stairs Location
Main Floor w/ Basement Stairs Location for House Plan #849-00003


What's Included in these plans?

  • General plan notes for the plan, framing, hvac, plumbing and electrical
  • Floor plans with detailed dimensions and notes
  • Fireplace details, if applicable
  • Cross section, wall section, construction details
  • Front, back, left and right side elevations
  • Foundation plan with detailed dimensions and notes
  • Roof plan with roof framing notes and details

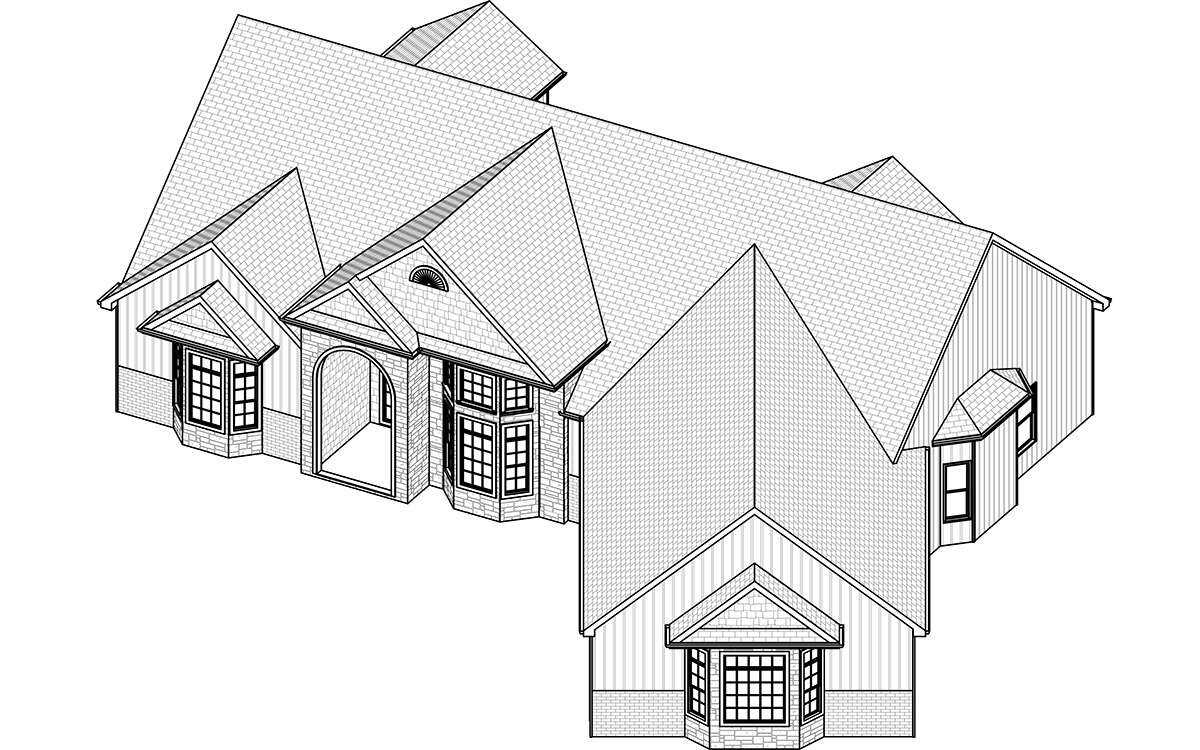

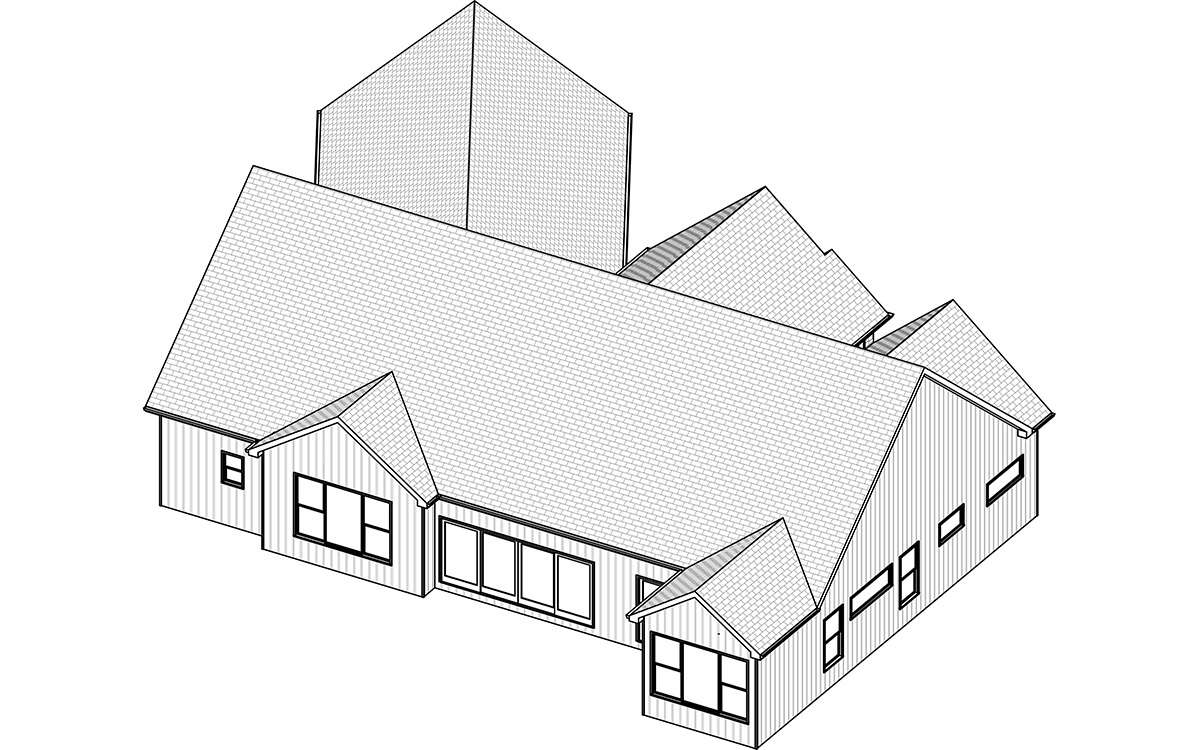

  • Two 3-D overhead views of the exterior from the back and front
  • Electrical plan with legend
  • Stair and hand rail details and notes

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 2 bathroom European house plan features 2,564 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
