Lake Front Plan: 5,023 Square Feet, 4 Bedrooms, 4 Bathrooms - 5631-00024

America's Best House Plans -


Lake Front Plan: 5,023 Square Feet, 4 Bedrooms, 4 Bathrooms - 5631-00024

 Reverse

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.

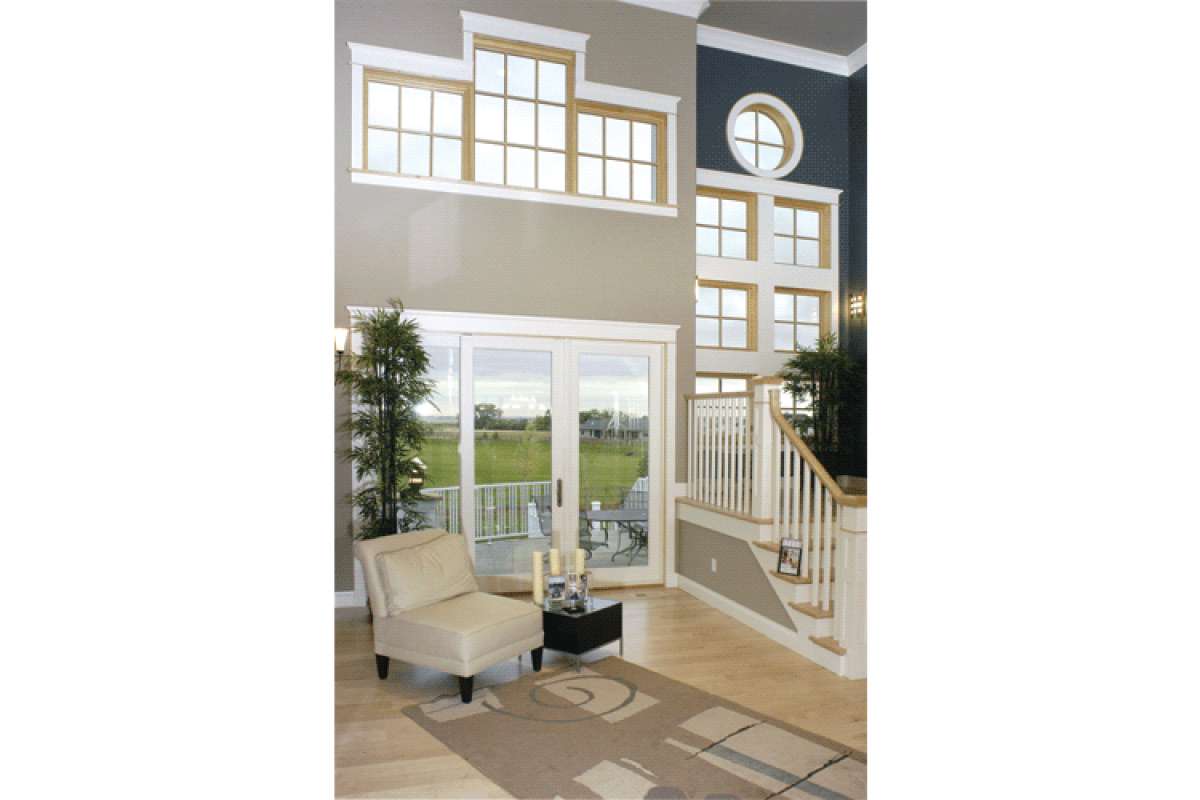

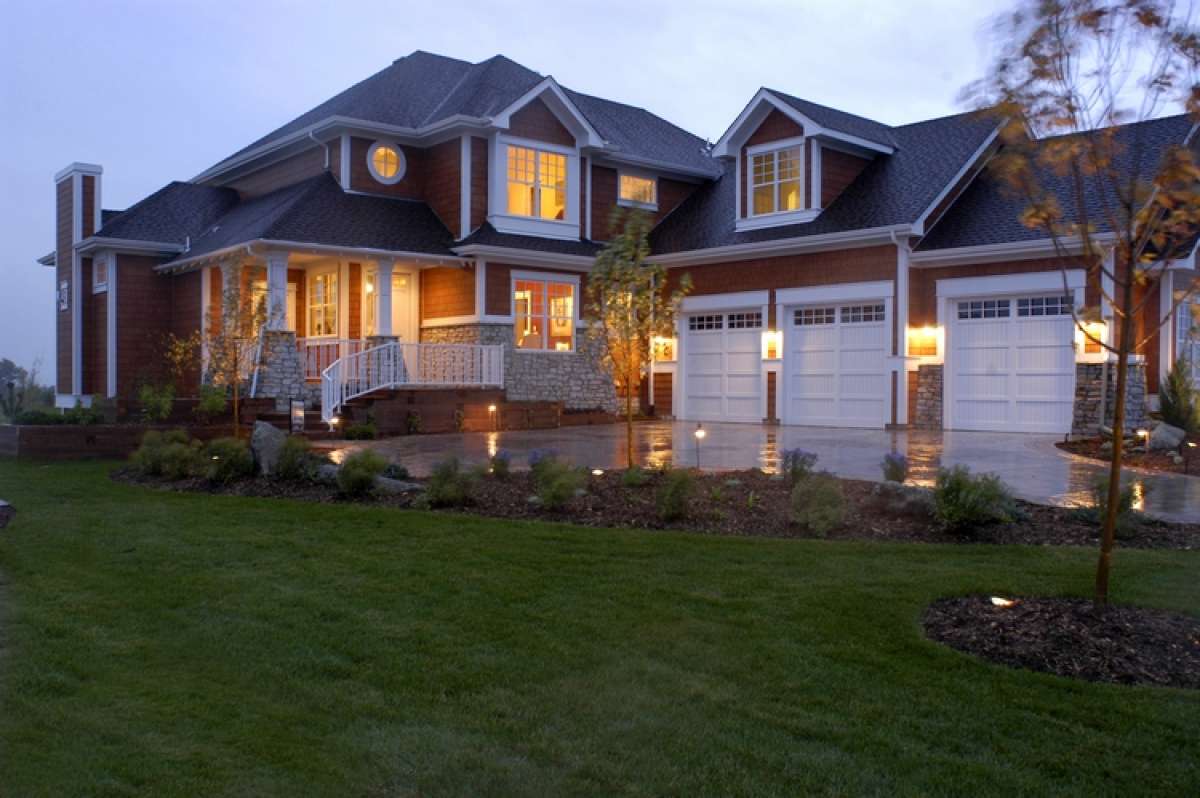

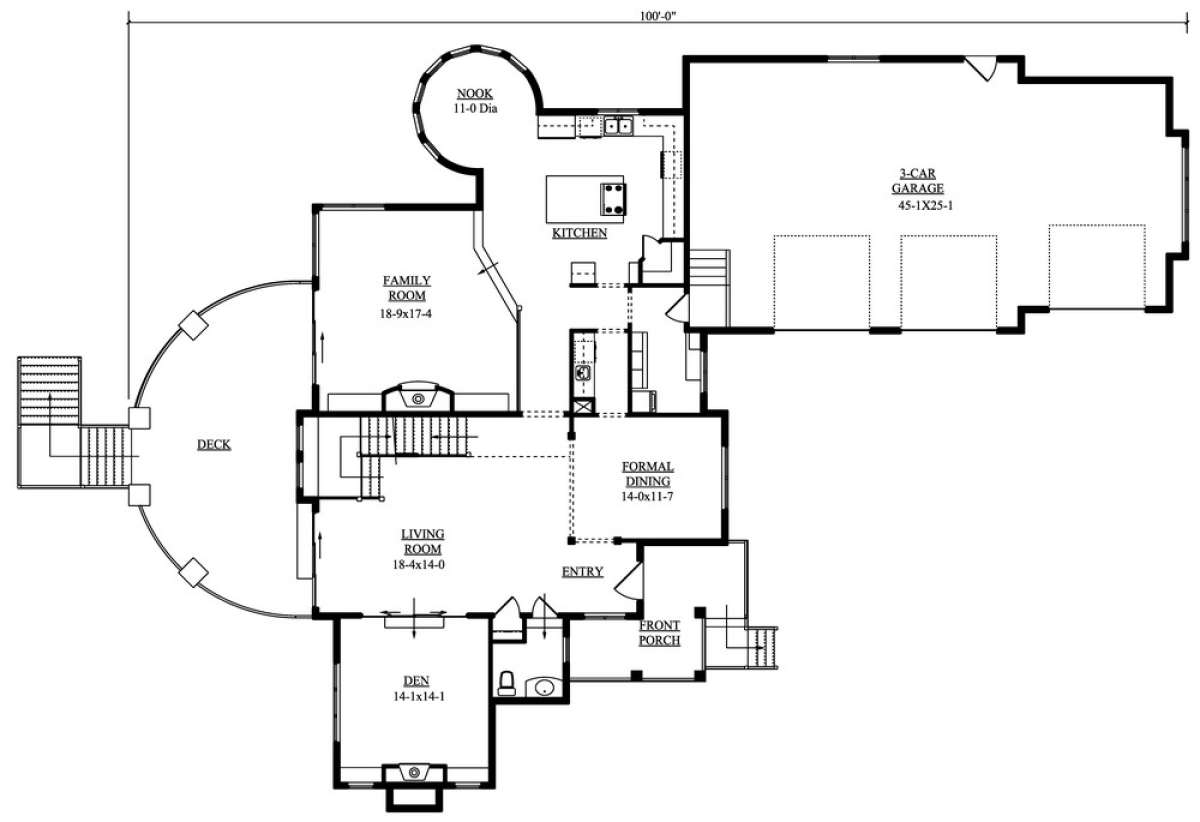

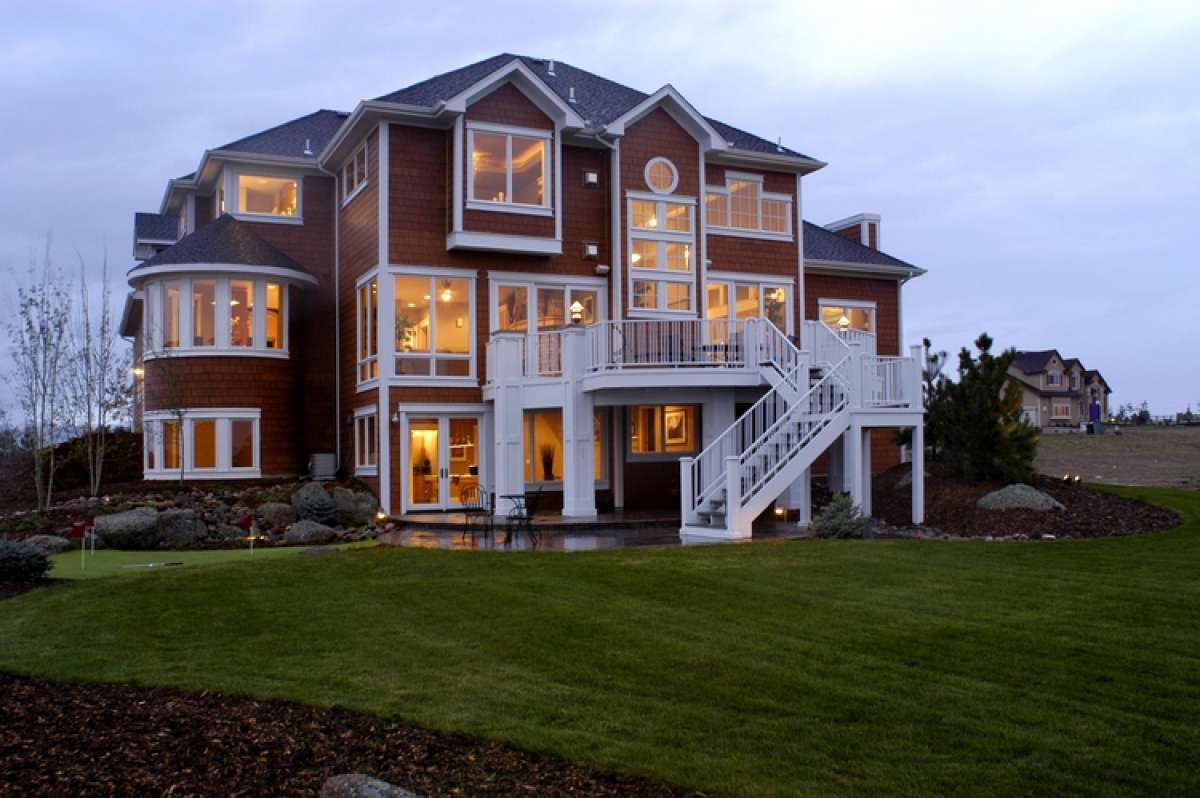

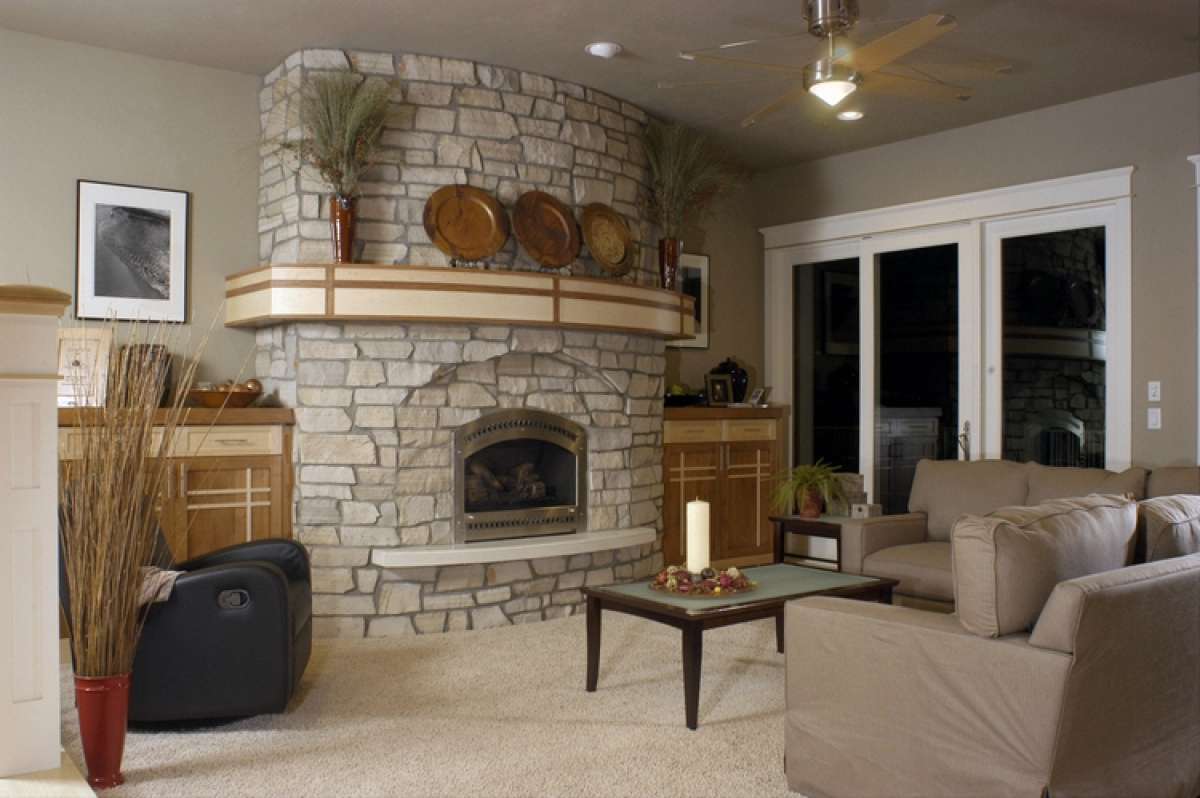

This fascinating three tiered home is populated with outstanding exterior and interior design features that capture the imagination and stir the senses. This home commands a tranquil lakefront setting in order to take advantage of the rear exterior’s use of light filled panoramic vista views. Amazing window views dot the rear exterior of the home and combined with outstanding outdoor space, this home features room to room sun drenched and well appointed spaces. The courtyard front exterior is appealing, as well, with its use of stacked stone pillars, wood beams and a front covered entrance porch. The interior floor plan incorporates four bedrooms and three plus bathrooms in approximately 5,023 square feet of living space. The entry foyer spills into the oversized living room and side formal dining room where both rooms offer large spaces to entertain and rear deck access is featured off the living room. A cozy den is situated off the living room and a handsome fireplace warms the space for business associates or intimate friends to relax and converse. Beyond the formal common rooms are the family friendly areas of the home; there is a large family room with handsome fireplace and deck access along with a circular breakfast nook ensconced in window views. The grand kitchen features an oversized center cook top island, a corner walk-in pantry and loads of work and prep space designed to assist in creating memorable meals. An expansive three car garage features 1,173 square feet of vehicle space and conveniently accesses the large laundry room and adjoining mudroom.

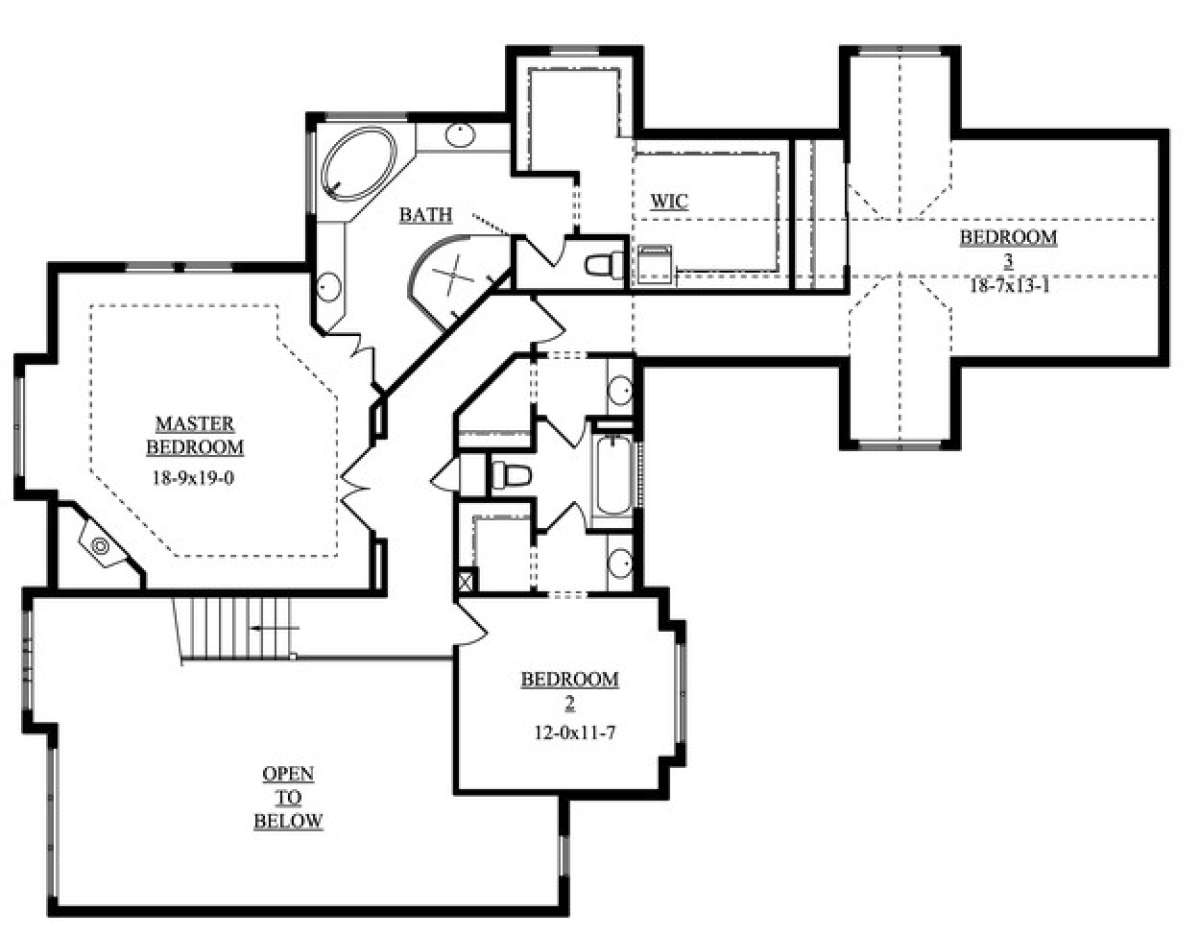

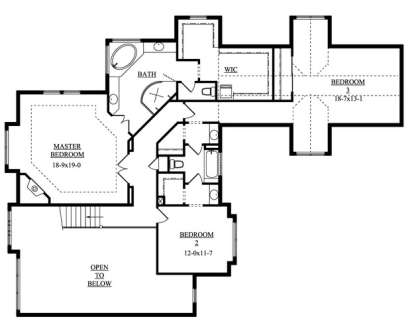

A gorgeous overview into the main living spaces below is highlighted on the second story landing where the family bedrooms and baths are situated. Bedroom two features good floor space with an attached walk-in closet and a separate vanity in the jack and jill bathroom. The third bedroom is oversized with double window dormer views and comfortable space to create a desk area or reading alcove. The master retreat is a gorgeous space with extended rooms that comprise a relaxing oasis for the homeowner’s pleasure and comfort. There is a large master bedroom with warming fireplace and trey ceiling accent accessible through French doors. The en suite bath also features French door access and enjoys a large footprint that incorporates elegant design features and modern amenities into the space which include a corner garden tub surrounded with window views, dual separate vanities, a compartmentalized toilet and separate shower. The oversized master walk-in closet is situated at the rear of the bath for privacy. The terrace level of the home features a guest suite with a sun drenched orbicular sitting room, a private bath and walk-in closet. Along with the guest suite is an enormous recreation room with spectacular walk-in bar and patio access, an enclosed home theatre for maximum viewing pleasure and loads of unfinished storage space. This home features widely popular design features, a bold exterior and an interior floor plan that is family friendly.



Want To
Modify This Plan?

Our designers can customize this plan to your exact specifications.
Requesting a quote is easy and fast!

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. We will send you a confirmation email letting you know we are working on a quote.

Optional: For some changes, it may be helpful to print or download the floor plan drawings and mark them up. You may send marked-up drawings to us through the confirmation email we send to you, or by faxing the images and a copy of the email to us at 1-678-388-9651.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

How Much Do Modifications Cost?

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

More questions? We can help!

Call us at 1-888-501-7526 to talk to a house plans specialist who can help you with your request. You can also review our MODIFICATIONS page for additional information.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

*First Name:
*Last Name:
*E-mail Address:
*Password: (for robots)
Description of Changes:

What's Included IN these Plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Framing Plans (Architectural)- Floor joist and beam layouts and Roof Plan
  • Section(s) and interior details
  • Electrical Plans


Free Shipping On Every Order



5 Sets: $1,250.00
Reproducible : $1,700.00
PDF : $1,700.00
CAD Files : $2,250.00

Additional Options

Right Reading Reverse: $100.00

Free Shipping On Every Order


Total Heated Area:5,023 sq. ft.
First Floor:1,981 sq. ft.
Second Floor:1,640 sq. ft.
Garage:1,173 sq. ft.
Basement:1,402 sq. ft.
Half Baths:2
Garages:3 car
Foundation:Daylight Basement
Main Roof Pitch:9:12
Ceiling Height
First Floor:9 feet
Second Floor:9 feet



  • Guest Room
  • Jack and Jill Bathroom
  • Laundry On Main Floor
  • Master Up

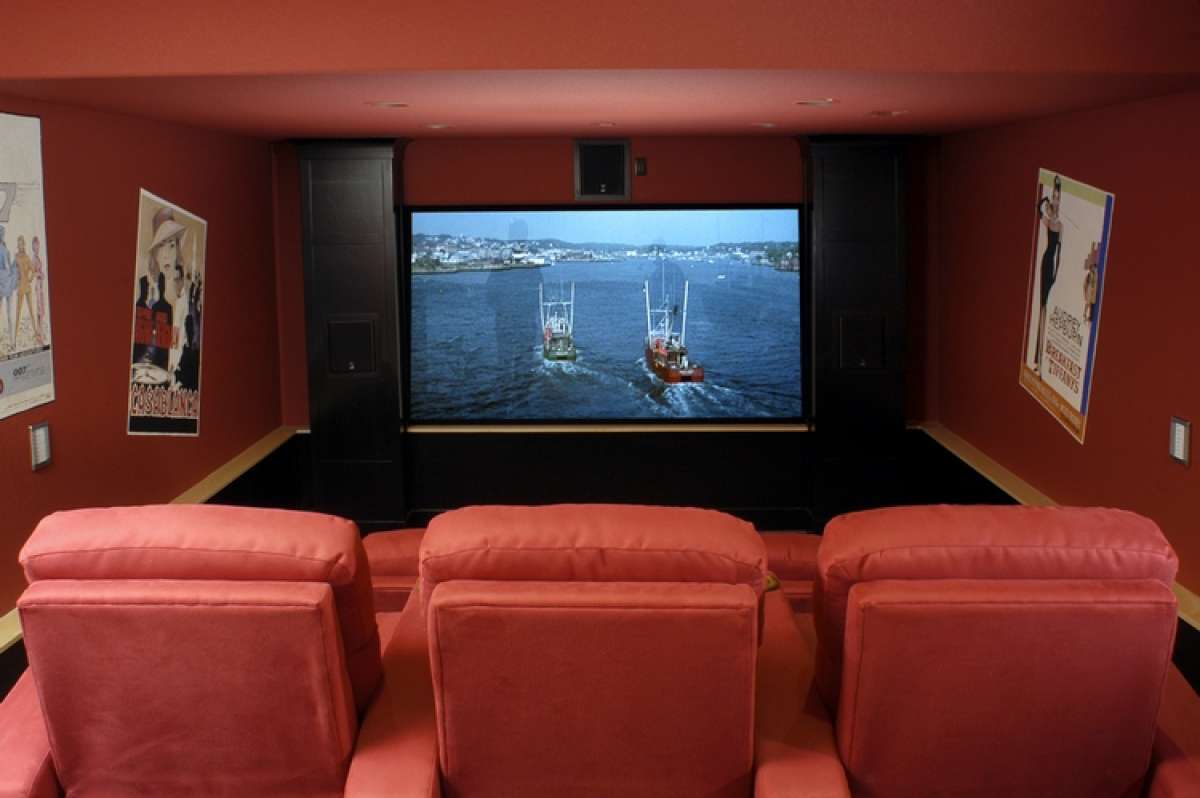

  • Media Room
  • Nook
  • Sitting Room
  • Theater Room

Garage Type

  • Courtyard Entry

Porch Type

  • Front
