Craftsman Plan 035-00398


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,436
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1.5
Width 58'
Depth 38'

Floorplan Drawings

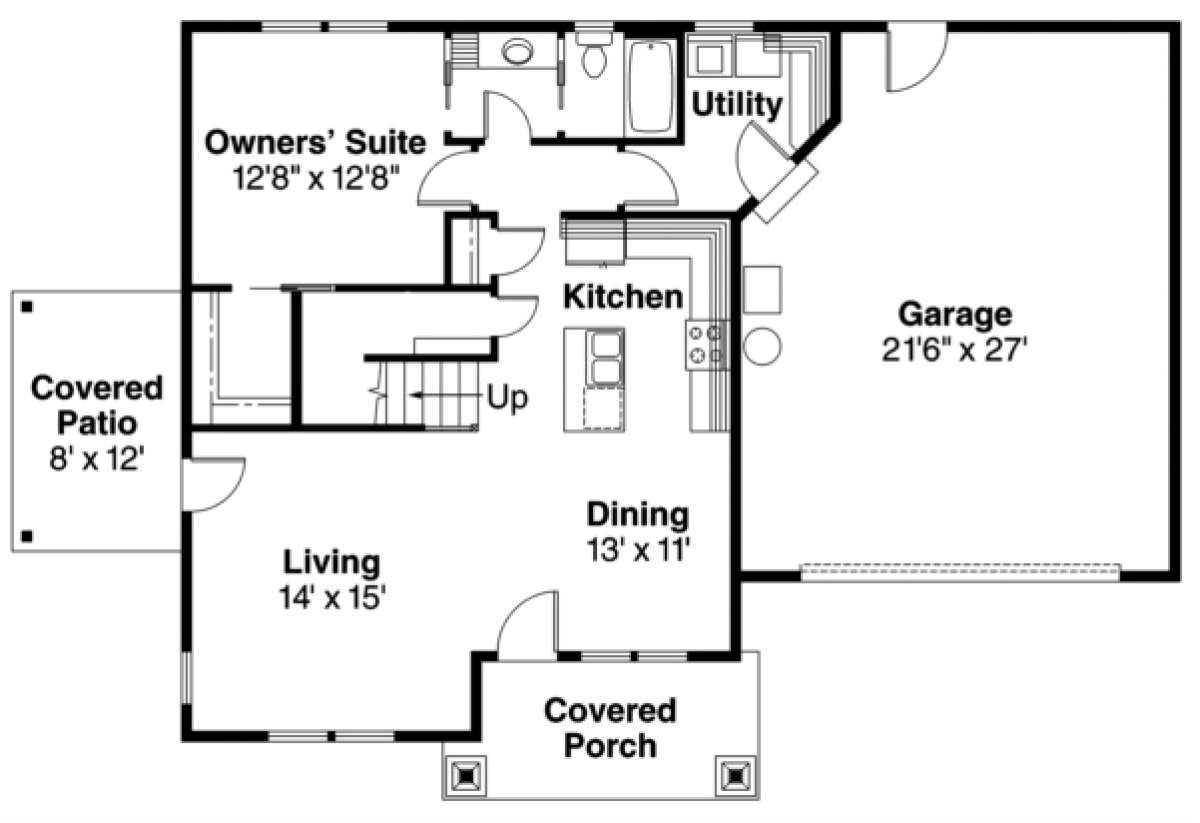

Floorplan 1
Floorplan 1 for House Plan #035-00398

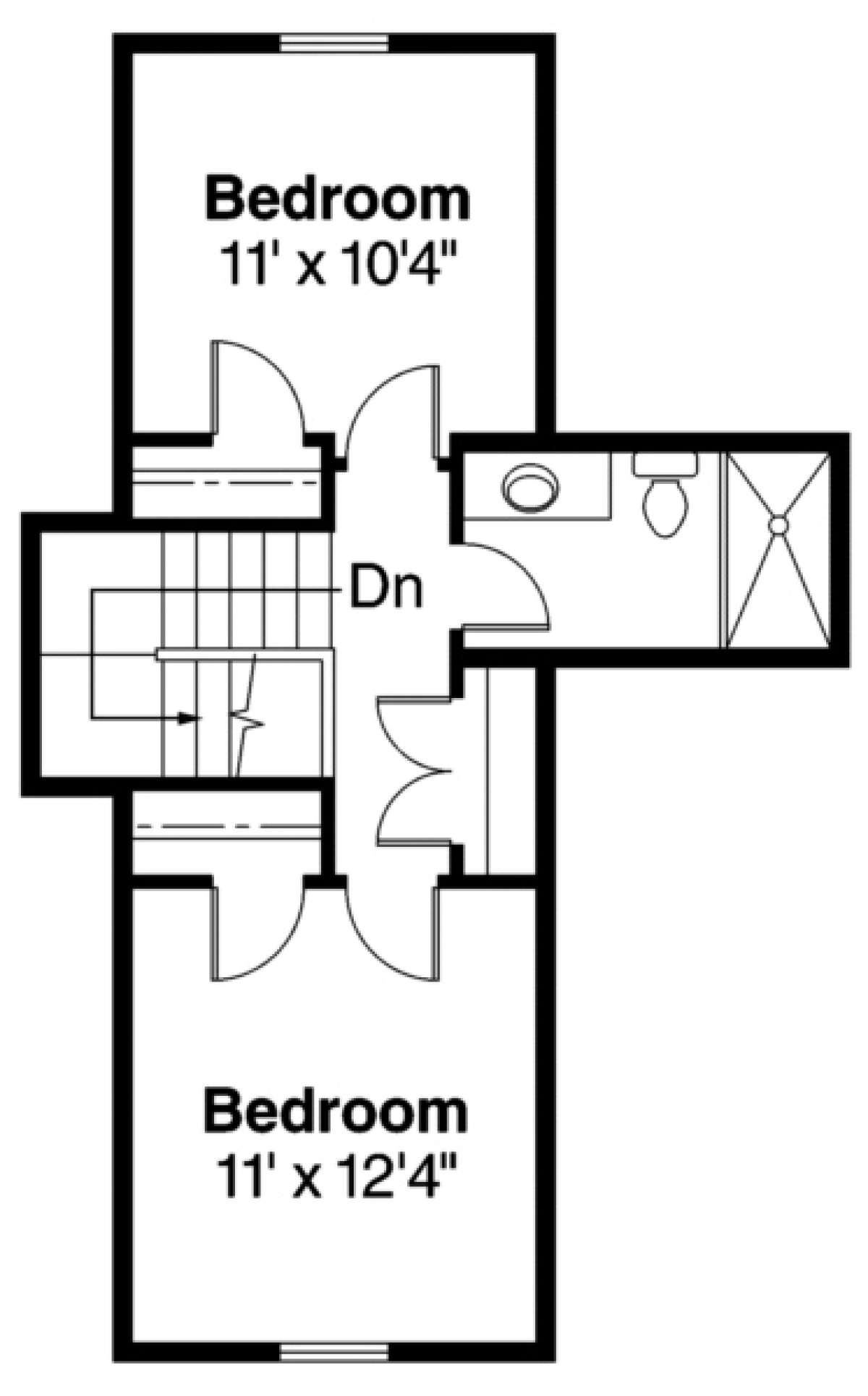

Floorplan 2
Floorplan 2 for House Plan #035-00398

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Craftsman house plan is highlighted with classic design features and an interior that offers an open floor plan perfect for family living and entertaining. Double gables, wide eaves and beautiful window views with heavy casements add structure and beauty to the design. There is a front covered porch offering large pillars and substantial tapered beams that features great greeting space for family and friends. The side covered patio is a second outdoor space which could be easily enjoyed for outdoor dining and/or relaxing. The interior floor plan features approximately 1,436 square feet of living space that includes three bedrooms and two baths in the 1.5 storied home. The front loading two car garage is spacious and features a rear pedestrian door for the easy removal and return of lawn and sporting equipment. For tidy home maintenance, the utility rooms lies off the garage and features space for the washer and dryer as well as counter space. The front entrance from the porch immediately opens onto the exposed floor plan which offers living space, a dining space and the kitchen. The dining room is spacious and features double window views onto the front covered porch while the living room offers entertaining space, picturesque window views and an exit/entry point onto the side patio. The kitchen is open to both and is highlighted with a center island, plentiful cabinet and additional counter space as well as a separate pantry. The master suite lies at the rear of the home for privacy and is highlighted with a large bedroom with double window views, an attached walk-in closet and private entrance onto the master bath. The bath features a large vanity, a toilet area and a tub/shower combination.

Upstairs you will find two additional bedrooms and a bath along with an oversized hall linen closet. Bedroom two features a gable window view, good floor space and a large closet for clothing and other accessories while the third bedroom offers a rear window view, a slightly smaller footprint and a spacious closet. Along with the hall linen closet, there is a shared bathroom for the second floor bedrooms which includes a large vanity, toilet area and a shower. This Craftsman house design features a lovely exterior, two dedicated outdoor spaces and a floor plan that is functional and efficient with minimal square footage waste.
