Craftsman House Plan 4848-00085

Sq Ft1,188
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width51' 0"
Depth38' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #4848-00085
Floorplan 2 for House Plan #4848-00085

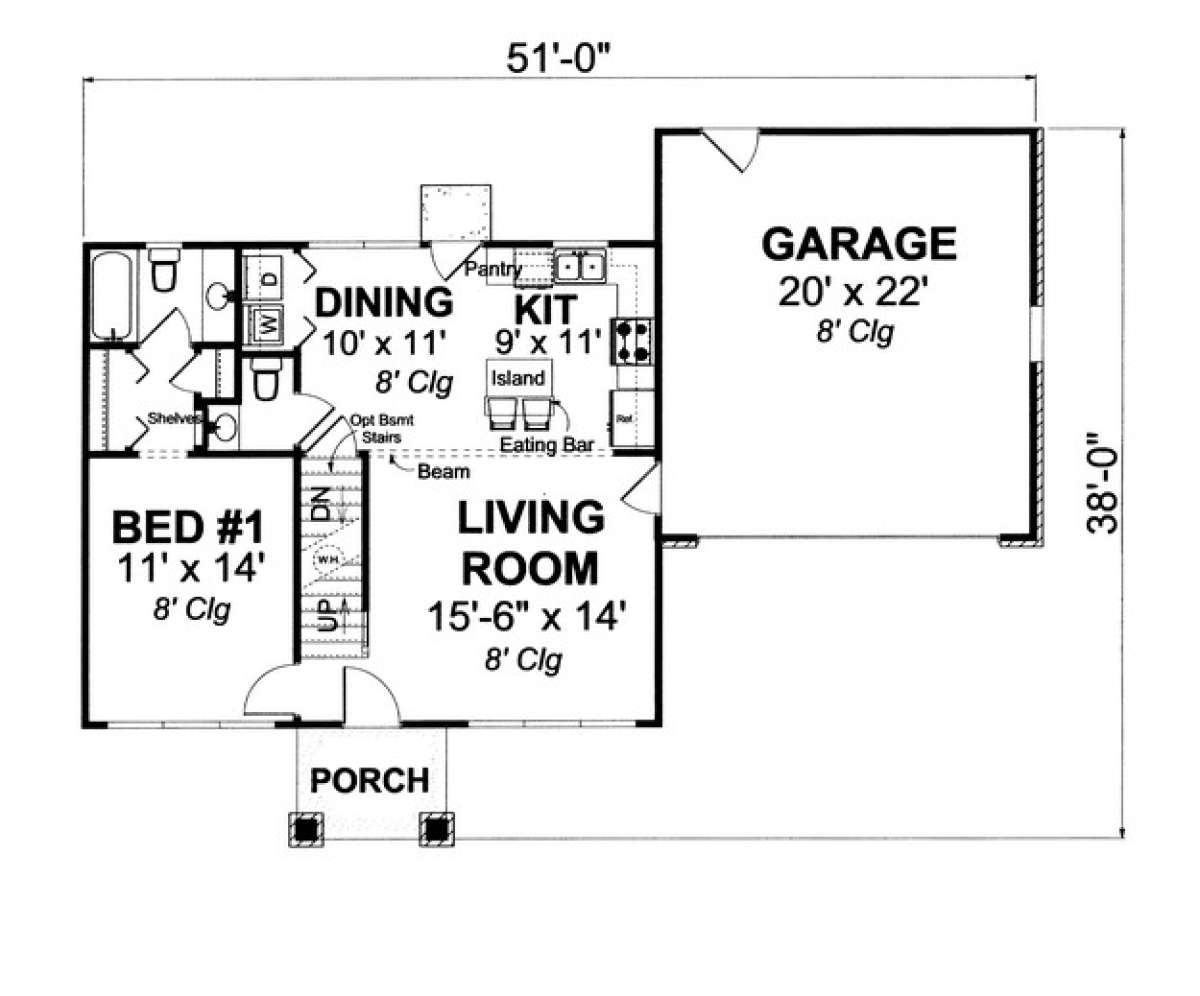

Floorplan 1
Floorplan 1 for House Plan #4848-00085

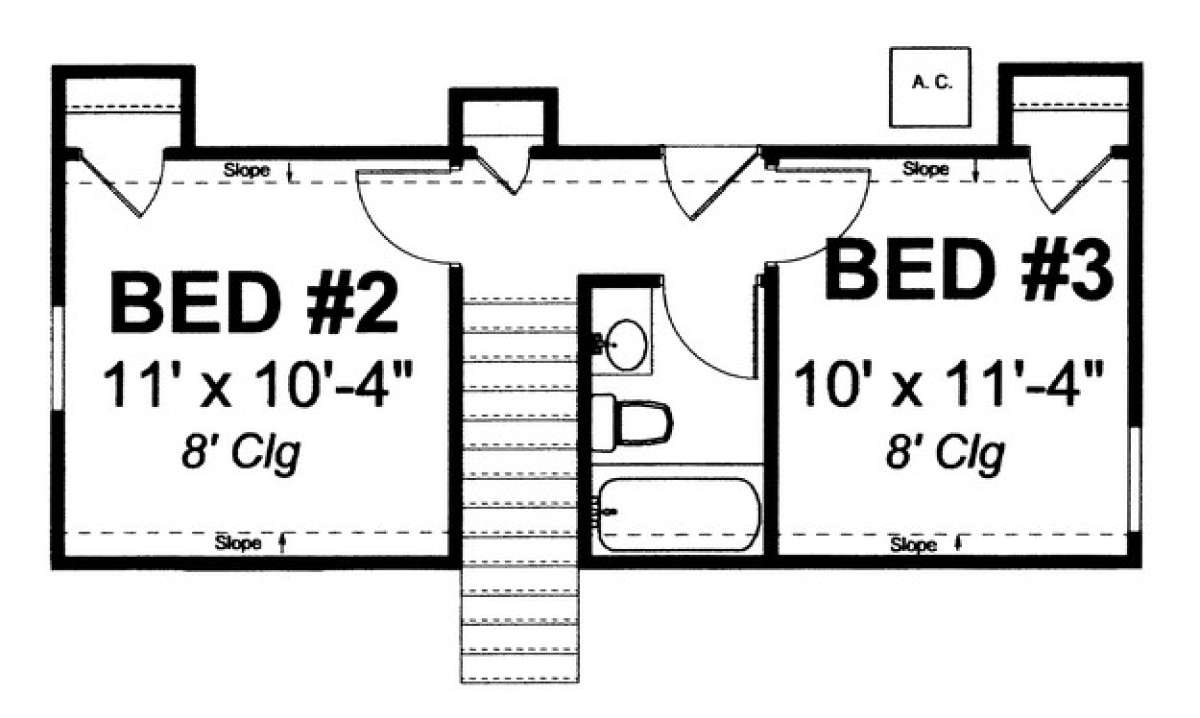

Floorplan 2
Floorplan 2 for House Plan #4848-00085


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

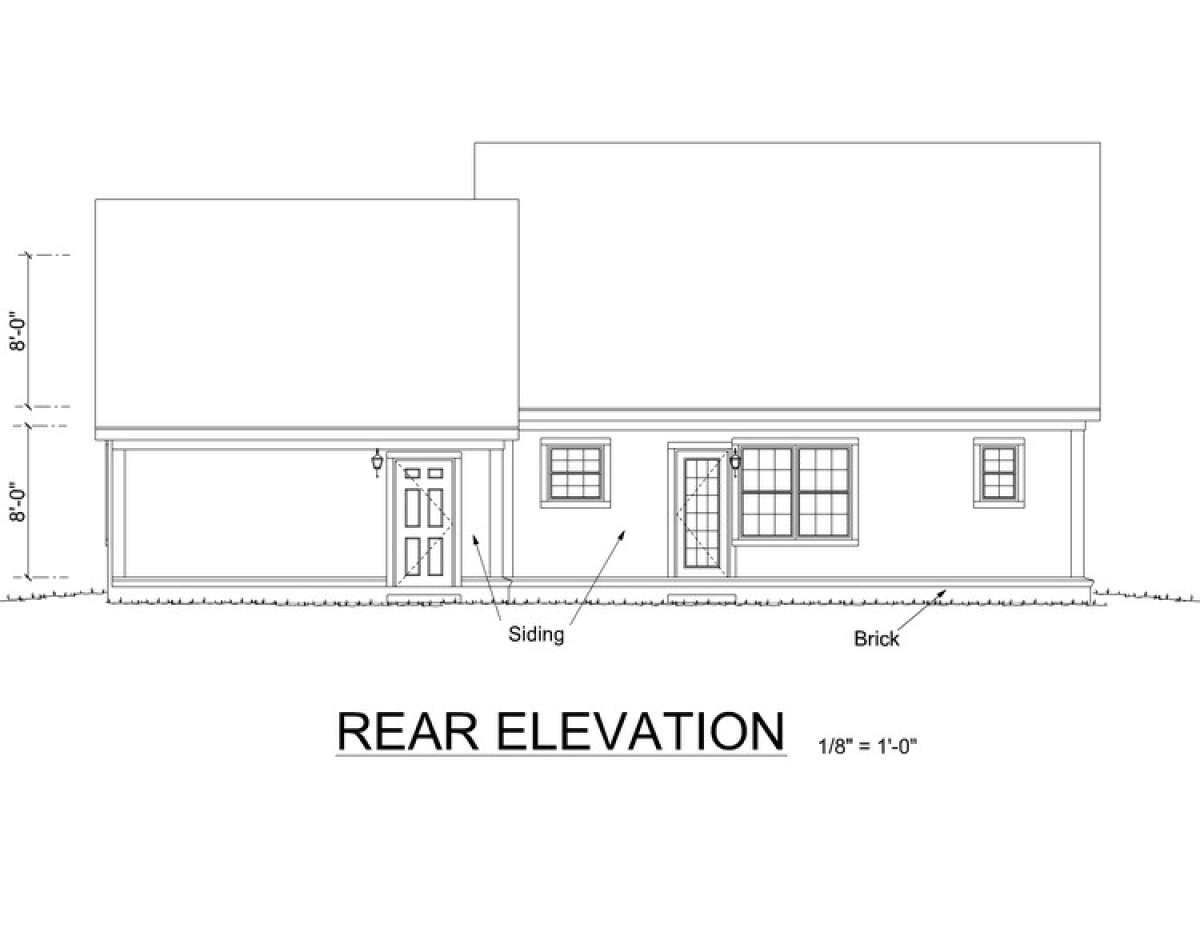

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This small Craftsman house plan features a lovely exterior and an interior floor plan that is perfect for a small family, young professionals or empty nesters. The exterior façade is a delightful combination of appealing architectural design features that include horizontal siding, overhead gables with wide eaves and symmetrical triple window walls. There is a front covered porch with substantial brick pillars, heavy columned beams and space to greet family and friends. A brick perimeter skirt highlights the exterior and the garage is similarly attractive and features brickwork and an overhead gable dormer. The interior floor plan is perfect for a small and/or narrow property lot with its respective 51’ and 38’ width and depth dimensions. Approximately 1,188 square feet of living space houses three bedrooms and two plus baths in the 1.5 storied home. There is a two car front loading garage as well with good vehicle and storage space and the rear pedestrian door allows for the easy removal of lawn and sporting equipment. The main living floor features a large living room with picturesque window views, a width spanning beam for room delineation and there is a second story staircase as well. Beyond the living room is dining space and a kitchen; 8’ ceiling heights are found in the dining room and the kitchen features 9’ heights, a center island with additional seating and plenty of counter and cabinet space. Window views are located on the rear walls and there is access to the outdoor space between the two rooms. A laundry nook and guest bath are located nearby as well as the main floor master suite. The master bedroom features gorgeous window views, an attached master closet and the master bath offers an extended vanity space, a toilet area and a tub/shower combination.

The second floor of the home is highlighted with two additional bedrooms and a bath. The second bedroom features good floor space, window views and a walk-in closet; the third bedroom is similarly sized with common design features. There is a shared hall bath that provides vanity space, a toilet area and a tub/shower combination and the linen closet is located directly across the hall. This comfortable and charming Craftsman house plan features a lovely exterior and a compact yet, efficient floor plan.
