Name: House Plan 5445-00050 - Luxury Plan: 3,047 Square Feet, 3 Bedrooms, 3.5 Bathrooms
Brand: America's Best House Plans
SKU: 5445-00050
Price: 1045.00 USD

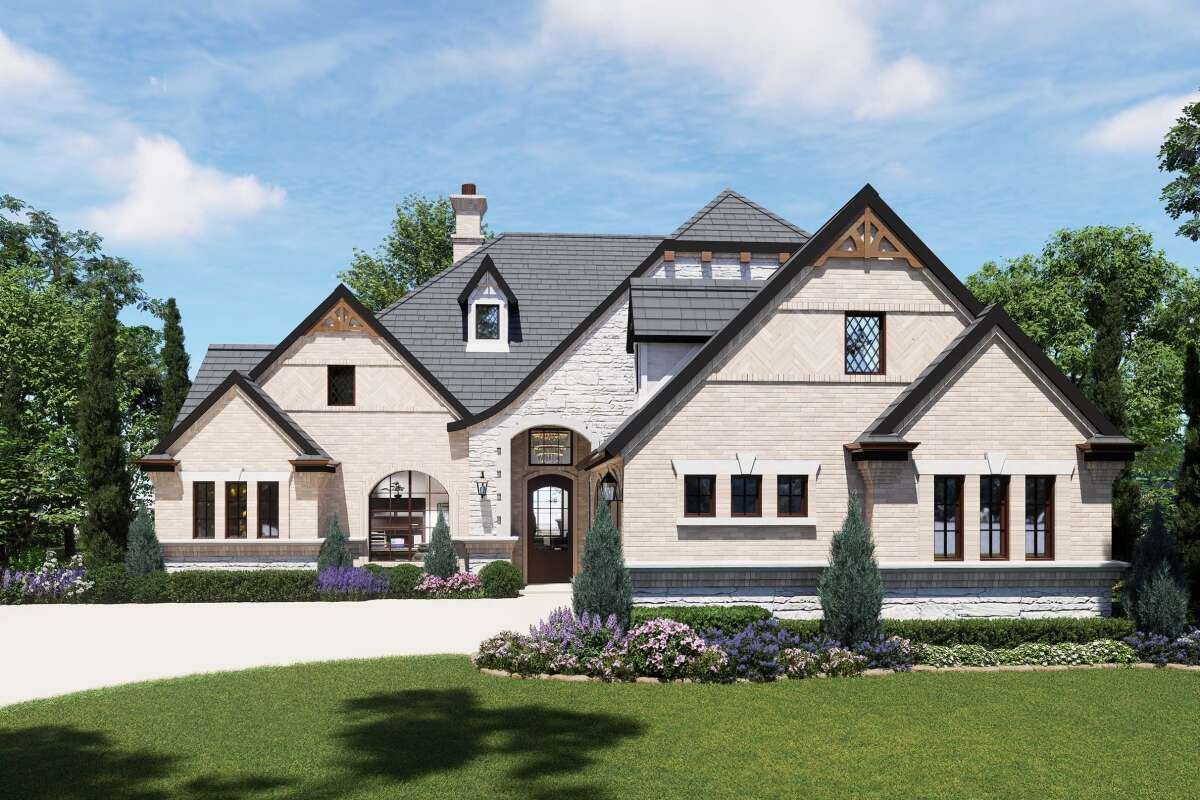

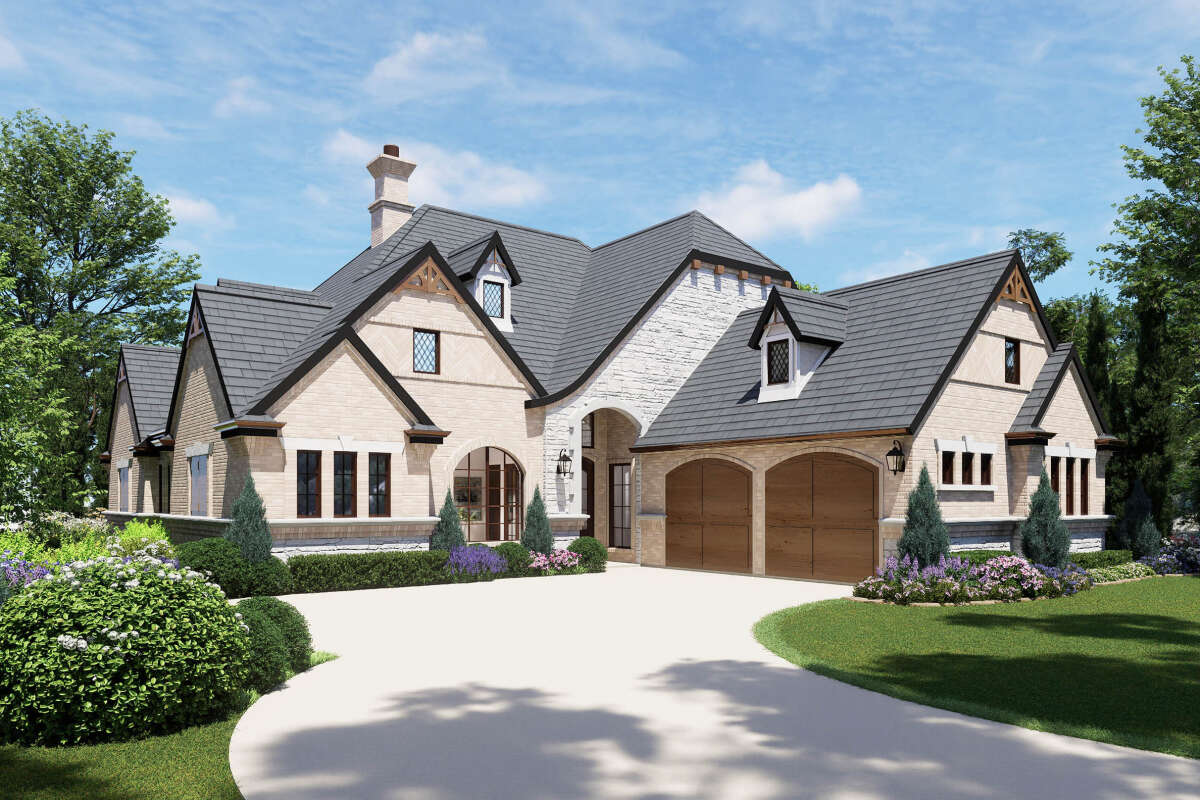

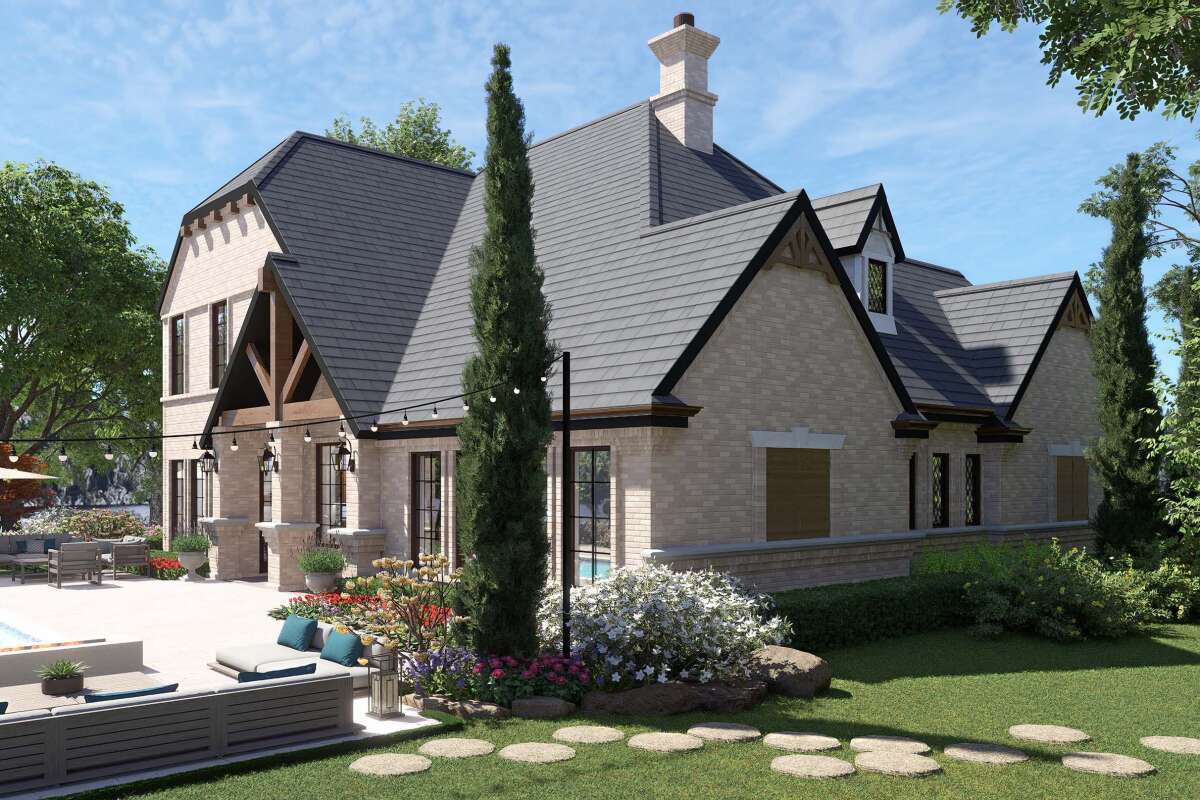

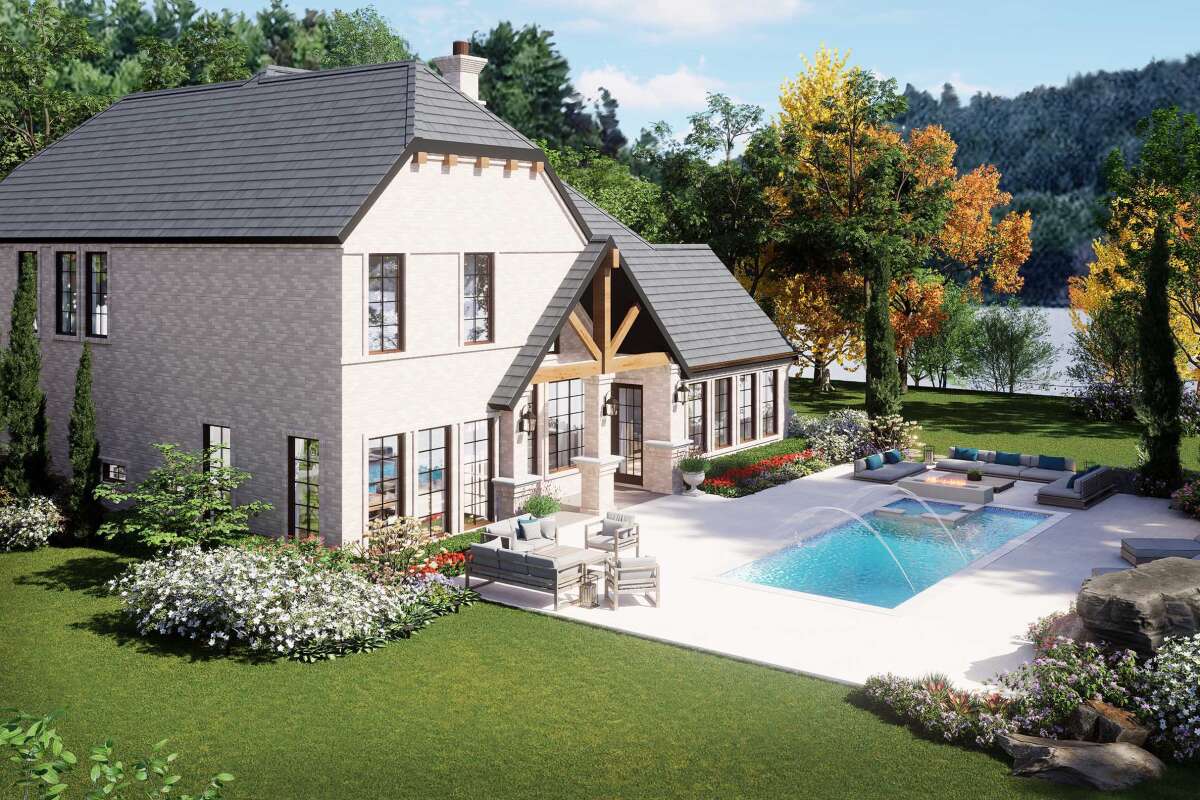

Luxury House Plan #5445-00050 Elevation Photo

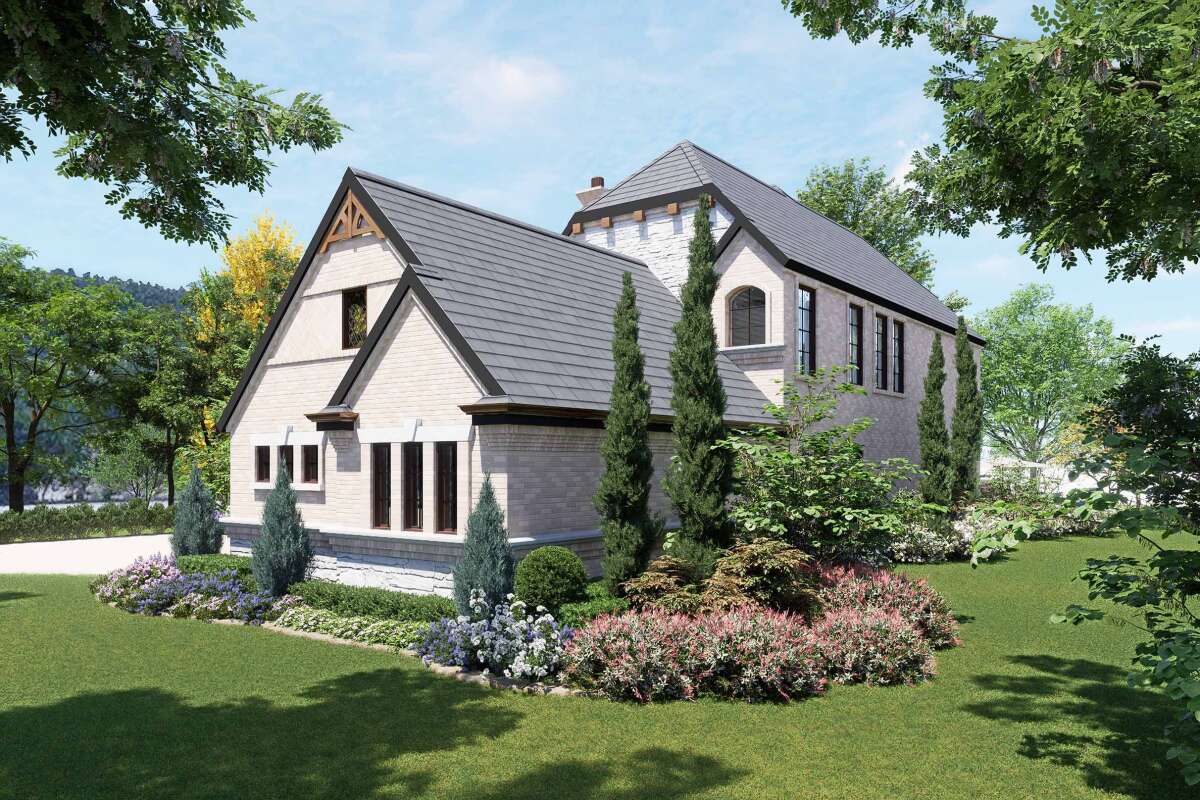

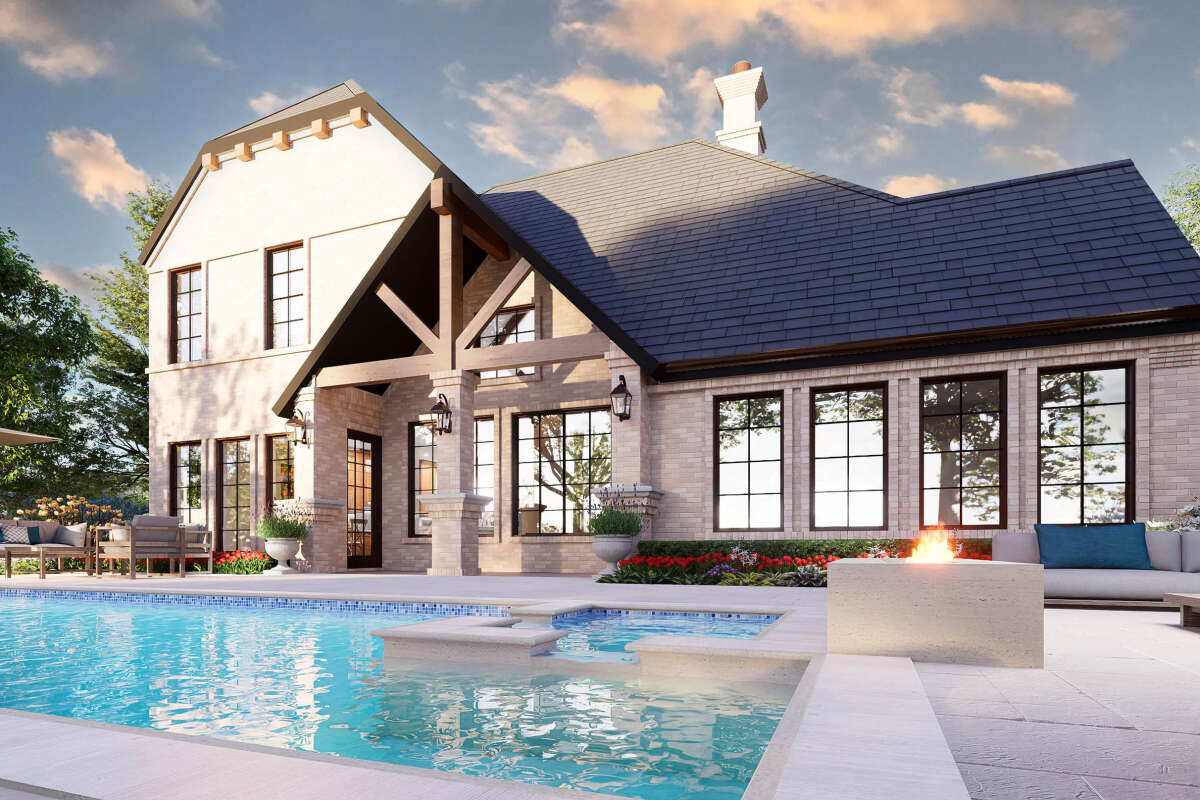

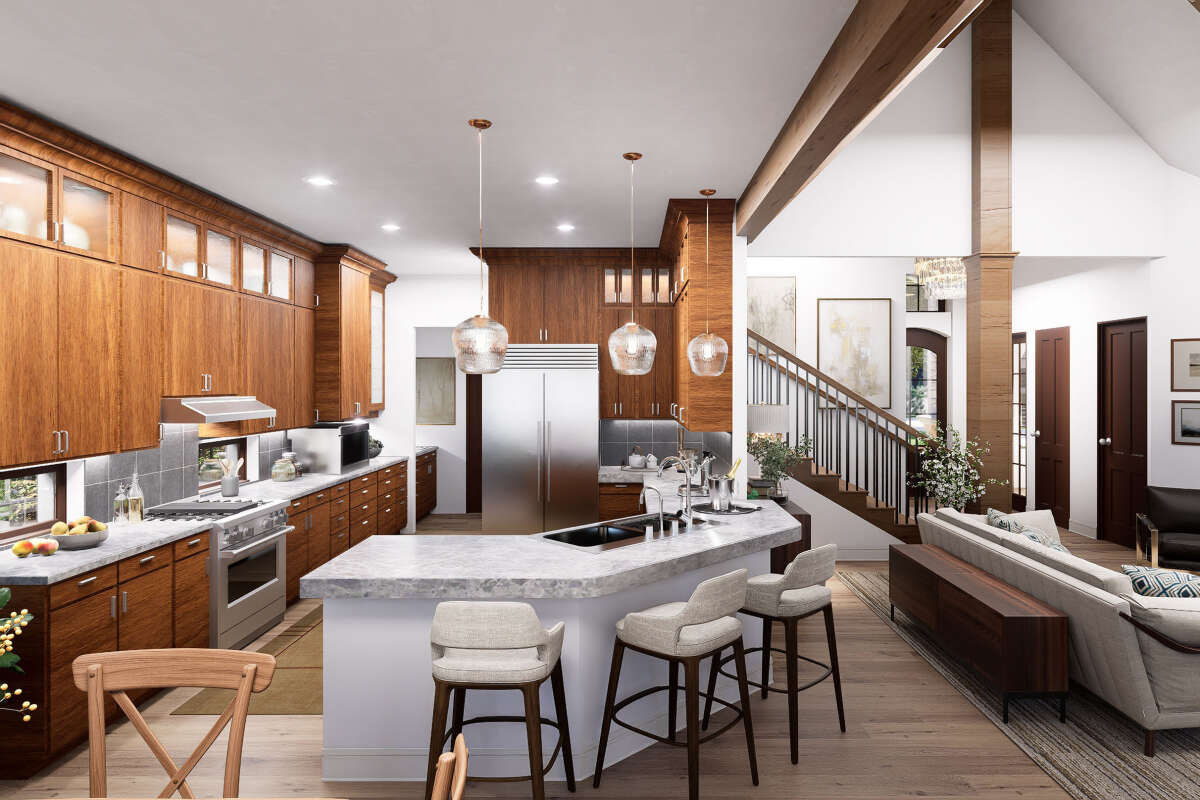

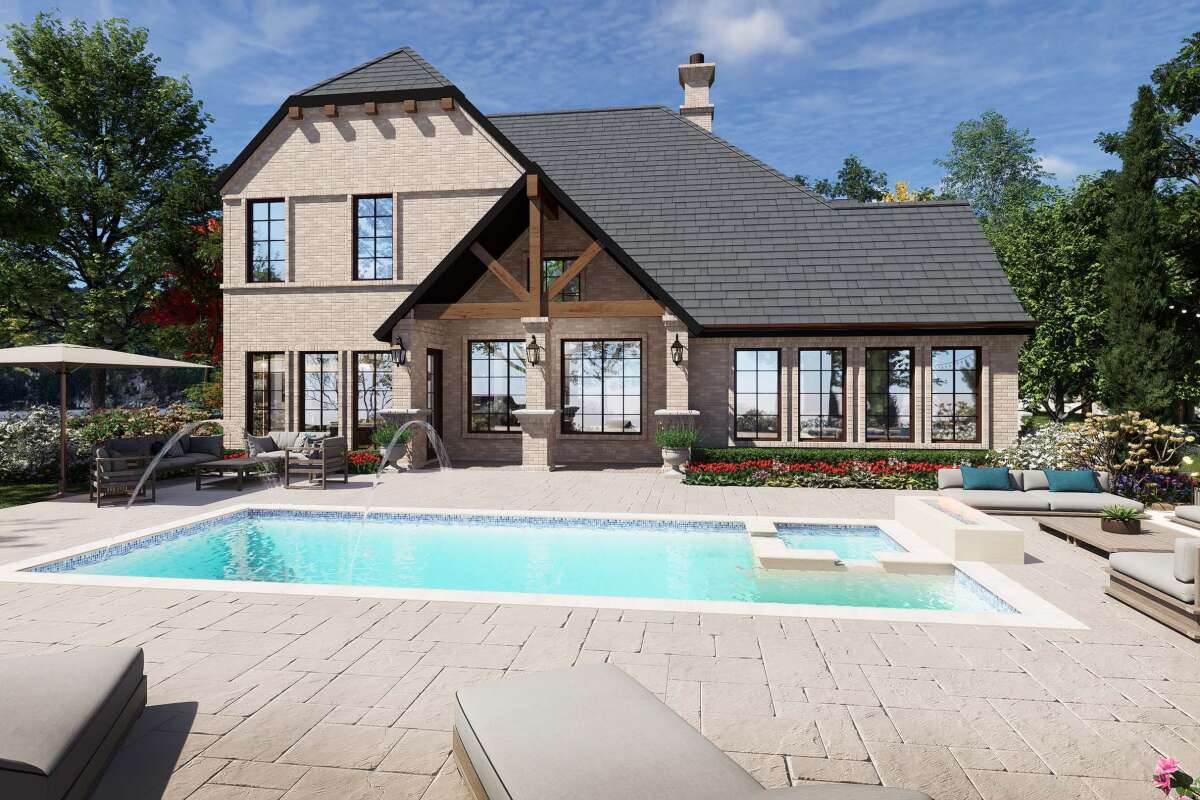

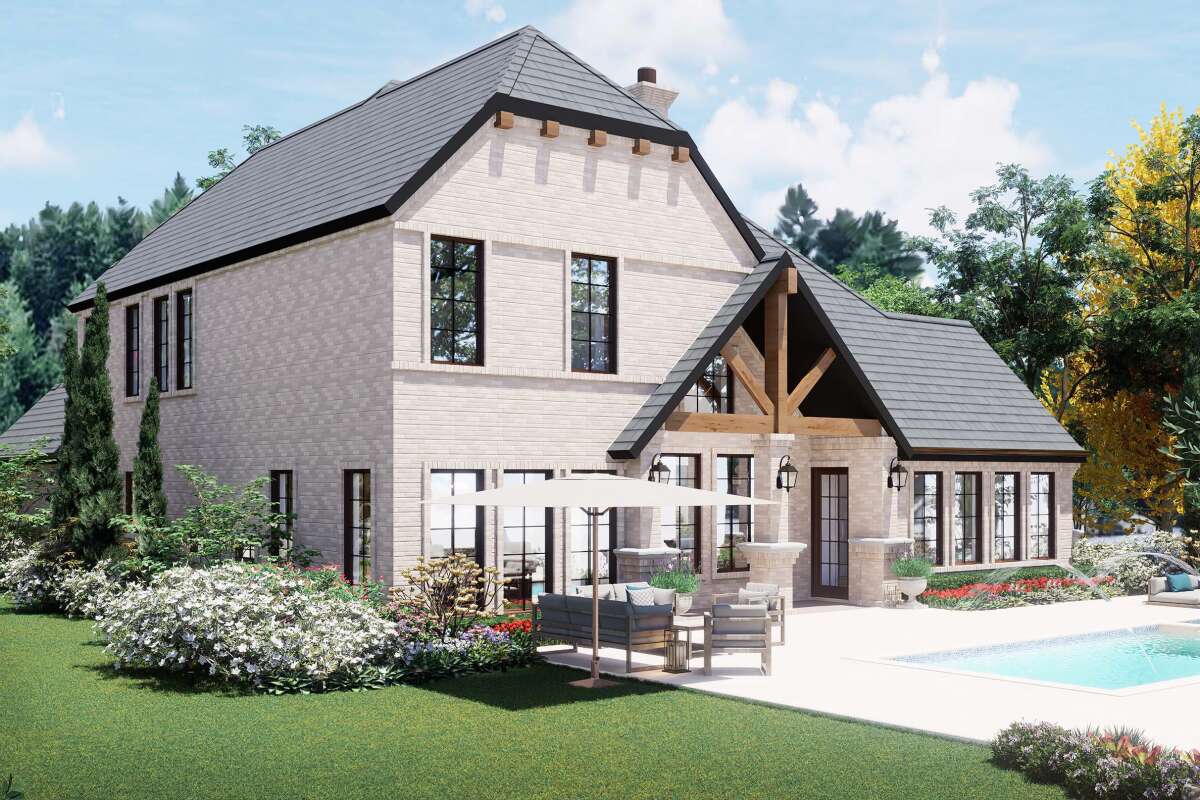

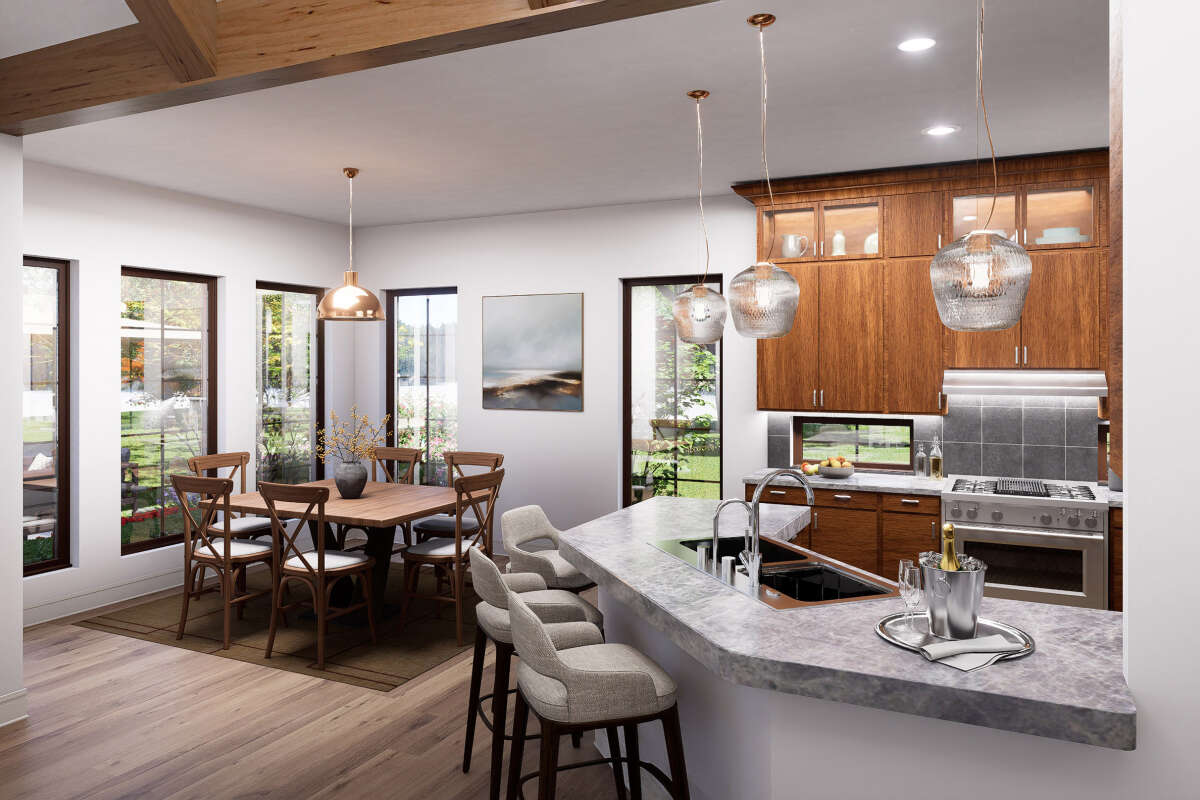

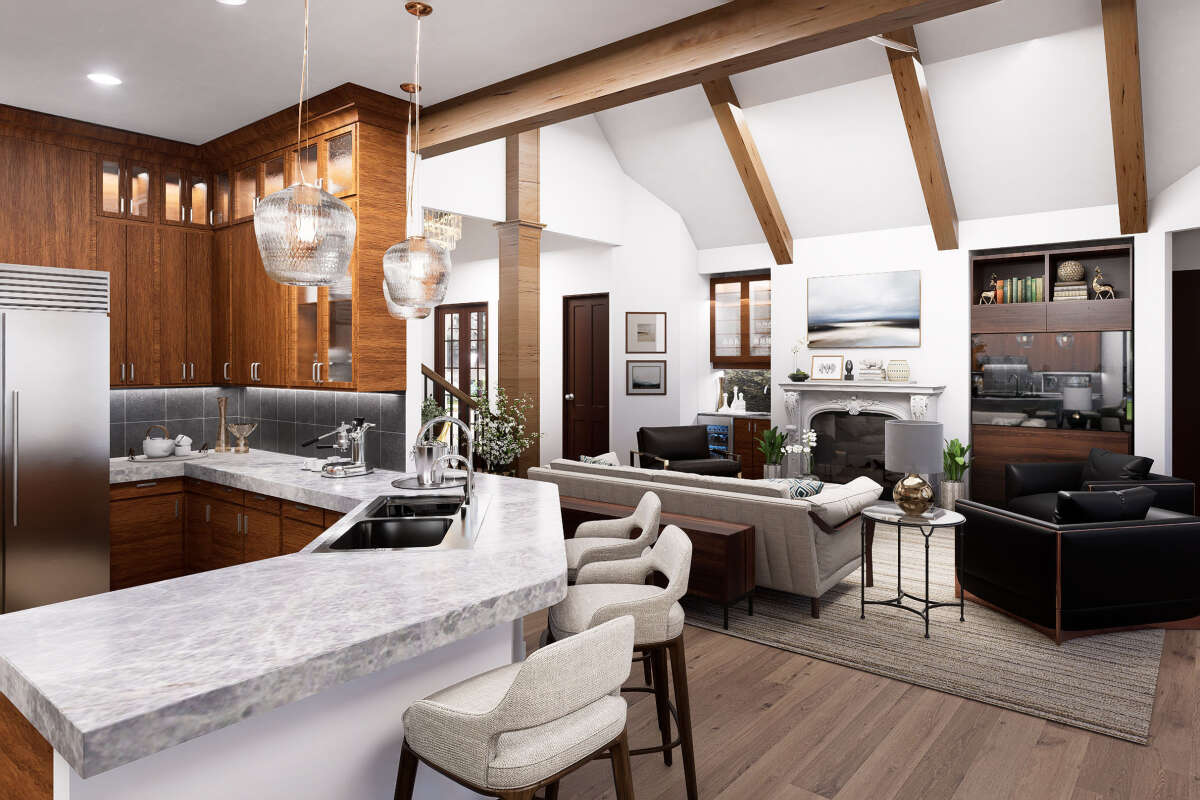

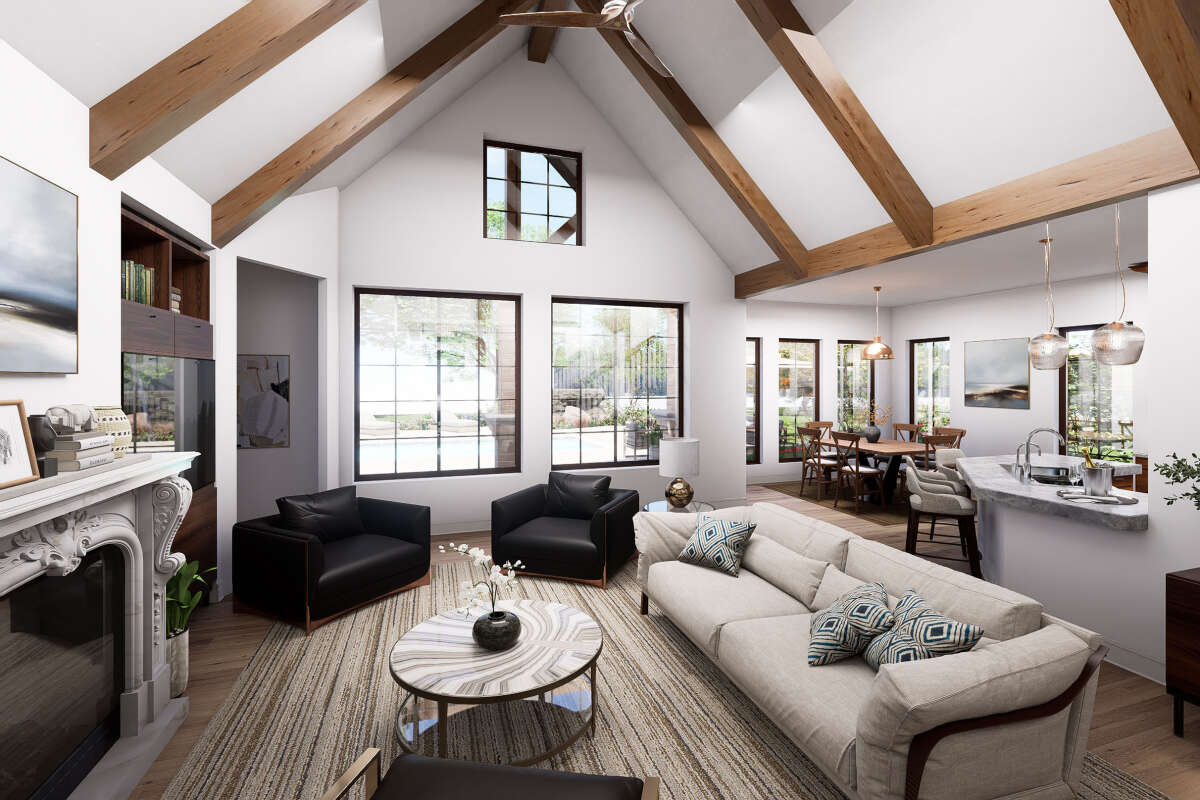

Luxury House Plan #5445-00050 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,047

Beds 3

Bath 3

1/2 Baths 1

Car 2

Stories 1.5

Width 53'

Depth 73'

See What's Included

Select Package

PDF (Single Build)

$1,045.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,225.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,570.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $150.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $100.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

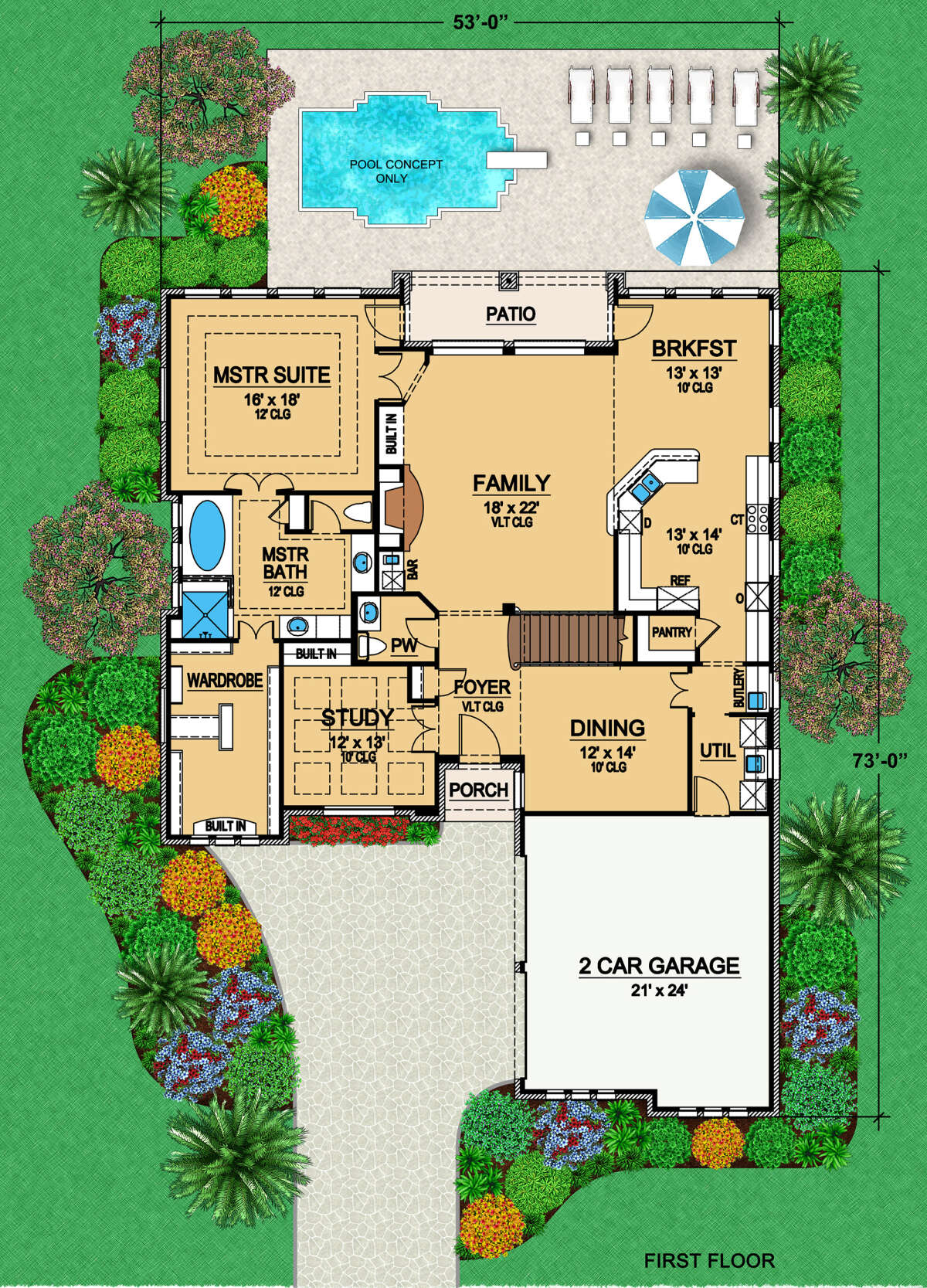

Floorplan 1

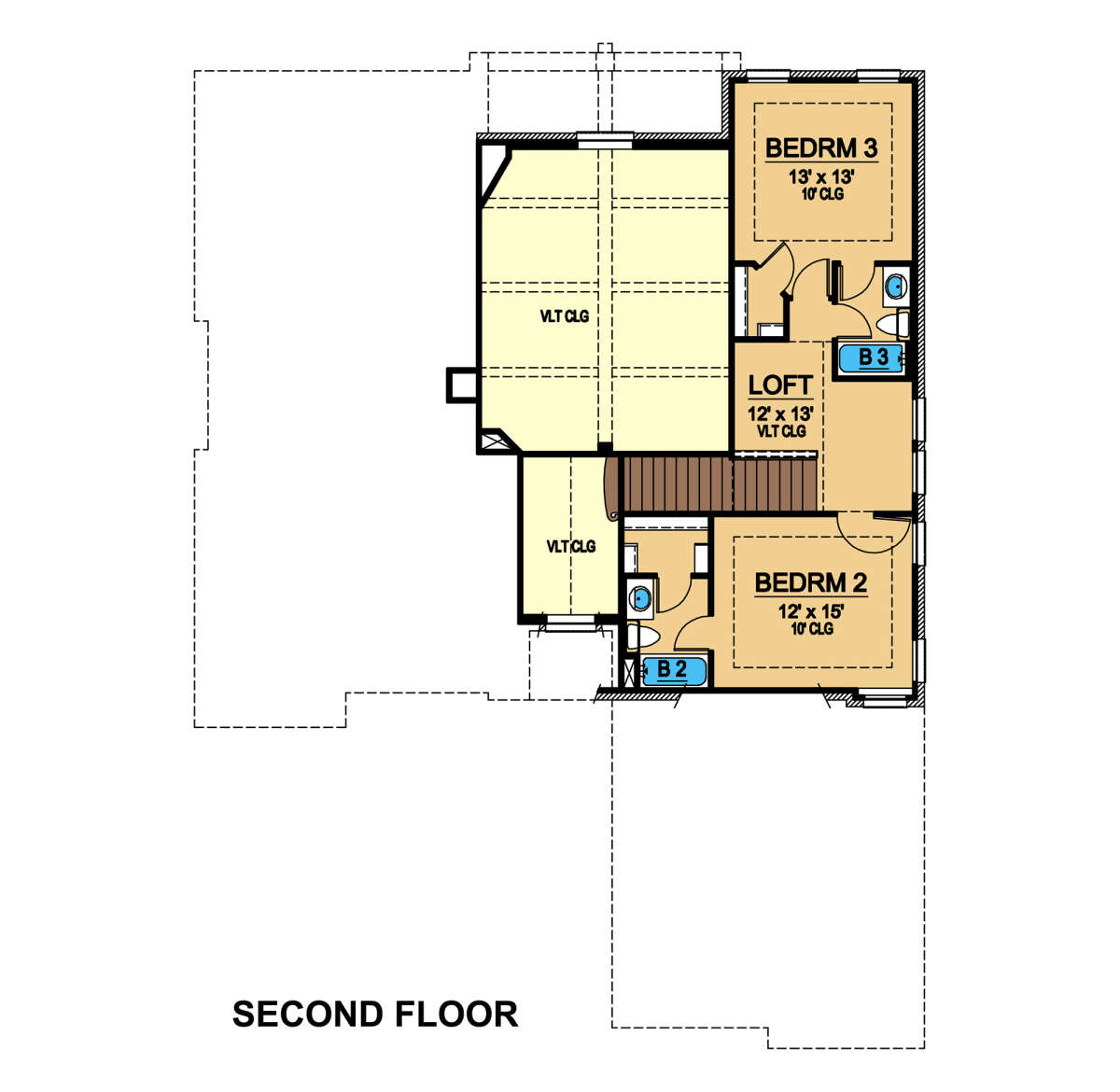

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Cover Page:
Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
Foundation Plan
Floor Plan(s):
The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
Electrical Plan:
Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.
Elevations:
Front, side and rear elevations with notes and exterior dimensions. All elevations are drawn to 1/4 scale.
Roof Plan:
Drawn to 1/4 scale.
Sections Page

Ask Us A Question

About This Plan

This 3 bedroom, 3 bathroom Luxury house plan features 3,047 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
