Country House Plan #1637-00101 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,150

Beds 3

Bath 2

1/2 Baths 1

Car 3

Stories 1.5

Width 72'

Depth 82'

See What's Included

Select Package

PDF (Single Build)

$2,600.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$2,600.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$3,510.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

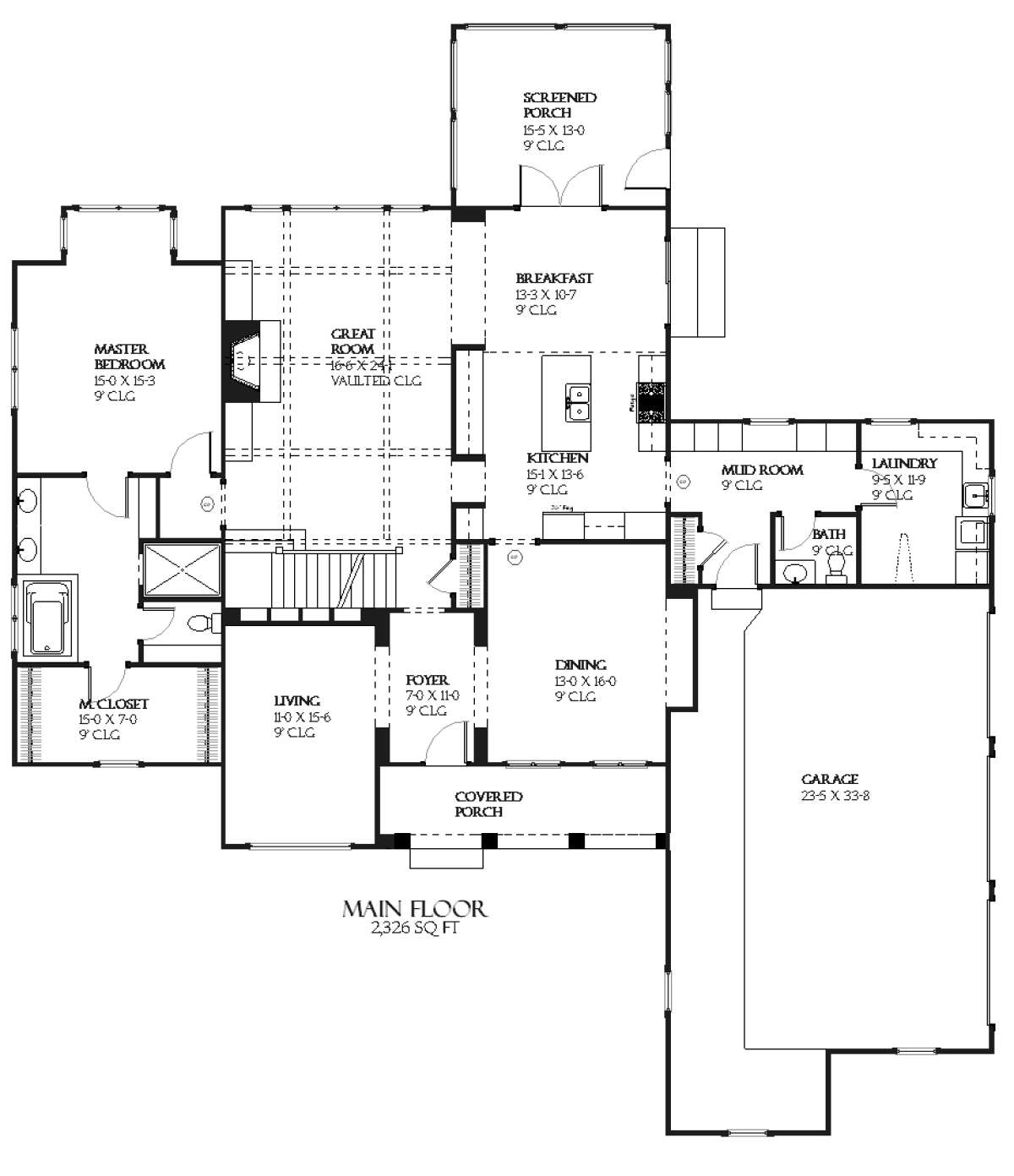

Floorplan 1

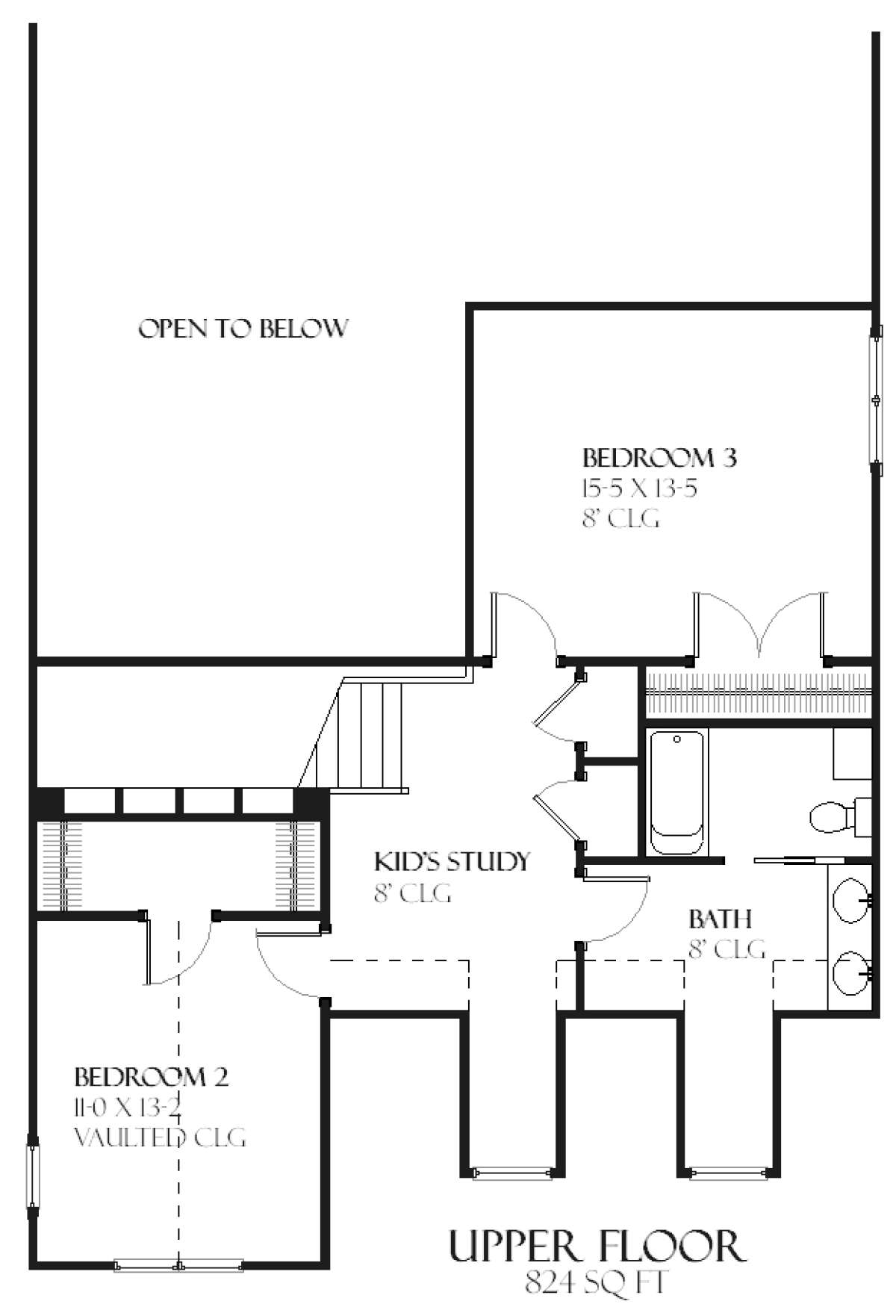

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Construction Ready Main Level Floor Plan (1/4"=1-0')
Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
Lower Level Floor Plans/Foundation (1/4"=1'-0")
Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
Building Sections/Wall Sections/Eave Details
Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
Roof Overview Plan
