Traditional Plan 5244-00001

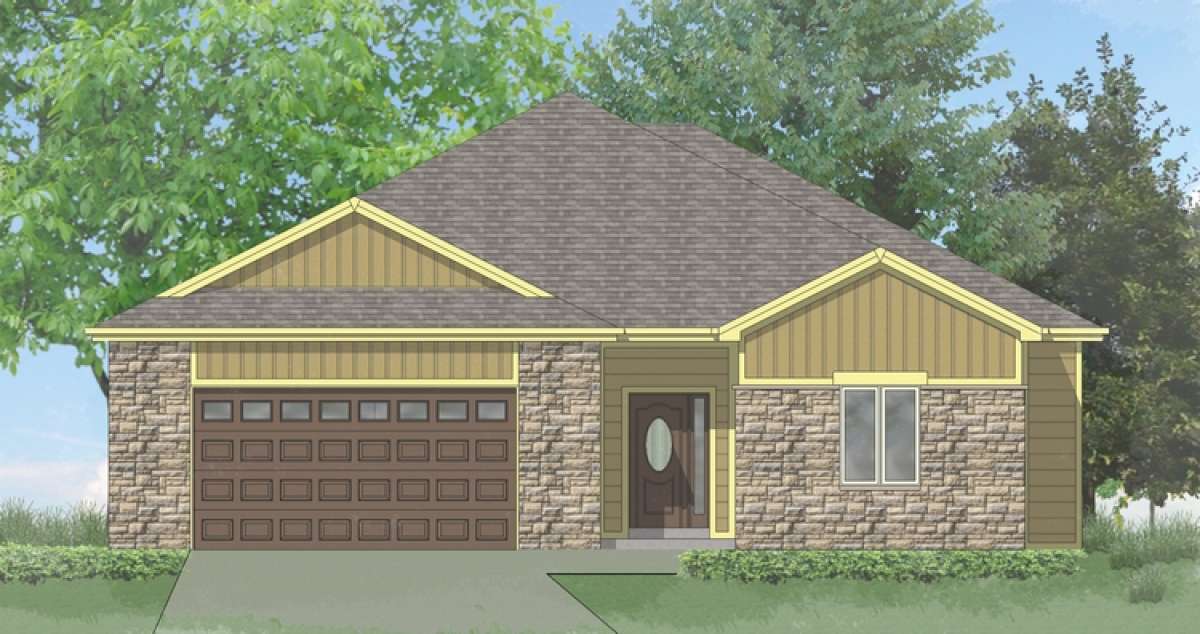

Traditional House Plan #5244-00001 Elevation Photo
Traditional House Plan #5244-00001 Elevation Photo

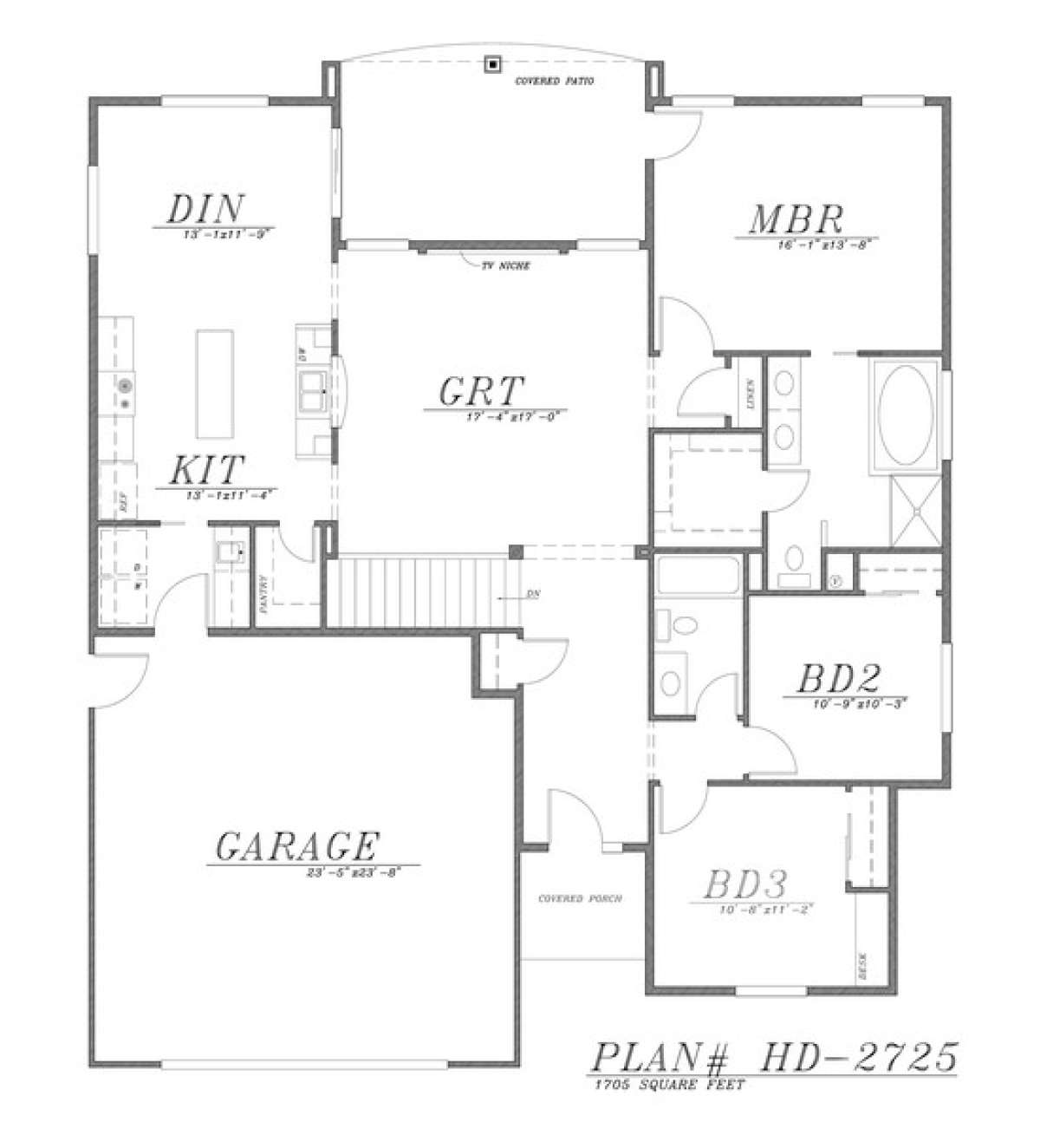

Floorplan1 for House Plan #5244-00001
3 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 1,705
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 2
Stories Icon Stories 1
Width Icon Width 48'
Depth Icon Depth 56'

Floorplan Drawings

 PRINT  DOWNLOAD
Floorplan1 for House Plan #5244-00001
Floorplan1
Floorplan1 for House Plan #5244-00001
Images copyrighted by the designer.


What's Included in these plans?

  • Exterior Elevations, all at 1/4" Scale.
  • Floor Plans, Fully dimensioned and noted.
  • Electrical Plans.  Separate sheet 1/4" Scale.
  • Foundation Plan.  Full Basement is standard.
  • Building Sections. At least one cross section, one typical wall section and stair details.
  • Roof Plan.  Separate sheet, 1/4" Scale.
  • Cover Sheet.  Front elevation, 1/8" Floor plan, general plan information.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

At 1705 square feet this traditional ranch home has something for everyone. 3 bedrooms, 2 baths and an over-sized 2 car garage is just the beginning. The master suite has a 5 piece bath with walk-in closet and a private entry to the covered rear patio. The open kitchen boasts a prep island and large walk-in pantry. The central great room is perfect for entertaining. It is open to the kitchen/dining room and is framed on all sides by eye catching archways.
