Ranch House Plan 5633-00003

Sq Ft1,882
1/2 Baths0
Width60' 10"
Depth51' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

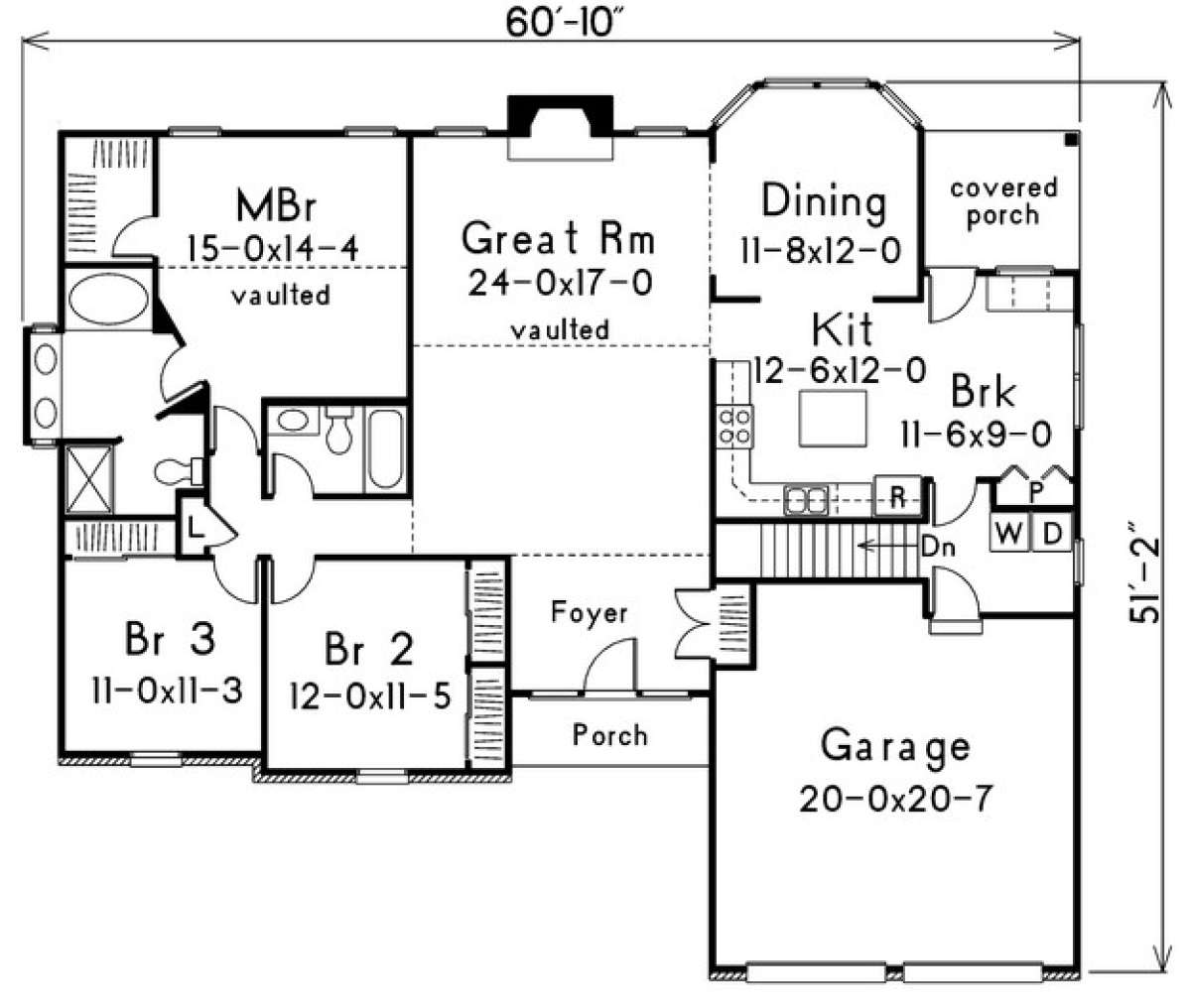

Floorplan 1 for House Plan #5633-00003
Floorplan 1
Floorplan 1 for House Plan #5633-00003

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

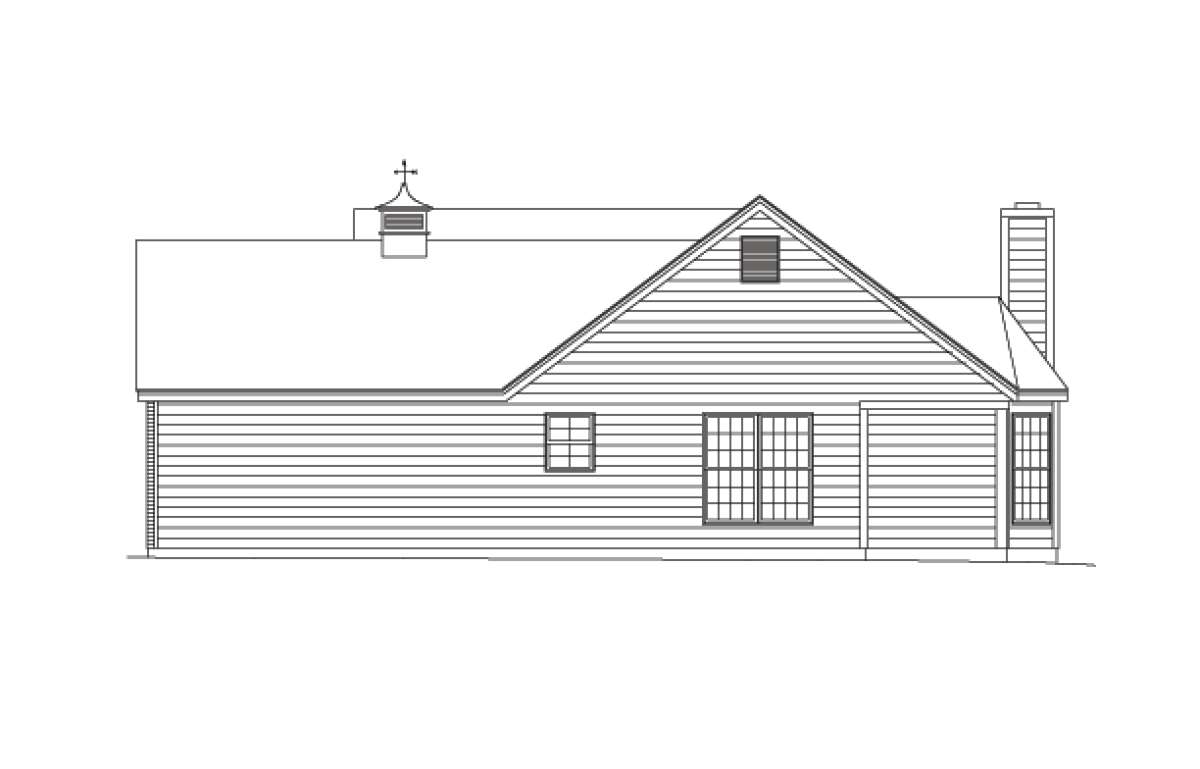

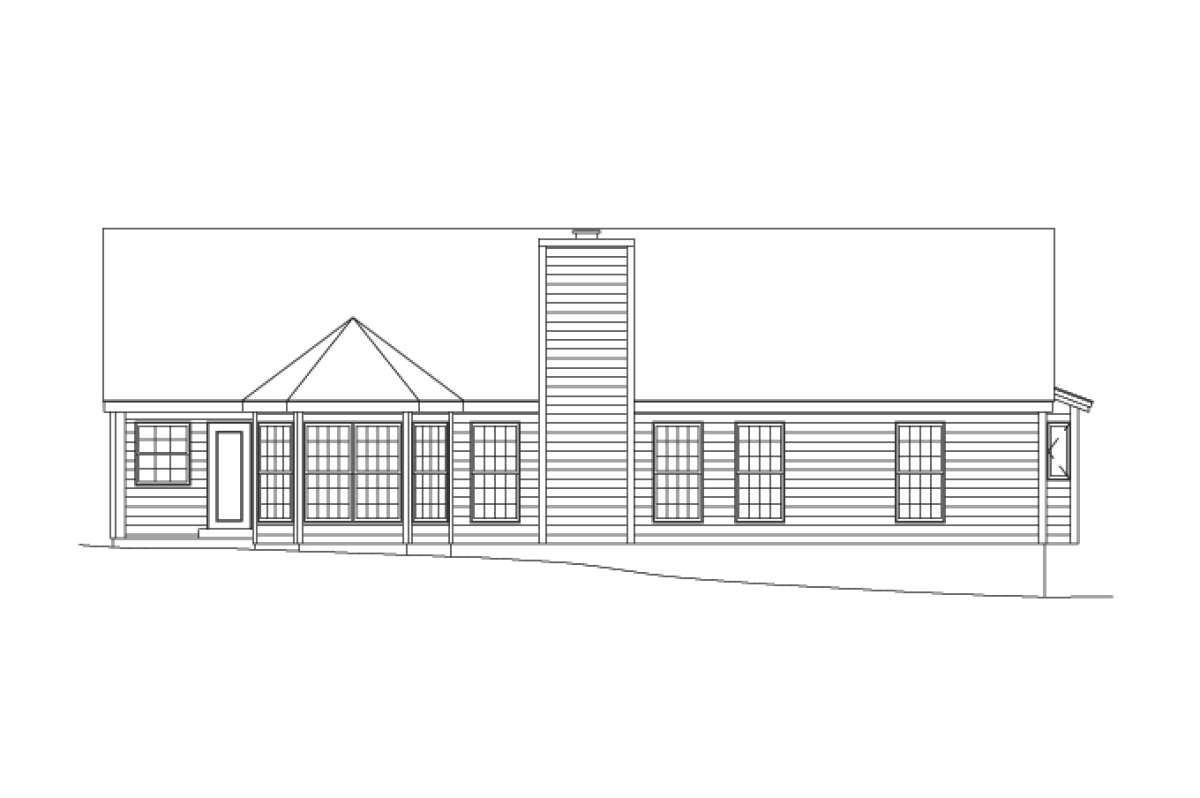

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional Ranch home features a handsome brick enhanced exterior façade and approximately 1,882 square feet of interior floor space. There are three bedrooms and two baths in this All-American standard floor design; however, the home sits on a basement foundation which doubles the footprint providing the home in excess of 3,700 potential square feet. A two car, front loading garage adds an additional 412 square feet; plenty of room for vehicle and other storage space. Balance and symmetry are highlighted on the exterior and the front covered entrance is an inviting space for family and friends. A spacious foyer with coat closet leads to the immense great room which measures 24’x17’, has soaring ceiling heights and a rear fireplace flanked by picturesque window views. The spacious dining room is bright and sunny as it is tucked into an oversized bayed window feature. The family friendly kitchen is ideal for a gathering spot with its center island, loads of additional counter and cabinet space and houses a separate pantry, as well. The adjoining breakfast room features double window views to the side yard and provides access to the rear covered porch. An interior laundry room and lower level staircase are conveniently located off the garage.
The second bedroom features a generous amount of closet space while bedroom three has plentiful closet space. There is a shared hall bath with vanity space, a toilet area, a tub/shower combination and a hall linen closet. The master suite is situated at the rear of the home for privacy and is highlighted by a large, vaulted master bedroom. Great window views and the attached, master walk-in closet add to the comfort of the space. There is a master bath highlighted by dual vanities, a separate shower, toilet area and garden tub. This home offers a fully functional floor plan with future expansion possibilities.
