Farmhouse Plan 4848-00297


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,688
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 1.5
Width 50'
Depth 60'

Floorplan Drawings

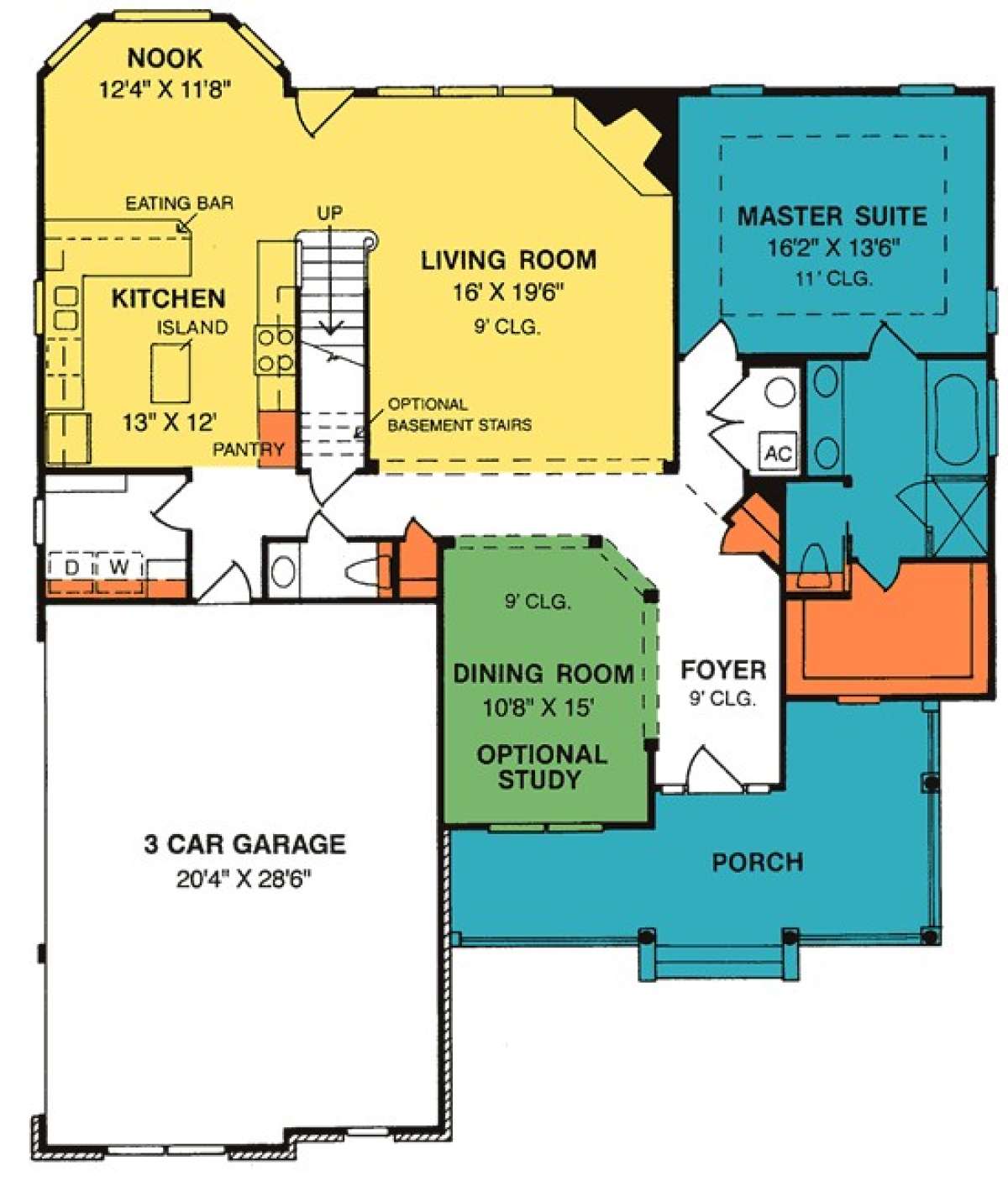

Floorplan 1
Floorplan 1 for House Plan #4848-00297

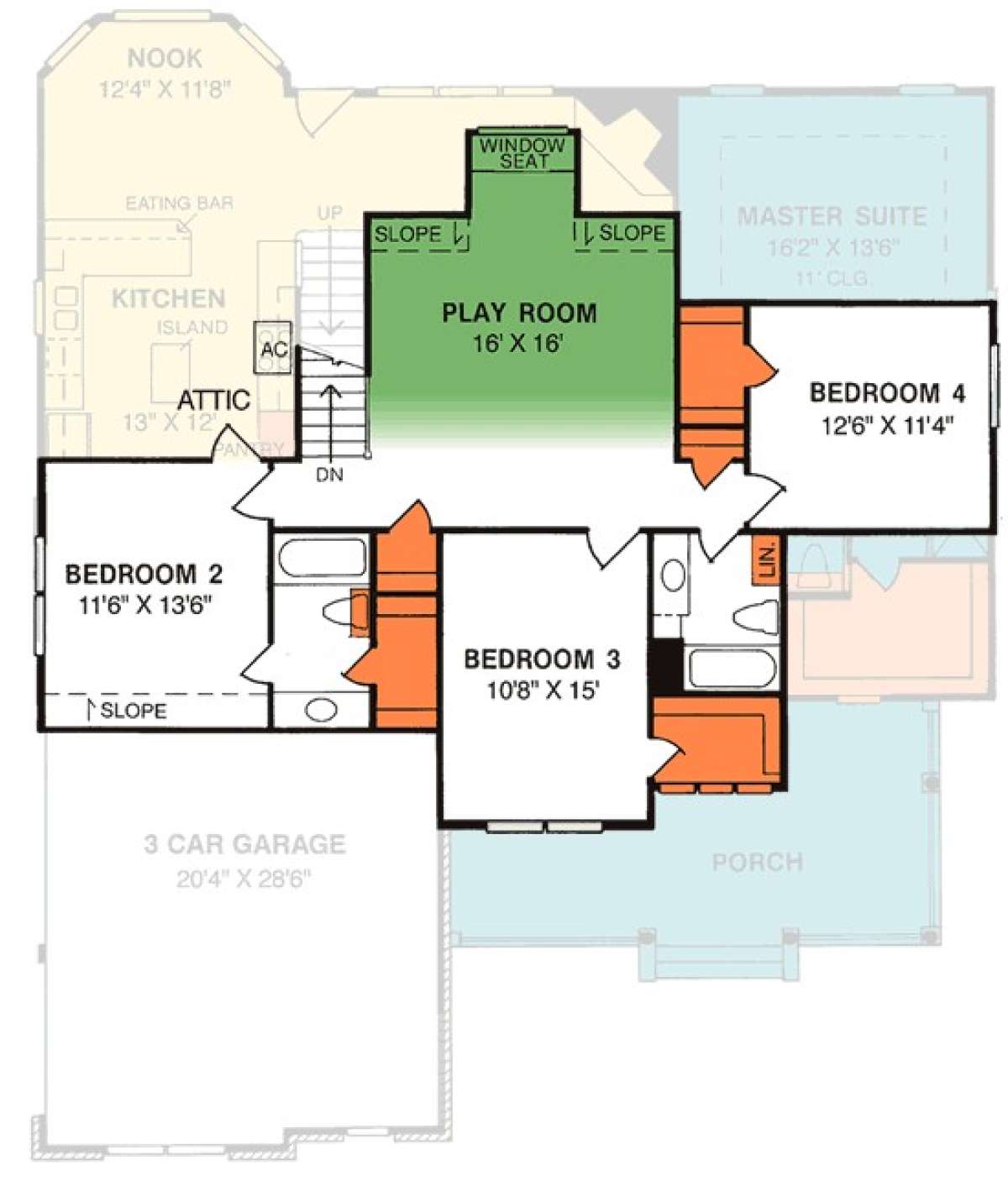

Floorplan 2
Floorplan 2 for House Plan #4848-00297

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

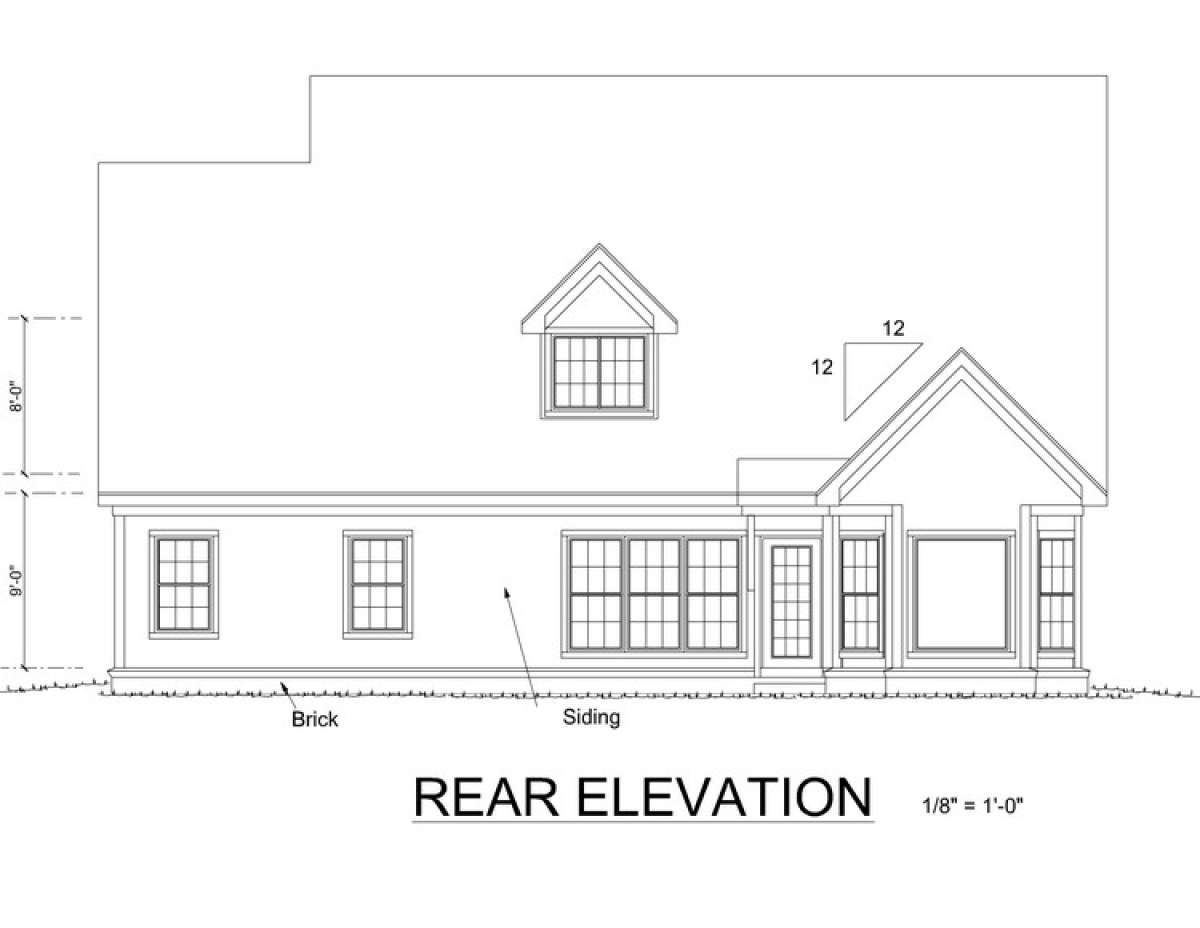

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

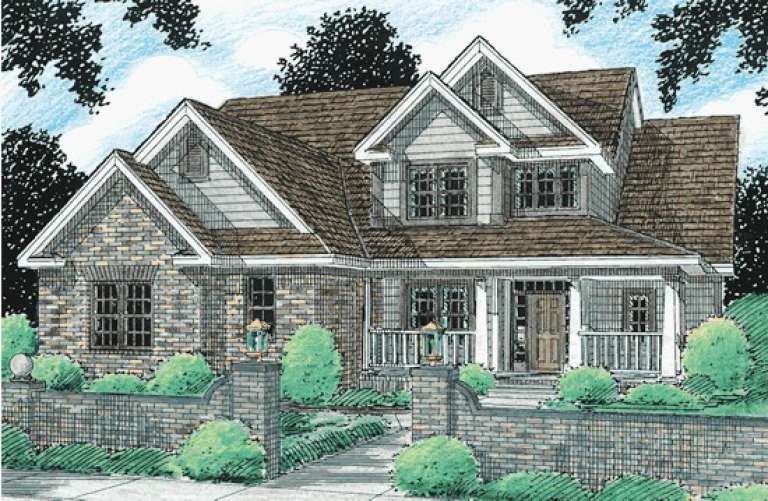

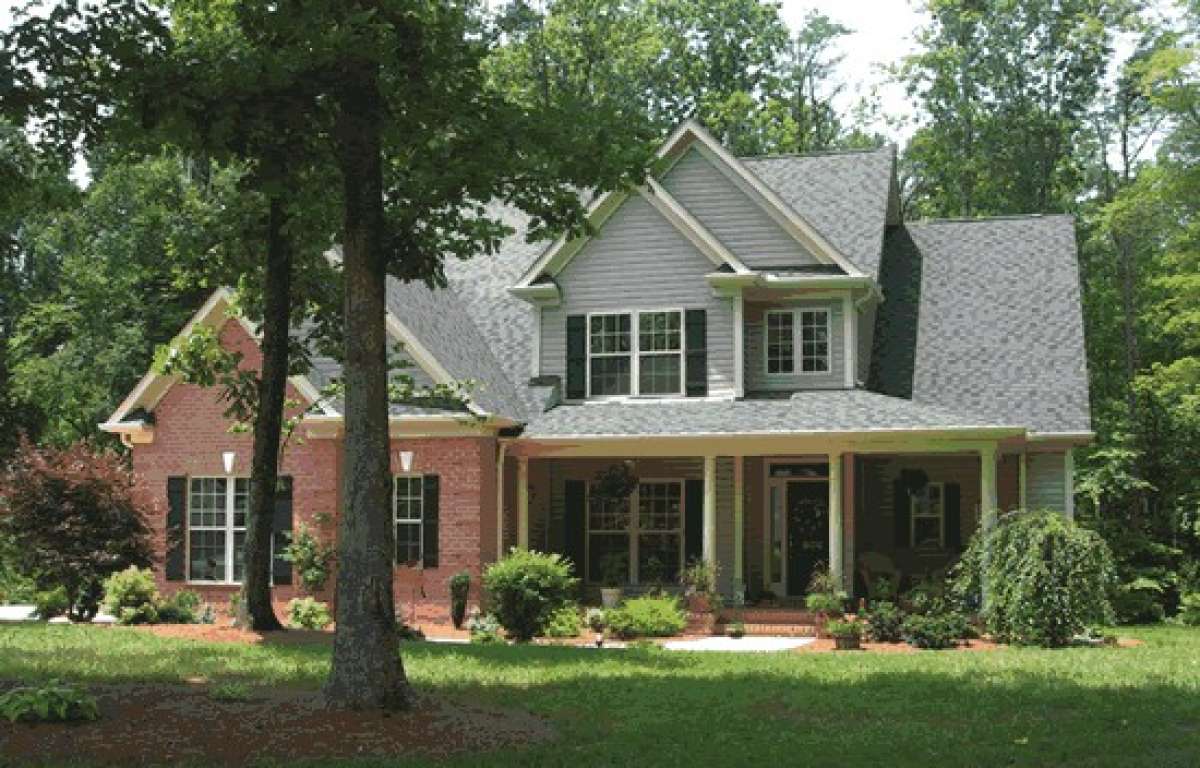

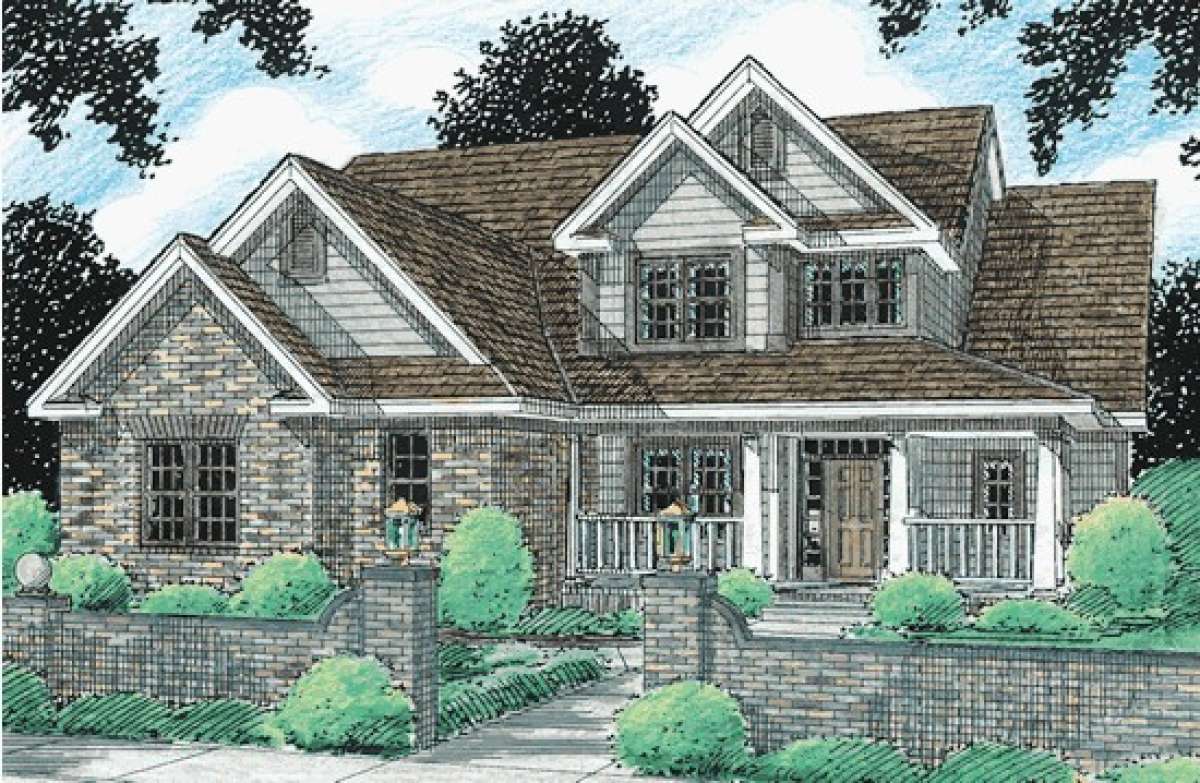

Attractive multi-use design elements highlight the exterior of this Farmhouse plan while the 1.5 story interior floor plan features great entertaining and family space. Brickwork, horizontal siding, multiple gables and a fabulously large front covered porch add charm and character to the home’s façade. The front L- shaped porch is perfect for greeting family and friends and also functions as a great gathering or relaxing spot for morning coffee and entertaining. There are approximately 2,688 square feet of living space that includes an open floor plan, four bedrooms and three plus baths within the home’s interior. The three car side entry garage is great vehicle space for families and it conveniently accesses the interior laundry room and guest powder room. The laundry room is spacious with W/D space, counter room and space for sorting and hanging clothes. The rear of the home focuses on the family common rooms and includes a living room, kitchen and casual breakfast area. The kitchen features a separate pantry, a center island and a peninsula breakfast bar; great space for work/prep, casual dining and large gatherings of family and friends. There is additional dining space in the adjoining breakfast nook which is situated in a bay window that offers a bright and sunny area to eat. The living room features great entertaining space, a rear three window wall and a handsome, warming corner fireplace. The front foyer is flanked by the formal dining room which is perfect for special occasion meals and family holiday dinners. Alternately, the dining room could function as a study with all the additional dining spaces located within the common rooms.

There is a main level master suite which is elegantly designed for today’s homeowners with a large trey ceiling bedroom. Eleven foot ceiling heights and rear window views add volume and sunlight to the room. An enormous walk-in master closet lies beyond the master bath and the bath is highlighted with dual vanities, a garden tub, separate shower and an enclosed toilet room. Upstairs, are three additional bedrooms, a bonus space, two baths and attic space. Bedroom two is quite spacious with a private full bath, a walk-in closet and access to the attic. The third and fourth bedrooms also offer generous floor space and large walk-in closets while the shared hall bath lies between them. A large bonus space is open at the top of the staircase and could be used as a playroom for small children, a lounge for teen-agers or as a secondary family entertaining space for the family. Great exterior presence, an open floor plan and a family friendly layout are highlighted in the Farmhouse design.
