Traditional Plan 4848-00137


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,121
Beds 4
Bath 4
1/2 Baths 1
Car 4
Stories 1
Width 99' 10"
Depth 81'

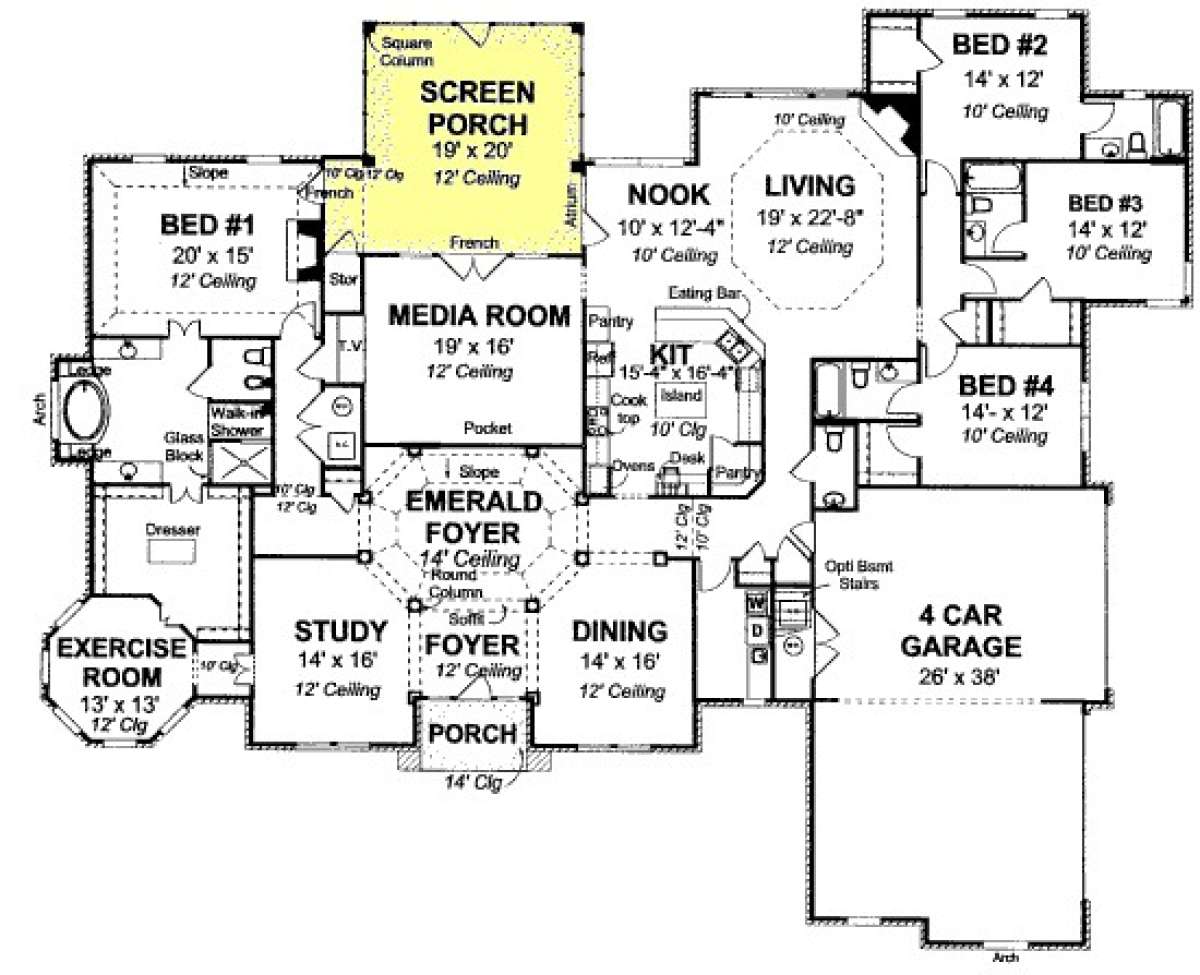

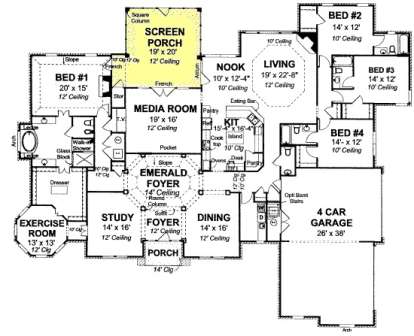

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #4848-00137

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

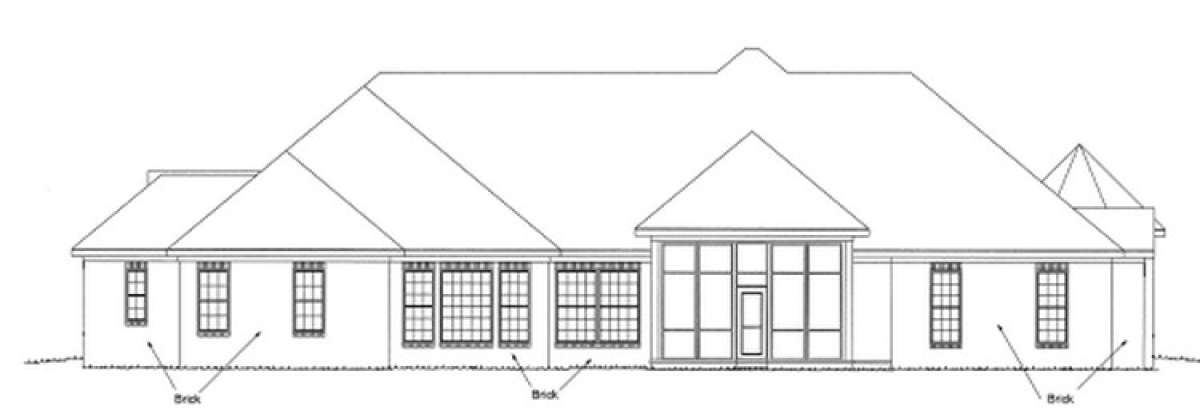

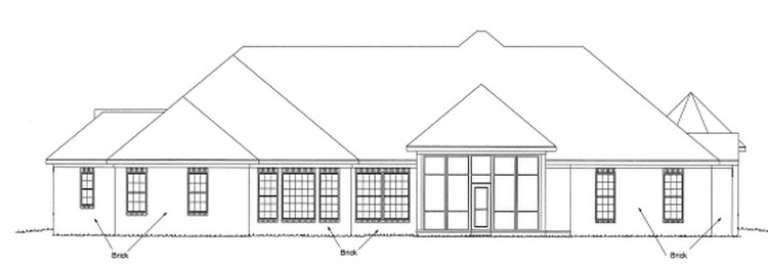

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

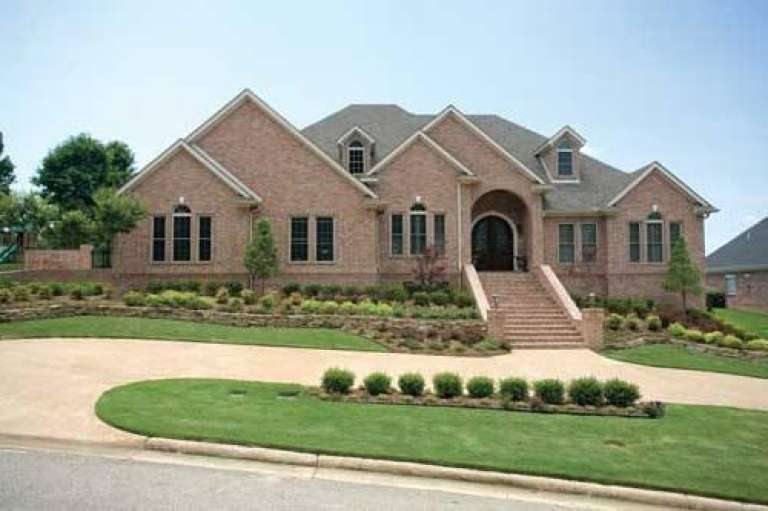

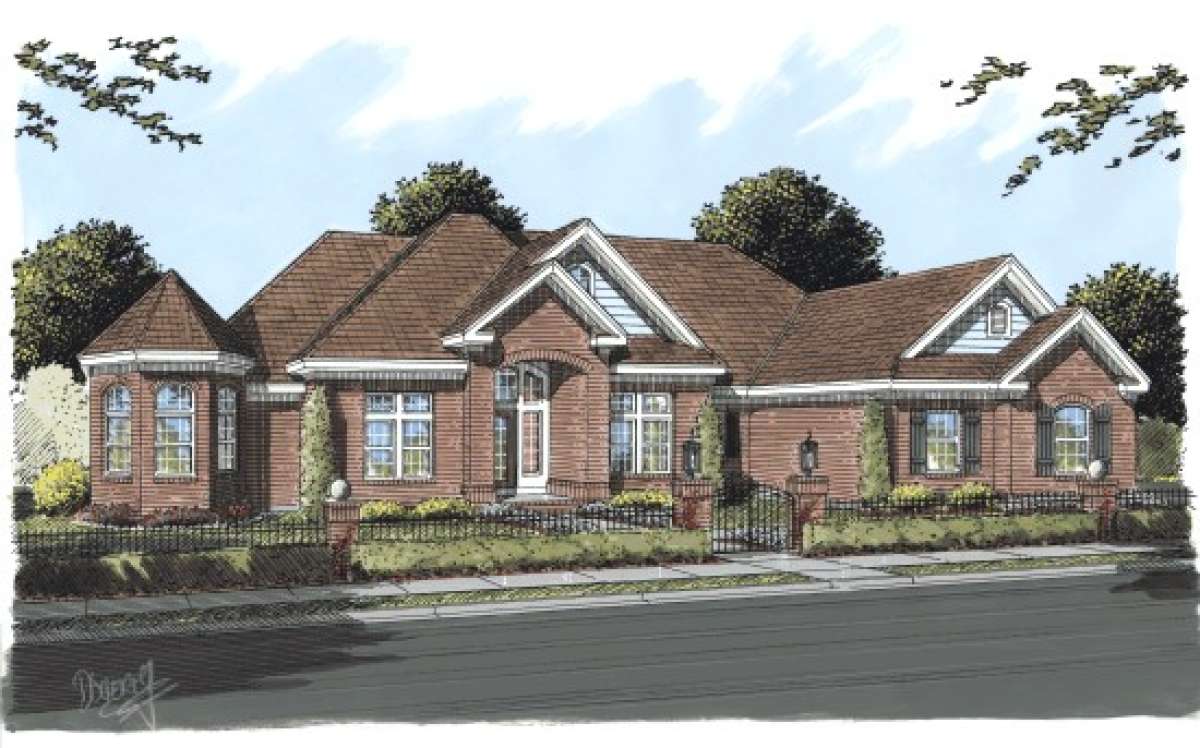

This executive home features a traditional exterior façade with accompanying luxurious design elements. The low maintenance brick exterior is highlighted by a multitude of split gables and an extensive use of window views. This stately home features an equally luxurious interior floor plan which encompasses four bedrooms and four plus bathrooms into approximately 4,121 square feet of living space. Additionally, the single story home contains a four car garage in excess of 1,000 square feet; this is an enormous amount of space for vehicle and lawn or sporting equipment storage. The front covered porch offers access into the home through the stunningly dramatic foyer which features soaring ceiling heights and extends into the emerald foyer highlighted with columns and a 14’ ceiling. Twelve foot ceilings abound throughout the home and are featured in both the study and formal dining room which flank the foyer. Beyond the foyer and pocket doors is the family media room and subsequent screened in porch. The porch also boasts of 12’ ceiling heights, measures 19’x20’, offers outstanding entertaining space and entrance into the casual breakfast nook. The adjacent gourmet kitchen features an angled breakfast bar, double pantries; one of which is a walk-in, a menu desk and loads of additional counter and cabinet space. There is a large living room with trey ceiling accent and corner fireplace off the kitchen where entertaining or private family time can be enjoyed easily and effortlessly. A large laundry room and powder room for guests are conveniently situated off the side entry garage.
The split bedroom plan features three bedrooms and three bathrooms on one side of the home. Each bedroom suite comes complete with equally sized floor space, a private full bath and a walk-in closet. The master suite’s location on the opposite side of the home provides privacy for the owner’s retreat. There is an oversized master bedroom featuring 12’ foot ceiling heights within a trey ceiling accent, a warming fireplace and private access to the screened in porch. French door access leads to the elegantly designed master bath which features dual vanities, a walk-in shower with glass block, a compartmentalized toilet and a Roman inspired spa tub ensconced in window views. The rear of the bath features another set of French doors which lead to an enormous walk-in closet with built-in dresser and the subsequent octagon shaped exercise room. This is a beautifully designed home with a traditional exterior façade and interior floor plan boasting of an abundance of well-appointed and spacious entertaining and private family rooms.
