Bungalow Plan 4848-00107


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,714
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 50'
Depth 49'

Floorplan Drawings

Floorplan 1

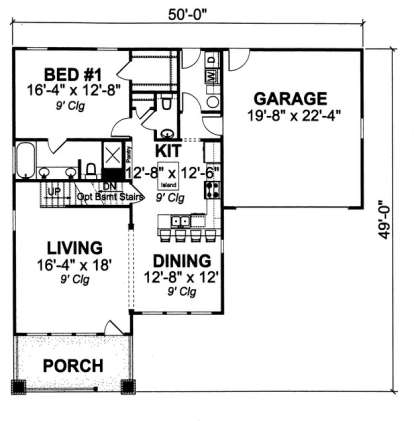

Floorplan 1 for House Plan #4848-00107
Floorplan 2
Floorplan 2 for House Plan #4848-00107

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

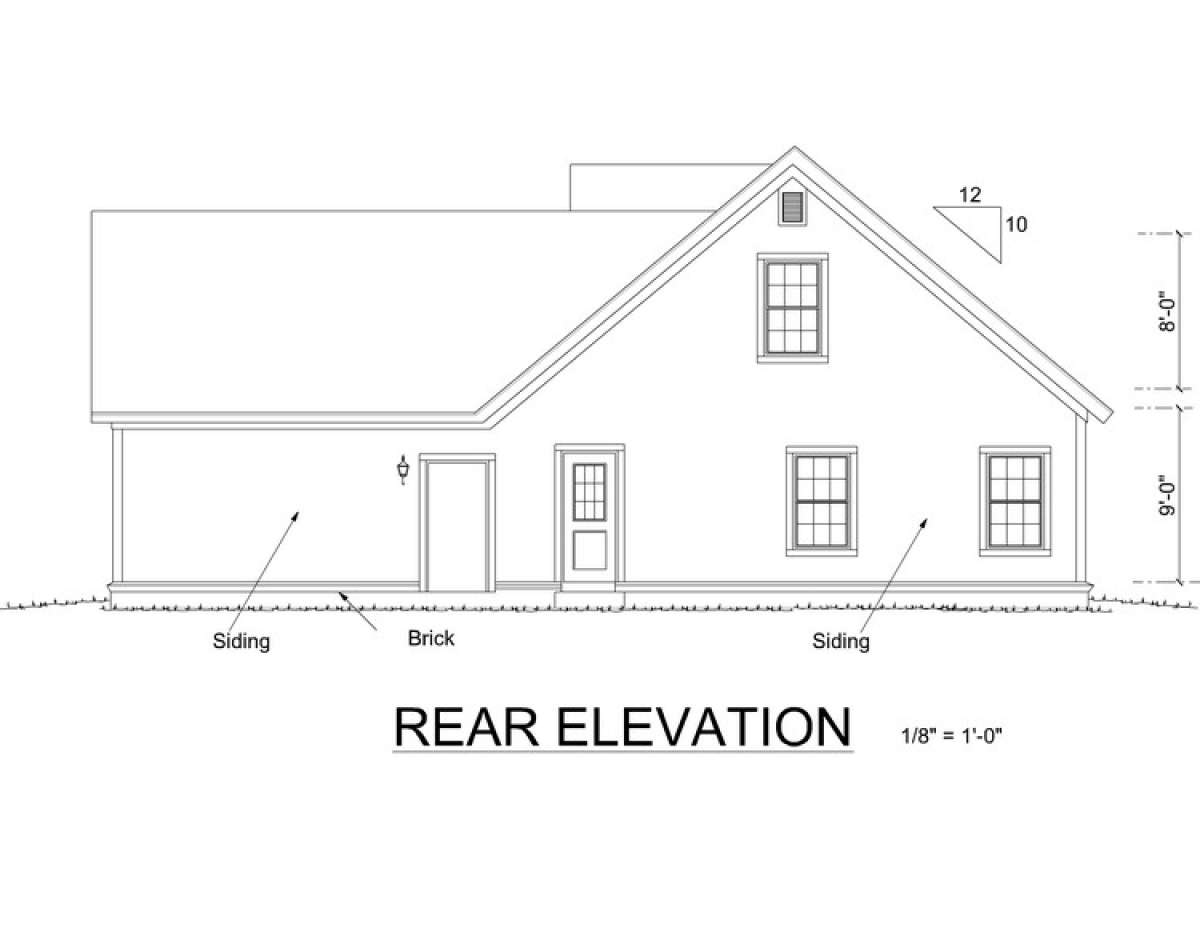

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

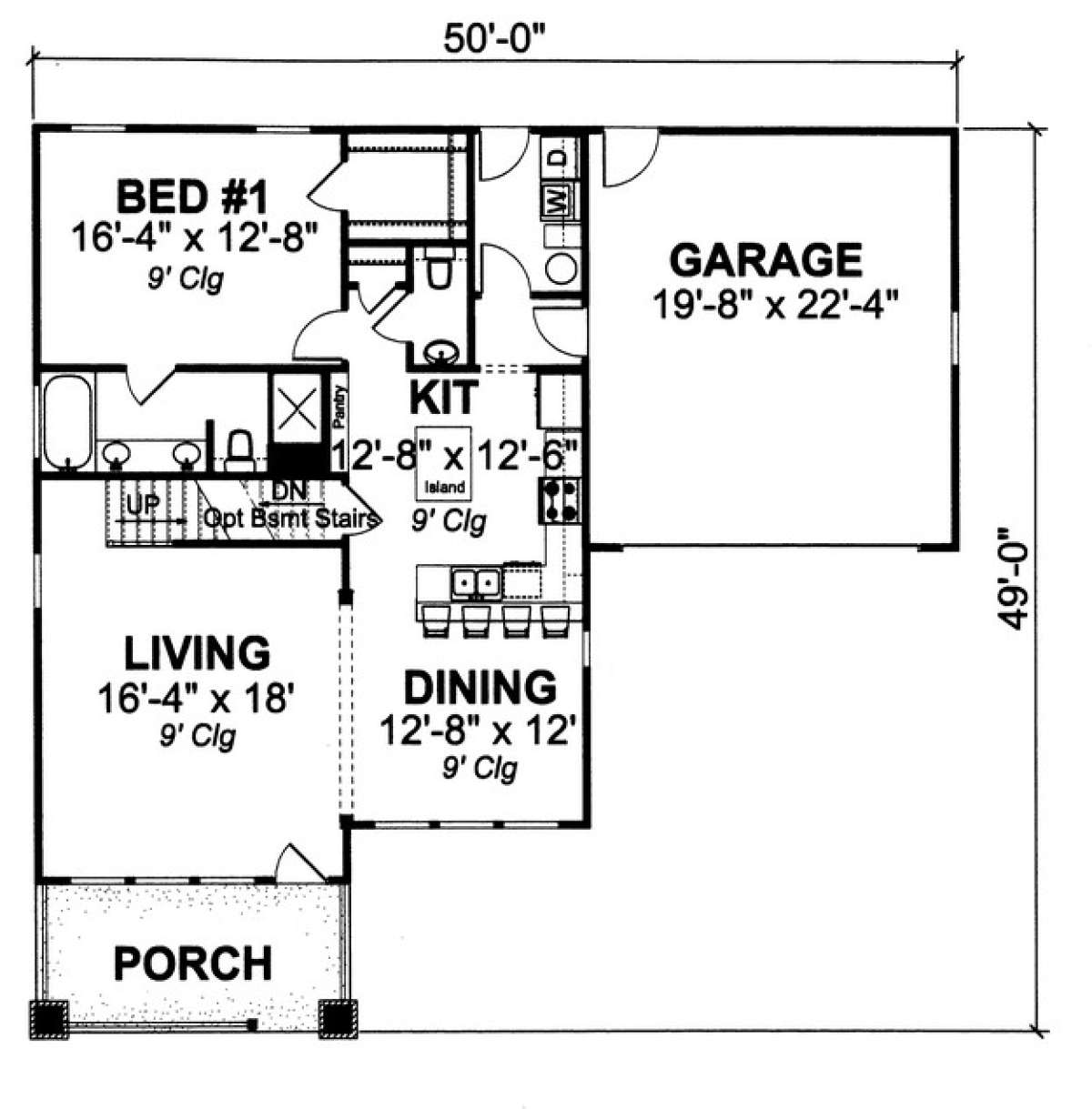

  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.

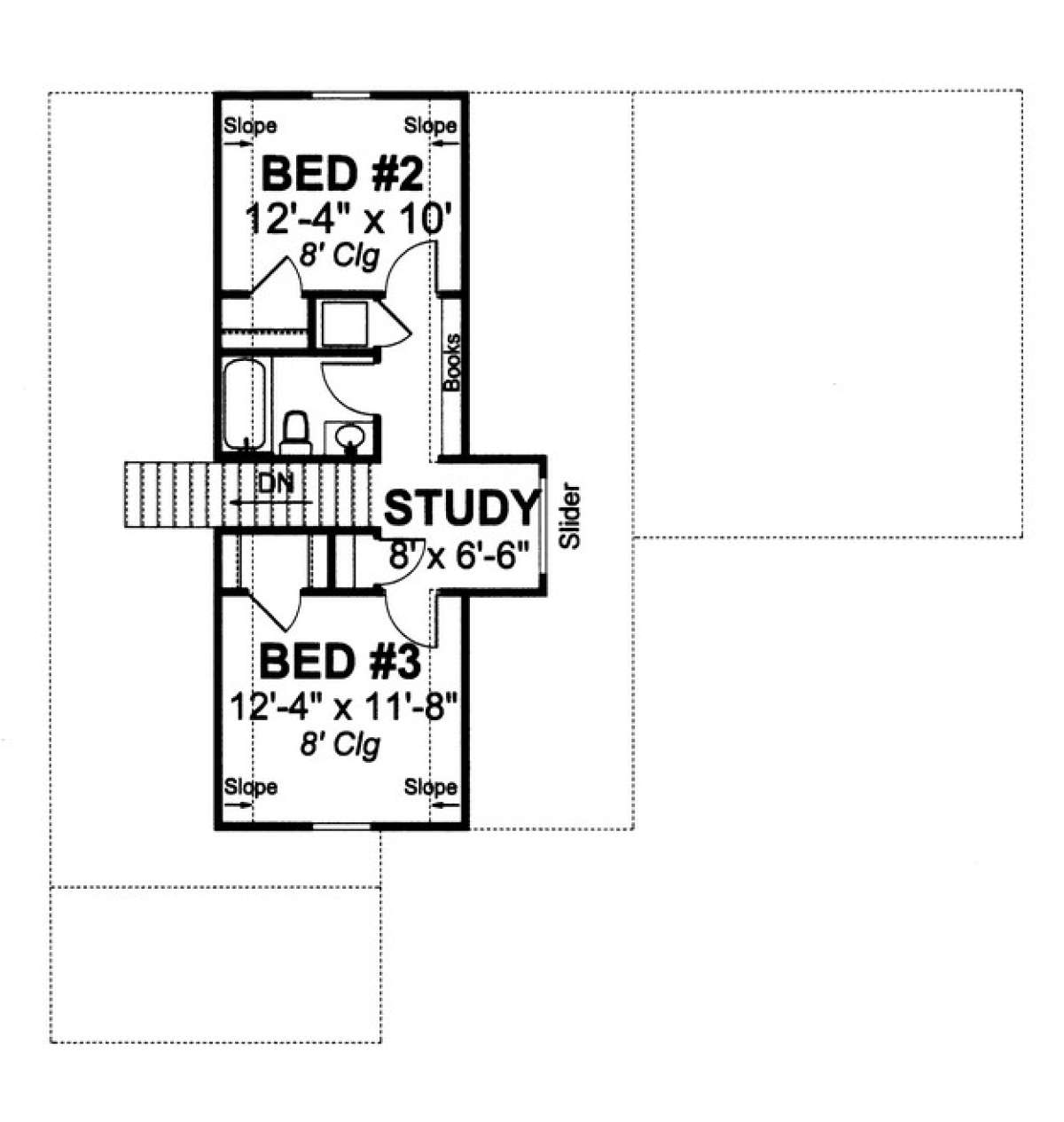

  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A charming Bungalow house plan features a nice compilation of timeless exterior elements designed to add curb appeal and visual value to this iconic home style. Great sight lines are highlighted with double overhead gables and a rear dormer slider addition; open railing, brick pillars and large tapered beams add classic design features to the home as well. The front covered porch is perfect for greeting family and friends and the three large windows add visual interest to the home’s exterior. There are approximately 1,714 square feet of usable living space located in the home’s interior which incorporates three bedrooms and two plus baths into the footprint. The home is ideally suited for a narrow or small property lot with its respective width and depth dimensions of 50 feet and 49 feet. The interior of the home is accessed off the front covered porch and opens onto the oversized living space which features 9’ ceiling heights. From the living room there is an adjacent dining room, measuring in excess of 12’ x 12’ and offering a second set of triple window views creating a bright and airy space. The rear positioned kitchen is highlighted with a center island; perfect for prep and work space, a peninsula bar with additional seating options and a separate pantry. There is a pass-thru from the kitchen to the enclosed laundry room along with access to the two car front entry garage. Both the laundry room and garage feature outdoor entry/exit points, great for ease of clean-up and maintaining a tidy home environment. There is a main level master suite located at the rear of the home offering privacy and an oasis for relaxation and comfort. The master bedroom features generous floor space and there is an attached master walk-in closet. The master bath offers dual vanities, a separate shower and a large soaking tub. A half bath for guests’ and a closet for linens or storage rounds out the main floor living space.

The ascending second story staircase grants access into the open study where a large slider window drenches the space with sunlight and a built-in bookcase lines the hall wall. There are also two bedrooms and a shared hall bath on this floor. The second bedroom features good floor space, a walk-in closet while the third bedroom is slightly larger; also has a walk-in closet and is separated from the other bedroom by the staircase and bathroom, perfect for privacy. The hall bath features a vanity space, toilet area, a tub/shower combination and there is an adjacent hall linen closet. This house plan is highlighted with an efficient and functional floor plan, a charming exterior and fits a multitude of property lot dimensions.
