Country Plan 4848-00040

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,675
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 64'
Depth 41'

Floorplan Drawings

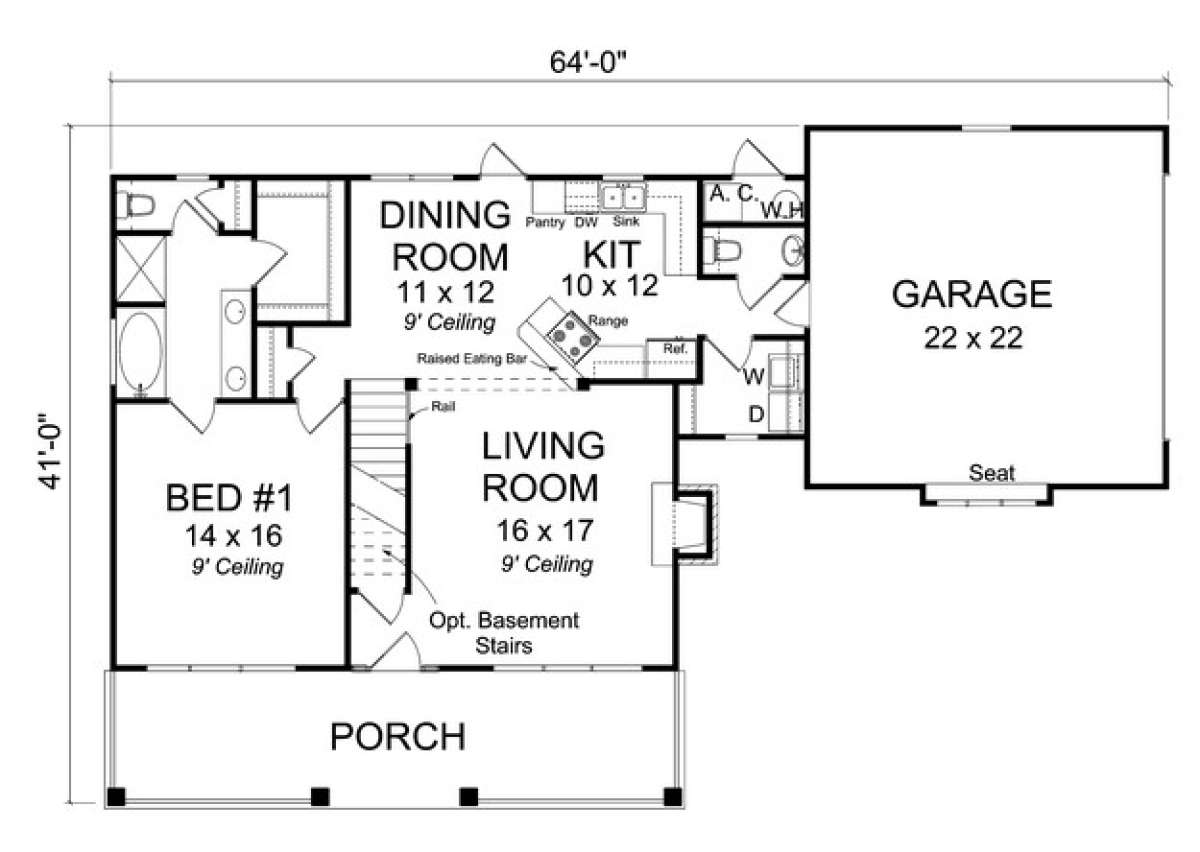

Floorplan 1
Floorplan 1 for House Plan #4848-00040

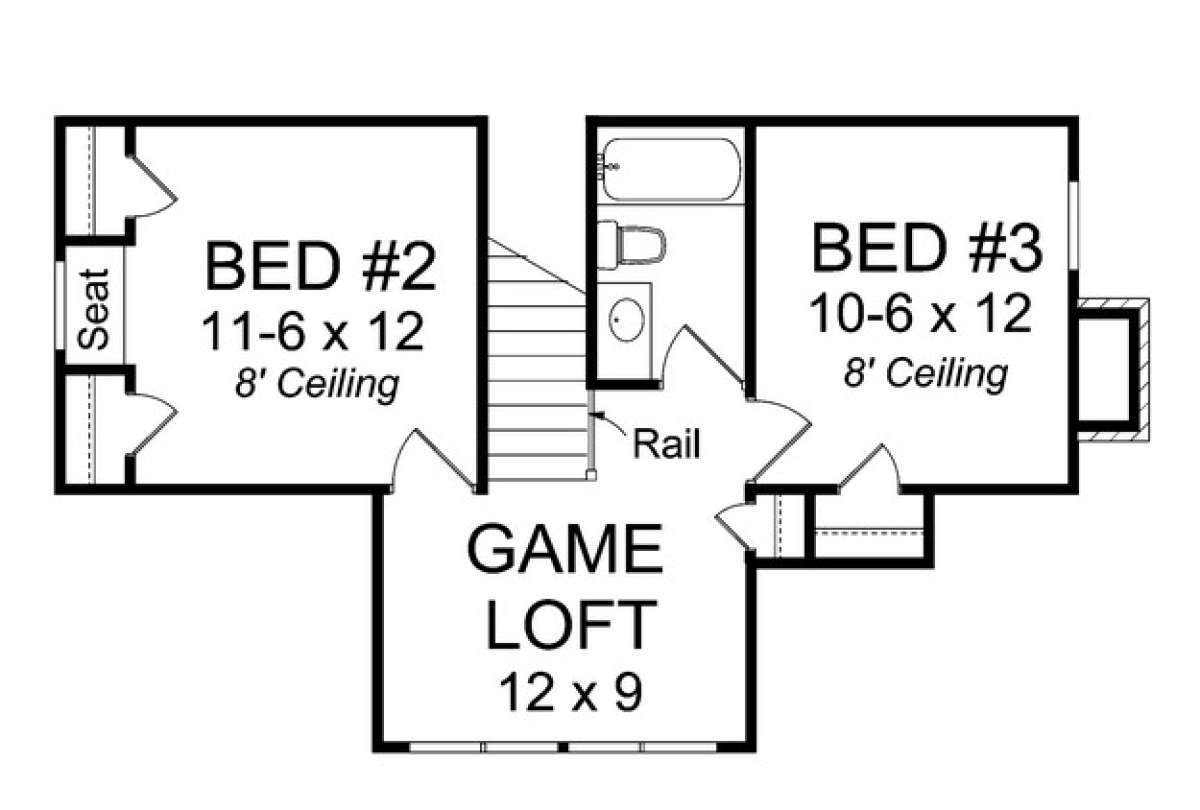

Floorplan 2
Floorplan 2 for House Plan #4848-00040


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

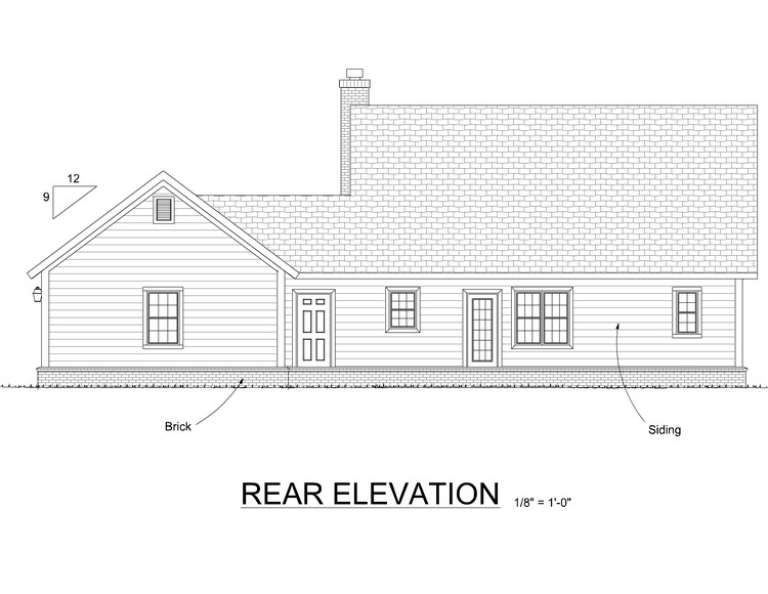

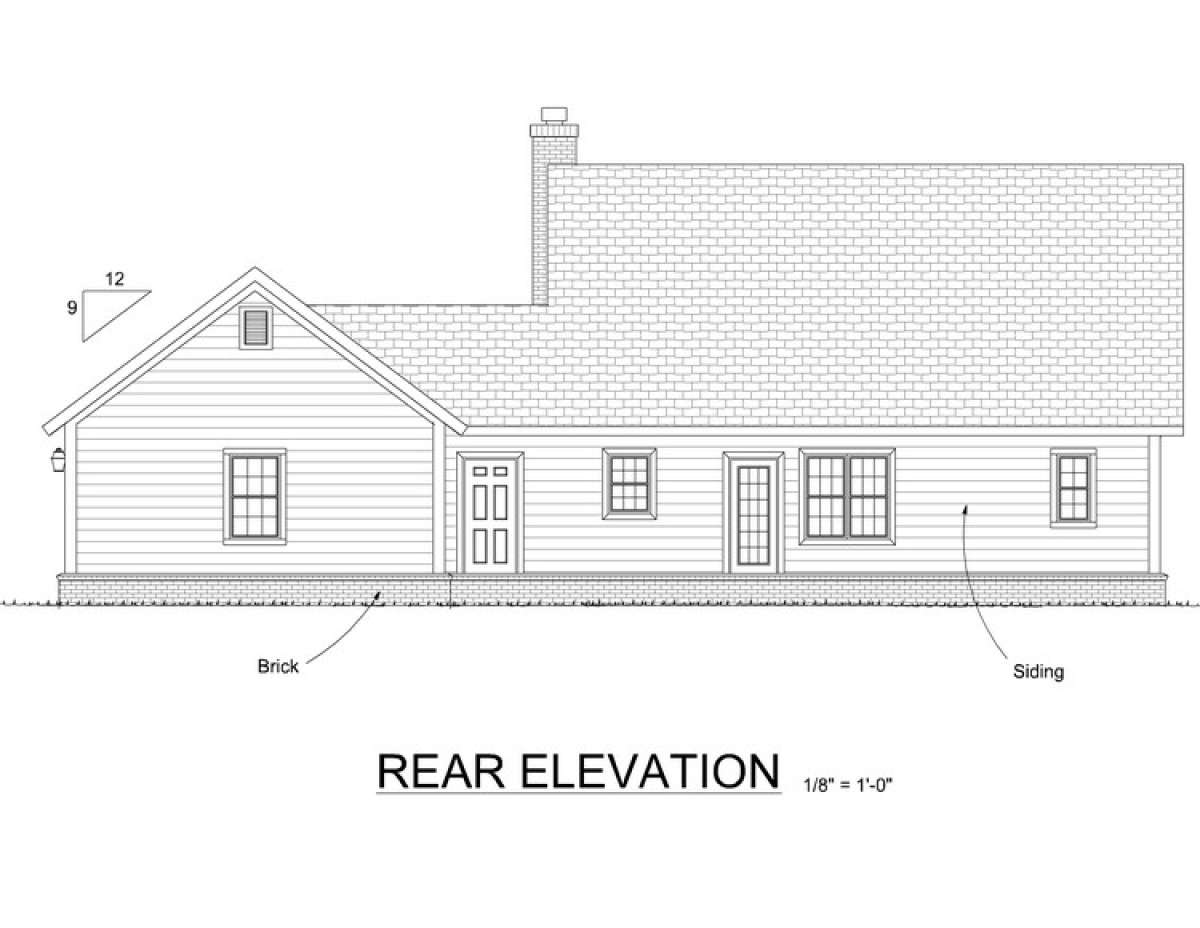

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This iconic Country home pursues excellence in home design with aesthetically pleasing exterior elements. A gabled dormer, an expansive front covered porch with wide columned beams and exterior brick chimney combine to offer a striking exterior façade. A light filled interior combines three bedrooms and two plus bedrooms into approximately 1,675 square feet of living space. Entering the home from the front covered porch is a spacious living room that features a handsome fireplace, 9’ ceiling heights and is open to the dining room and kitchen. An angled breakfast bar, separate pantry and dining access to the rear of the home are highlighted. The two car garage featuring an additional 501 square feet of space is perfect for storing vehicle and other gear. The laundry room is conveniently located off the garage for ease of clean-up and a tidy home and there is a powder room for guests, as well.


The main level owner's suite features a generously sized bedroom with a triple wall of windows. Dual vanities, a separate shower, a garden tub with views and a compartmentalized toilet line the primary bath and there is an oversized walk-in closet at the rear of the bath. Ascending the second story staircase is a gaming loft; this space measures 12’x9’, has plentiful window views and could be used as a homework station or playroom for the children as well. Two spacious bedrooms envelop the loft space; bedroom two has double walk-in closets which flank the window seat while the third bedroom has a walk-in closet. There is a shared hall bath with large vanity and a linen closet for the bedroom’s use. This family friendly home has a beautiful exterior and an interior which boasts of great entertaining space and private family spaces.
