Southern Plan 4766-00030


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,885
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 72' 8"
Depth 51' 8"

Floorplan Drawings

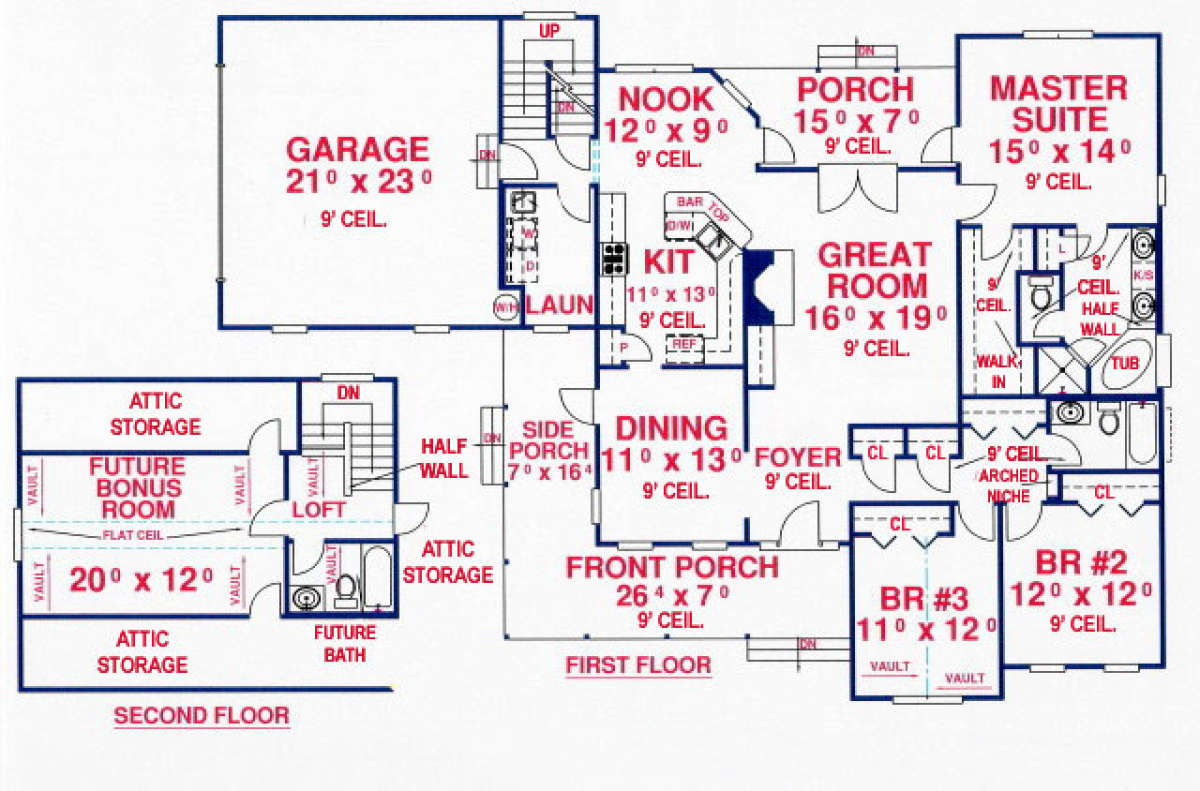

Floorplan 1
Floorplan 1 for House Plan #4766-00030

What's Included in these plans?

  • Foundation Plan at 1/4" scale.
  • Dimensioned and detailed Floor Plans at 1/4" scale.

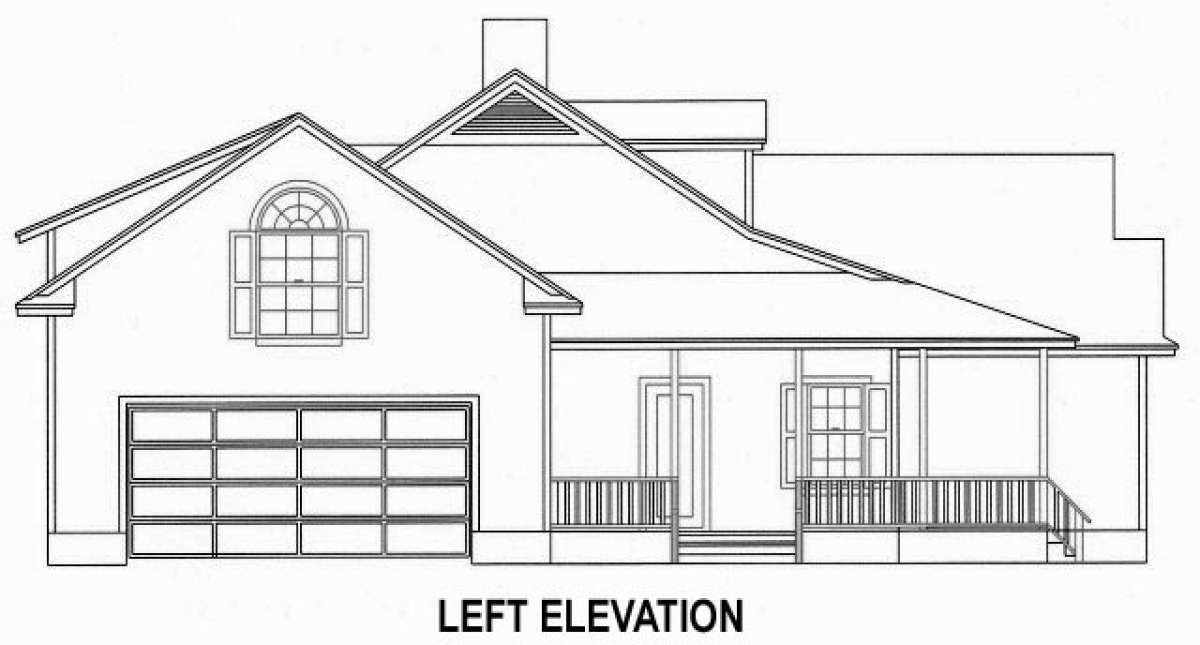

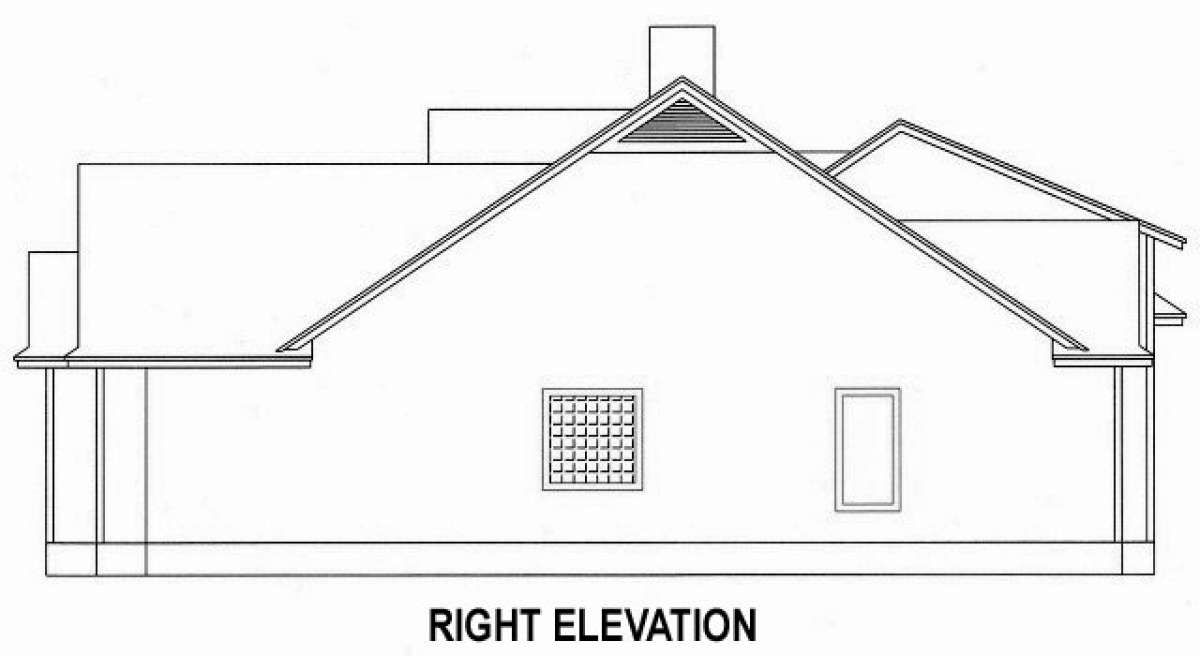

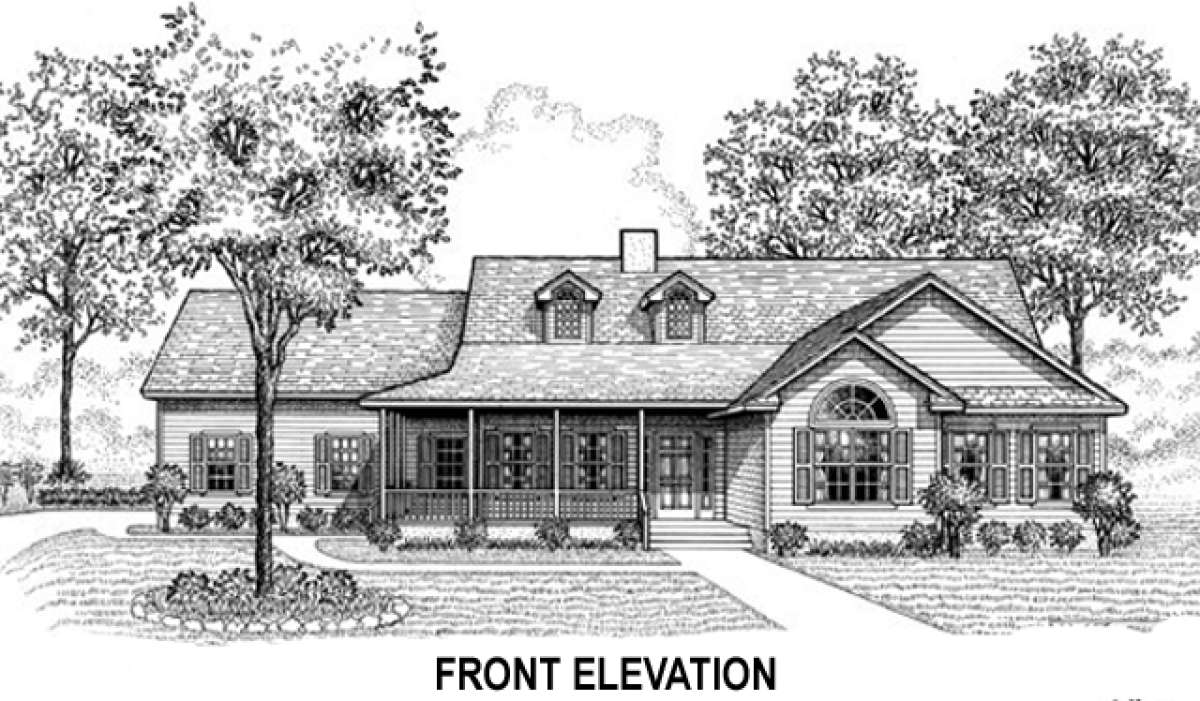

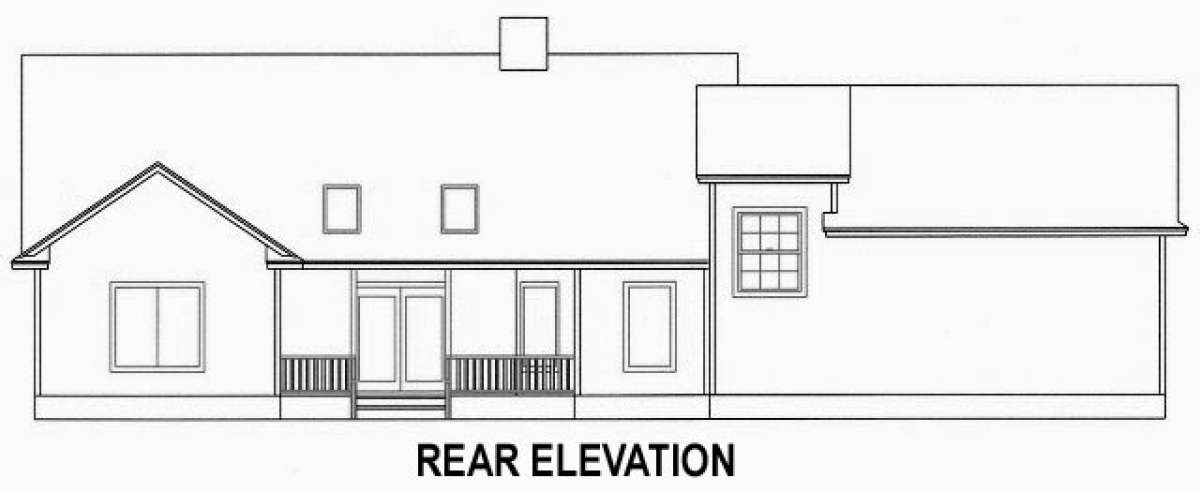

  • Complete Front, Sides and Rear Exterior Elevations at 1/4" scale.
  • Roof Plan at 1/4" scale.
  • Seperate Electrical Plans (not on Floor Plans) at 1/4" scale.
  • Typical Wall Section (exterior wall) at 3/4" scale.
  • Building Sections, Foundation Details, Trim Details, Cabinet Elevations, etc. when available or necessary for construction.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Southern Ranch styled home is gorgeously designed both on the exterior and interior with an outstanding array of meaningful architectural design elements which completely define the essence of a family home. The façade of the home features a compelling arrangement of simple, yet effective, exterior elements which offer an inviting and welcoming façade brimming with curb appeal and a place to greet family and friends. This sprawling Ranch home is composed of horizontal siding, double window dormers, decorative trim and a Palladian inspired window feature within the gables and an amazing front covered porch. There are approximately 1,885 square feet of interior living space which incorporates an open concept, three bedrooms and two baths into the space. There is an optional bonus room, measuring 20’x12’ that features vaulted ceilings, a full bath, loft space and surrounding attic space; this would be a great addition for a fourth bedroom, multi-purpose family room or home office. Additionally, the home’s drawings include a slab, crawl space or basement foundation; the latter being the superior choice for future expansion possibilities. The front covered porch extends to offer a side porch as well and there are dual access points of entry/exit off both areas. The main entrance off the porch opens onto the spacious foyer with 9’ ceiling heights and double coat closets while simultaneously opening onto the formal dining room and subsequent great room where there is a warming fireplace and French door access onto the rear porch. The dining room features surrounding window views and access onto the front covered porch as well as a pass-thru to the family friendly kitchen. The kitchen is highlighted with a separate pantry and a raised breakfast bar for casual dining space before opening onto the breakfast nook. The breakfast nook is encased in window views and features access onto the rear covered porch. The two car side loading garage is conveniently situated and offers direct access to the large family room and upper level staircase.
There are two family styled bedrooms and a bath off the minimal front hallway; the bedrooms are spacious, one is vaulted and they each have generous closet space. There is a hall linen closet and a shared hall bath for the bedroom’s use. The master retreat is situated at the rear of the home for privacy and features a large bedroom with plentiful window views, private access onto the rear porch and an enormous, attached walk-in master closet. The en suite master bath is elegantly designed with dual vanities, an enclosed linen closet, a separate shower and a corner garden tub. This home features a spectacular exterior façade and an interior floor plan that is fully functional, comfortable and boasts of unlimited expansion possibilities.
