Southern Plan 4766-00011


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,510
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 47' 10"
Depth 53'

Floorplan Drawings

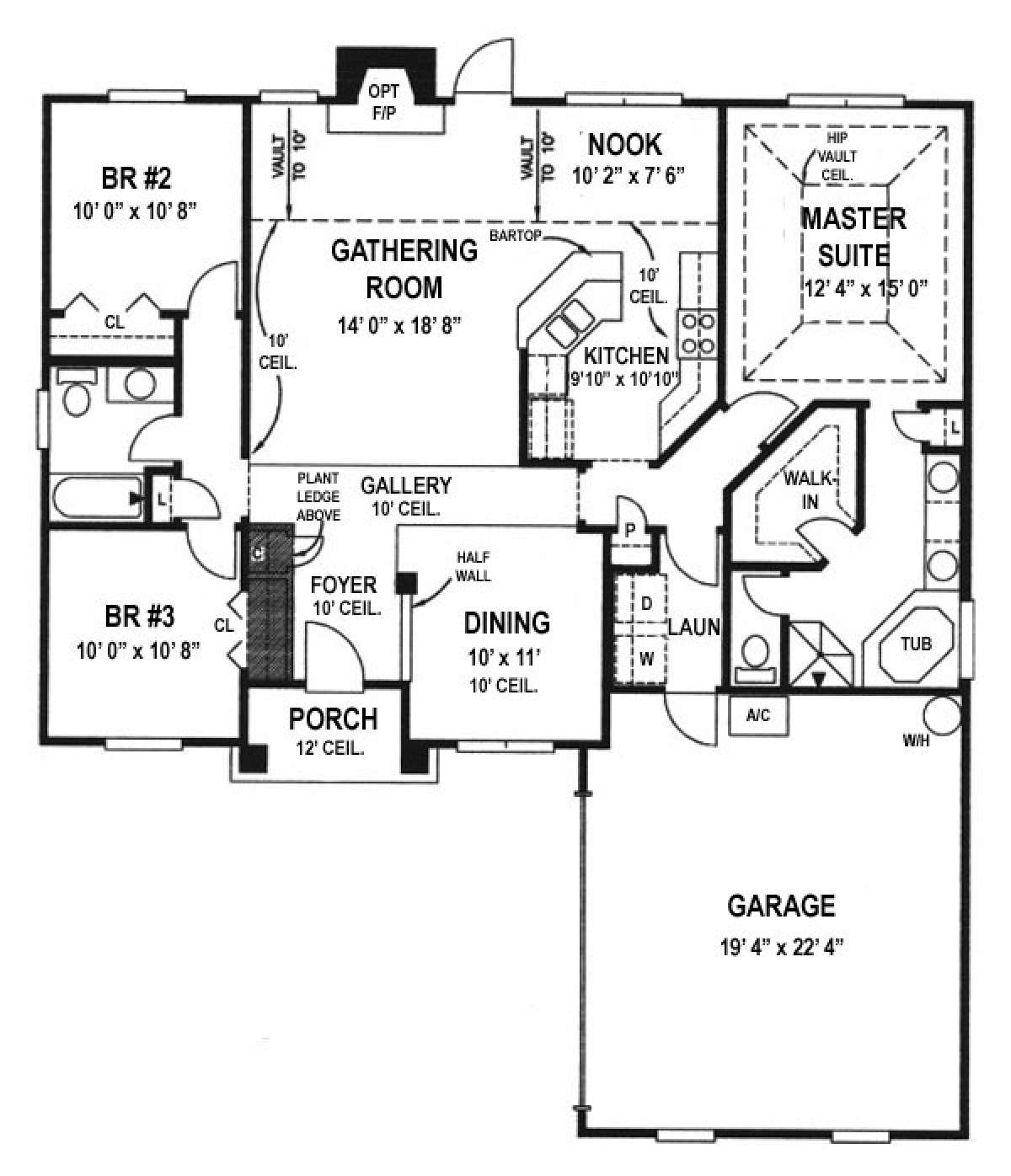

Floorplan 1
Floorplan 1 for House Plan #4766-00011

What's Included in these plans?

  • Foundation Plan at 1/4" scale.
  • Dimensioned and detailed Floor Plans at 1/4" scale.

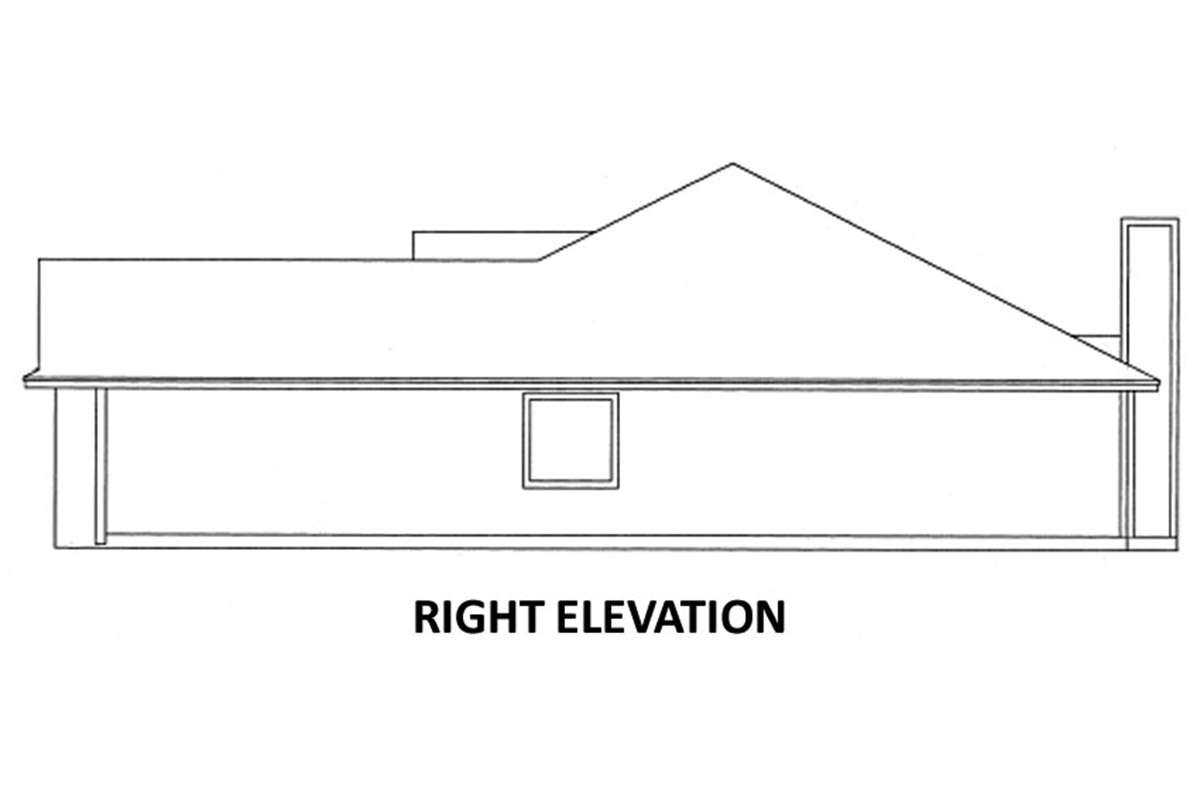

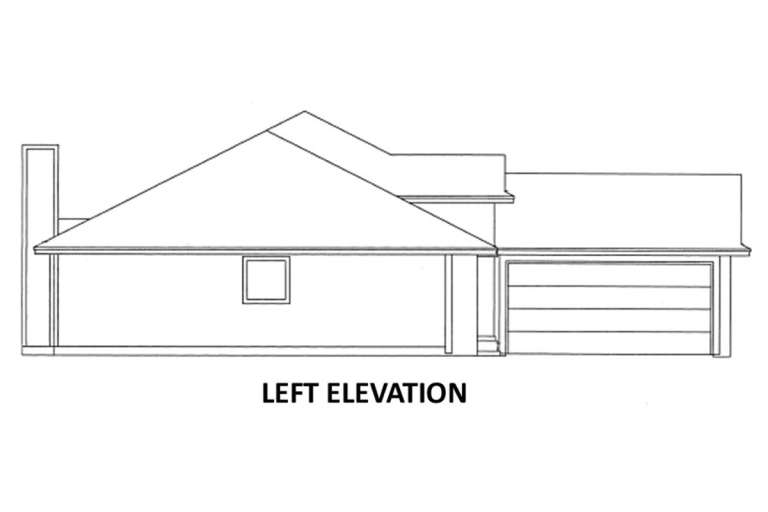

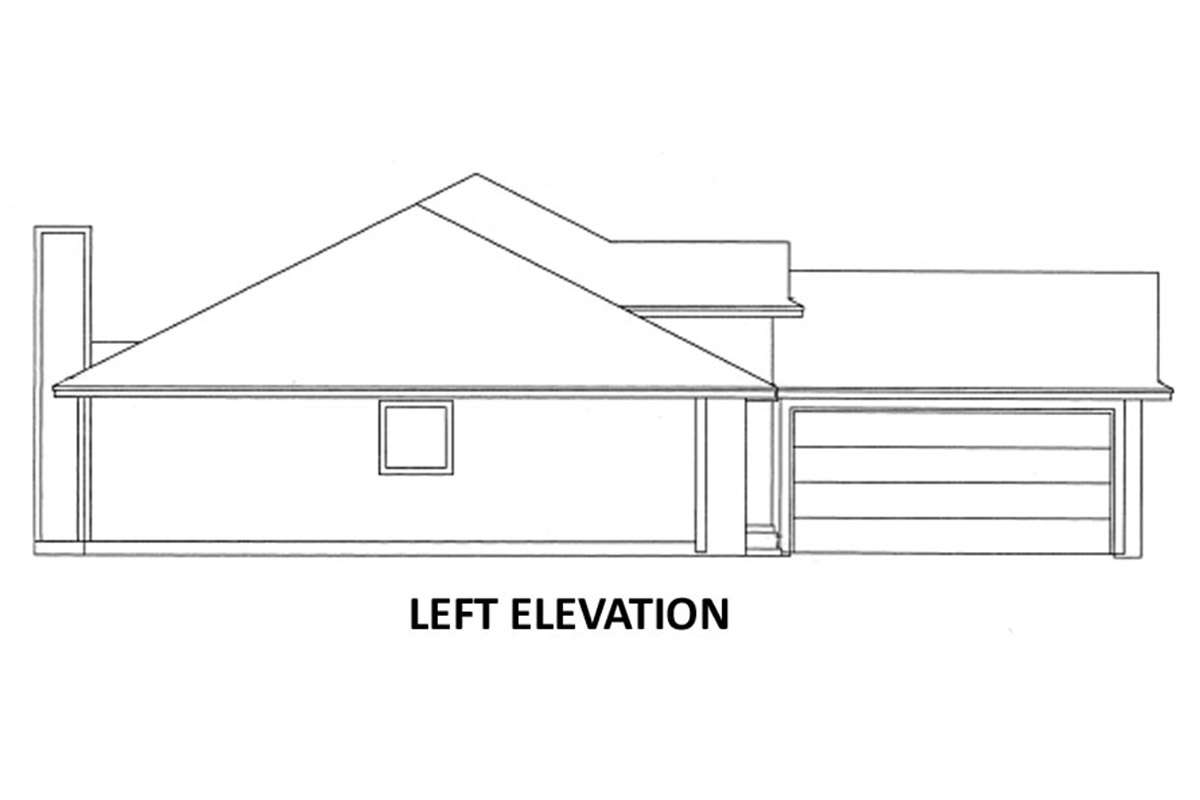

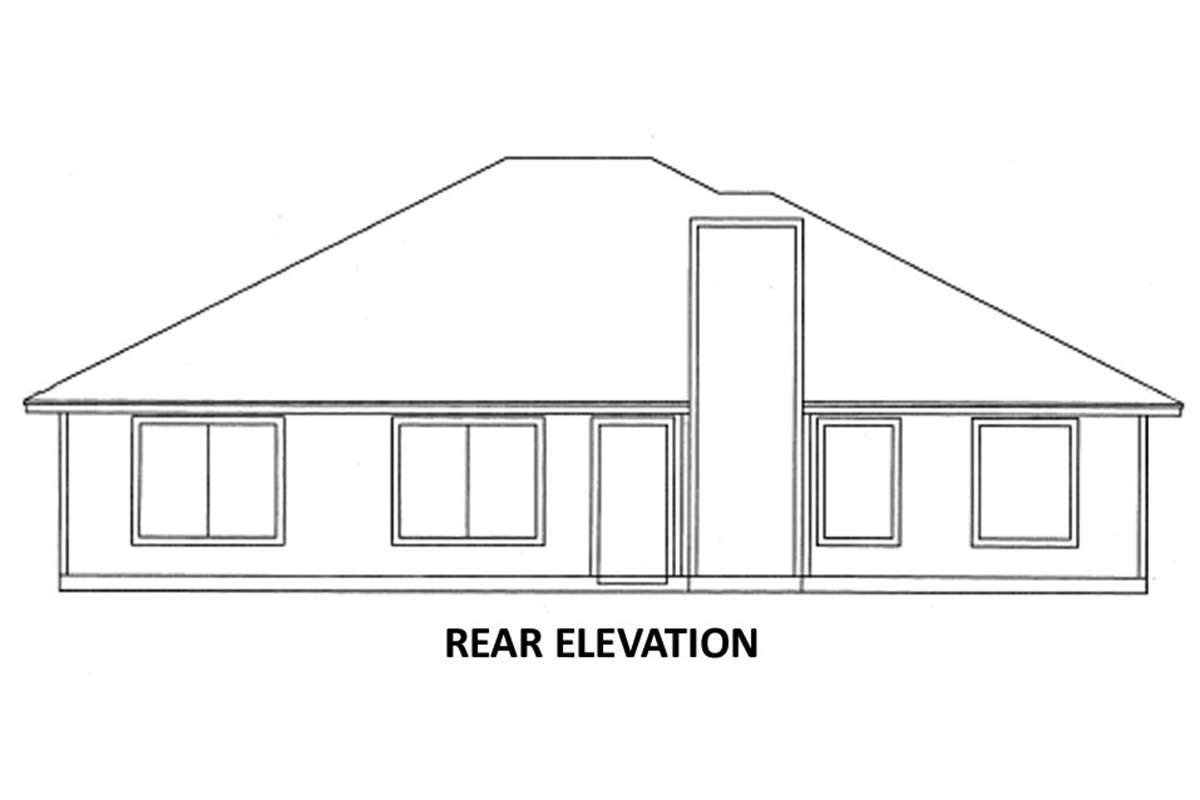

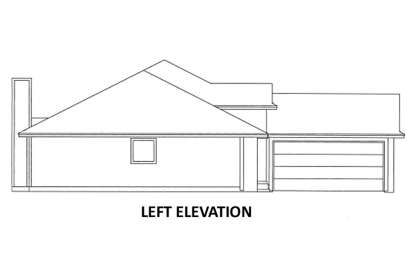

  • Complete Front, Sides and Rear Exterior Elevations at 1/4" scale.
  • Roof Plan at 1/4" scale.
  • Seperate Electrical Plans (not on Floor Plans) at 1/4" scale.
  • Typical Wall Section (exterior wall) at 3/4" scale.
  • Building Sections, Foundation Details, Trim Details, Cabinet Elevations, etc. when available or necessary for construction.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

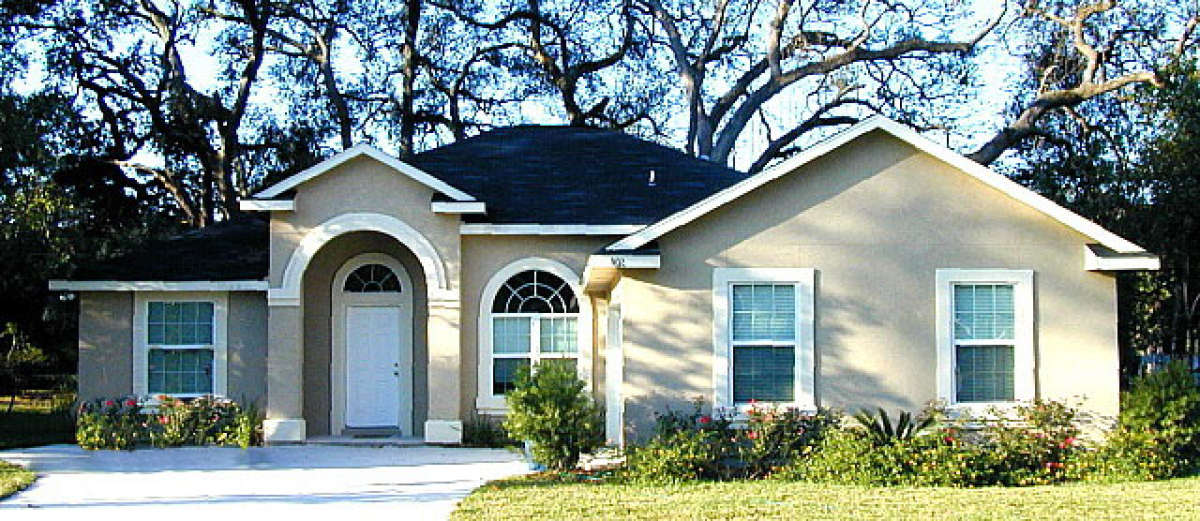

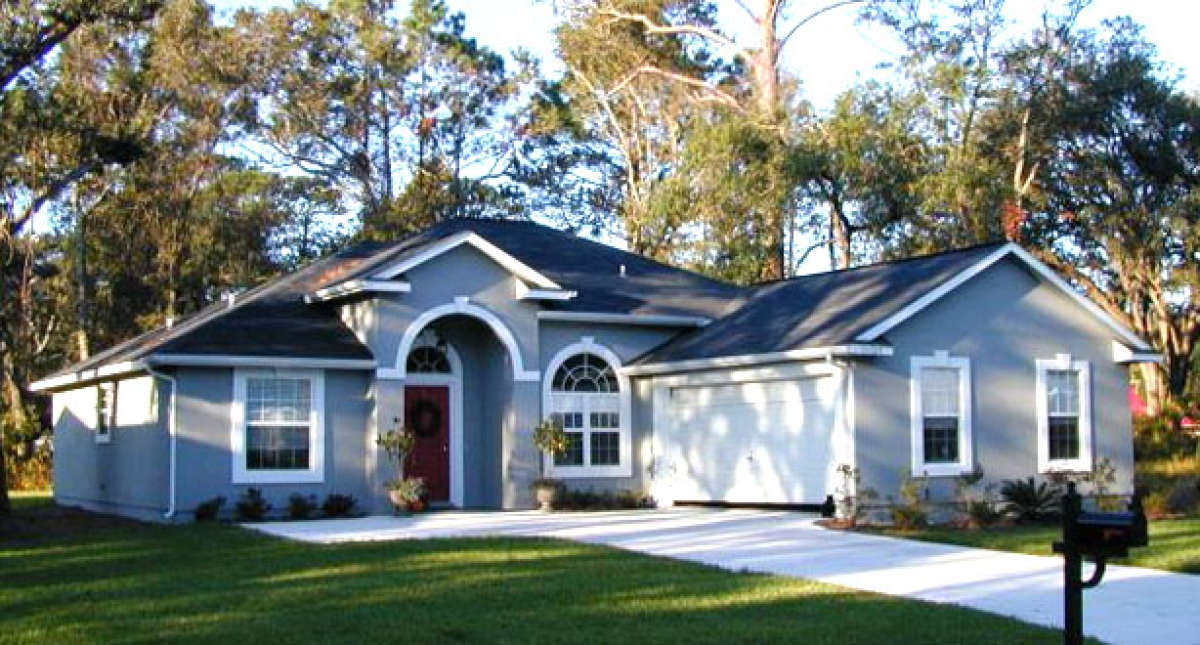

A smooth stucco exterior, courtyard entry and a soaring entrance are highlighted on the façade of this Southern house plan. There is a Palladian style window view on the front exterior and numerous additional window views along with wide eaves that nicely finish the home’s exterior. The interior floor plan features three bedrooms and two baths in approximately 1,510 square feet of living space. A large open floor plan is highlighted with ten foot ceiling heights and the split bedroom plan offers privacy to the homeowner’s master suite. The two car courtyard entry garage is spacious and leads directly into the interior laundry room; perfect for easy maintenance of a tidy home. The soaring front entrance adds drama and volume to the home’s presence and there is a large foyer with an overhead plant ledge to greet you once you step into the home’s interior. Flanking the foyer is the formal dining room which features double front window views, a columned beam and the gathering room lies on the other side of the gallery hallway. The gathering room is spacious and vaults at the rear section while including rear yard access and an optional fireplace. Running alongside the rear vault of the great room and adjoining the kitchen is the casual breakfast nook which is bright and airy; perfect for family meals. The grand kitchen is highlighted with an angled breakfast bar top, plenty of additional counter and cabinet space and the separate pantry is situated nearby. The split bedroom plan offers convenience and privacy for the homeowner’s suite where there is a large master bedroom with a gorgeous hip vault ceiling accent and rear double window views. The master bath features a corner garden tub, a separate shower, dual vanities, a private water closet and an enclosed linen closet. The large master walk-in closet lies directly off the bath for privacy and easy access. The second bedroom is located on the opposite side of the home and offers good floor space, a window view and plentiful closet space while bedroom three features an identical set up. Before accessing the shared hall bath where there is a large vanity, toilet area and a tub/shower combination, there is a linen closet. An optional basement foundation is available whereby additional square footage could be added to the home’s interior as family needs grow. This home, while compact, offers expansion space, a lovely exterior and maximizes the square footage readily available making it a family friendly option.
