Luxury Plan 3978-00006

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,493
Beds 6
Bath 5
1/2 Baths 2
Car 3
Stories 2
Width 102'
Depth 92'

Floorplan Drawings

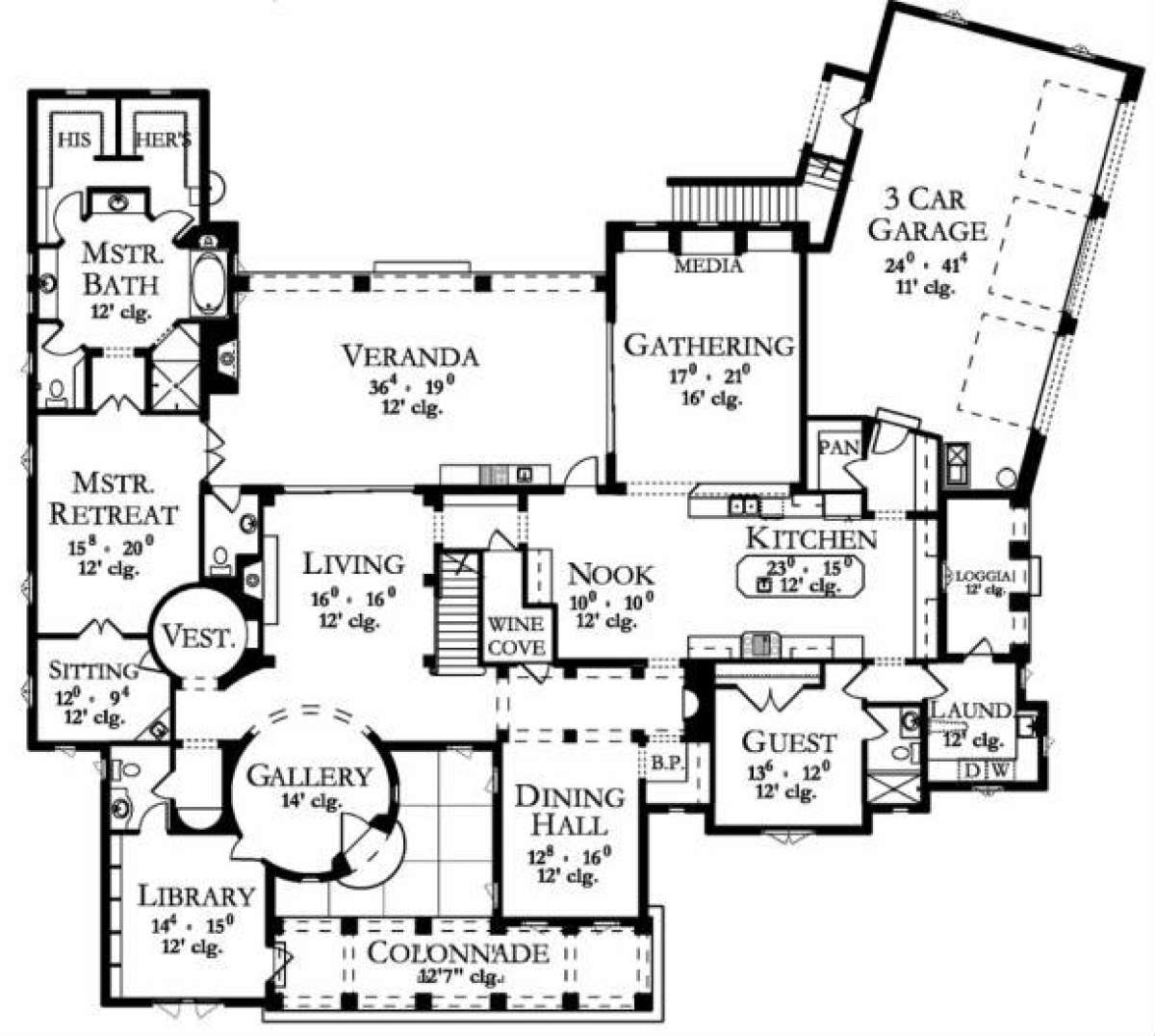

Floorplan 1
Floorplan 1 for House Plan #3978-00006

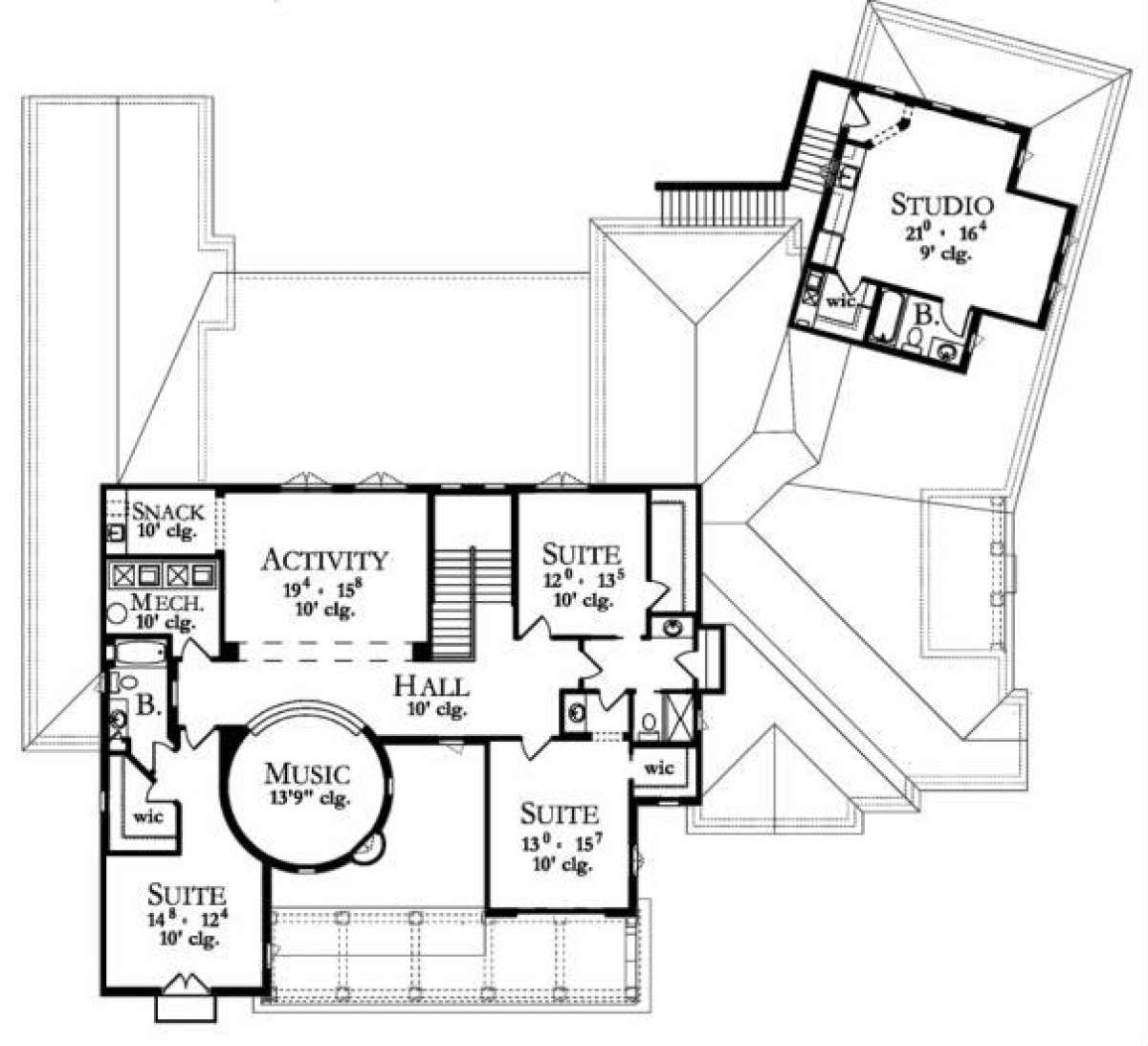

Floorplan 2
Floorplan 2 for House Plan #3978-00006


What's Included in these plans?

  • Cover Sheet with rendering and index of plans
  • Foundation Plan
  • Elevations
  • Floor Plans
  • Roof Plan
  • Building Sections where applicable
  • Details
  • Interior Elevations including kitchen and bathrooms
  • Roof Framing Plan
  • Floor Framing Plan
  • Electrical Plan



What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

*This Plan Cannot Be Built in Zip Code 32814*
