Mountain Plan 5738-00011

EXCLUSIVE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,910
Beds 5
Bath 5
1/2 Baths 2
Car 3
Stories 2
Width 101' 5"
Depth 103' 9"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5738-00011
Floorplan 2

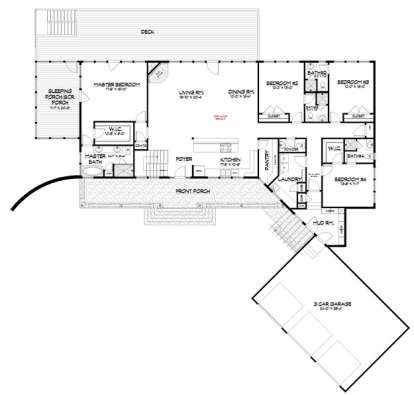

Floorplan 2 for House Plan #5738-00011


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Heated/Finished square footage calculations from outside of exterior studs, does not include decks, porches, garages, unfinished basements, or attic space.
  • Foundation Plan 1/4"=1'-0" (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level 1/4"=1'-0"  (includes door and window locations and sizes, all dimensions, room sizes,  location of cabinetry and built-ins)
  • Floor Framing plans at each framed floor level 1/4"=1'-0" (includes floor framing member sizes and spacing and interior bearing walls and posts)
  • Exterior Elevations  1/4"=1'-0"  (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section  1/4"=1'-0"  (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Interior Elevations 1/4"=1'-0"  (Cabinet elevations at bathrooms, kitchen and laundry rooms) -Roof Plan 1/4"=1'-0"  (includes "birds eye" view of roof with roof slopes, valleys, ridges, saddles, crickets, and locations of gutters and downspouts)
  • Electrical Plans at each finished level 1/4"=1'-0"  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details  Scale varies (includes necessary foundation, framing, and trim and finish details)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

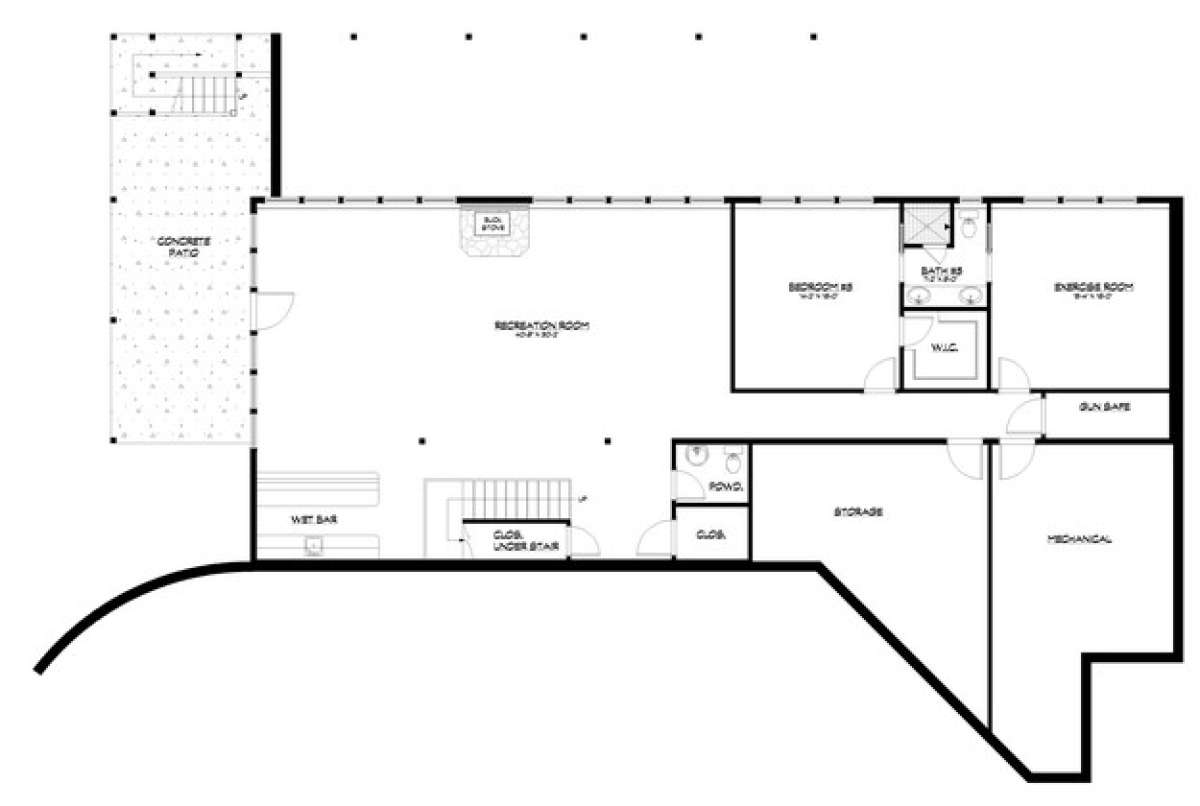

An abundance of window views decorates this sleek, exclusive Mountain house plan making it ideal for a view property lot. In addition to the generous use of glass, the home features passive solar design elements with the possibility of solar power and water heating. The sprawling house design is highlighted with approximately 4,910 square feet of living space which includes five bedrooms and six bathrooms. This large floor plan is well suited for gracious entertaining and provides plenty of private space for the family. The home is situated on a finished basement foundation which provides a fantastic solution to a challenging property lot and the need for plenty of space. There is a three car side entry garage featuring great vehicle and storage space. Both the home and garage have overhead shed dormers for aesthetics and functional reasons which add to the beauty and efficiency of the home. The lower level of the home offers a large recreation room with a wet bar, buck stove, and outdoor access onto the patio. A complete bedroom suite with large walk-in closet and full bathroom with dual vanities is also available as well as an exercise room, loads of storage, and a guest powder room.

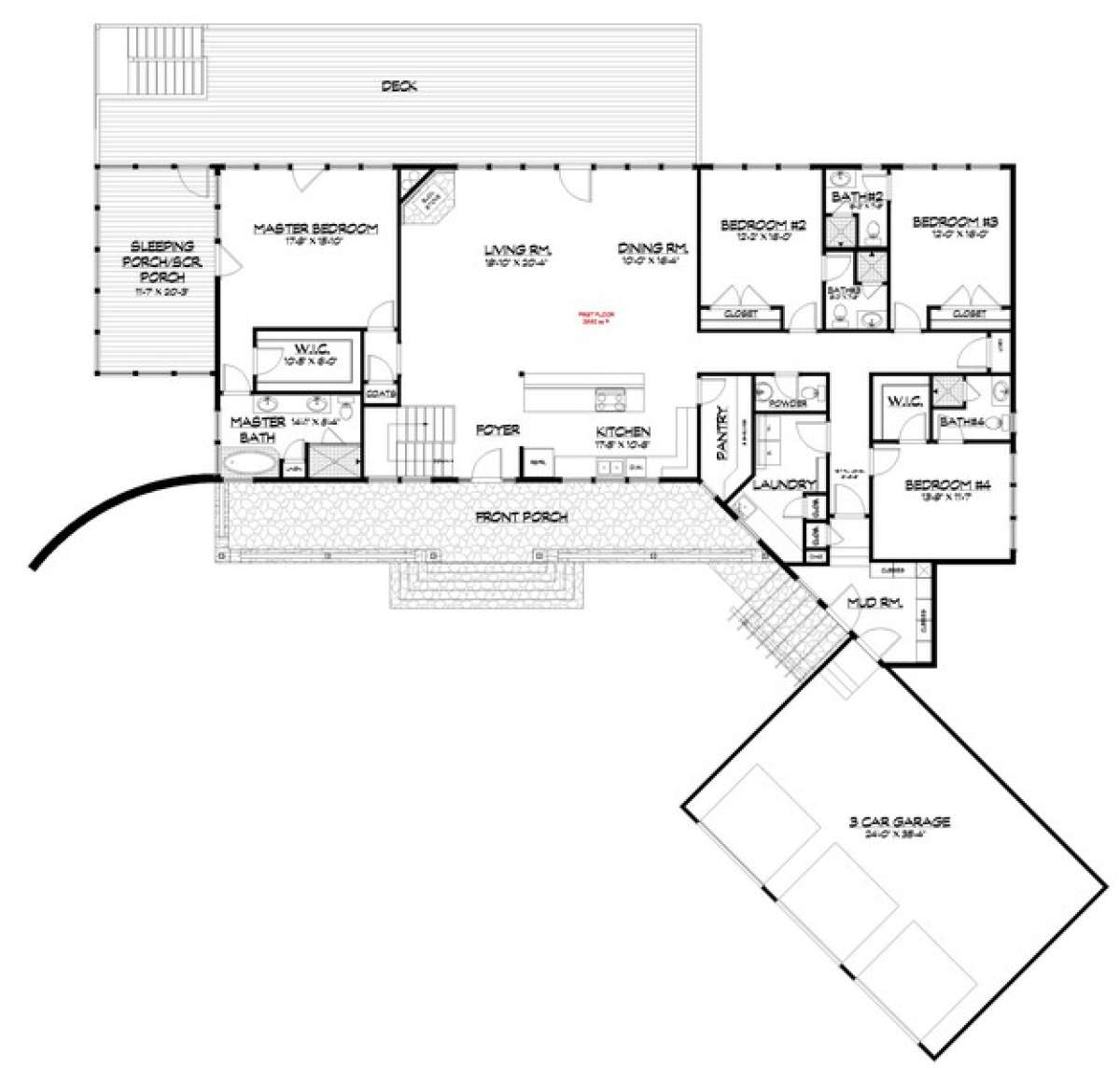

The expansive front covered porch leads to the main living floor where there is an open floor plan and split bedroom plan. The foyer houses the double-sided staircase and opens to reveal the main common rooms which include a grand kitchen and spacious dining and living room. The kitchen showcases a large center island with breakfast bar and a huge walk-in food storage pantry. The dining and living room are both drenched with sunlight from the rear wall of windows and there is a handsome corner fireplace located in the living room. The outdoor deck is massive and there is an adjoining side screened porch which is perfect for sleeping, entertaining, and relaxing together as a family. The master suite has private access onto the deck and screened porch as well as a rear window wall providing loads of natural sunlight. There is a large master walk-in closet and the en suite is an elegant mixture of modern amenities and conveniences; there are dual vanities, a separate shower, garden tub, and a private toilet area.

The opposite side of the home features three additional bedrooms, three and a half bathrooms, and the laundry room as well as the mudroom. All three bedrooms are suites with their own private full bathrooms and two bedrooms feature plentiful closet space while the fourth bedroom offers a walk-in closet. The laundry room is super spacious with lots of counter space, a sink area, and a closet. The mudroom is ideal for dropping off book bags, outer gear, and other assorted items before entering the home’s main floor. The unique features of this exclusive Mountain house plan provide a modern clean exterior with massive amounts of glass inserts for amazing view potential and a large floor plan for families who love to entertain as well as plenty of private space.
