Craftsman House Plan 348-00241

Sq Ft2,789
1/2 Baths1
Width84' 0"
Depth63' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

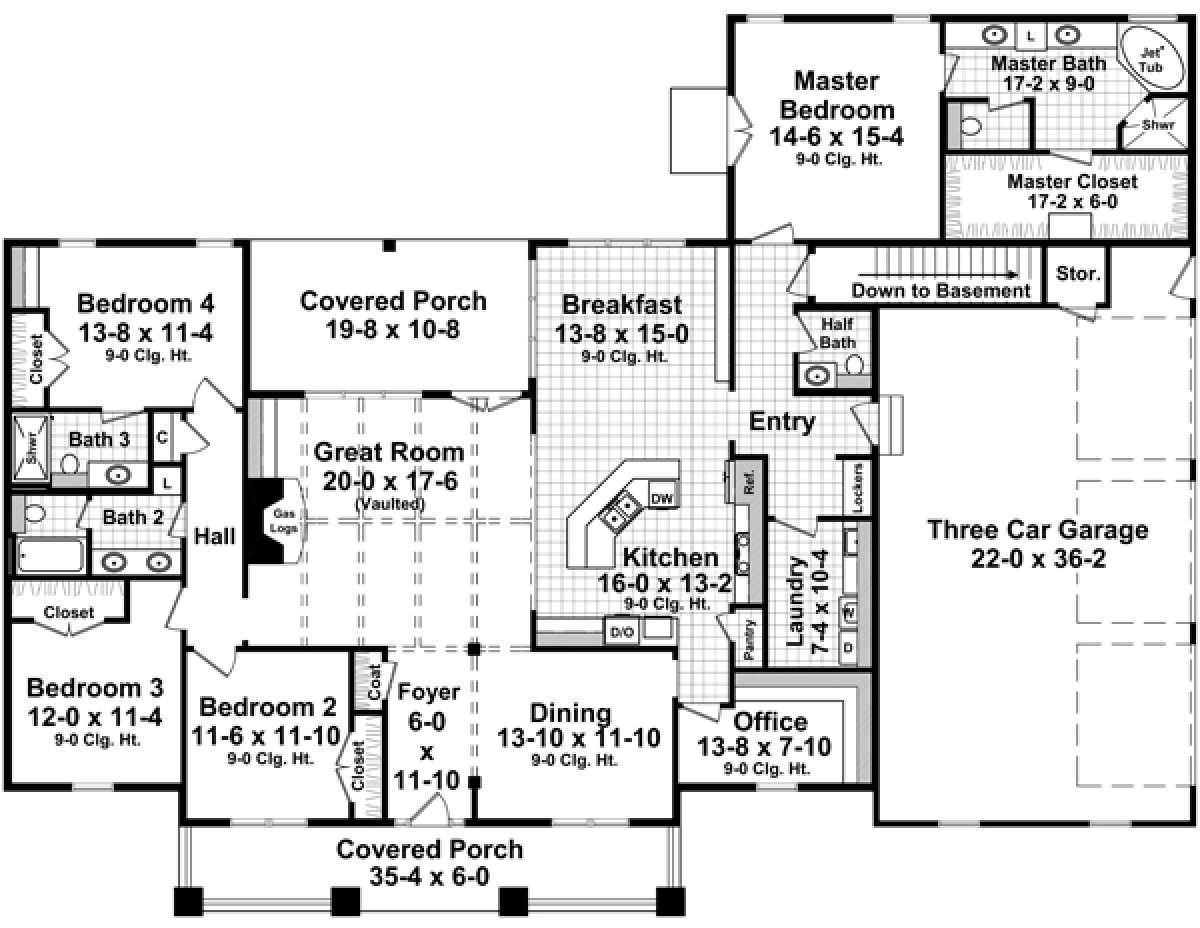

Main Floor for House Plan #348-00241
Main Floor
Main Floor for House Plan #348-00241

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

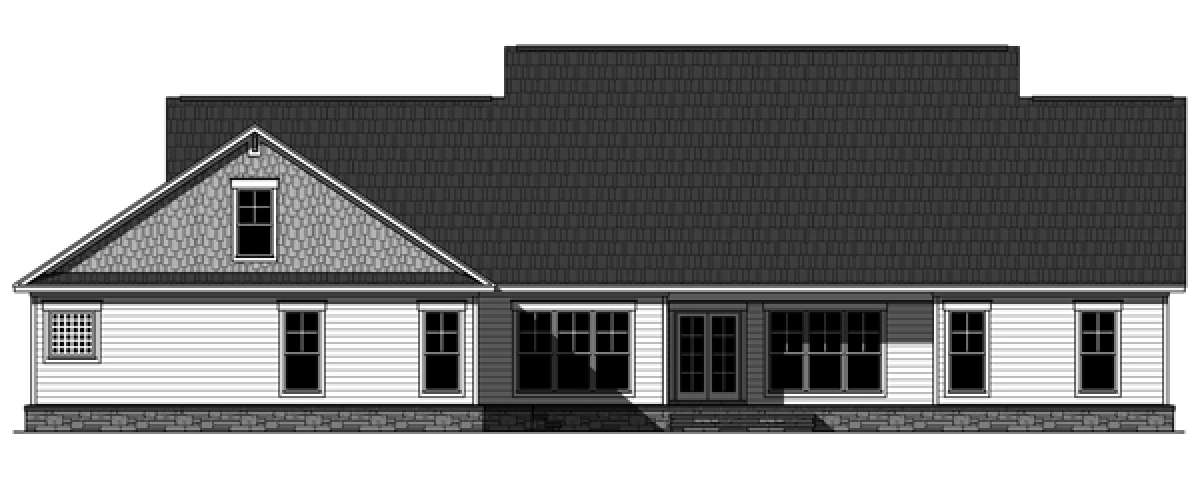

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

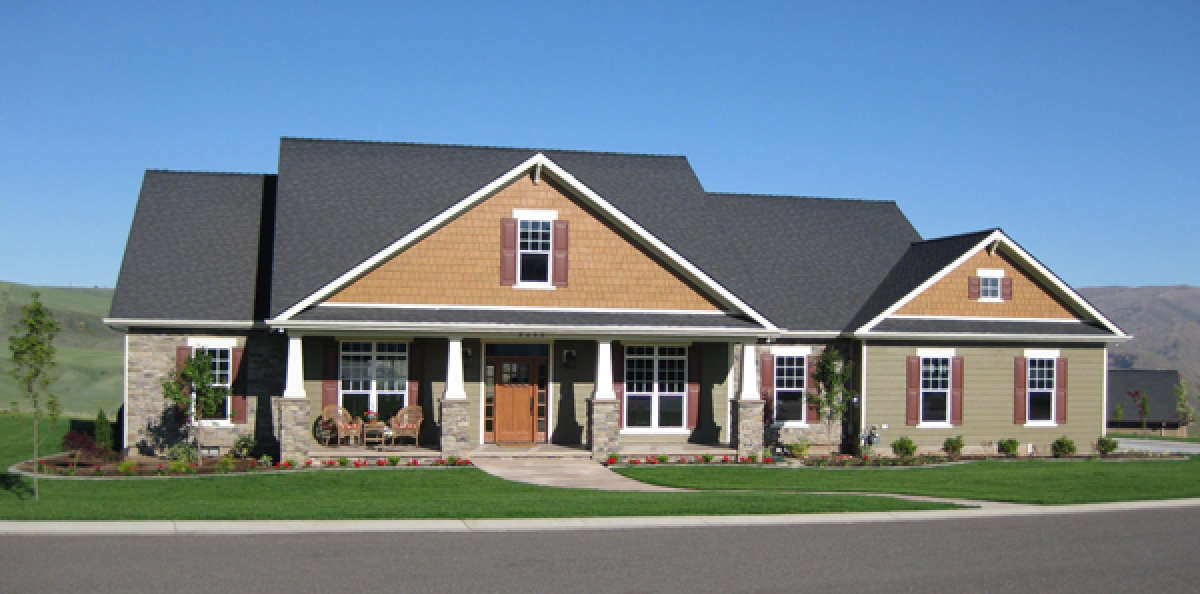

This traditional Ranch styled home has gorgeous exterior elements consisting of cedar shakes, stone work and horizontal siding. Combined with an expansive front covered porch, this home features an attractive and comfortable exterior façade. The covered porch stretches out in excess of 35’x6’, perfect for relaxing and greeting family and friends. There are approximately 2,789 square feet of interior living space which incorporates four bedrooms and three plus baths into the home. A huge three car side loading garage features great vehicle space and there is additional storage space as well. The front foyer houses a coat closet and opens onto the formal dining room where there is an overhead trey ceiling and plenty of dining space for special occasion family meals. The grand kitchen is highlighted with an angled bar, a separate pantry and opens onto the casual breakfast room and great room. The breakfast room is surrounded by window views for a bright and airy space and the great room features vaulted ceilings, a gas log fireplace and access onto the rear covered porch. There is a flex space which would be perfect for a home office or playroom, a huge utility room, a half bath and lockers adjacent to the garage for convenience.

The split bedroom plan features three family size bedrooms off the main hallway of the home. Each bedroom enjoys good floor space, great window views and generous closet space. The fourth bedroom is highlighted with a private full bath and there is a shared hall bath with double vanities and linen closet for bedrooms two and three. The master suite is situated at the rear of the home for privacy and offers a spacious bedroom with 9’ ceiling heights and French door access to the outdoors. There is a huge master bath with dual vanities, a corner jetted tub and separate shower before accessing the massive walk-in master closet. This family friendly home has it all; great interior space, excellent outdoor space and a fully functional and versatile open floor plan.
