Traditional Plan 348-00192

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,805
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 71' 4"
Depth 70' 2"

Floorplan Drawings

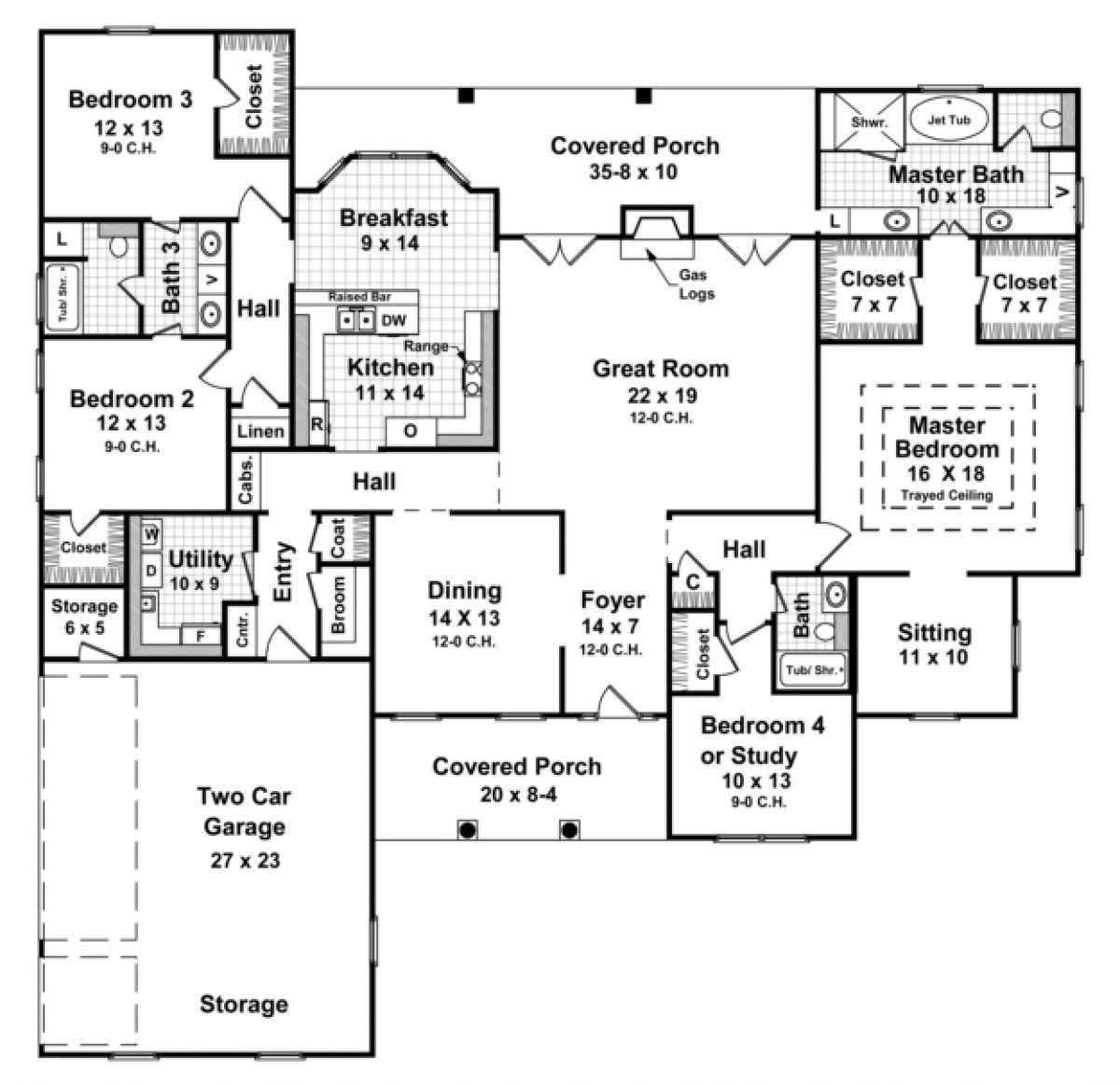

Main Floor
Main Floor for House Plan #348-00192

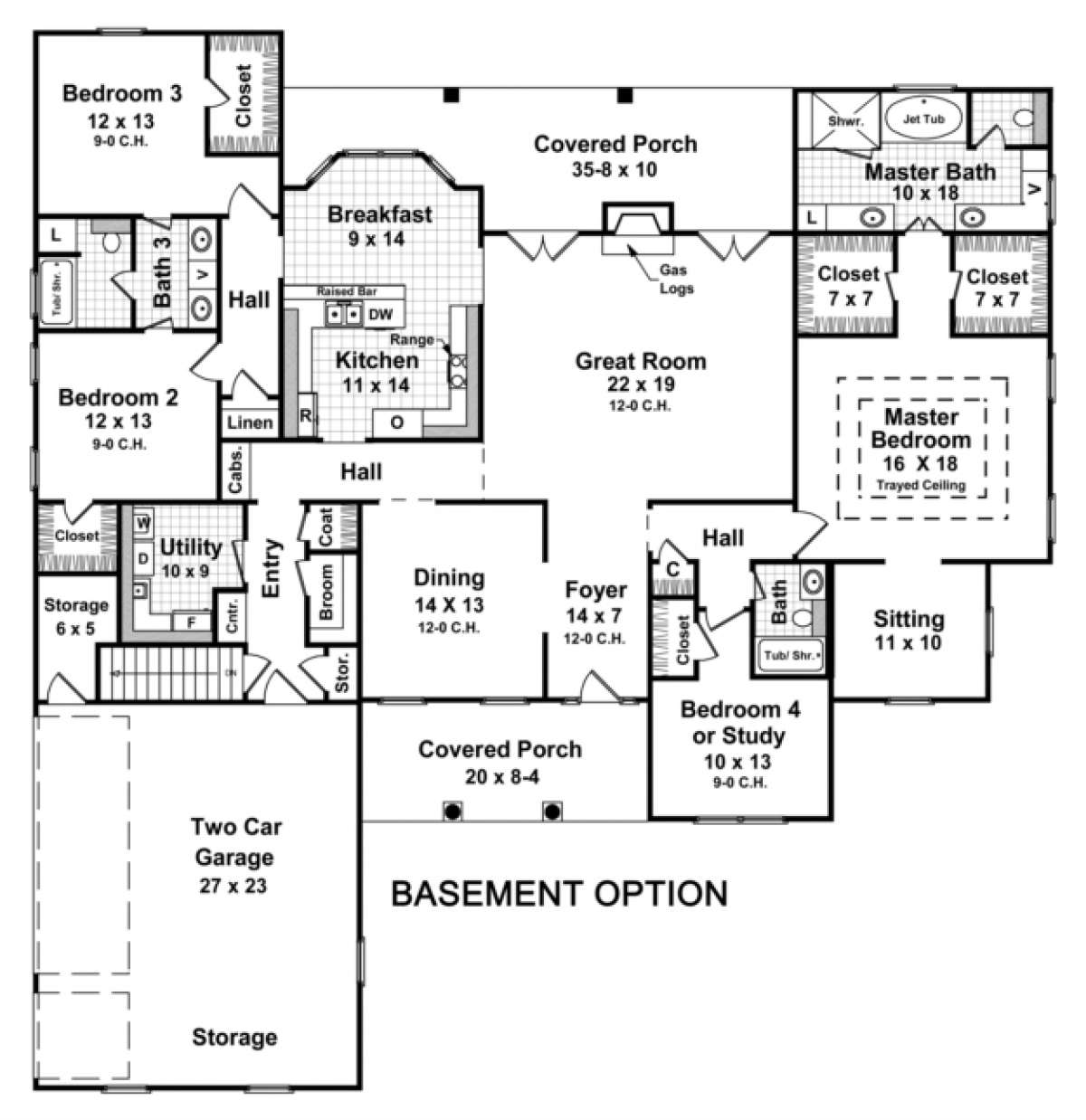

Basement Option Floor Plan
Basement Option Floor Plan for House Plan #348-00192


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

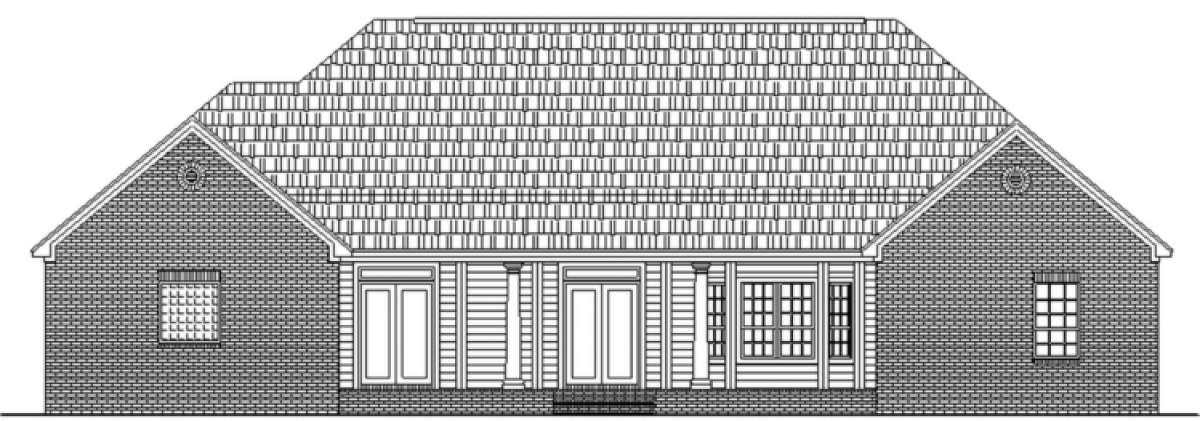

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This four bedroom, three bath home has an abundance of storage space making it perfect for a large family. There are two bedrooms with a shared hall bath including dual vanities with private access as well and walk-in closets for each bedroom. The master suite and fourth bedroom, with its own private bath, are located on the opposite side of the home making it ideal for a nursery or office space. The master suite is large with a trey ceiling and two walk-in closets leading to the master bath. The bath is quite large and includes dual vanities, a separate shower, jetted tub, and compartmentalized toilet. The front and rear covered porches are both large and provide the backdrop for the home’s living space. The great room has a gas log fireplace and double French doors leading to the rear porch. There is a front facing, dining room and also a breakfast area which offers the homeowner both formal and informal dining options. The kitchen is large and has a raised bar area and an abundance of cabinet and counter space. The side entry, two car garage is massive and offers an option of storage for the family’s vehicles, a boat or lawn/sports equipment along with a separate storage area. Completing the home is a large utility room with space for a freezer, lots of counter space and adjacent to the utility room, you will find two large closets ideal for home maintenance supplies. This home also comes with a basement option making it a flexible and affordable house plan.
