Cottage House Plan #348-00166 Elevation Photo

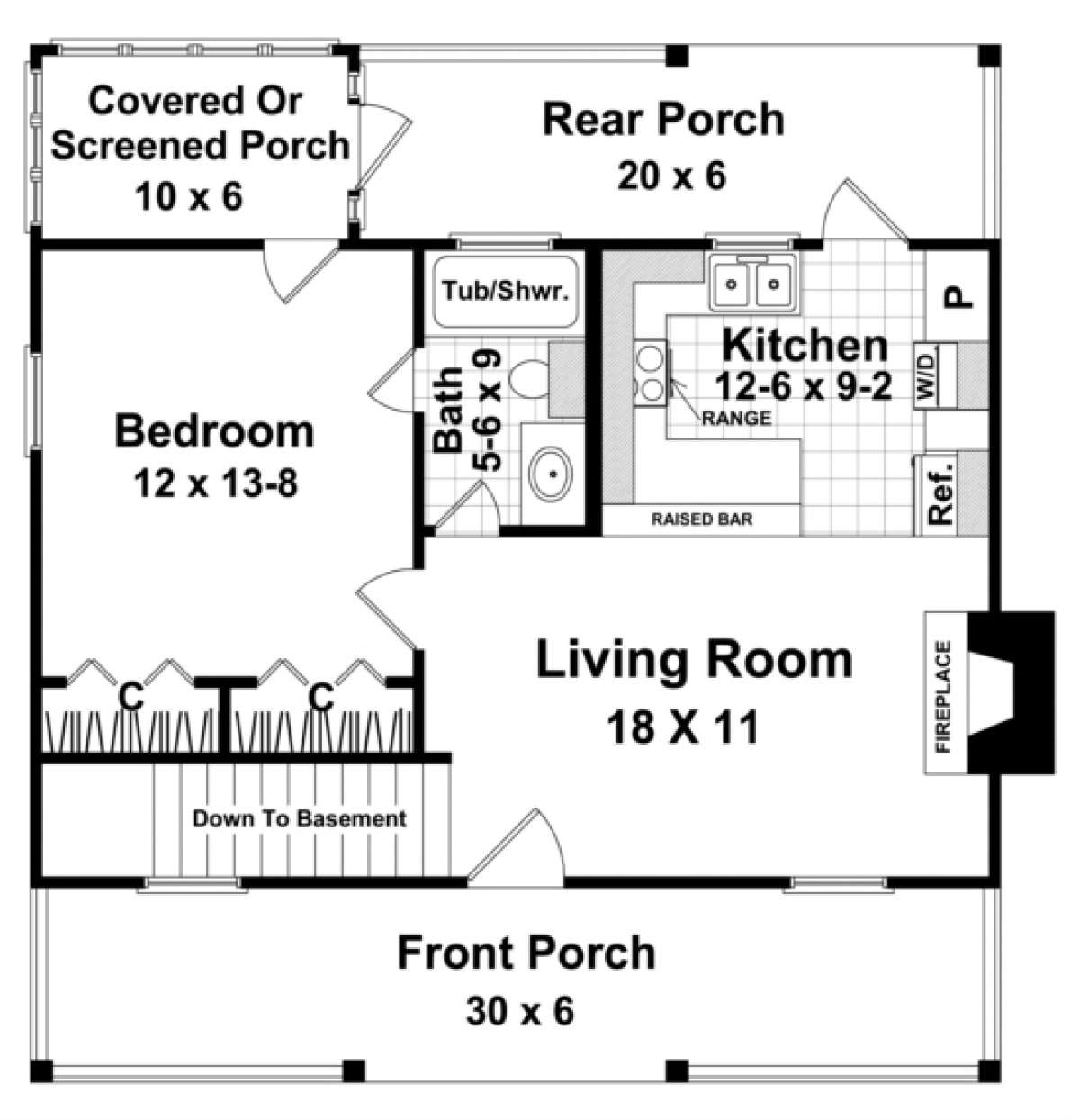

Basement Option Floor Plan for House Plan #348-00166

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 600

Beds 1

Bath 1

1/2 Baths 0

Car 0

Stories 1

Width 30'

Depth 32'

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

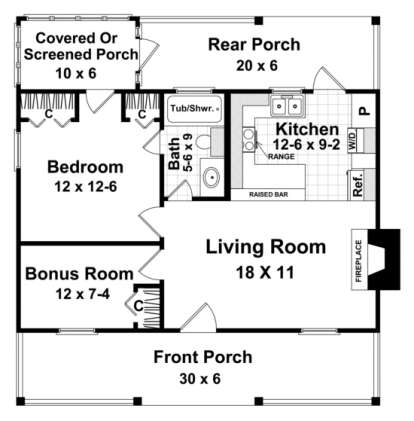

Main Floor

Basement Option Floor Plan

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Showing architectural rendering of residence.
Floor Plan(s)
In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
Foundation Plan and Details
Each house plan set includes one foundation type.
Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
Foundation types typically offered: (each type may or may not be available for a given design)
-Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
-Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
-Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
Electrical Plan with electrical symbols legend
In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof Drainage Plan
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations
Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
License to Build
Each set of construction plans include ONE license to build.
If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
Plans include relevant building sections and details.

Ask Us A Question

About This Plan

This Cottage house plan has an abundance of character and charm and offers highly desirable features in a vacation home. The home’s floor plan captures the imagination and is ideal for a beach, lake or mountain view setting with its outstanding outdoor space and wonderful window views. The exterior façade of the home is brimming with aesthetically pleasing architectural design elements featuring an expansive front covered porch with beam supports and open railing, an exterior brick chimney accent, and a simple gabled roof. The approximate 600 square foot home incorporates one bedroom and one bath into the floor plan; however, in addition to a slab and crawl space foundation, the home’s drawings include a basement foundation for further expansion possibilities. The 30’ width and 32’ depth makes this the ideal home for a small or narrow lot increasing the home’s versatility. There is a large living room with either a wood-burning or gas log fireplace designed for comfortable year-round living. A flex space is located off the bonus room and could be used as an additional entertaining space or sleeping quarters. The complete kitchen sits at the rear of the home and is open to the living room; there is a peninsula bar for casual dining, a separate pantry, plenty of additional counter and cabinet space along with access to the rear porch. This additional outdoor space adjoins to another covered porch or screened-in porch providing a plethora of outdoor living and dining spaces. The spacious bedroom features double closets, private access to the screened porch and bathroom which contains a large vanity, toilet area, and a tub/shower combination. There is an alternate floor plan which includes a larger bedroom layout and a lower level staircase to the basement. This Cottage home offers a fully functional and comfortable “home away from home” where modern amenities and conveniences are cleverly designed into the floor plan.
